Turn Signal Flasher: Testing and Inspection

ON-VEHICLE INSPECTION




1. INSPECT TURN SIGNAL FLASHER ASSEMBLY

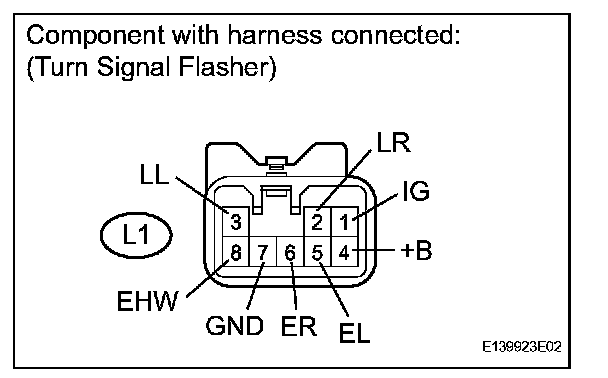

a. Disconnect the L1 flasher connector.




b. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the turn signal flasher.

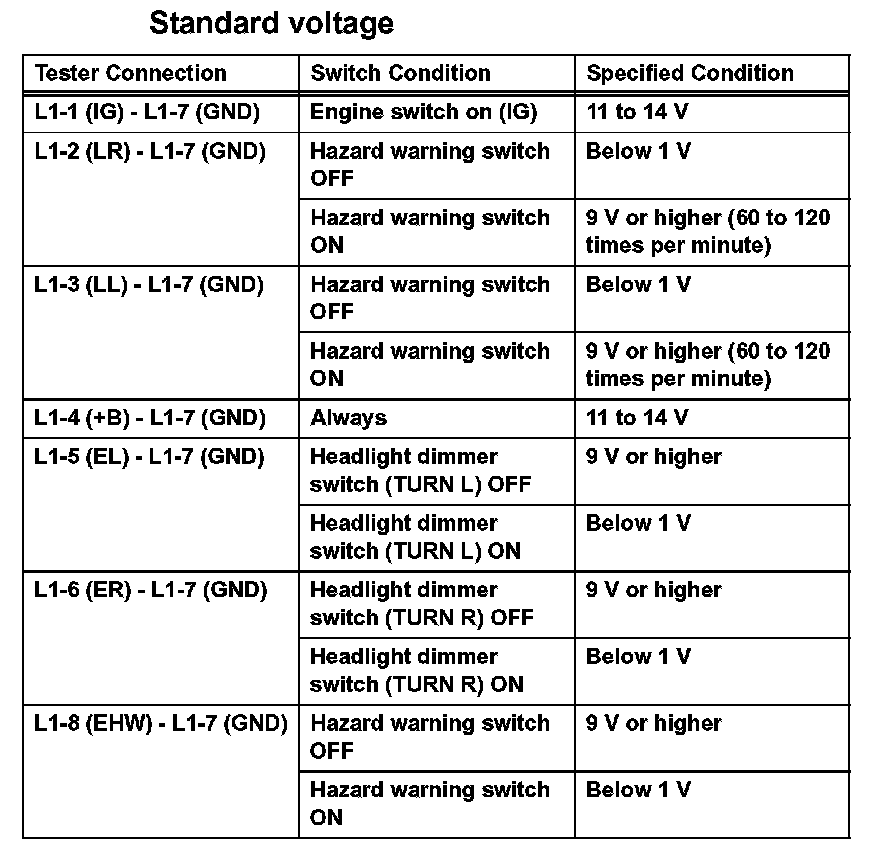

c. Measure the voltage according to the value(s) in the table.
