Turn Signal Flasher: Service and Repair

Turn Signal Flasher Assembly:

TURN SIGNAL FLASHER ASSEMBLY

REMOVAL

1. TABLE OF BOLT, SCREW AND NUT
2. REMOVE COWL TOP VENTILATOR LOUVER RH

3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
a. Disable the AUTO TILT AWAY function by changing the customize parameter.

NOTE: Record the current customize parameter setting (whether the AUTO TILT AWAY function is enabled or disabled) in order to restore the current setting after finishing the operation.

HINT: Performing the above operation causes the AUTO TILT AWAY function to be disabled when the engine switch is turned off.

b. Turn the engine switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column.
c. Turn the engine switch off and disconnect the cable from the negative (-) battery terminal.

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

4. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
6. REMOVE SHIFT LEVER KNOB
7. REMOVE NO.3 CONSOLE BOX PANEL
8. REMOVE CONSOLE PANEL UPPER REAR
9. REMOVE CONSOLE PANEL UPPER
10. REMOVE CONSOLE REAR END PANEL
11. REMOVE CONSOLE COVER LOWER
12. REMOVE CONSOLE BOX ASSEMBLY
13. REMOVE SWITCH & VOLUME CASE

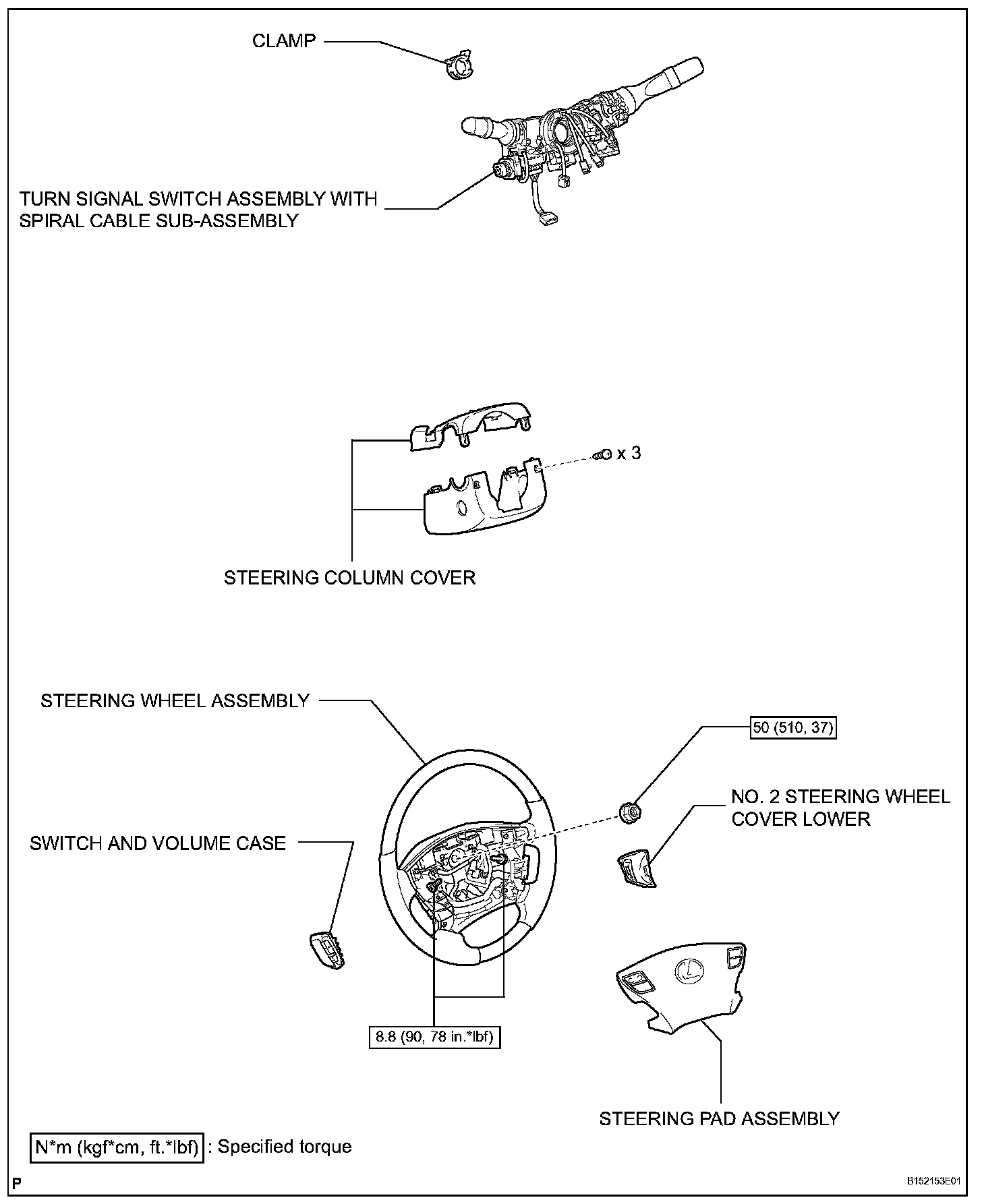

14. REMOVE NO.2 STEERING WHEEL COVER LOWER
15. REMOVE STEERING WHEEL PAD
16. REMOVE STEERING WHEEL ASSEMBLY
17. REMOVE STEERING COLUMN COVER
18. REMOVE TURN SIGNAL SWITCH ASSEMBLY W/ SPIRAL CABLE

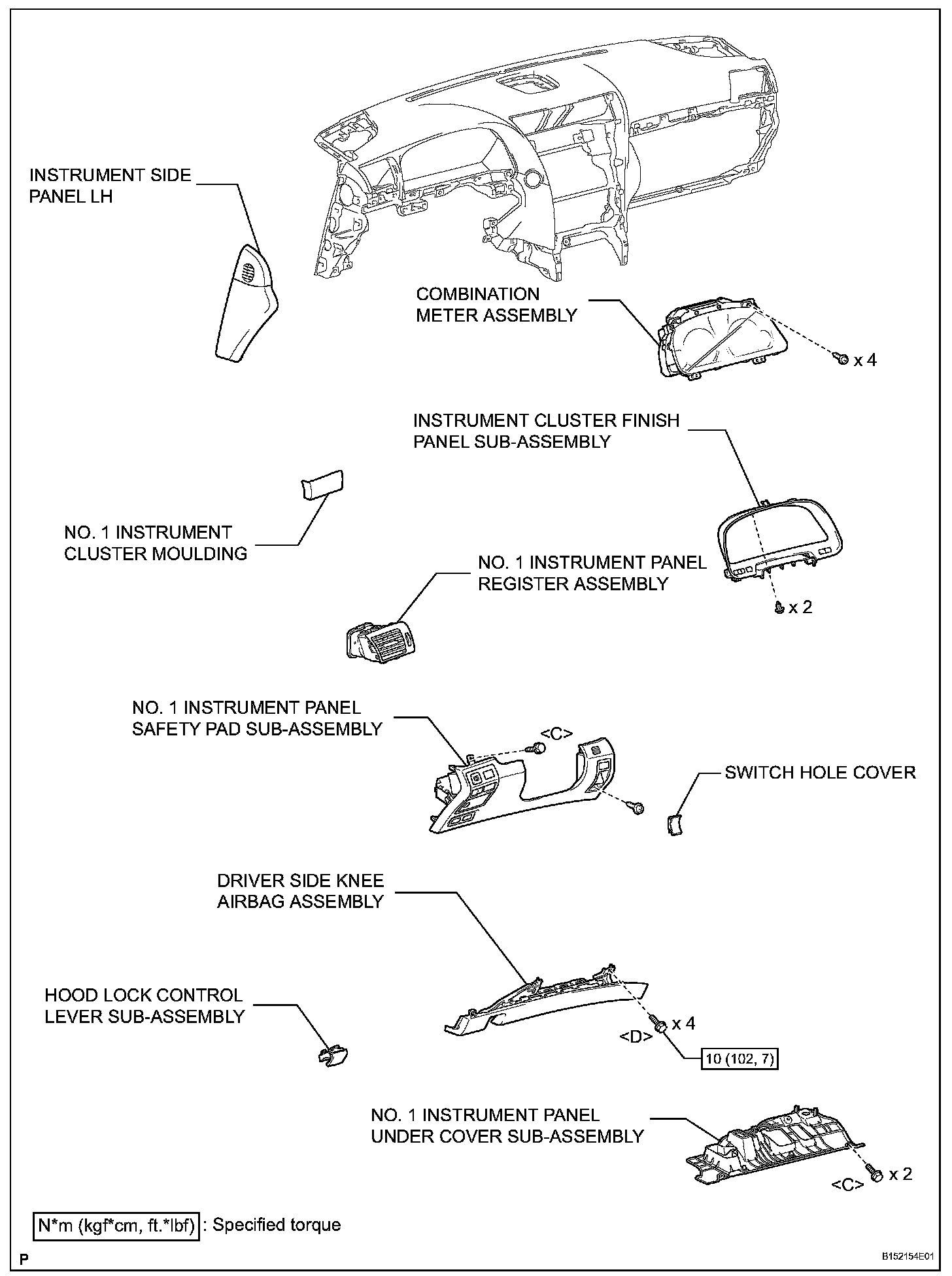

19. REMOVE INSTRUMENT CLUSTER FINISH PANEL
20. REMOVE COMBINATION METER ASSEMBLY
21. REMOVE INSTRUMENT SIDE PANEL LH
22. REMOVE NO.1 INSTRUMENT CLUSTER MOULDING
23. REMOVE NO.1 INSTRUMENT PANEL UNDER COVER
24. REMOVE NO.1 INSTRUMENT PANEL SAFETY PAD
25. REMOVE NO.1 INSTRUMENT PANEL LOWER AIRBAG

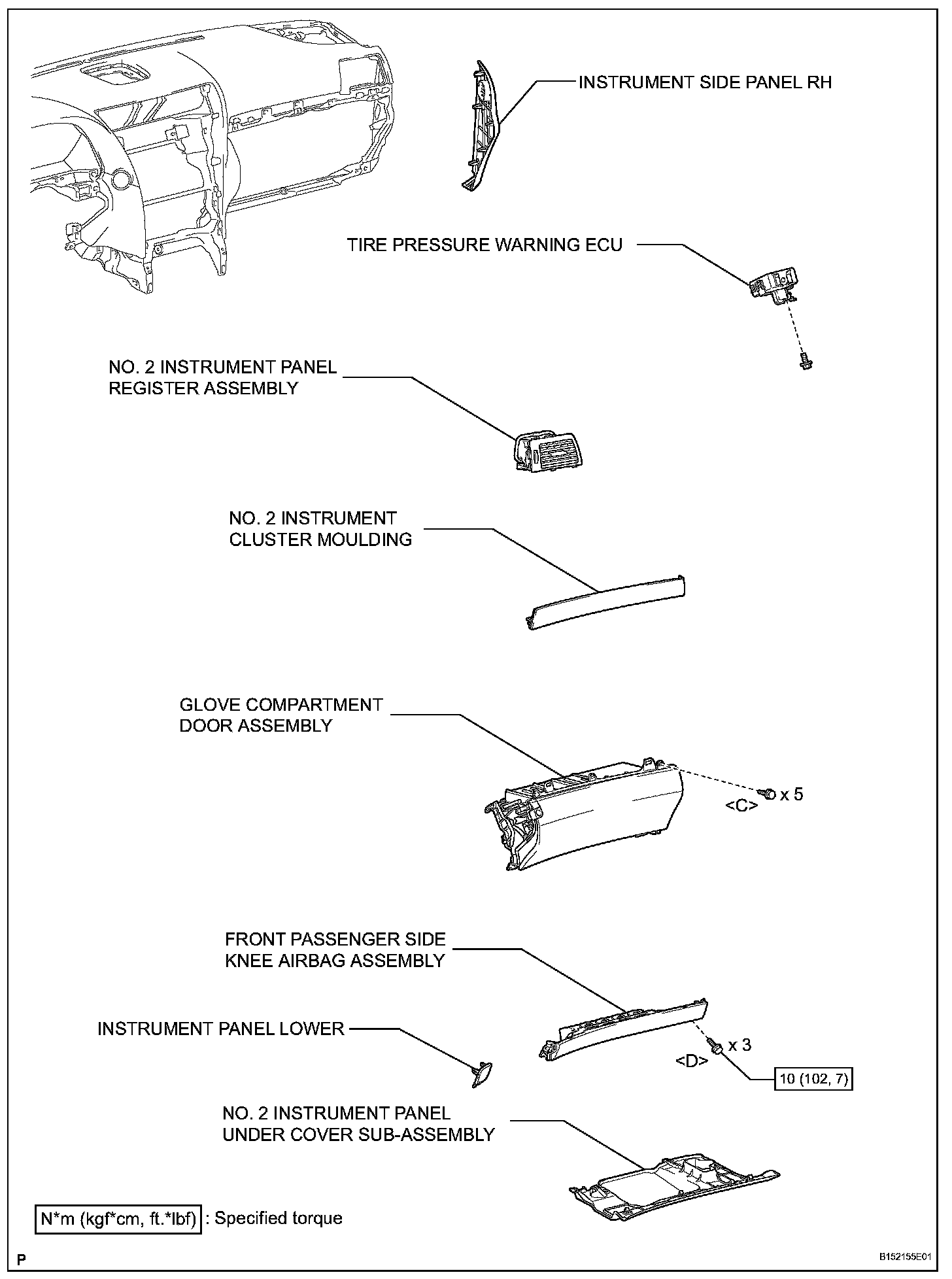

26. REMOVE INSTRUMENT SIDE PANEL RH
27. REMOVE NO.2 INSTRUMENT CLUSTER
28. REMOVE NO.2 INSTRUMENT PANEL UNDER COVER
29. REMOVE INSTRUMENT PANEL LOWER
30. REMOVE NO.2 INSTRUMENT PANEL LOWER AIRBAG
31. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

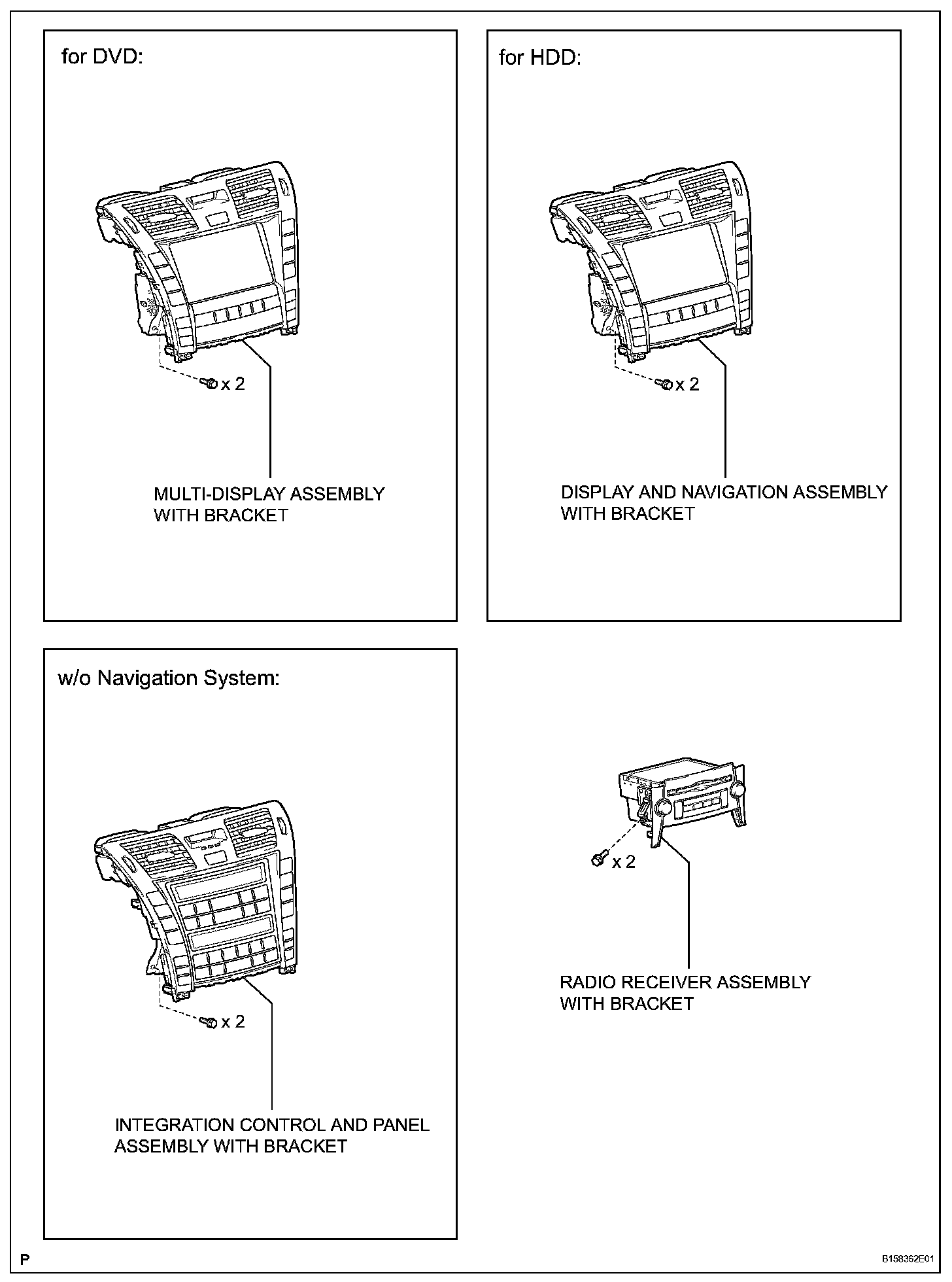

32. REMOVE RADIO RECEIVER ASSEMBLY
33. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY (w/o Multi-display)
34. REMOVE MULTI-MEDIA MODULE DISPLAY ASSEMBLY (w/ Multi-display)
35. REMOVE FRONT PILLAR GARNISH RH
36. REMOVE FRONT PILLAR GARNISH LH
37. REMOVE NO.1 INSTRUMENT PANEL SPEAKER PANEL
38. REMOVE FRONT NO.2 SPEAKER ASSEMBLY (for RH)
39. REMOVE NO.2 INSTRUMENT PANEL SPEAKER PANEL
40. REMOVE FRONT NO.2 SPEAKER ASSEMBLY (for LH)
41. REMOVE NO.1 SPEAKER HOLE COVER
42. REMOVE FRONT NO.3 SPEAKER ASSEMBLY
43. REMOVE NO.1 INSTRUMENT PANEL REGISTER ASSEMBLY
44. REMOVE NO.2 INSTRUMENT PANEL REGISTER ASSEMBLY
45. REMOVE INSTRUMENT PANEL SAFETY PAD

46. REMOVE TURN SIGNAL FLASHER ASSEMBLY
a. Detach the clip.
b. Disconnect the connector and remove the turn signal flasher.

INSTALLATION

1. INSTALL TURN SIGNAL FLASHER ASSEMBLY
a. Connect the connector.
b. Attach the clip and install the turn signal flasher.

2. INSTALL INSTRUMENT PANEL SAFETY PAD
3. INSTALL NO.2 INSTRUMENT PANEL REGISTER
4. INSTALL NO.1 INSTRUMENT PANEL REGISTER
5. INSTALL FRONT NO.3 SPEAKER ASSEMBLY
6. INSTALL NO.1 SPEAKER HOLE COVER
7. INSTALL FRONT NO.2 SPEAKER ASSEMBLY (for LH)
8. INSTALL NO.2 INSTRUMENT PANEL SPEAKER PANEL
9. INSTALL FRONT NO.2 SPEAKER ASSEMBLY (for RH)
10. INSTALL NO.1 INSTRUMENT PANEL SPEAKER PANEL
11. INSTALL FRONT PILLAR GARNISH LH
12. INSTALL FRONT PILLAR GARNISH RH
13. INSTALL INTEGRATION CONTROL AND PANEL
14. INSTALL MULTI-MEDIA MODULE DISPLAY ASSEMBLY
15. INSTALL RADIO RECEIVER ASSEMBLY
16. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
17. INSTALL NO.2 INSTRUMENT PANEL LOWER AIRBAG
18. INSTALL INSTRUMENT PANEL LOWER
19. INSTALL NO.2 INSTRUMENT PANEL UNDER COVER
20. INSTALL NO.2 INSTRUMENT CLUSTER
21. INSTALL INSTRUMENT SIDE PANEL RH
22. INSTALL NO.1 INSTRUMENT PANEL LOWER AIRBAG
23. INSTALL NO.1 INSTRUMENT PANEL SAFETY PAD
24. INSTALL NO.1 INSTRUMENT PANEL UNDER COVER
25. INSTALL NO.1 INSTRUMENT CLUSTER MOULDING
26. INSTALL INSTRUMENT SIDE PANEL LH
27. INSTALL COMBINATION METER ASSEMBLY
28. INSTALL INSTRUMENT CLUSTER FINISH PANEL
29. INSTALL TURN SIGNAL SWITCH ASSEMBLY W/ SPIRAL
30. INSTALL STEERING COLUMN COVER
31. INSTALL STEERING WHEEL ASSEMBLY
32. INSTALL STEERING WHEEL PAD
33. INSTALL NO.2 STEERING WHEEL COVER LOWER
34. INSTALL SWITCH & VOLUME CASE
35. INSTALL CONSOLE BOX ASSEMBLY
36. INSTALL CONSOLE COVER LOWER
37. INSTALL CONSOLE REAR END PANEL
38. INSTALL CONSOLE PANEL UPPER
39. INSTALL CONSOLE PANEL UPPER REAR
40. INSTALL NO.3 CONSOLE BOX PANEL
41. INSTALL SHIFT LEVER KNOB
42. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
43. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
44. INSTALL CABLE TO NEGATIVE BATTERY TERMINAL

NOTE: Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter.

45. INSTALL COWL TOP VENTILATOR LOUVER RH

46. INSPECT SRS WARNING LIGHT
a. Check the SRS warning light.

47. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal
