Overhaul

DISASSEMBLY

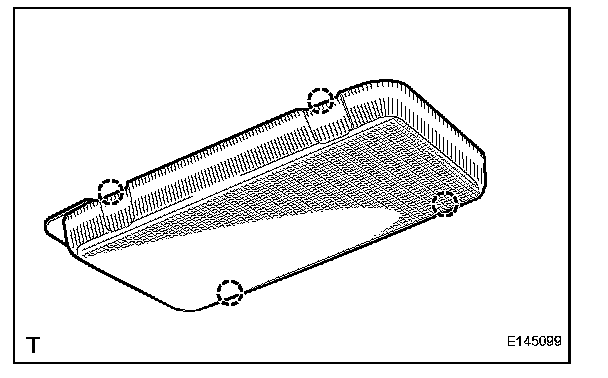

1. REMOVE LUGGAGE COMPARTMENT LIGHT LENS
a. Using a screwdriver, detach the 4 claws and remove the luggage compartment light lens.

HINT: Tape the screwdriver tip before use.

2. REMOVE LUGGAGE COMPARTMENT LIGHT BULB
a. Remove the luggage compartment light bulb.

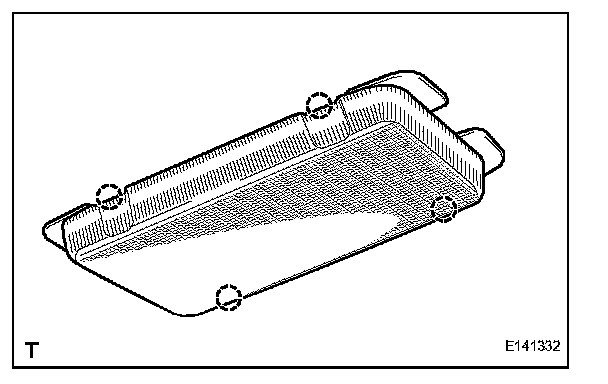

3. REMOVE NO.2 COURTESY LIGHT LENS
a. Using a screwdriver, detach the 4 claws and remove the NO.2 courtesy light lens.

HINT: Tape the screwdriver tip before use.

4. REMOVE NO.2 COURTESY LIGHT BULB
a. Remove the NO.2 courtesy light bulb.

REASSEMBLY

1. INSTALL LUGGAGE COMPARTMENT LIGHT BULB
a. Install the luggage compartment light bulb.

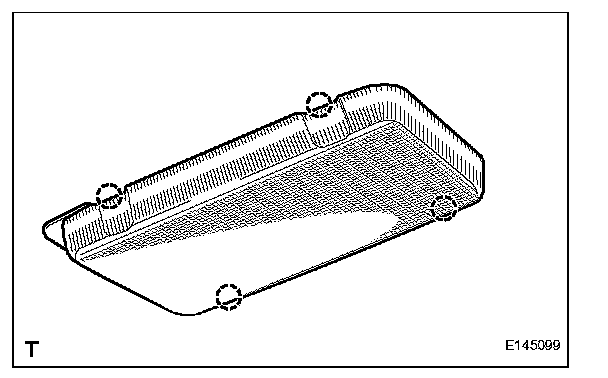

2. INSTALL LUGGAGE COMPARTMENT LIGHT LENS
a. Attach the 4 claws and install the luggage compartment light lens.

3. INSTALL NO.2 COURTESY LIGHT BULB
a. Install the NO.2 courtesy light bulb.

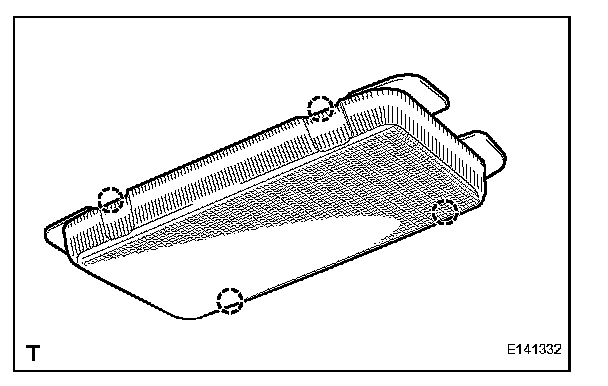

4. INSTALL NO.2 COURTESY LIGHT LENS
a. Attach the 4 claws and install the NO.2 courtesy light lens.
