Personal Light Does Not Illuminate

Personal Light does not Illuminate

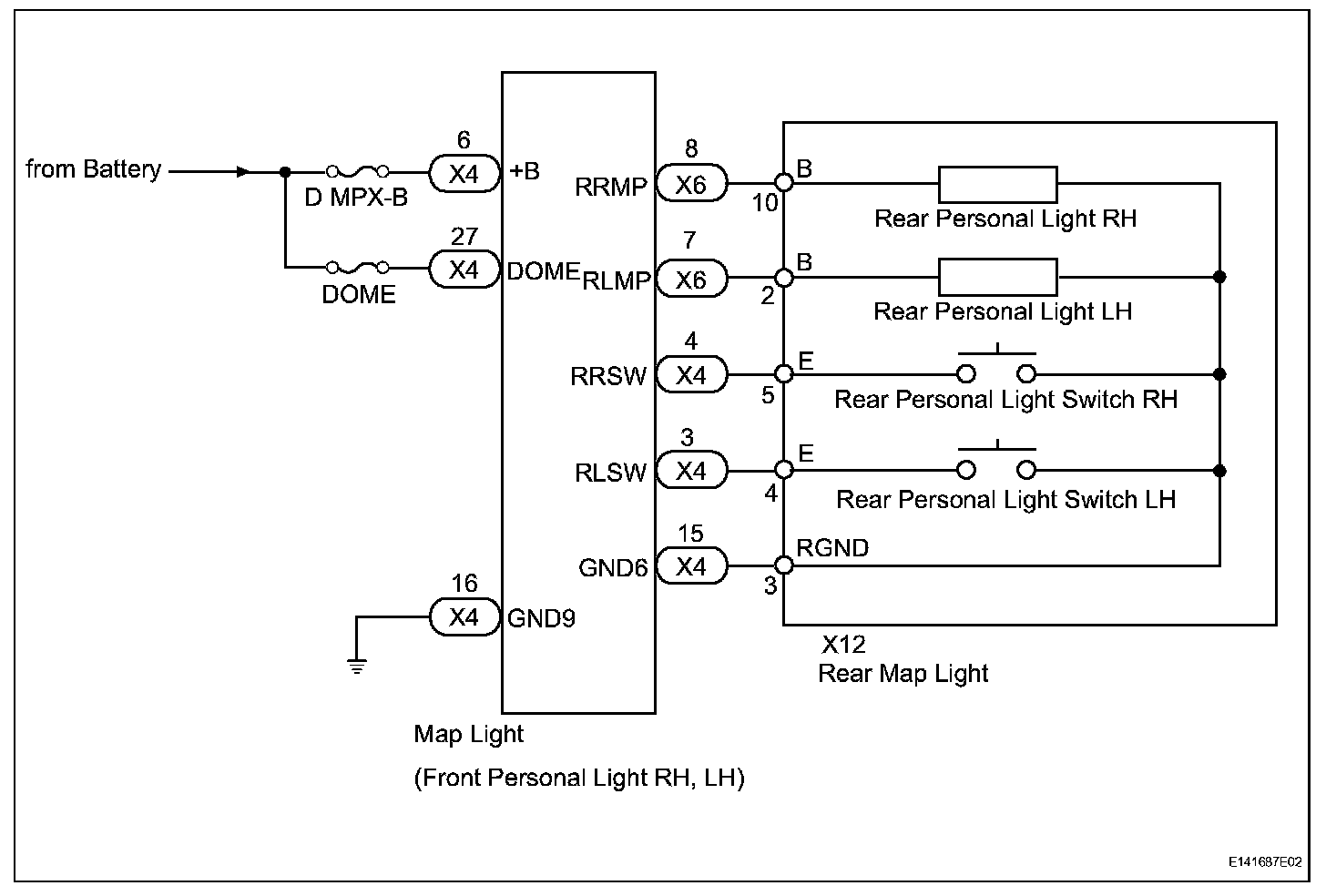

Wiring Diagram:

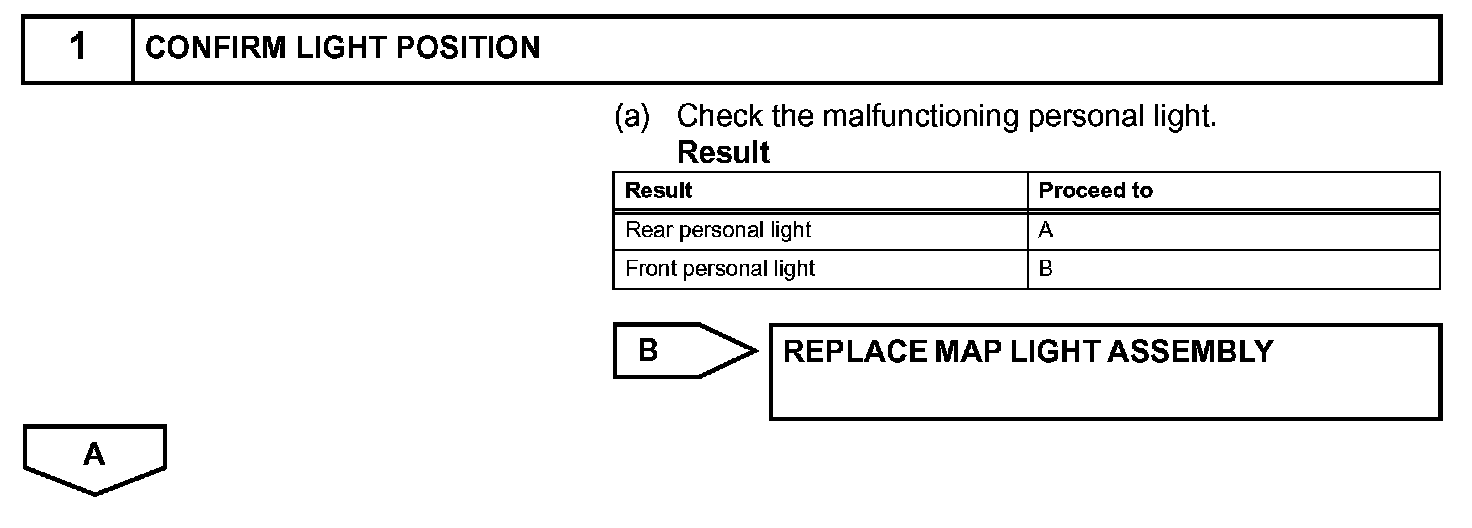

Step 1:

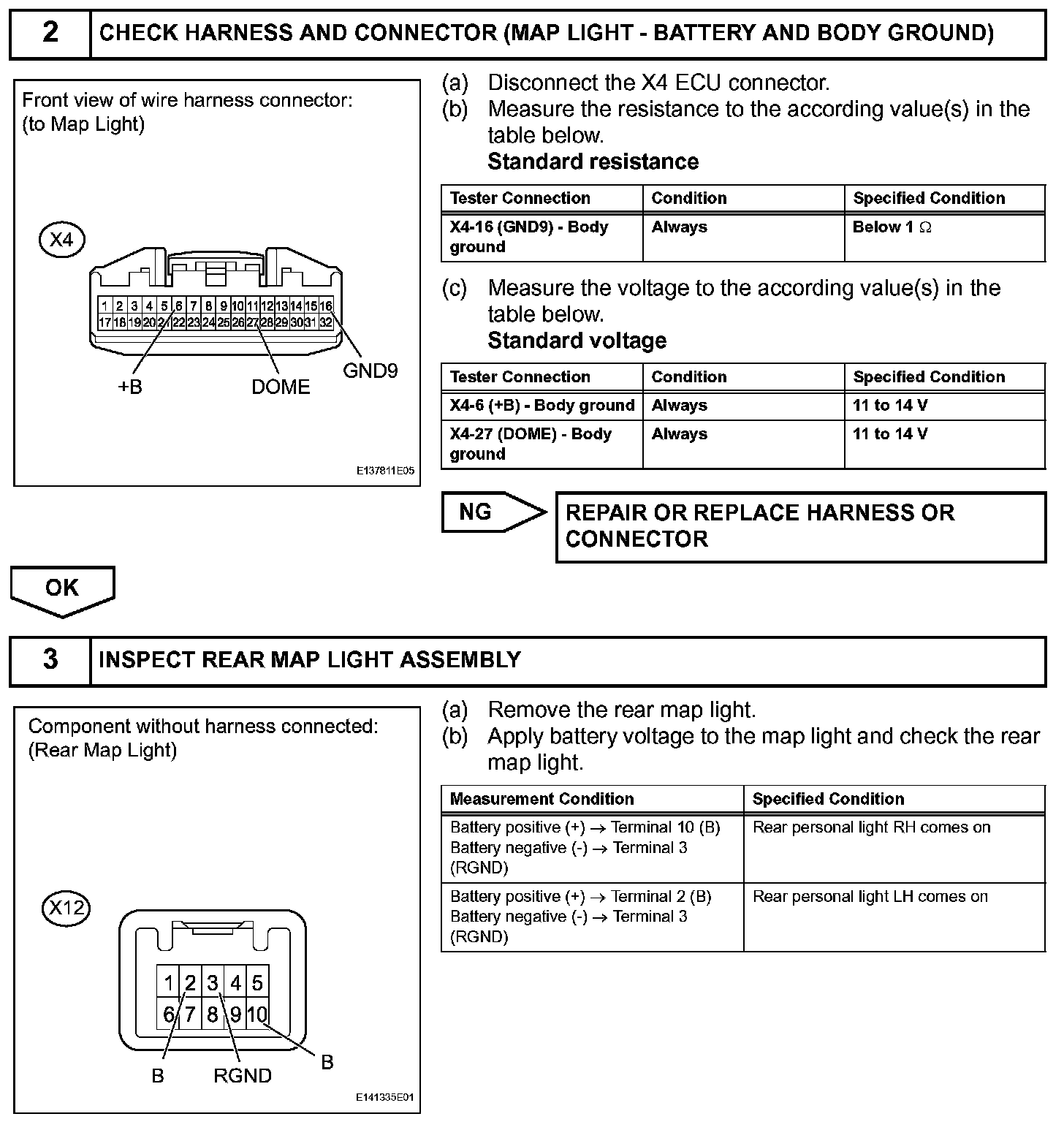

Step 2-3:

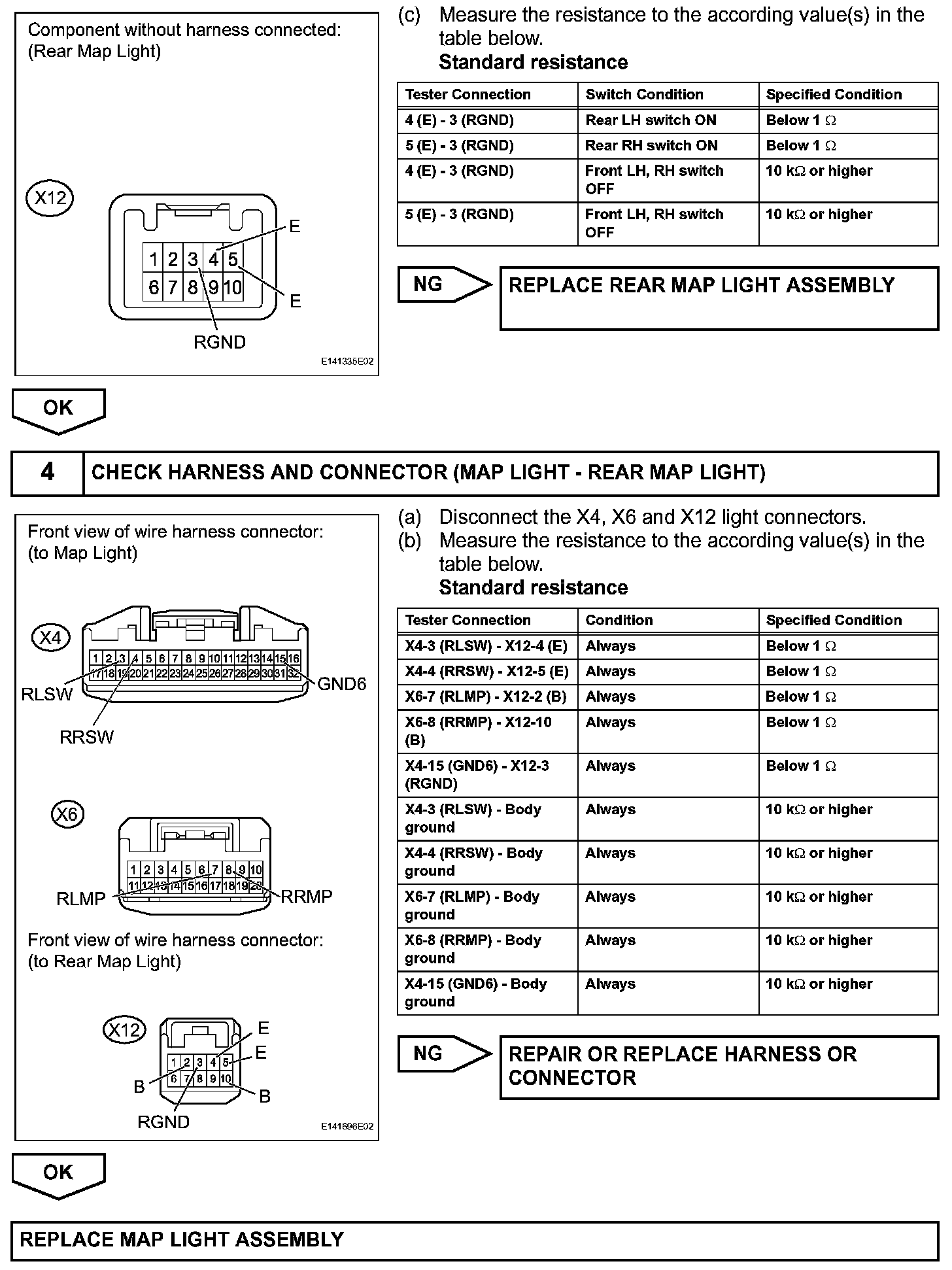

Step 3 (Continued)-4:




INSPECTION PROCEDURE
