LO-Beam Headlight Does Not Illuminate

LO-beam Headlight does not Illuminate

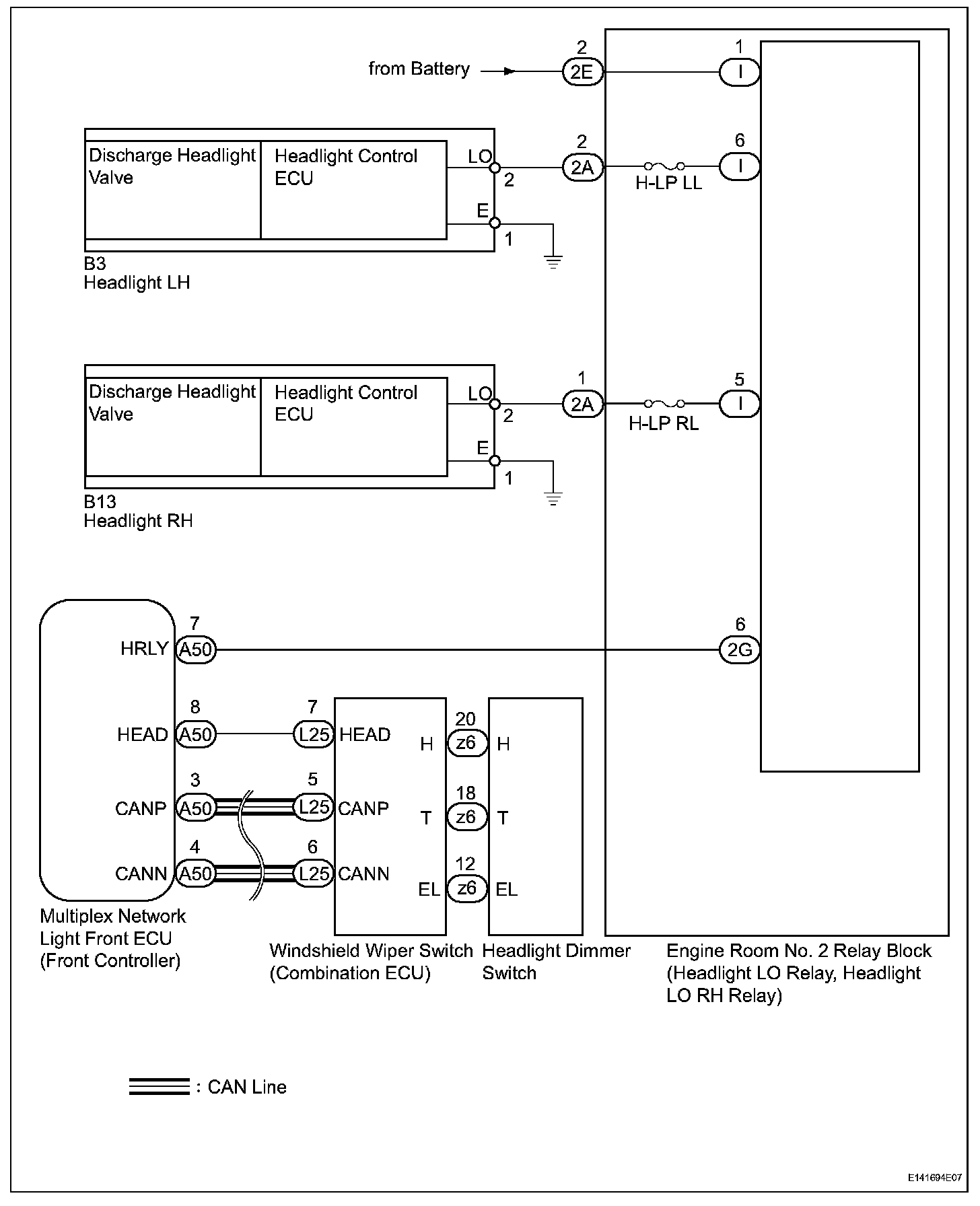

Wiring Diagram:

Step 1-2:

Step 3:

Step 4:

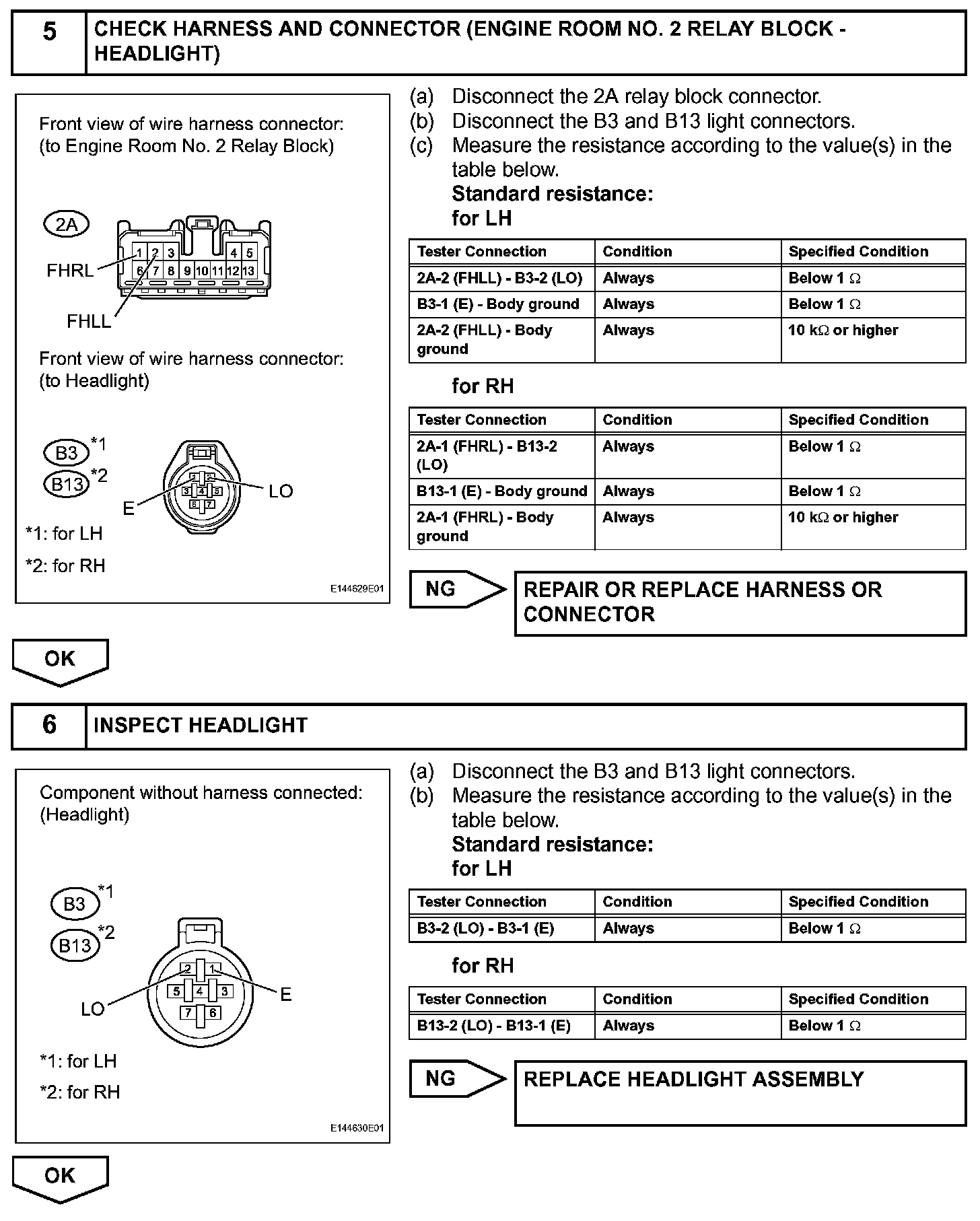

Step 5-6:

Step 7-9:

Step 9 (Continued)-10:

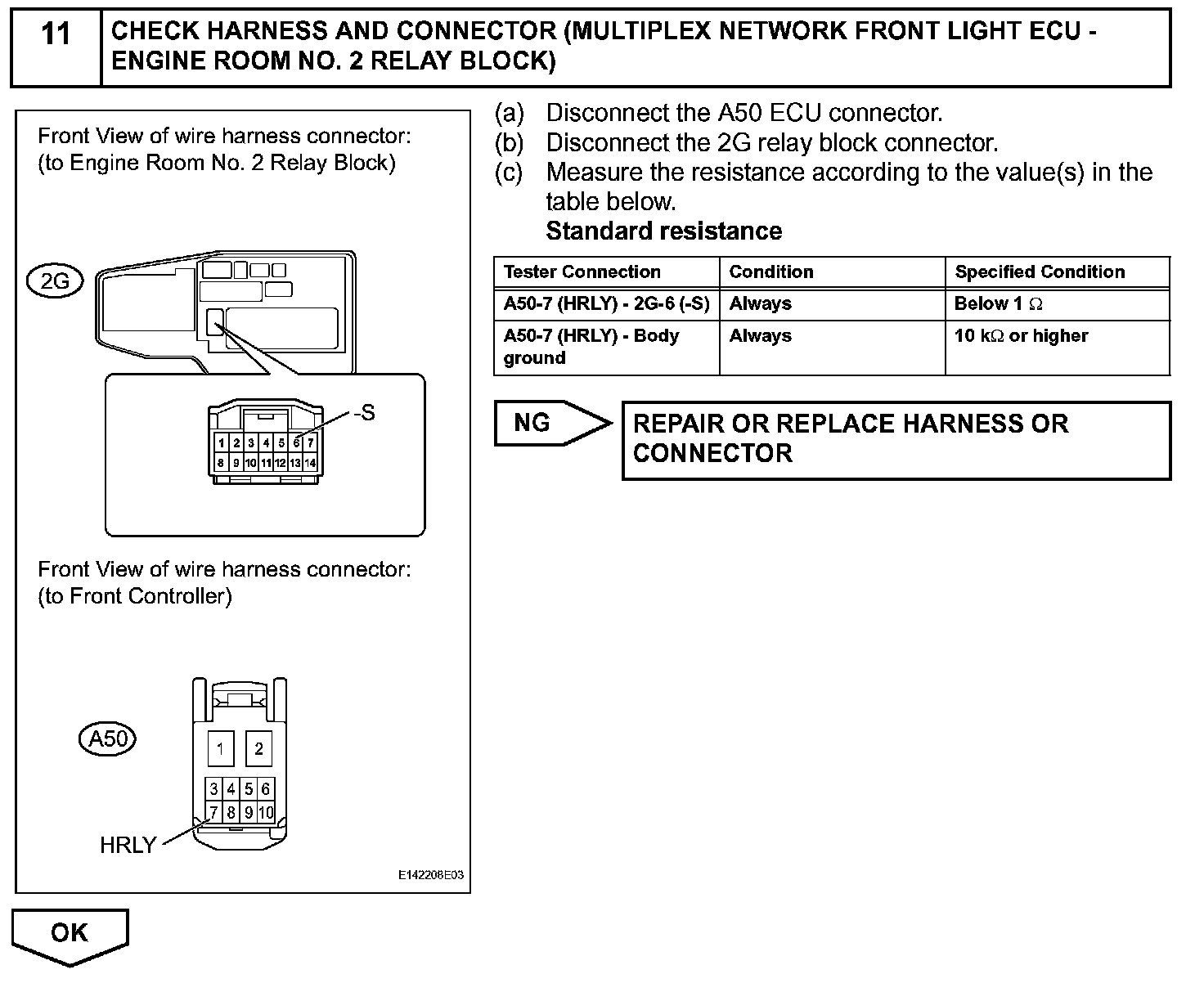

Step 11:

Step 12:

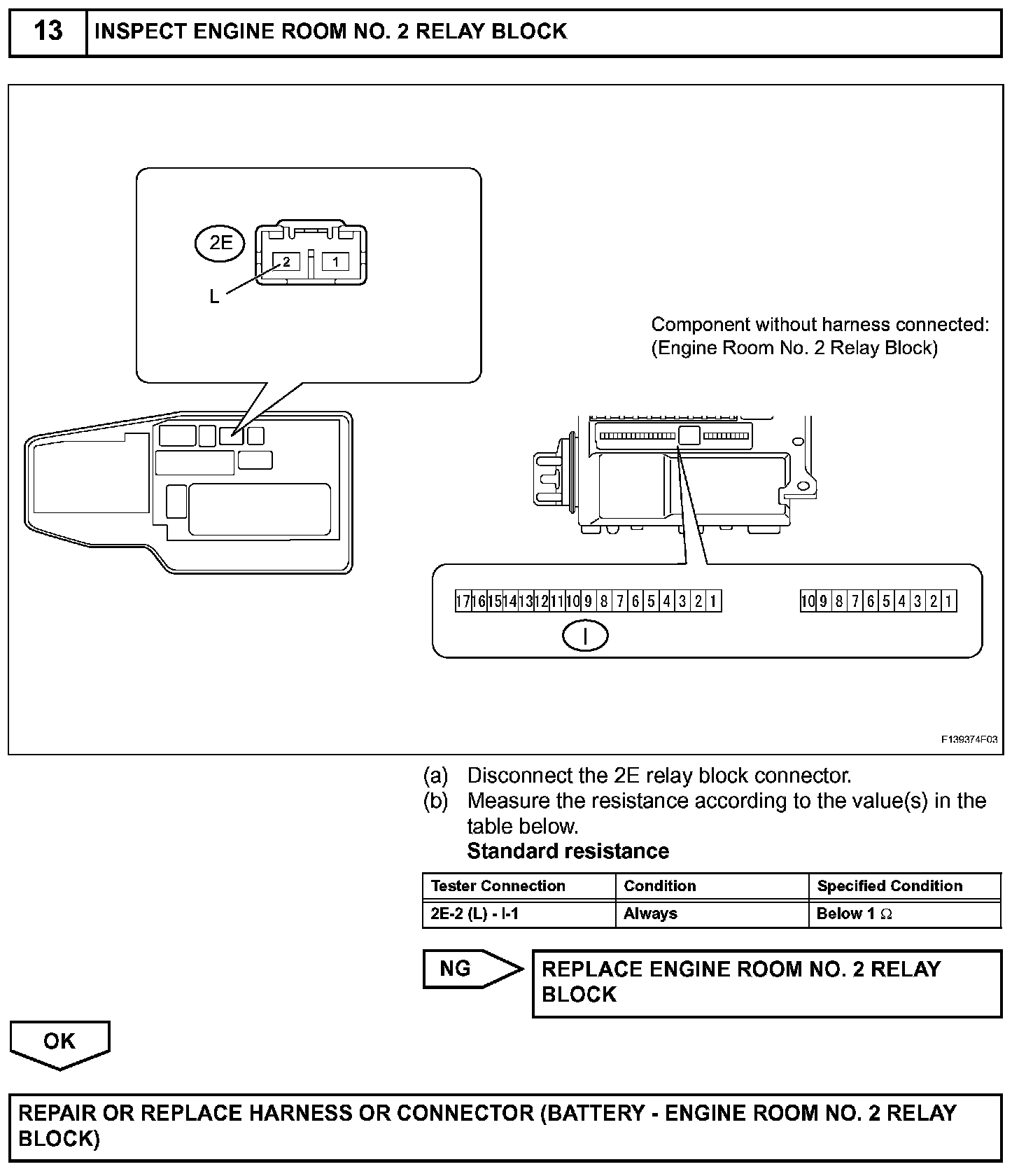

Step 13:

INSPECTION PROCEDURE

NOTE: First perform the communication function inspections in HOW TO PROCEED WITH TROUBLESHOOTING to confirm that there are no CAN communication malfunctions before troubleshooting this symptom.

HINT: If a discharge headlight bulb's condition cannot be determined through a visual check, replace with a normally functioning bulb or interchange the left and right bulbs and check its condition.
