Front Fog Light Does Not Illuminate

Front Fog Light does not Illuminate

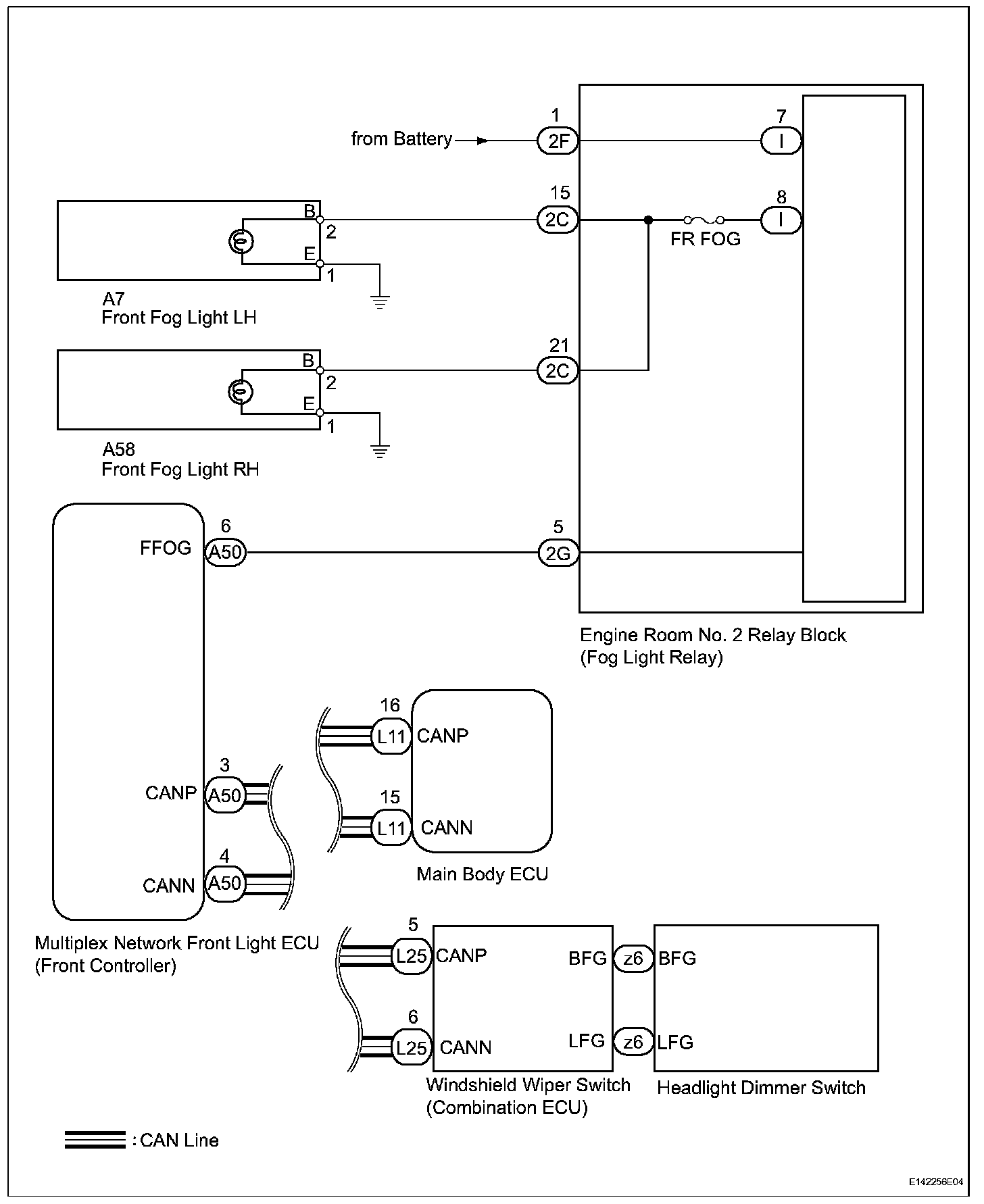

Wiring Diagram:

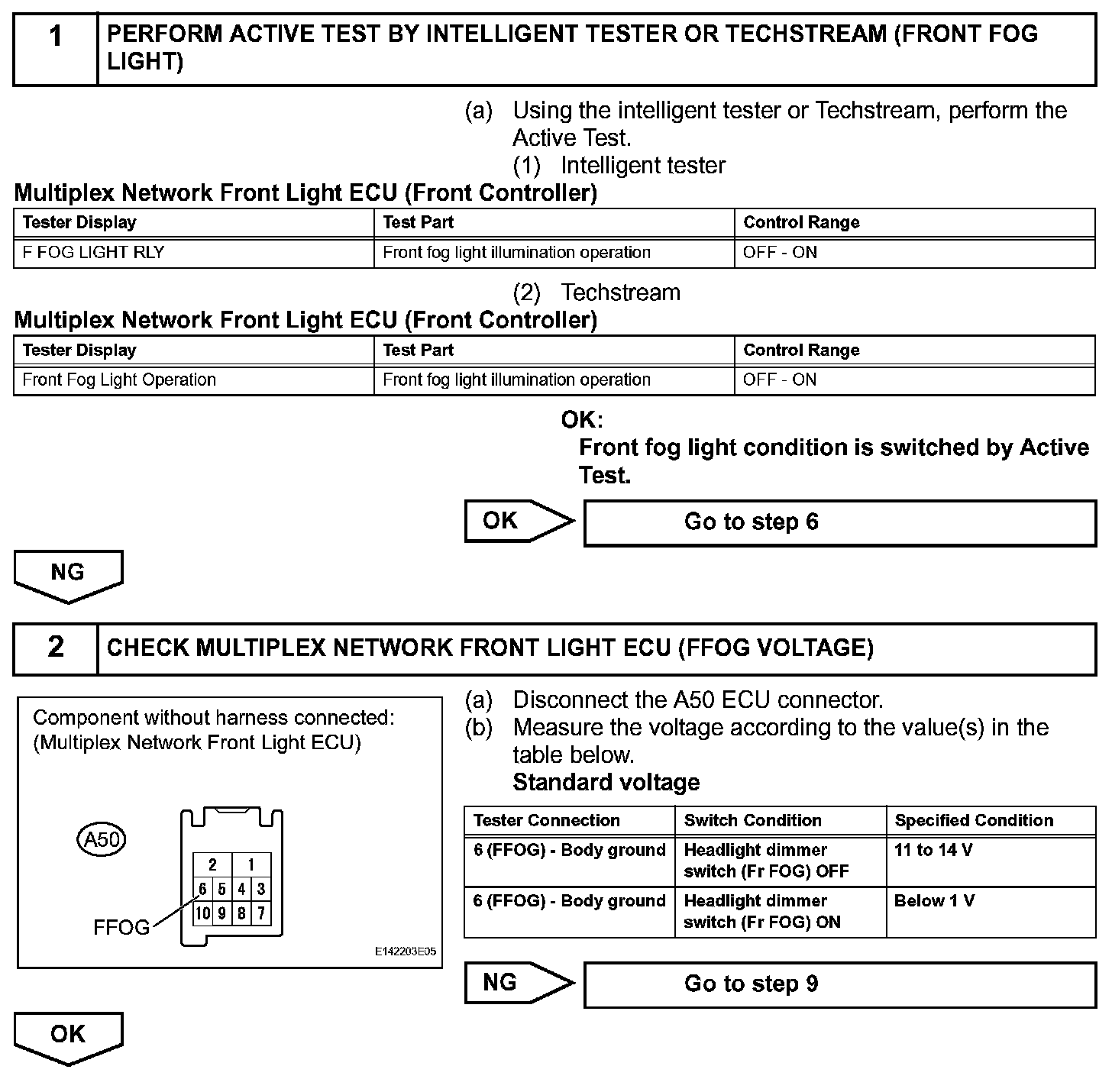

Step 1-2:

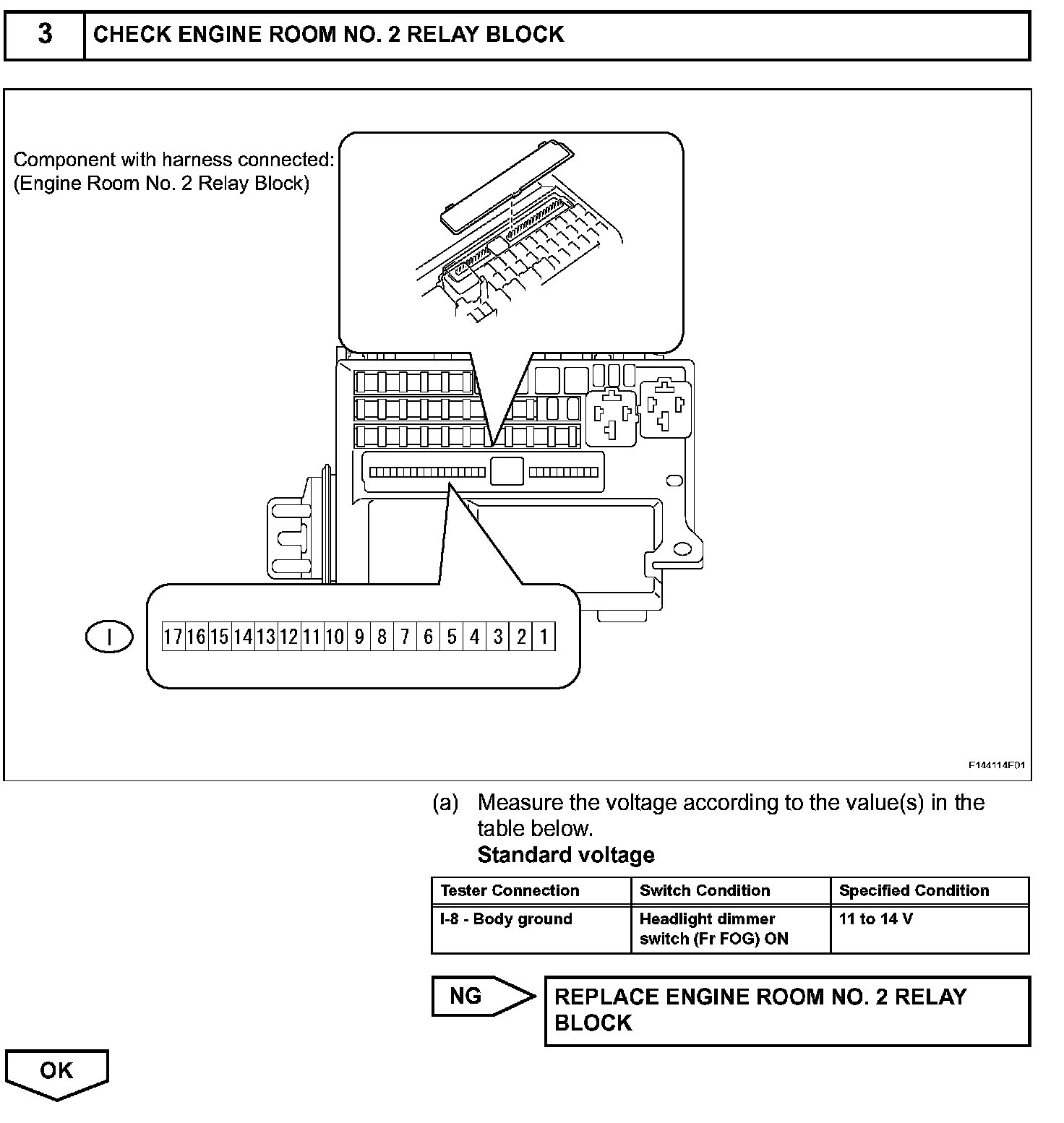

Step 3:

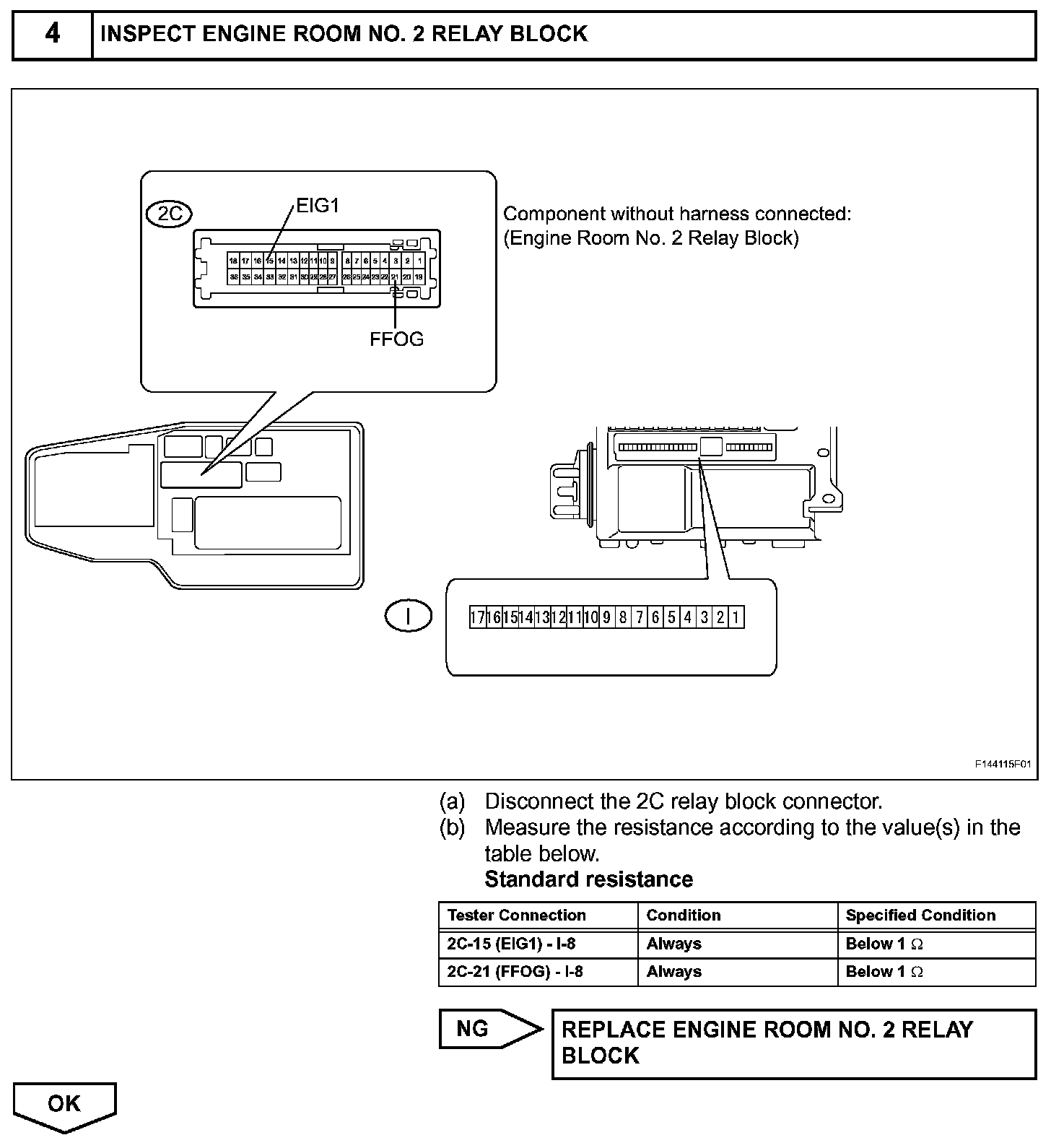

Step 4:

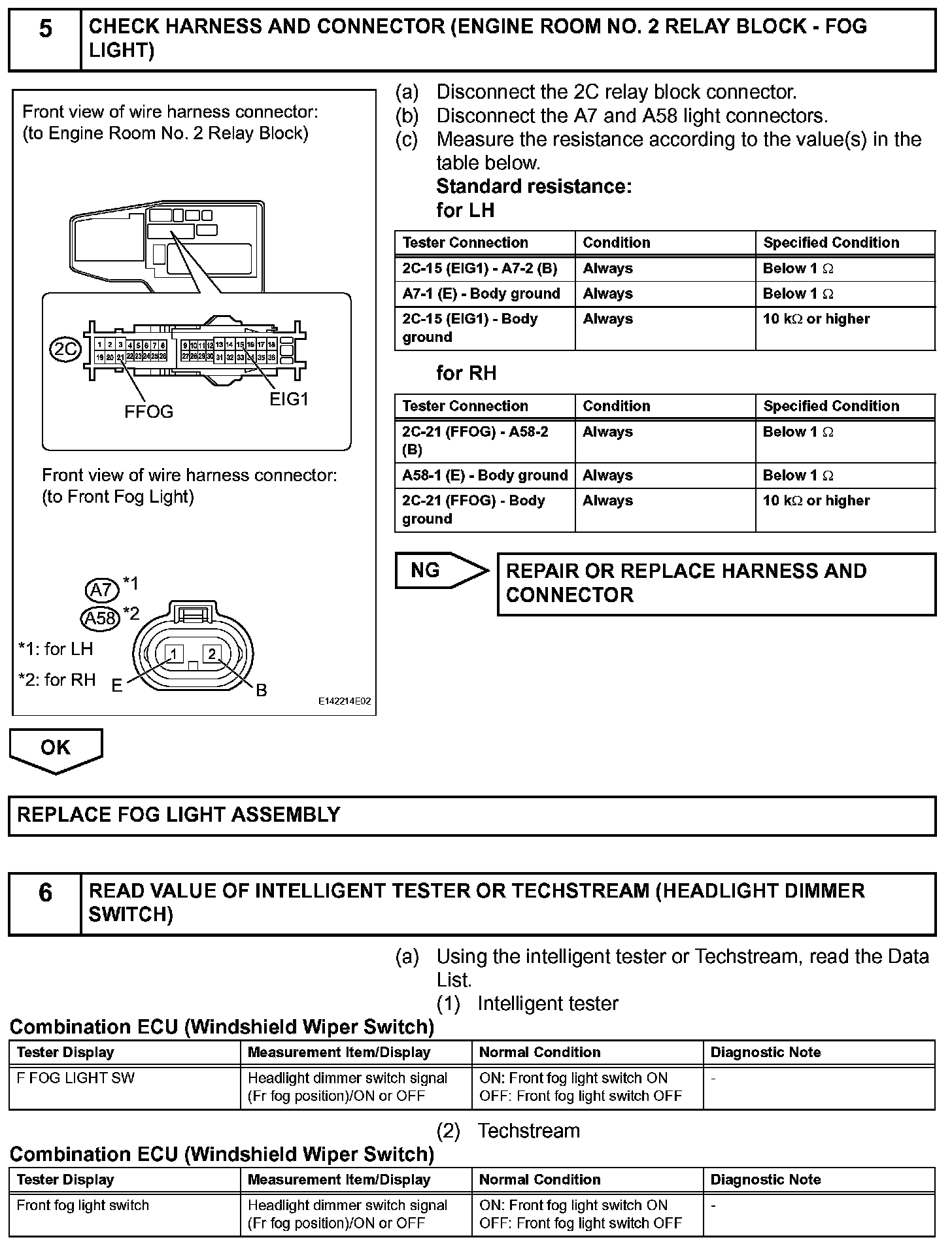

Step 5-6:

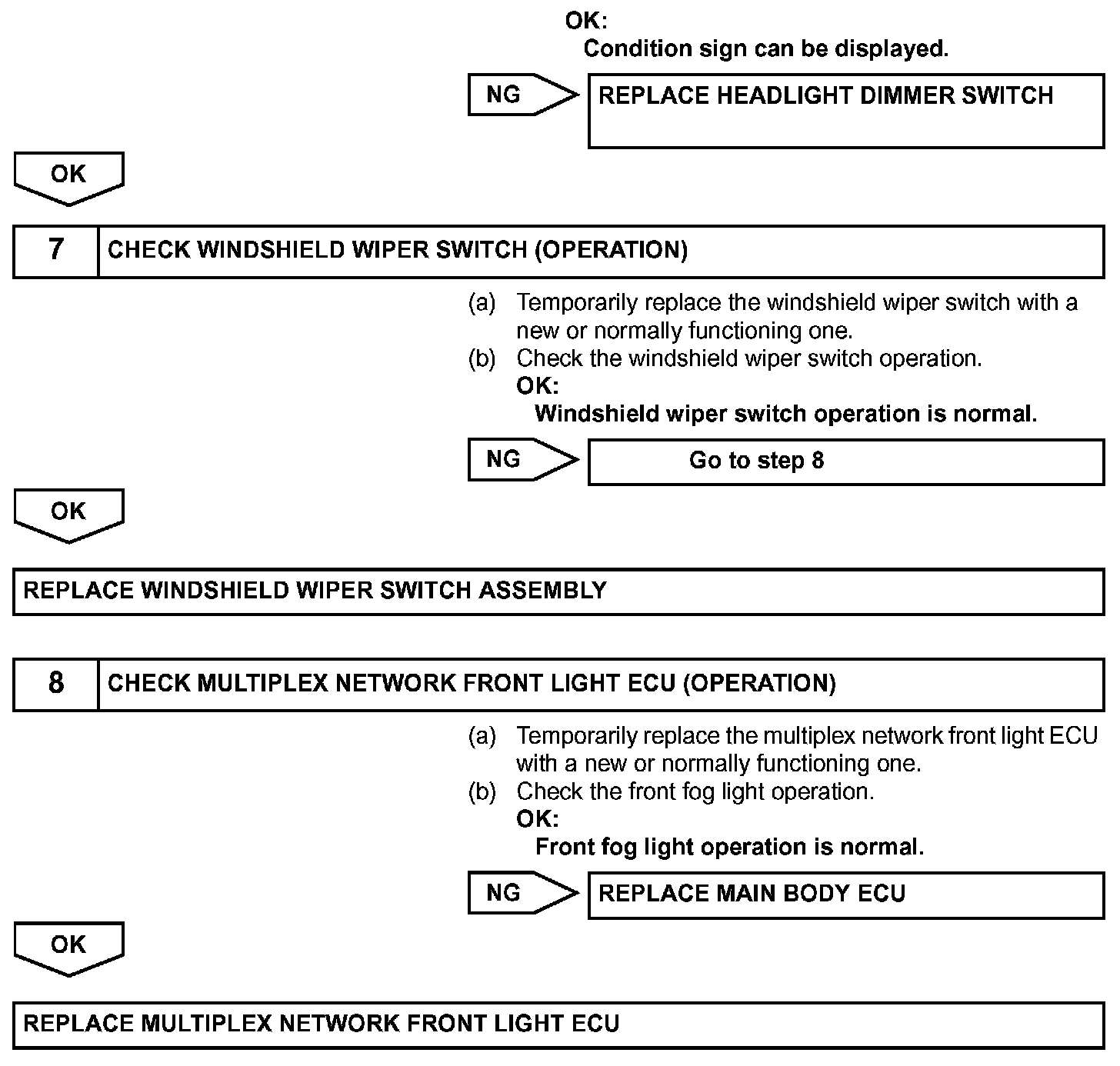

Step 6 (Continued)-8:

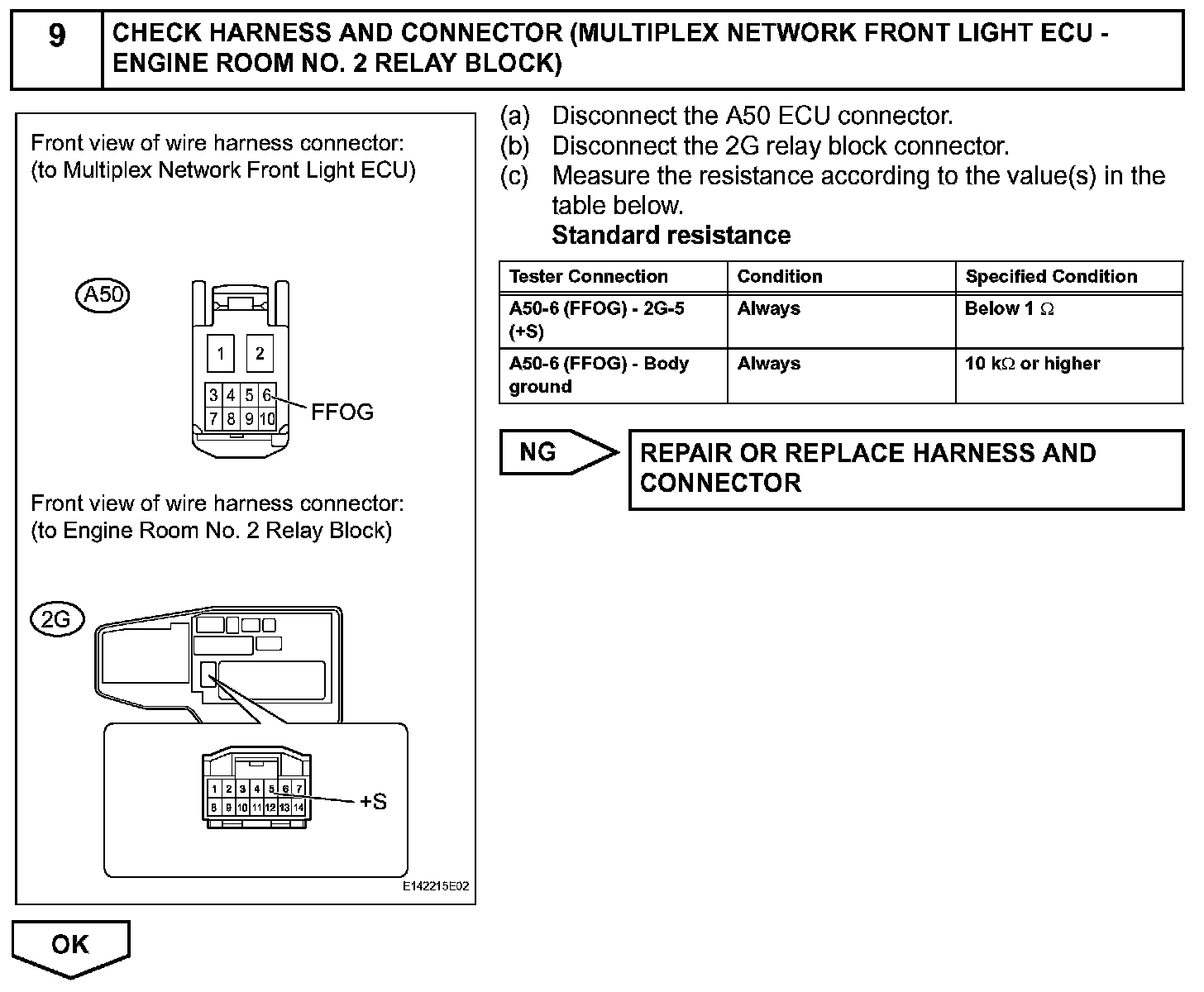

Step 9:

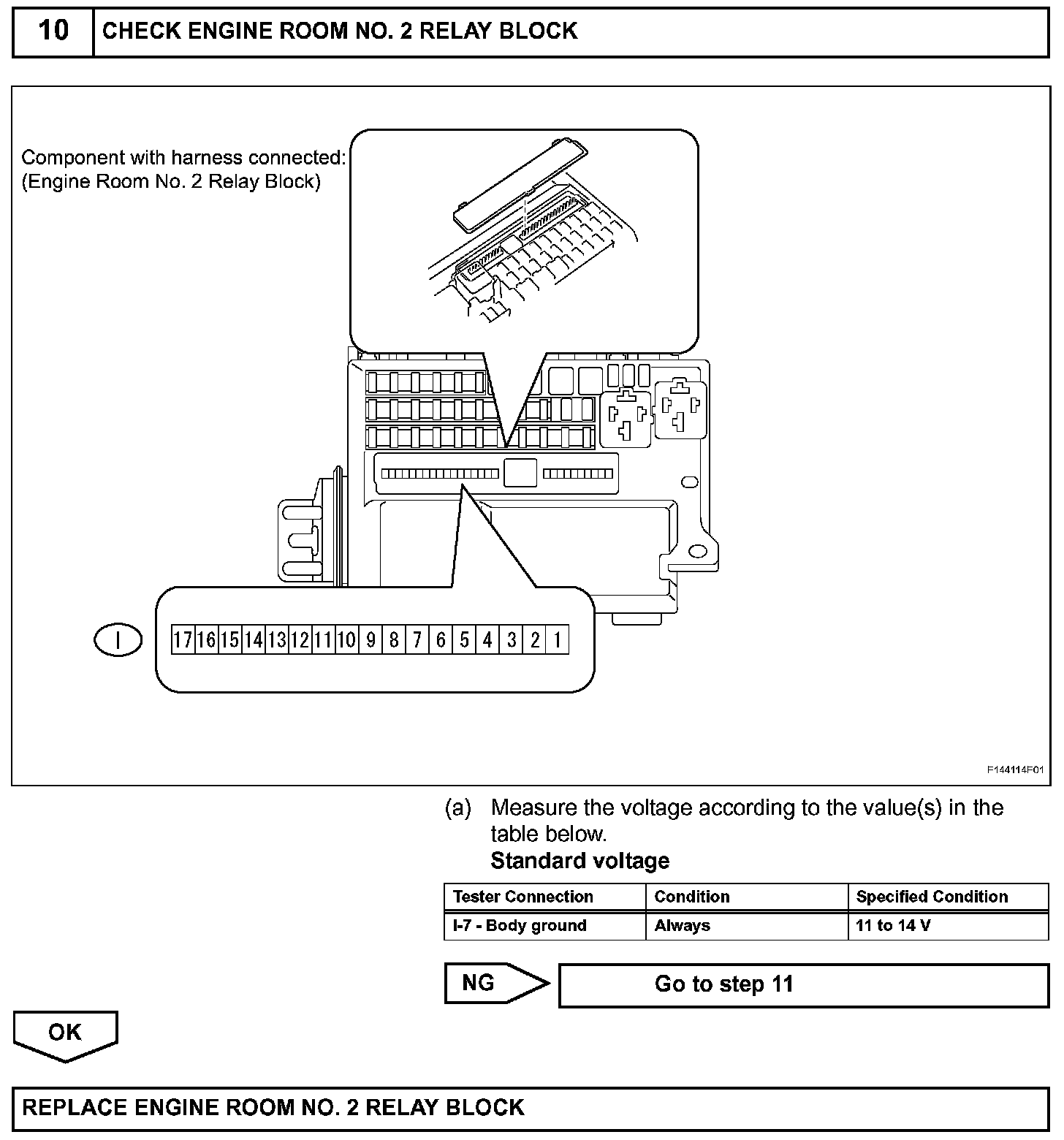

Step 10:

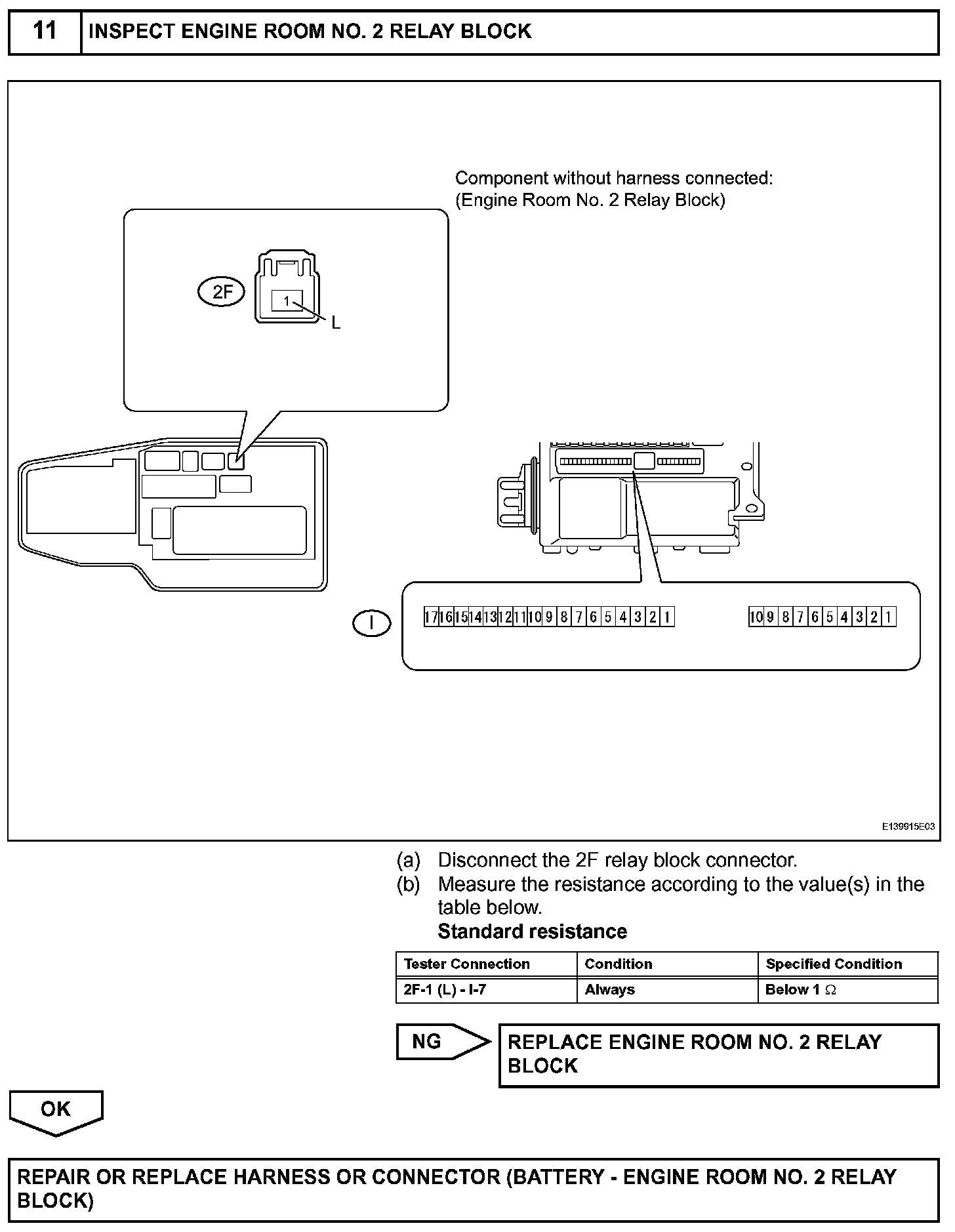

Step 11:

INSPECTION PROCEDURE

NOTE: First perform the communication function inspections in HOW TO PROCEED WITH TROUBLESHOOTING to confirm that there are no CAN communication malfunctions before troubleshooting this symptom.
