Automatic Light Control Function Does Not Operate

Automatic Light Control Function does not Operate

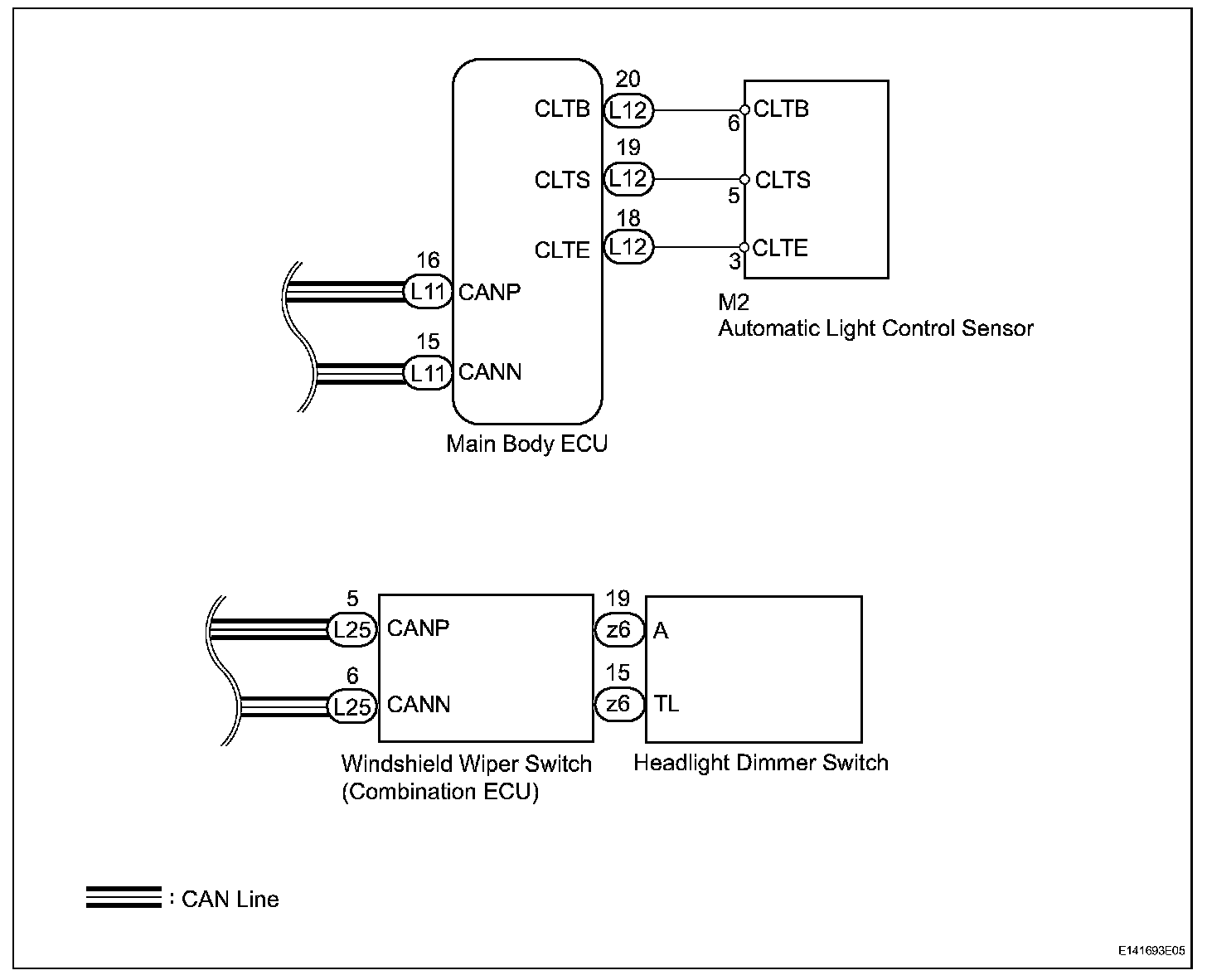

Wiring Diagram:

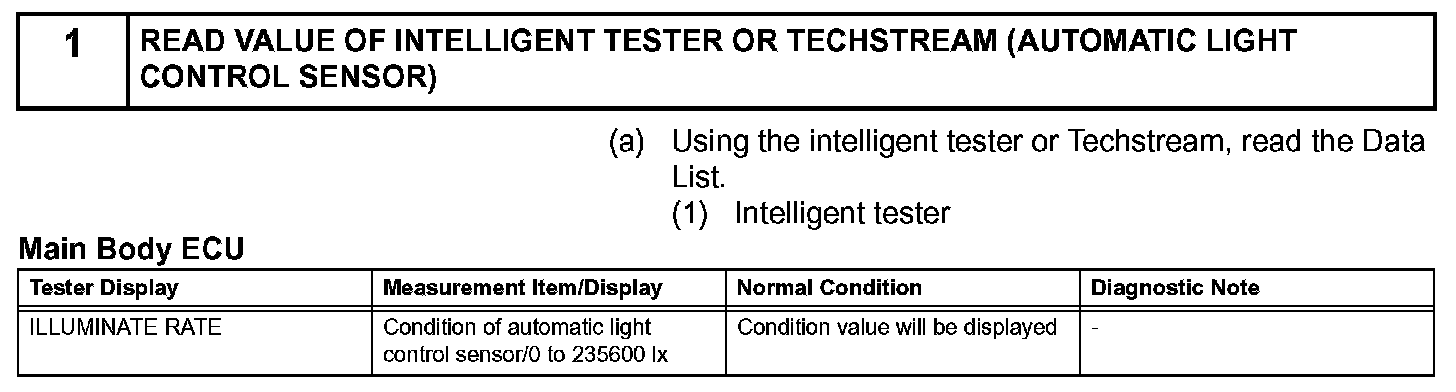

Step 1:

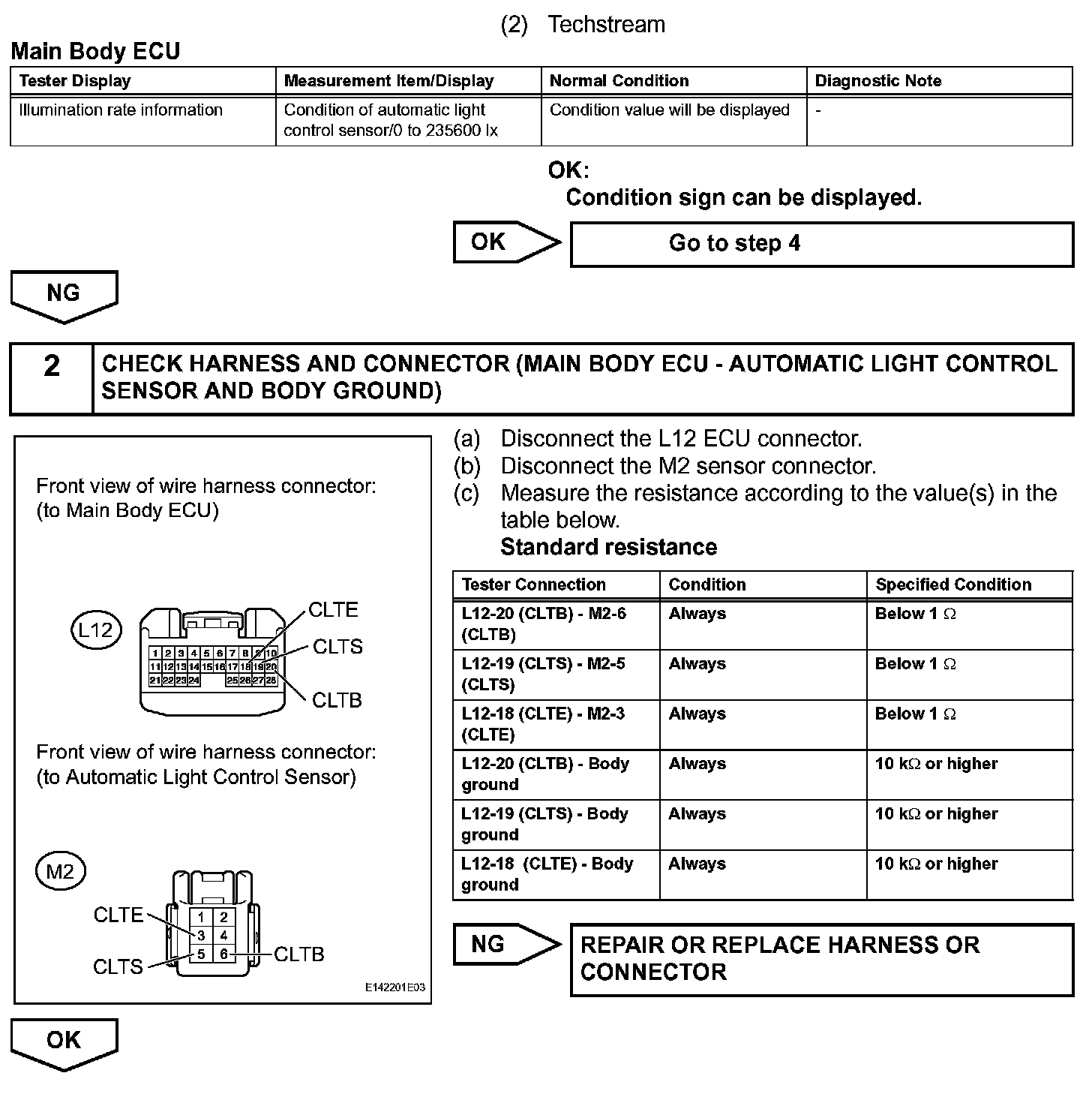

Step 1 (Continued)-2:

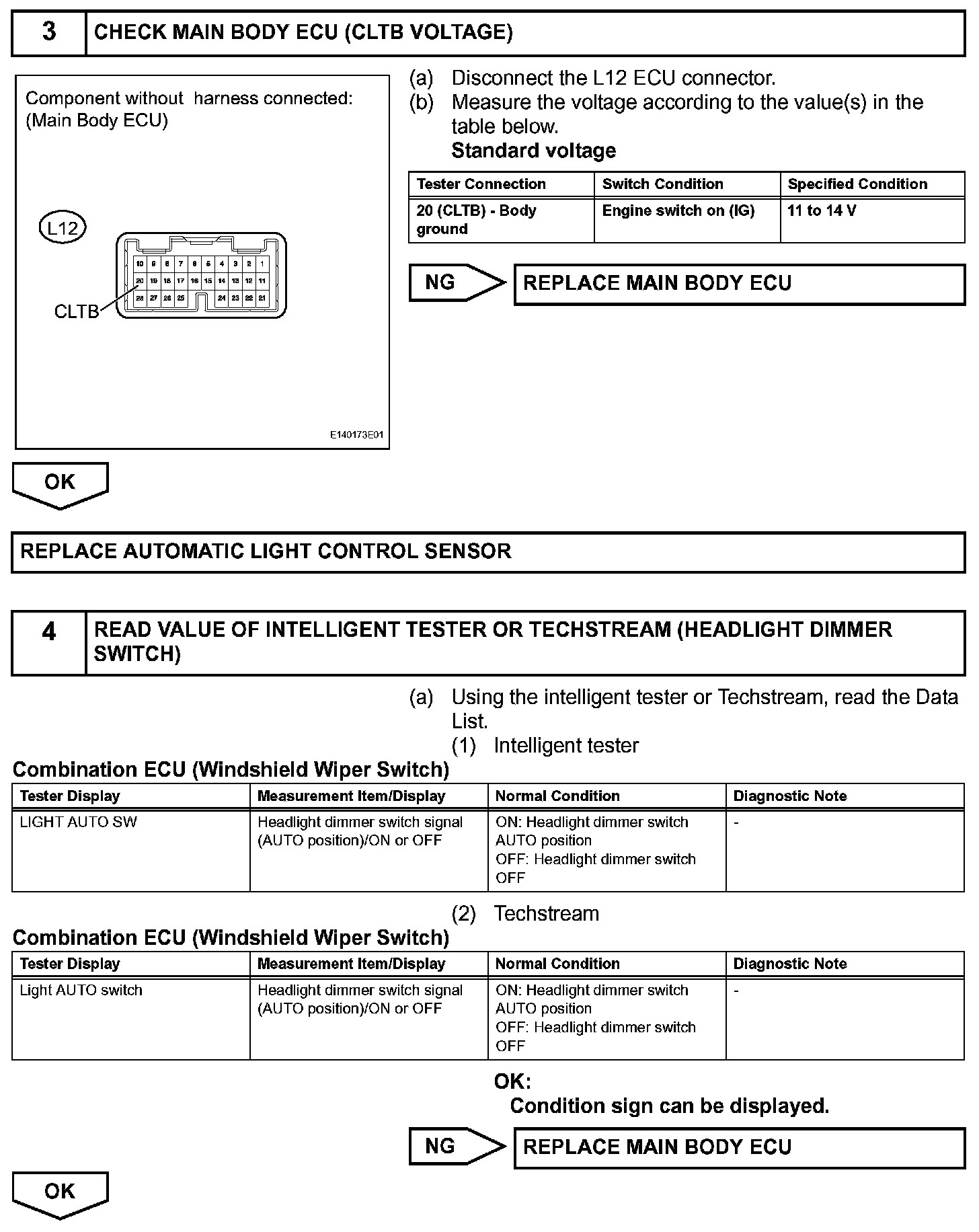

Step 3-4:

Step 5:

INSPECTION PROCEDURE

NOTE: First perform the communication function inspections in HOW TO PROCEED WITH TROUBLESHOOTING to confirm that there are no CAN communication malfunctions before troubleshooting this symptom.
