Pinout Values and Diagnostic Parameters

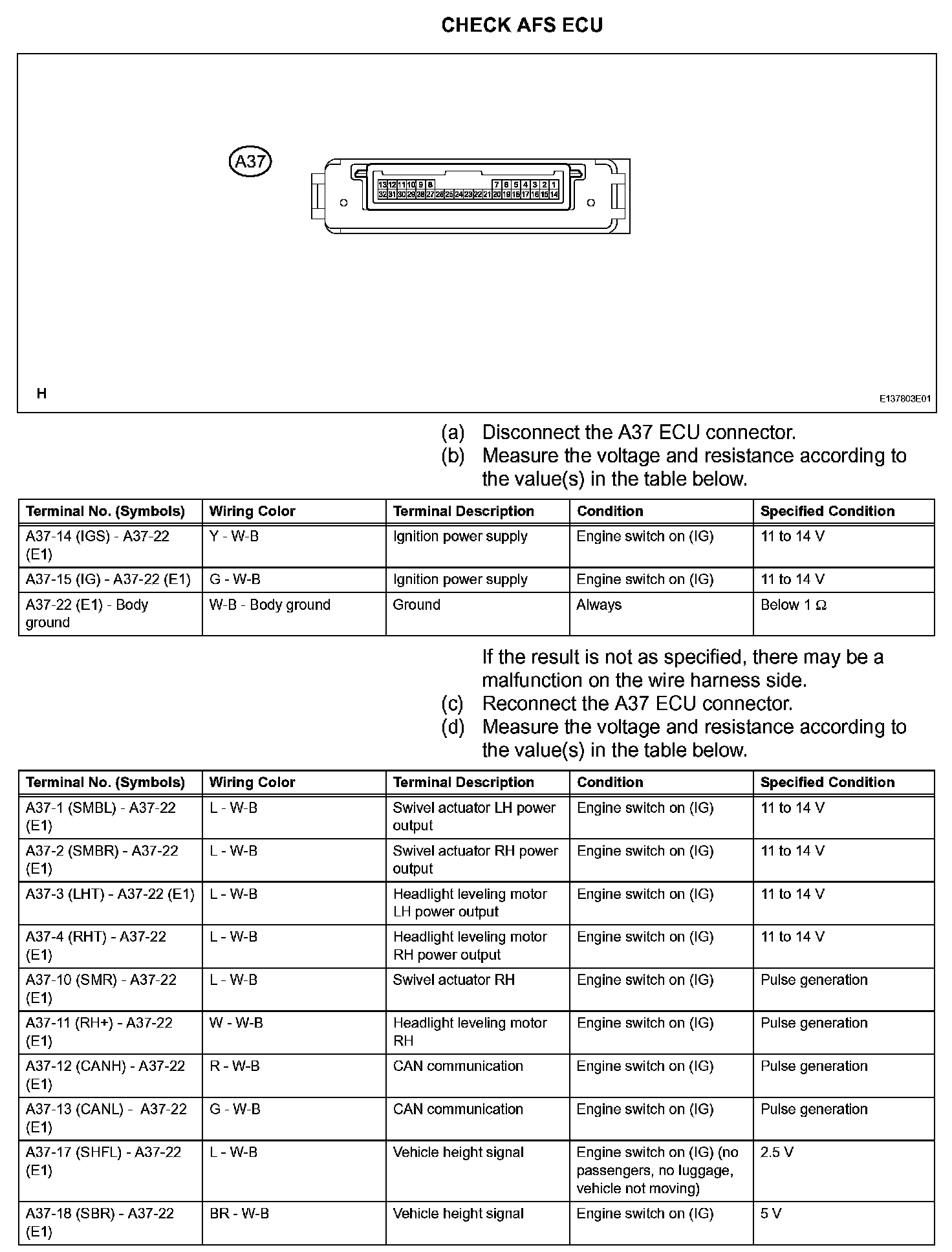

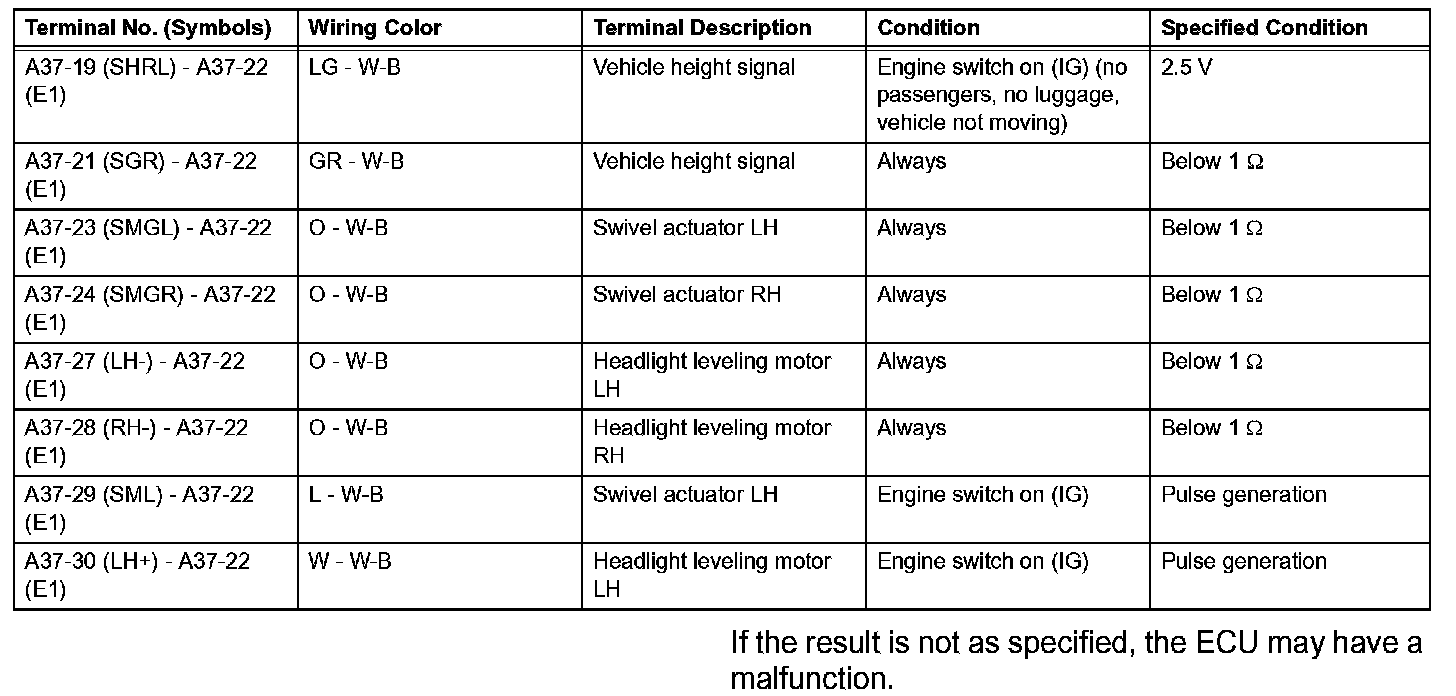

Terminals Of Control Module/Pinouts - Check AFS ECU (Part 1):

Terminals Of Control Module/Pinouts - Check AFS ECU (Part 2):

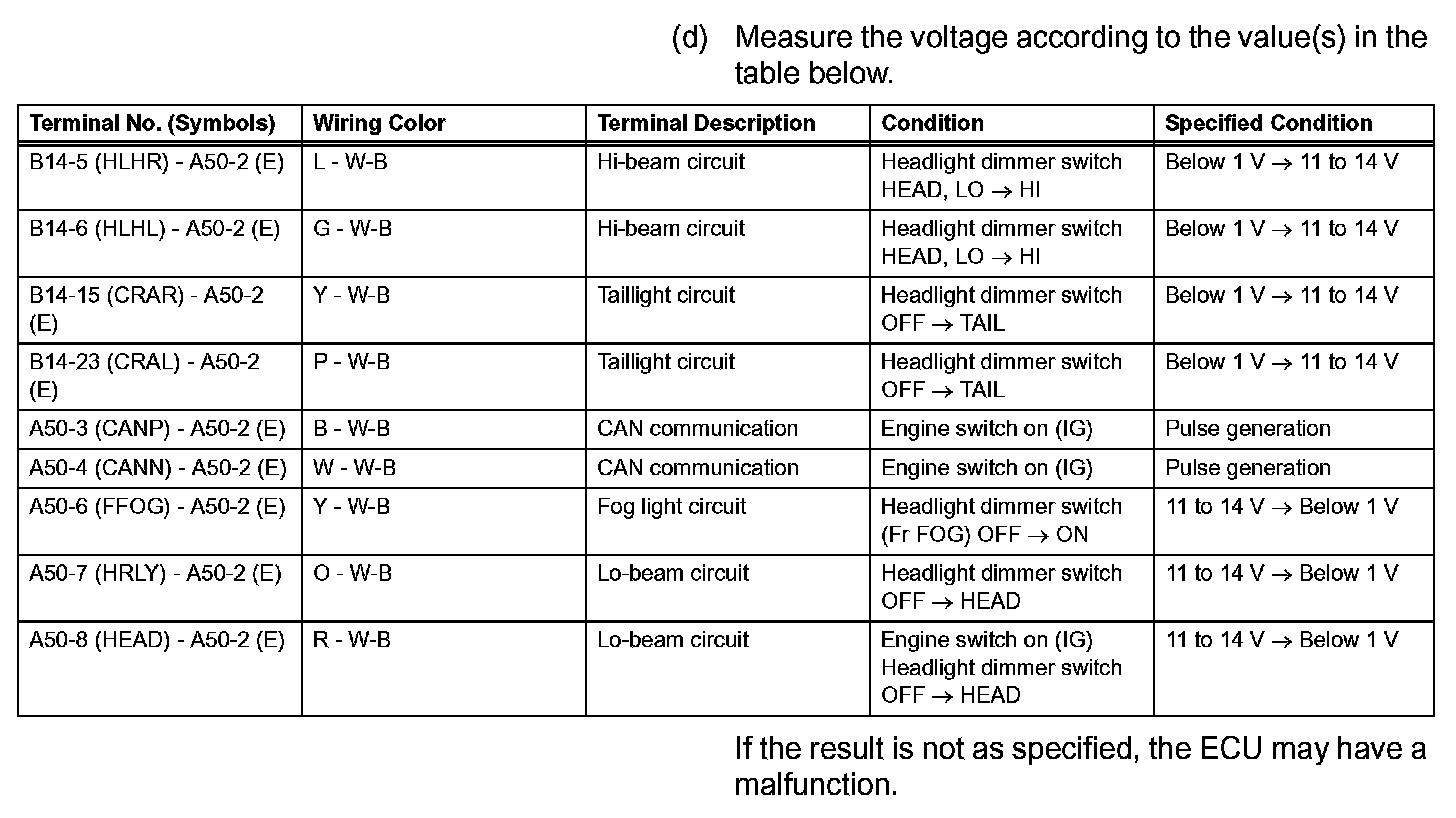

Terminals Of Control Module/Pinouts - Check Multiplex Network Front Light ECU (Front Controller) (Part 1):

Terminals Of Control Module/Pinouts - Check Multiplex Network Front Light ECU (Front Controller) (Part 2):

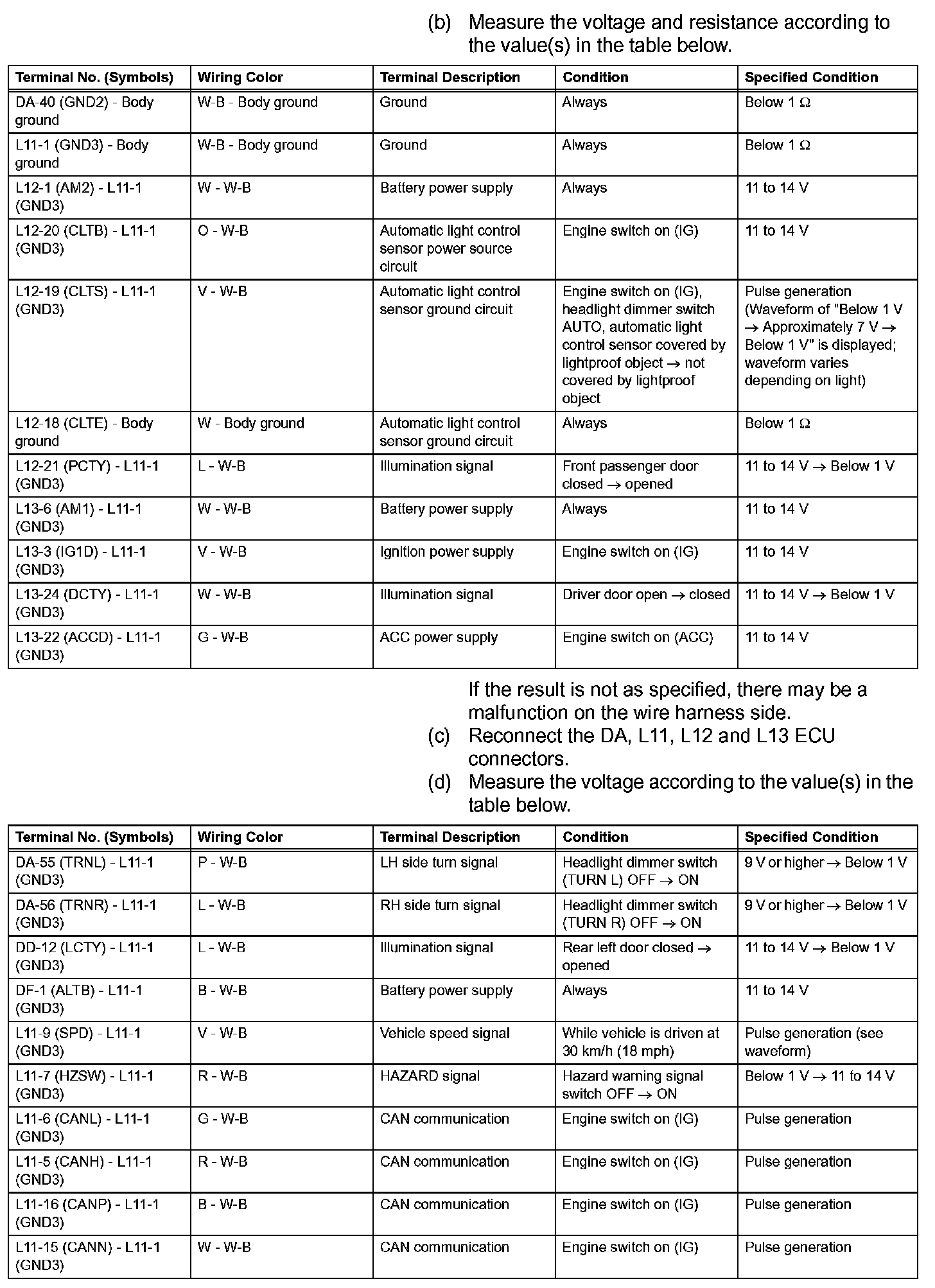

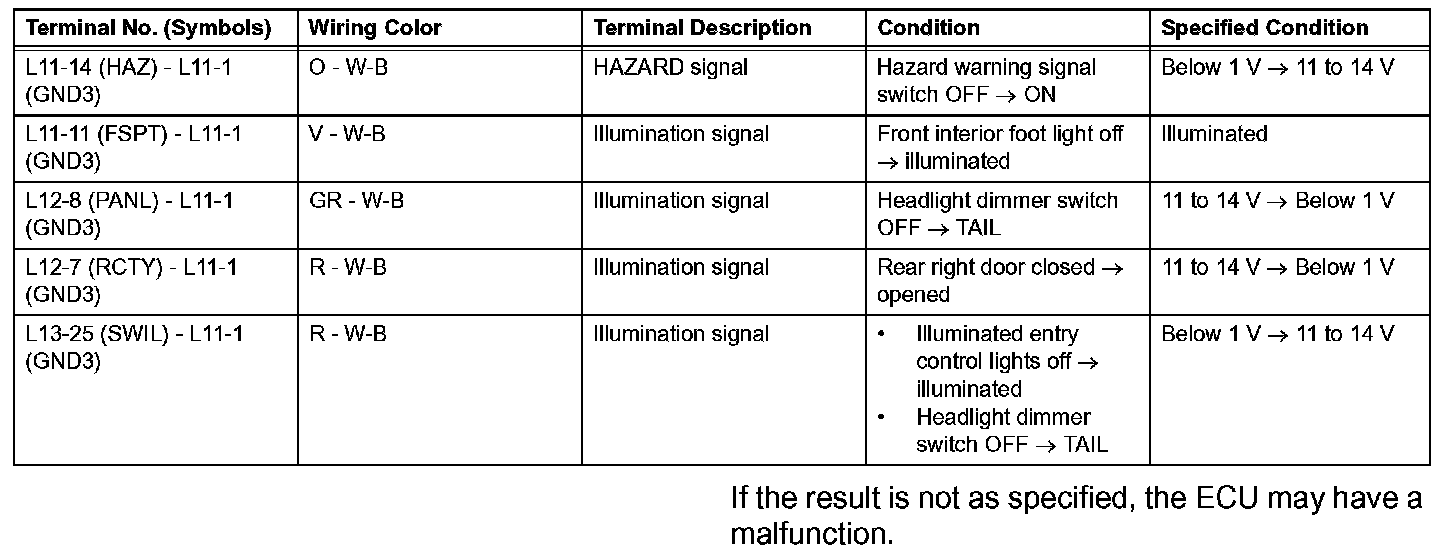

Terminals Of Control Module/Pinouts - Check Main Body ECU (Driver Side Junction Block) (Part 1):

Terminals Of Control Module/Pinouts - Check Main Body ECU (Driver Side Junction Block) (Part 2):

Terminals Of Control Module/Pinouts - Check Main Body ECU (Driver Side Junction Block) (Part 3):

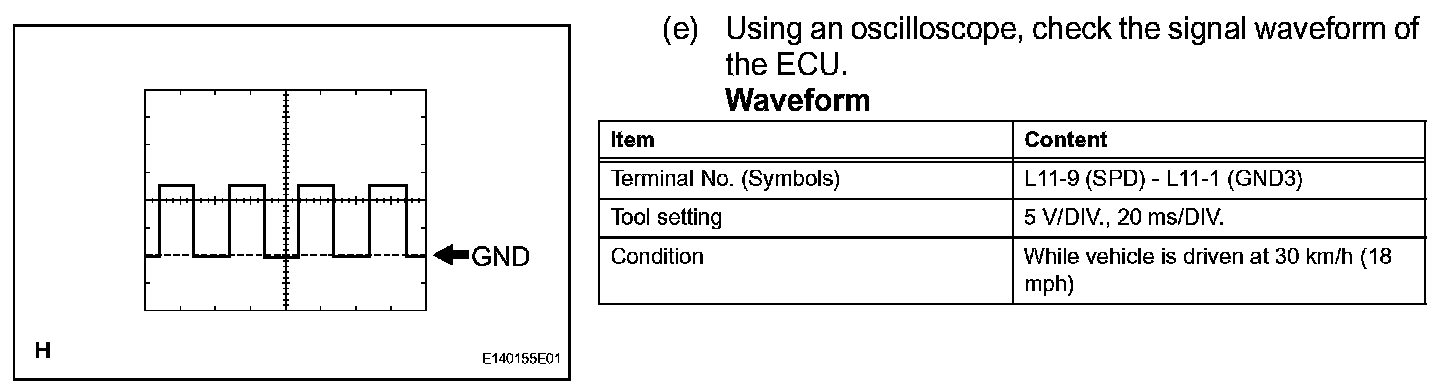

Check Main Body ECU (Driver Side Junction Block) - Oscilloscope Waveform:

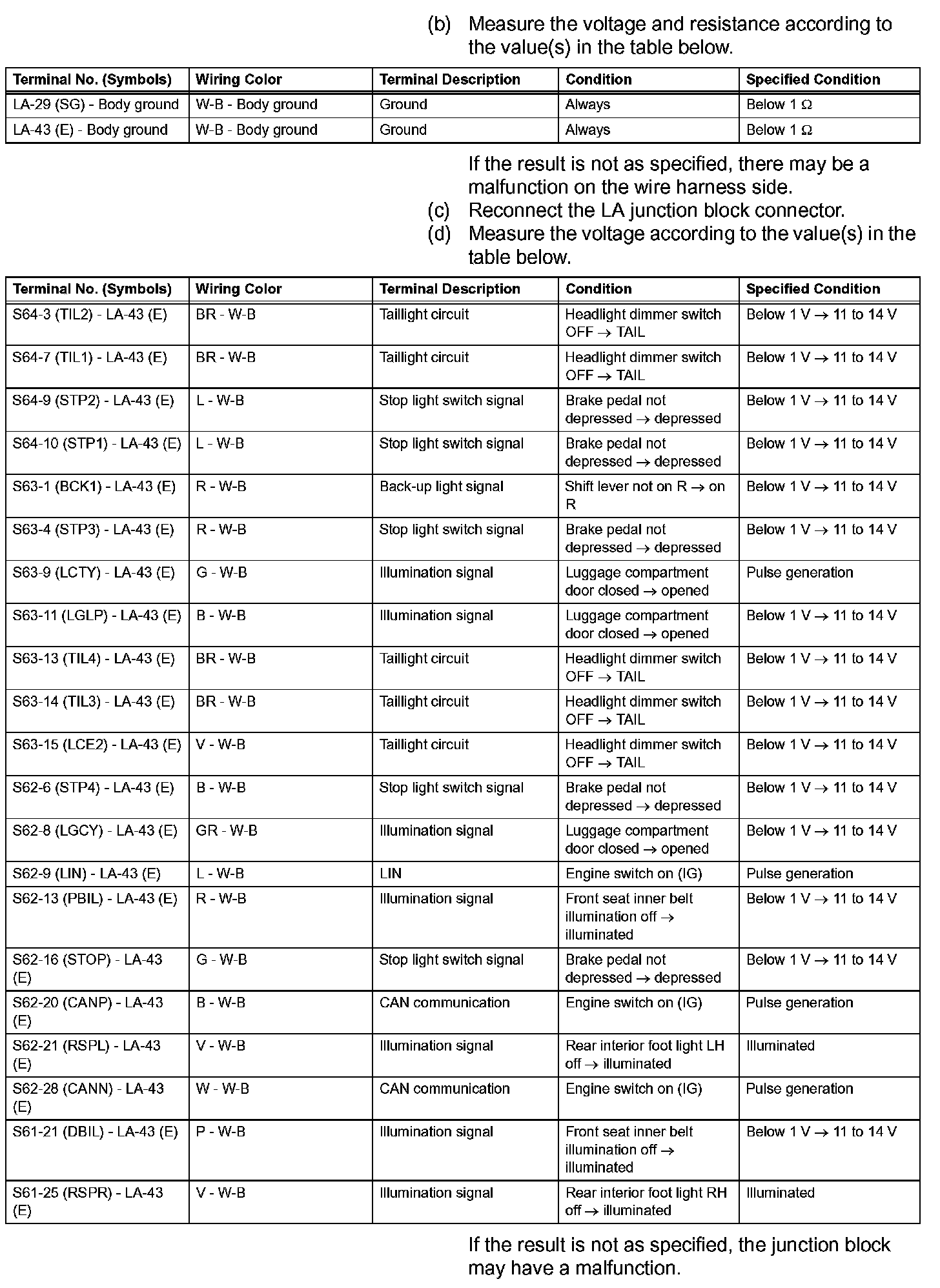

Terminals Of Control Module/Pinouts - Check Luggage Room Junction Block(Rear Junction Block ECU) (Part 1):

Terminals Of Control Module/Pinouts - Check Luggage Room Junction Block(Rear Junction Block ECU) (Part 2):

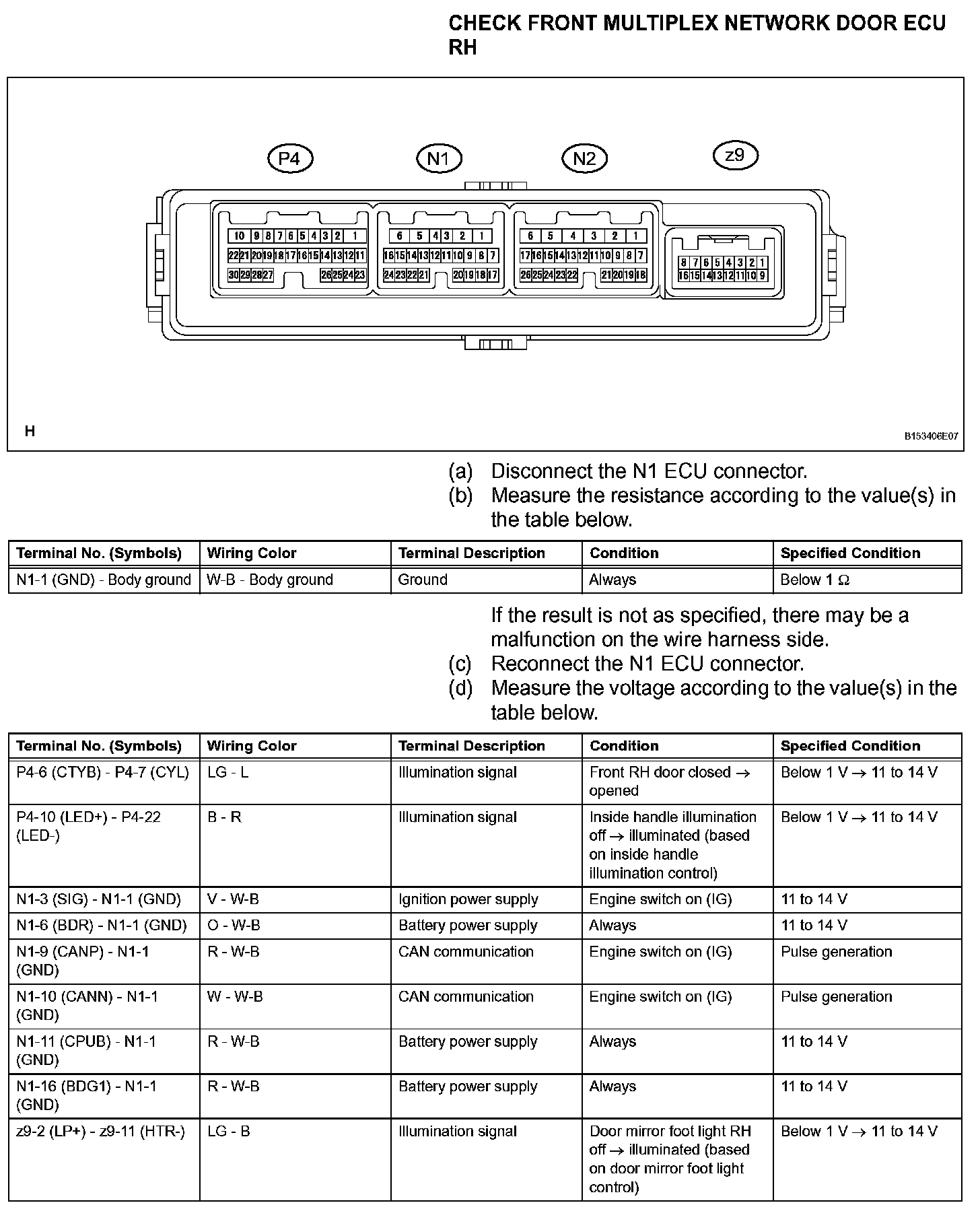

Terminals Of Control Module/Pinouts - Check Front Multiplex Network Door ECU RH:

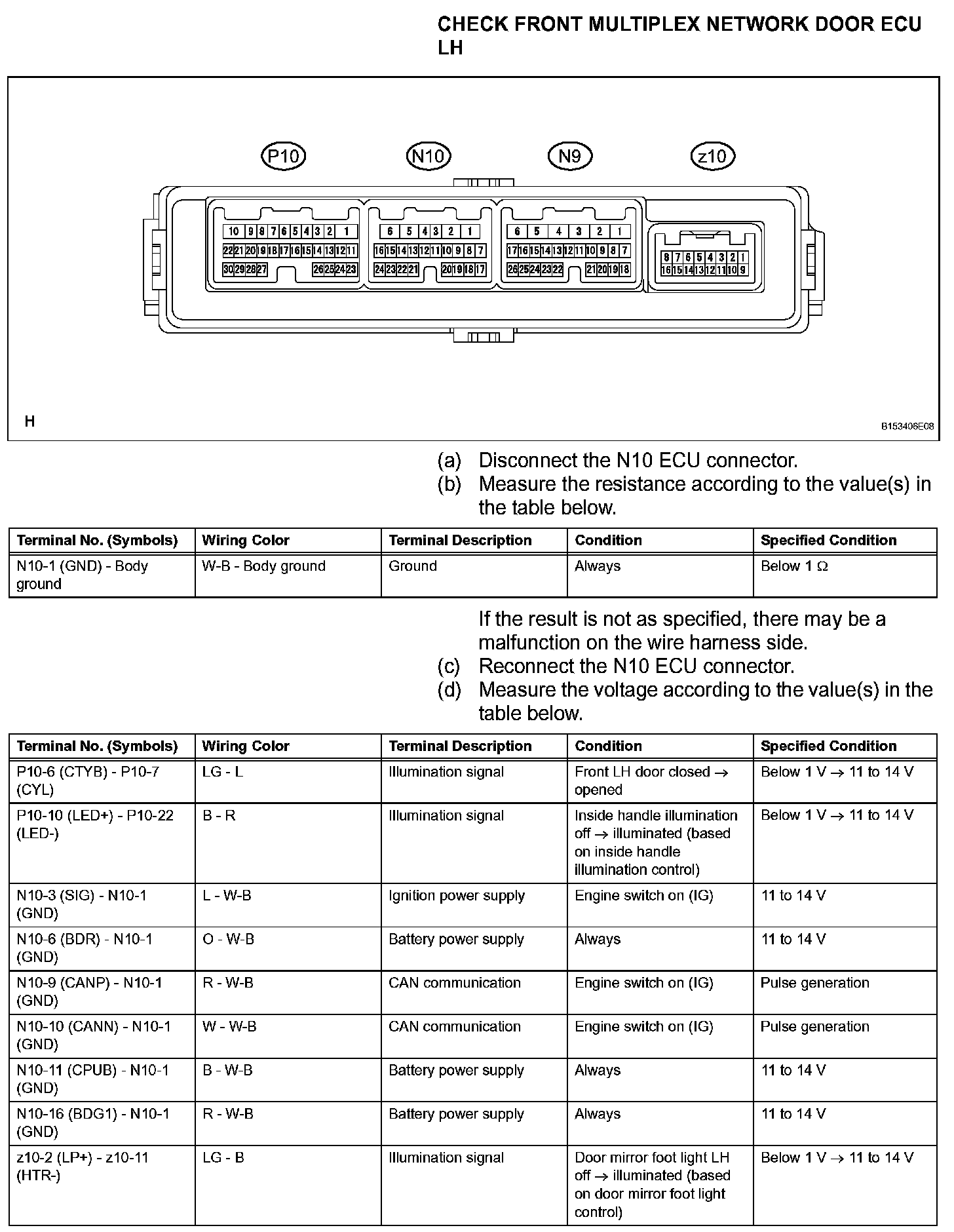

Terminals Of Control Module/Pinouts - Check Front Multiplex Network Door ECU LH:

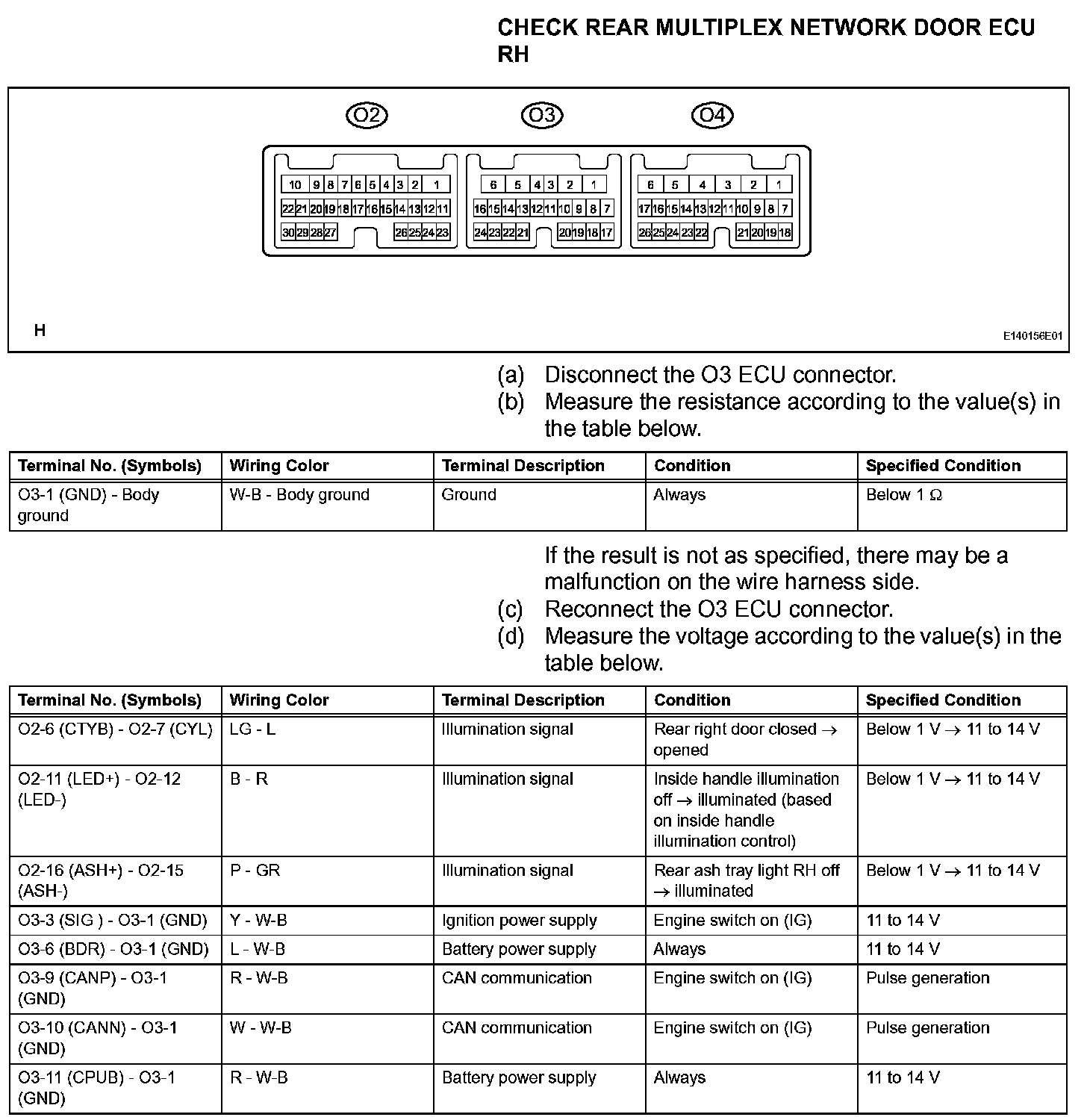

Terminals Of Control Module/Pinouts - Check Rear Multiplex Network Door ECU RH:

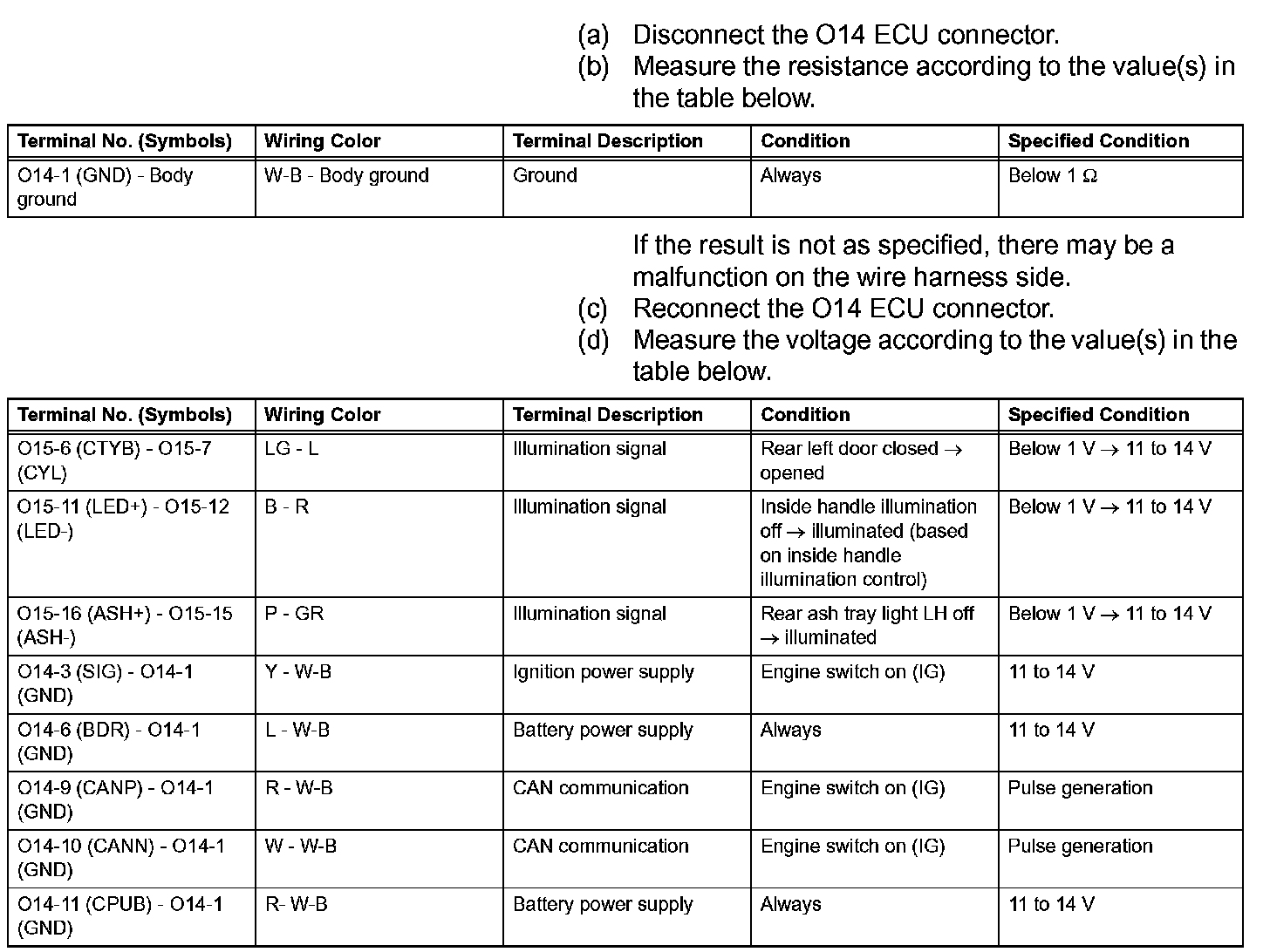

Terminals Of Control Module/Pinouts - Check Rear Multiplex Network Door ECU LH (Part 1):

Terminals Of Control Module/Pinouts - Check Rear Multiplex Network Door ECU LH (Part 2):

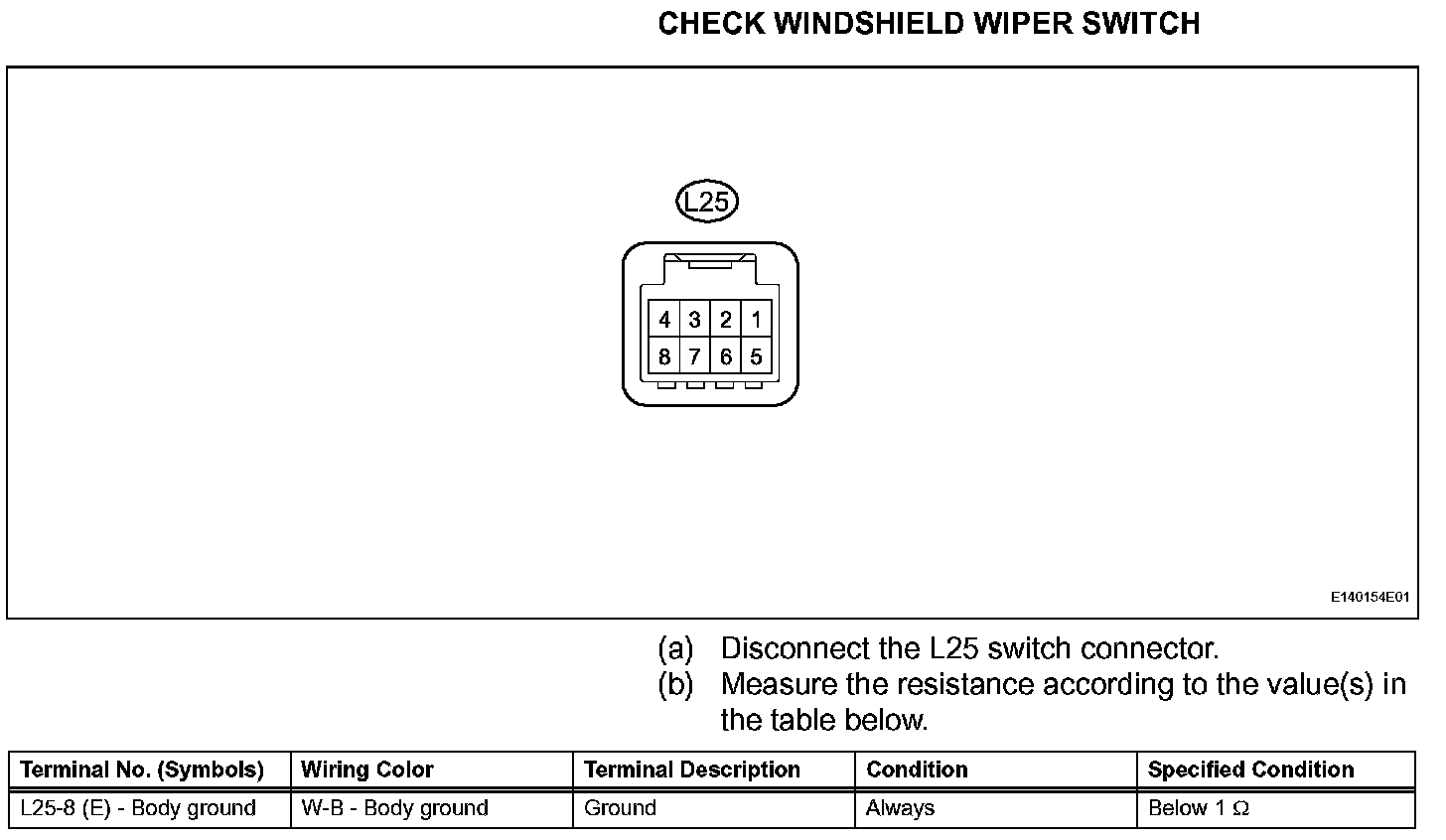

Terminals Of Control Module/Pinouts - Check Windshield Wiper Switch (Part 1):

Terminals Of Control Module/Pinouts - Check Windshield Wiper Switch (Part 2):

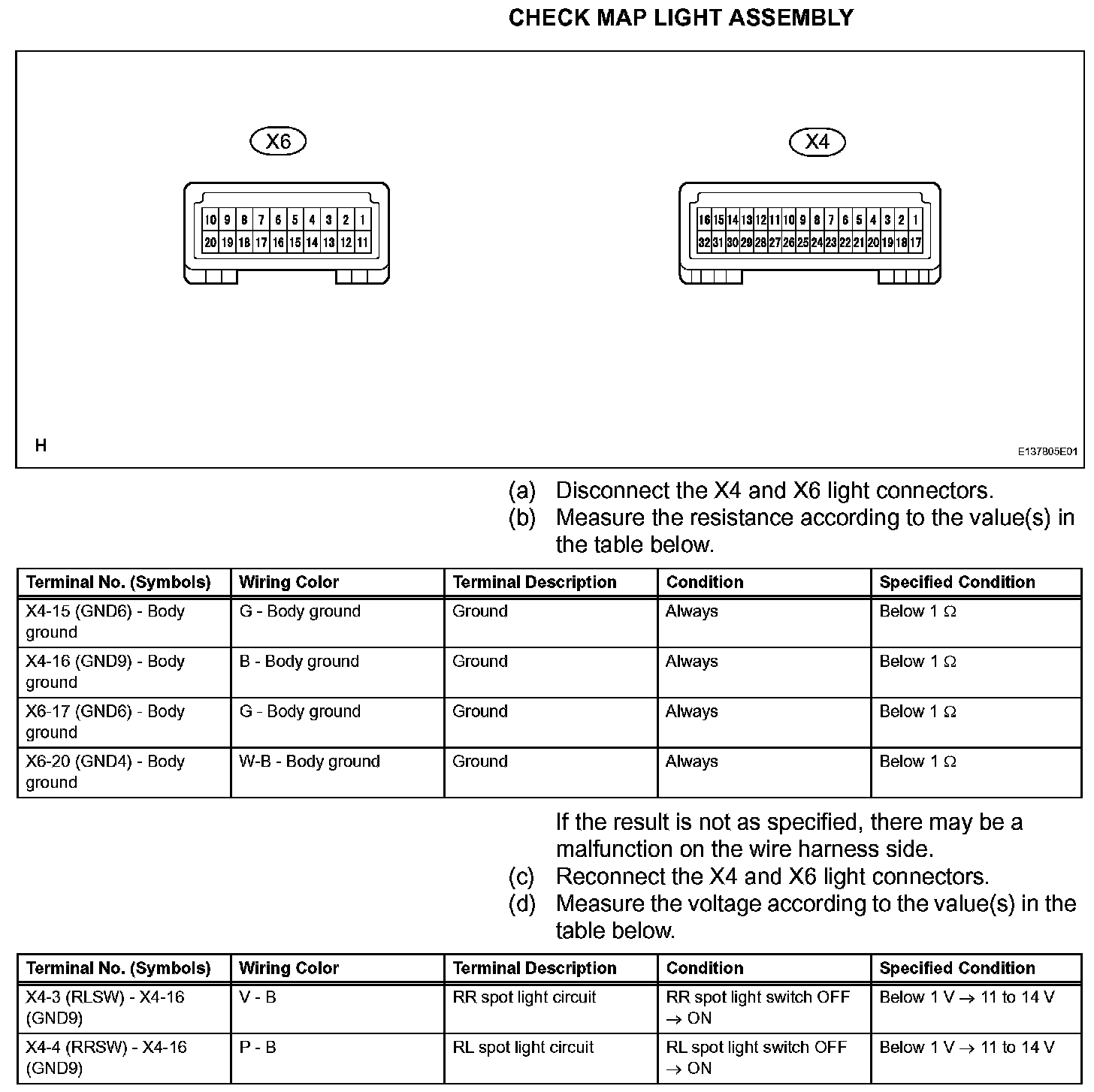

Terminals Of Control Module/Pinouts - Check Map Light Assembly (Part 1):

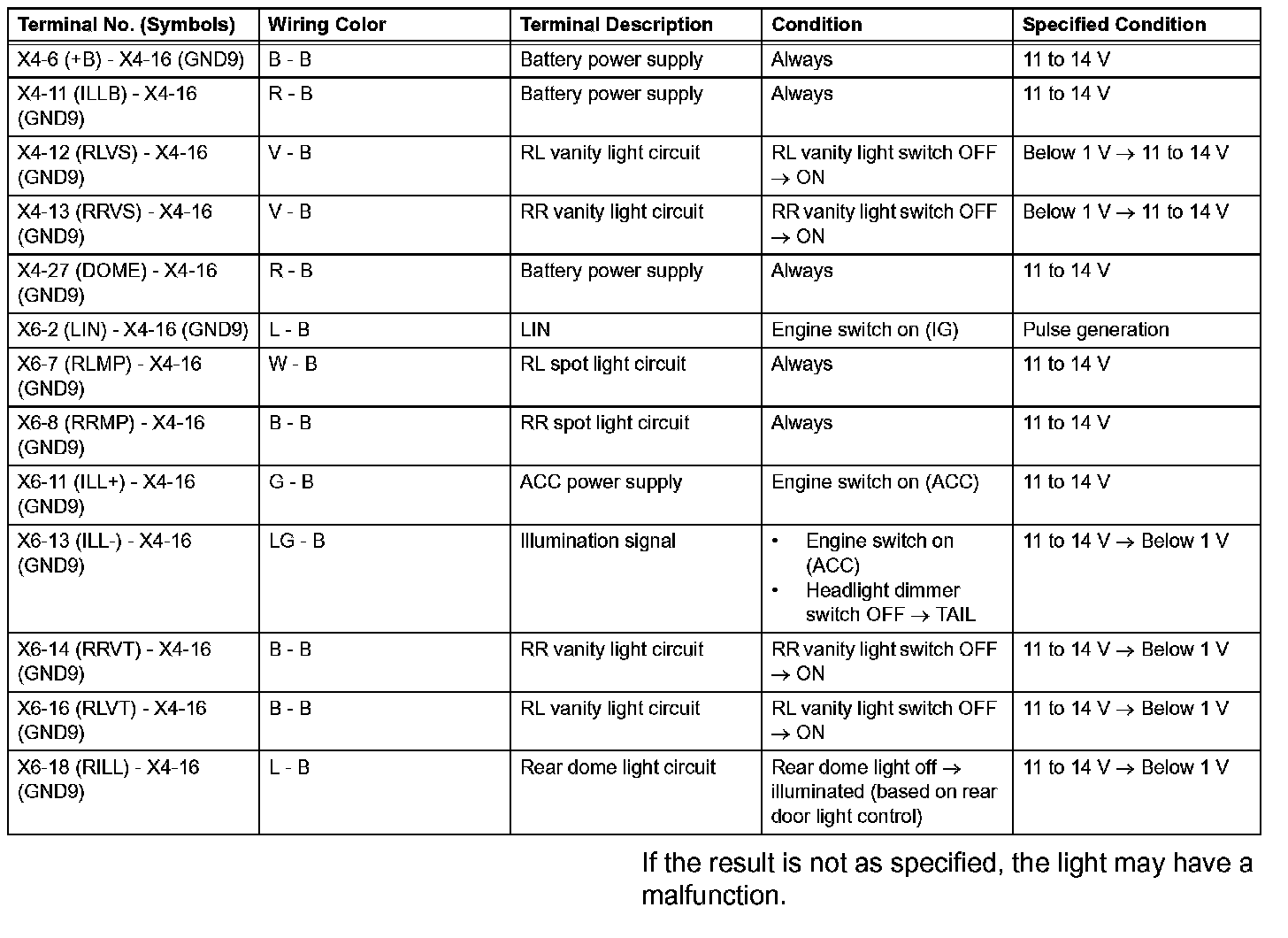

Terminals Of Control Module/Pinouts - Check Map Light Assembly (Part 2):
