Fail Safe Chart

FAIL-SAFE CHART

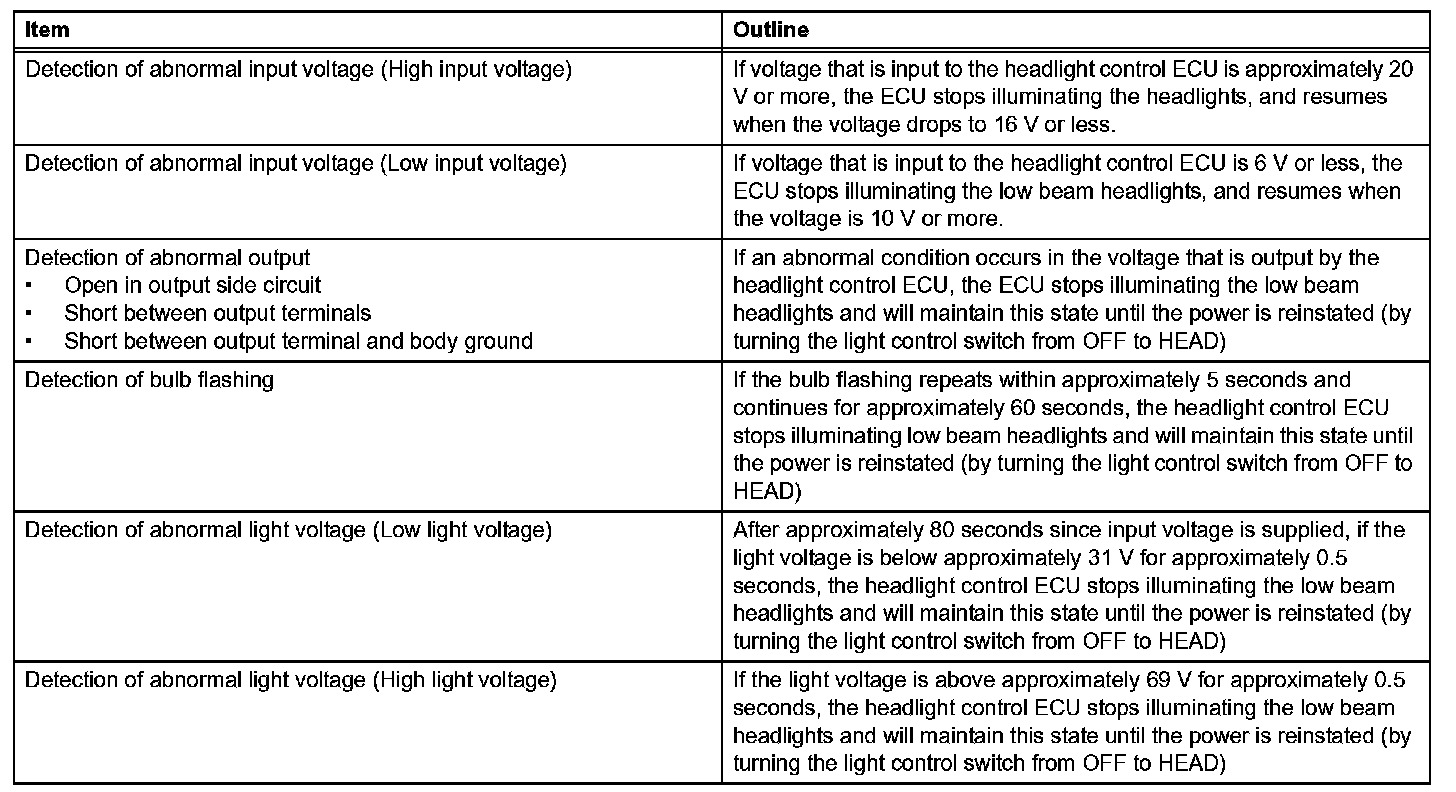

1. Headlight control ECU
The headlight control ECU operates in the fail-safe mode if an abnormal condition such as those listed has been detected.

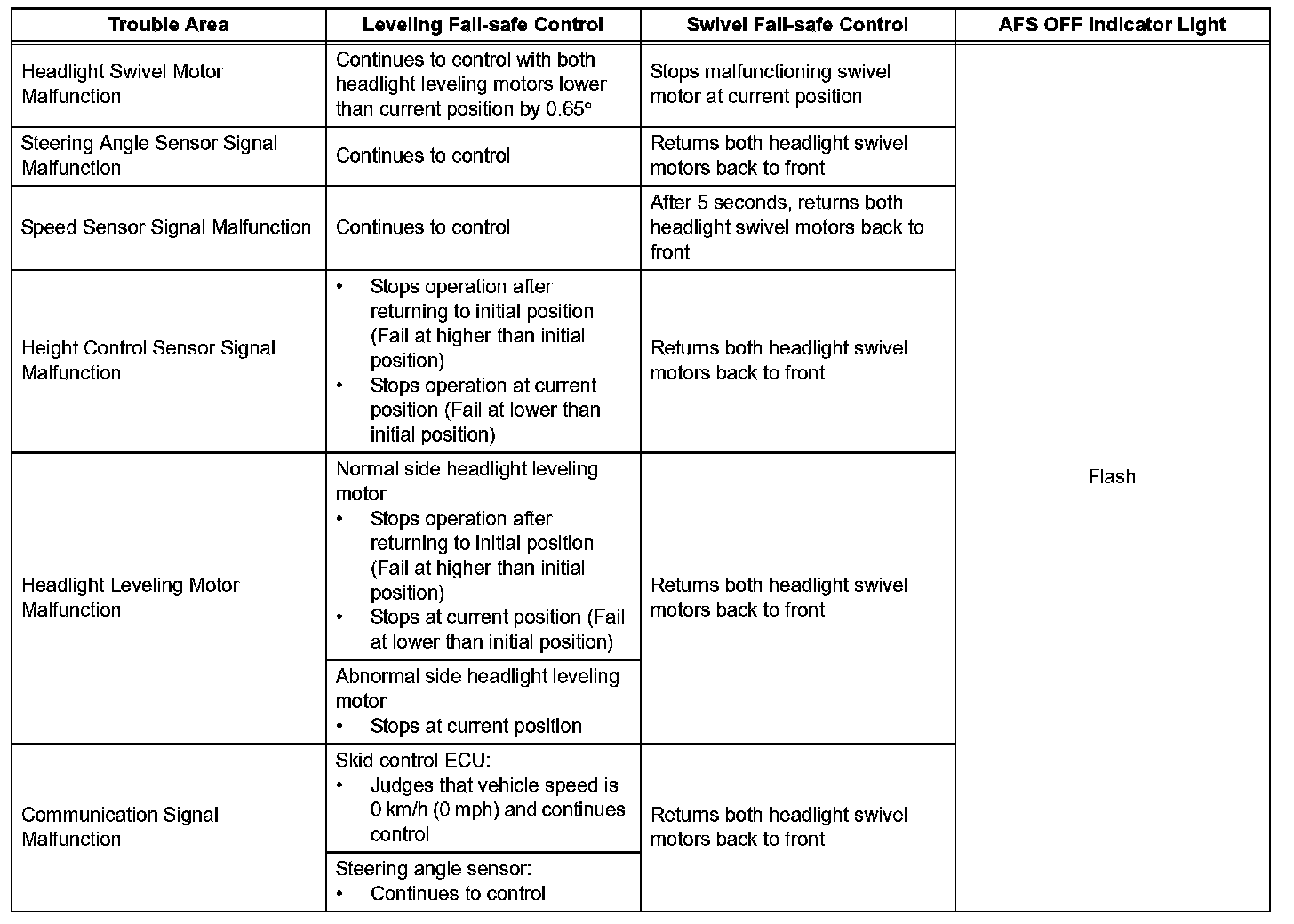

2. AFS ECU
If the AFS ECU detects a malfunction in the automatic headlight beam level control system or intelligent AFS, it will take the actions indicated in the table.
