Tail Lamp: Testing and Inspection

INSPECTION

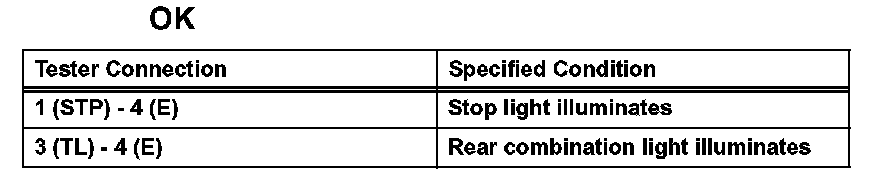

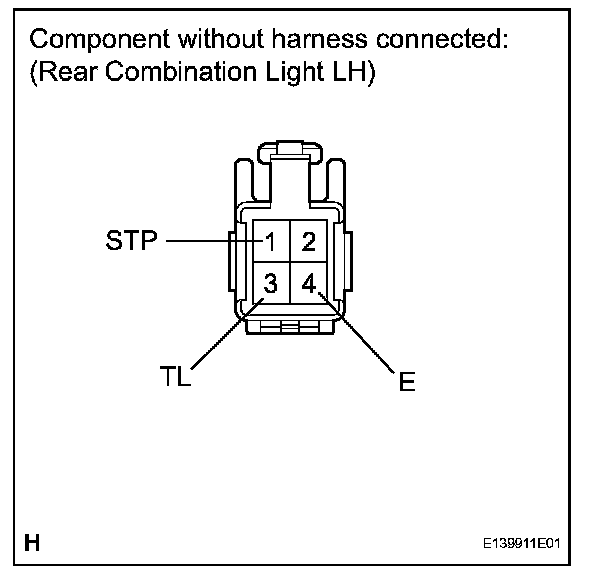

1. INSPECT REAR COMBINATION LIGHT ASSEMBLY LH




a. Apply battery voltage to the terminals of the connector, and check the LED illumination condition.

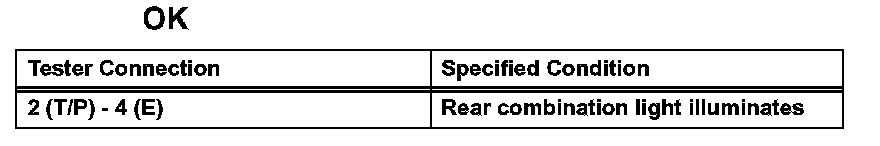

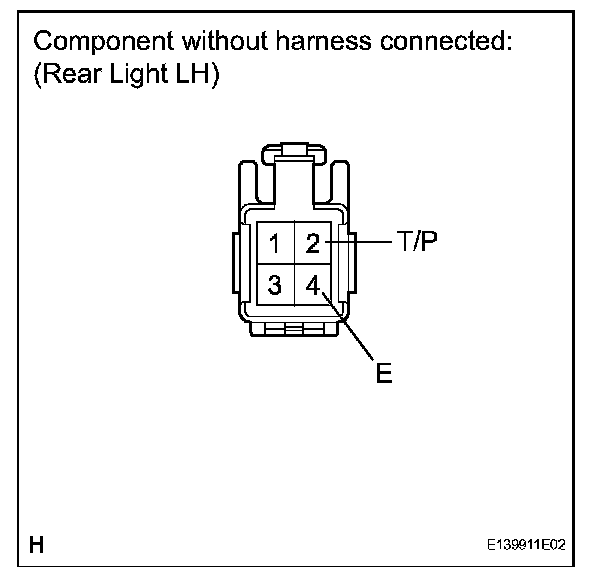

2. INSPECT REAR LIGHT ASSEMBLY LH




a. Apply battery voltage to the terminals of the connector, and check the LED illumination condition.
