On-Vehicle Inspection

ON-VEHICLE INSPECTION




1. INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY
a. Disconnect the Lr1 switch connector.

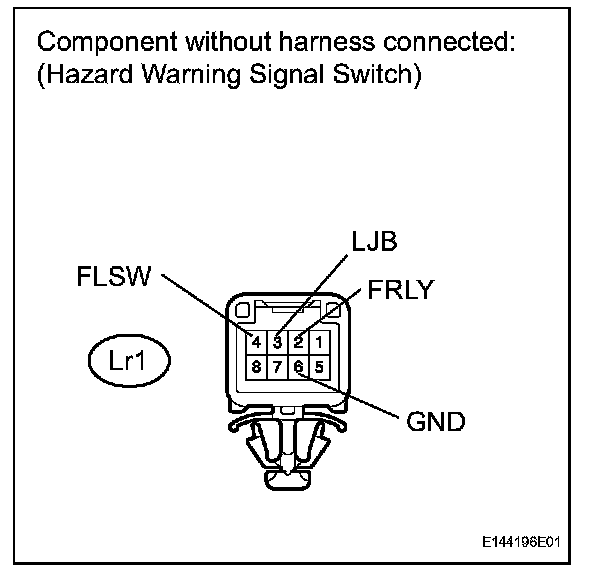

b. Connect the voltmeter's positive (+) lead to terminal Lr1-2, 3, 4 and negative (-) lead to terminal Lr1-6.




c. Measure the voltage according to the value(s) in the table.

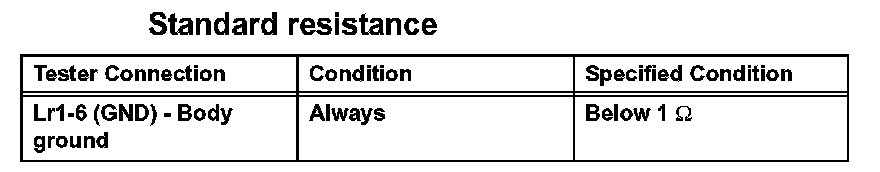

d. Measure the resistance according to the value(s) in the table.

If the result is not as specified, replace the hazard warning signal switch.
