Removal and Replacement

Map Light Assembly:

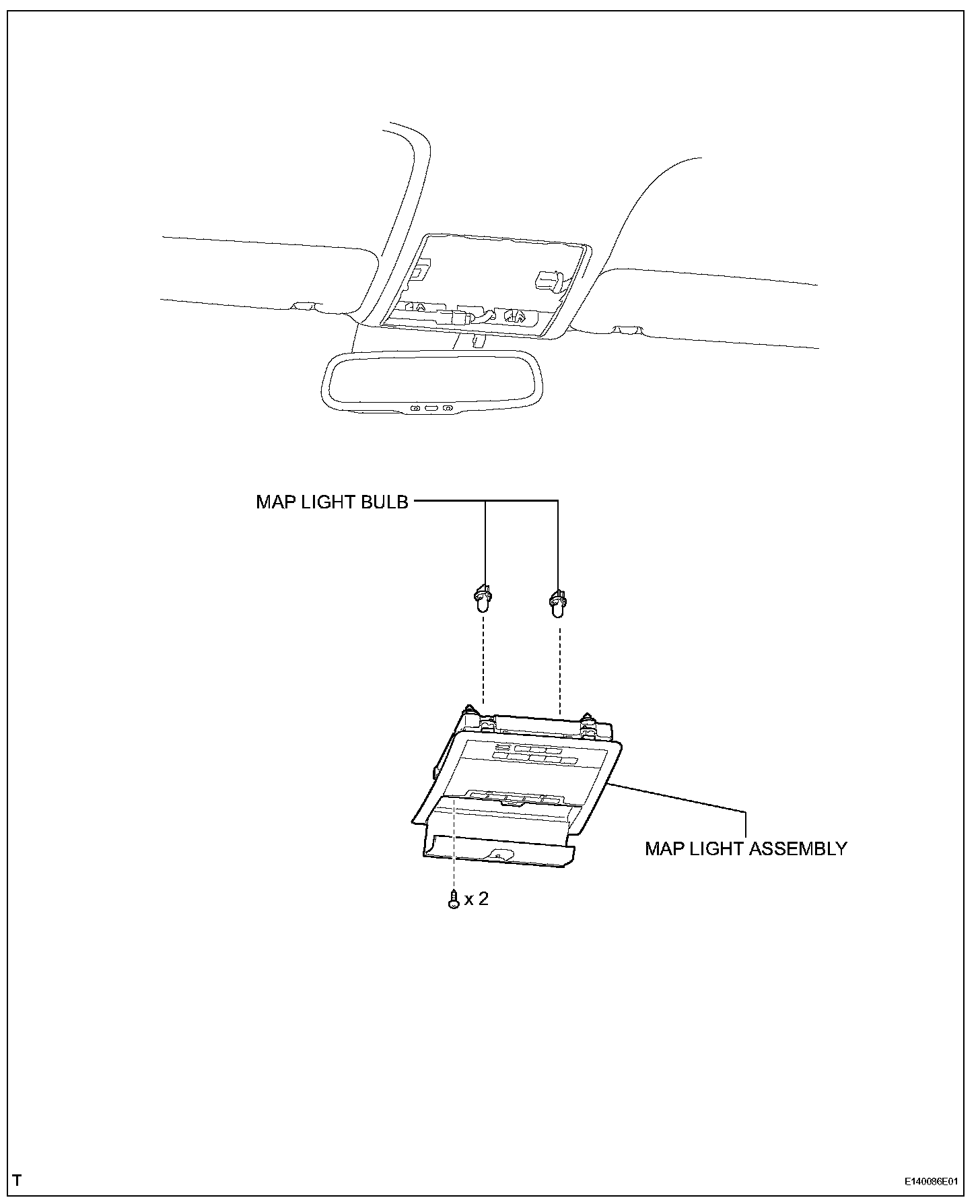

MAP LIGHT ASSEMBLY

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.




3. REMOVE MAP LIGHT ASSEMBLY

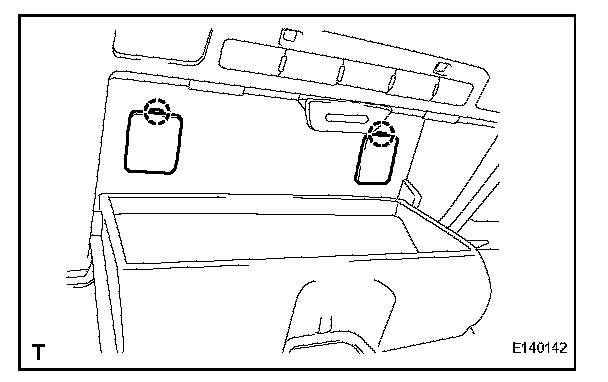

a. Using a screwdriver, detach the 2 claws and 2 covers.

HINT: Tape the screwdriver tip before use.

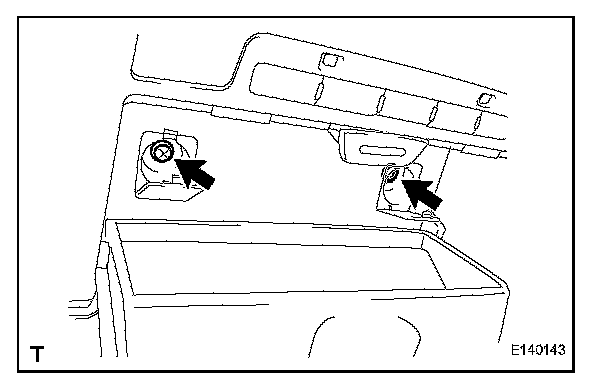

b. Remove the 2 screws.

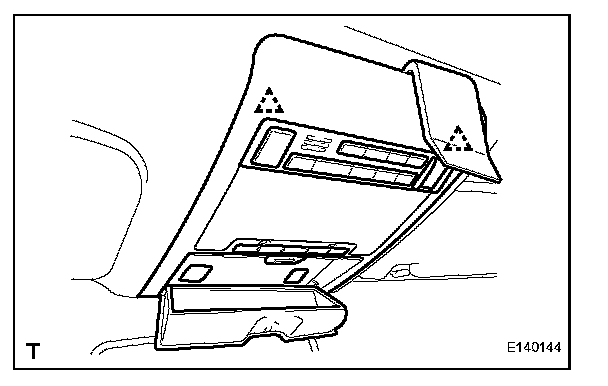

c. Using a moulding remover, detach the 2 clips.
d. Disconnect the connectors and remove the map light.

INSTALLATION

1. INSTALL MAP LIGHT ASSEMBLY
a. Connect the connectors.

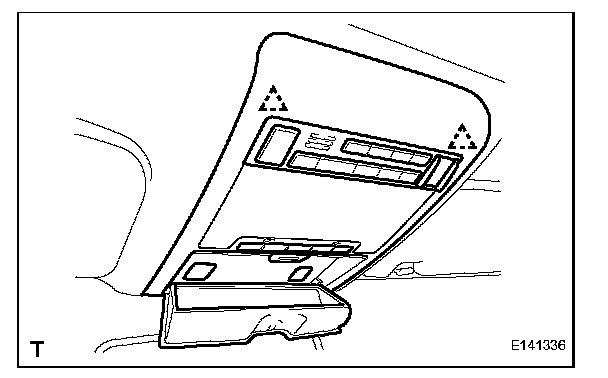

b. Attach the 2 clips.

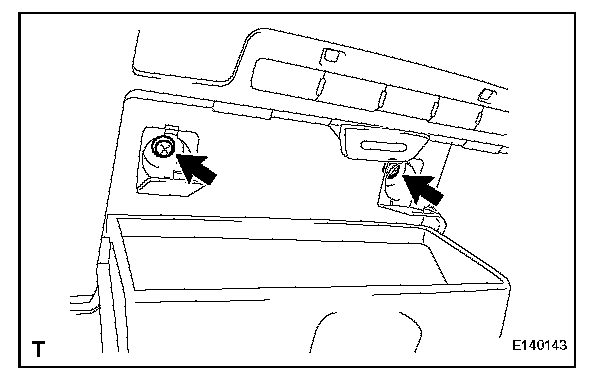

c. Install the map light with the 2 screws.

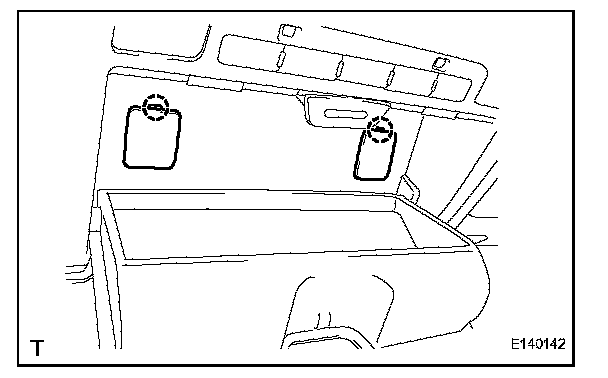

d. Attach the 2 claws and 2 covers.

2. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
3. INSTALL COWL TOP VENTILATOR LOUVER RH
4. PERFORM INITIALIZATION

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal
