Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Lighting and Horns >> License Plate Lamp >> Testing and Inspection

License Plate Lamp: Testing and Inspection

INSPECTION

1. INSPECT LICENSE PLATE LIGHT ASSEMBLY

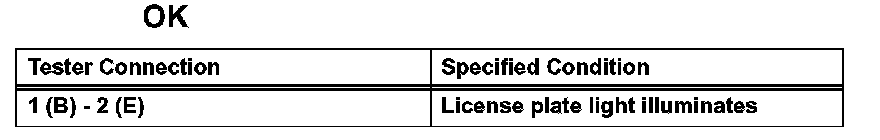

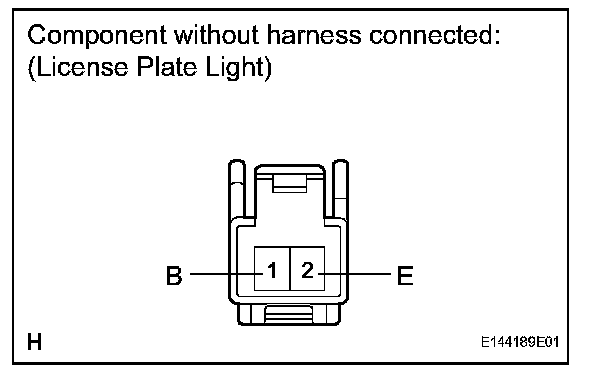

a. Apply battery voltage to the terminals of the connector, and check the LED illumination condition.
