Pinout Values and Diagnostic Parameters
Pinout Values and Diagnostic Parameters

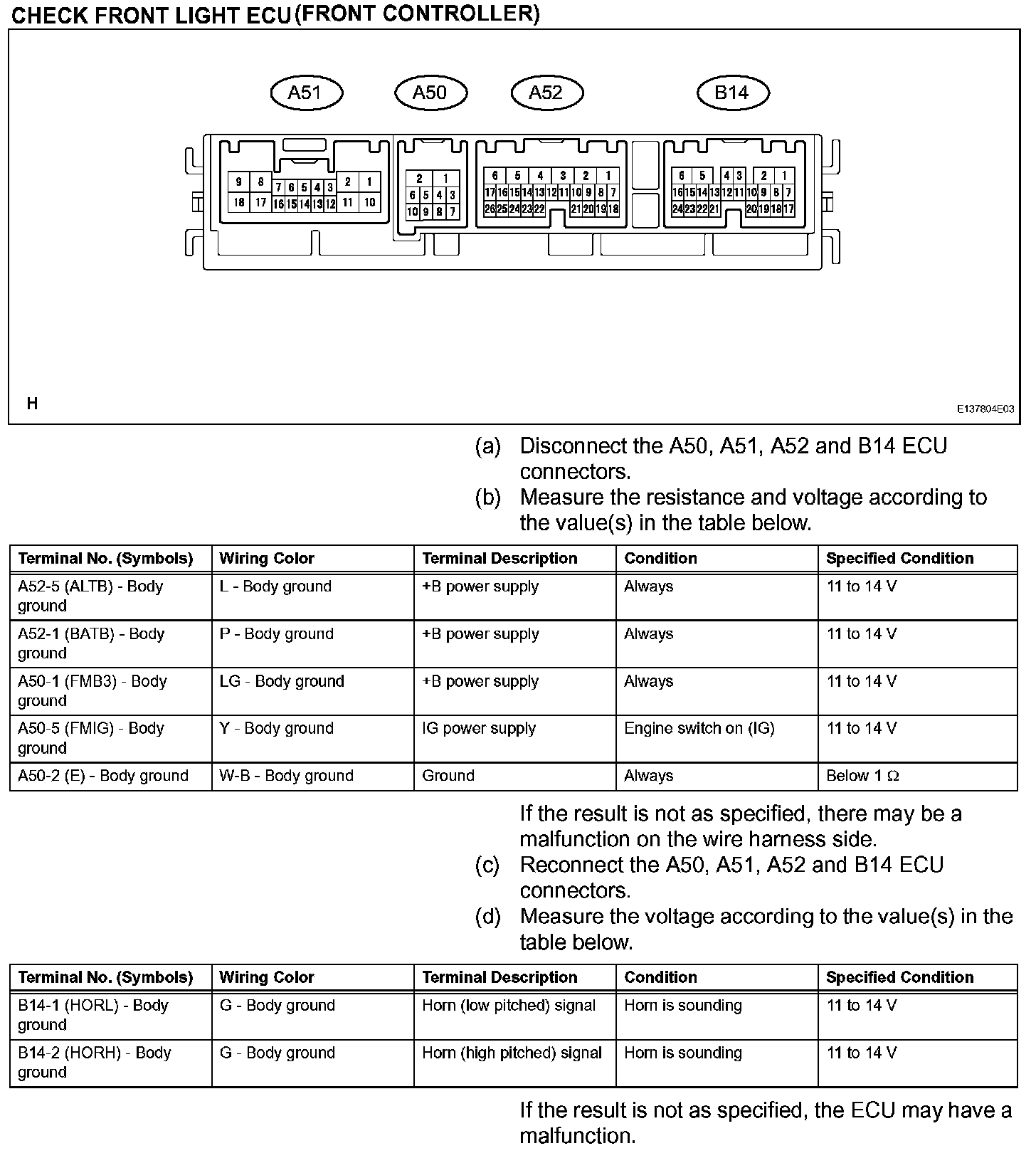

Terminals Of Control Module/Pinouts - Check Front ECU(Front Controller):

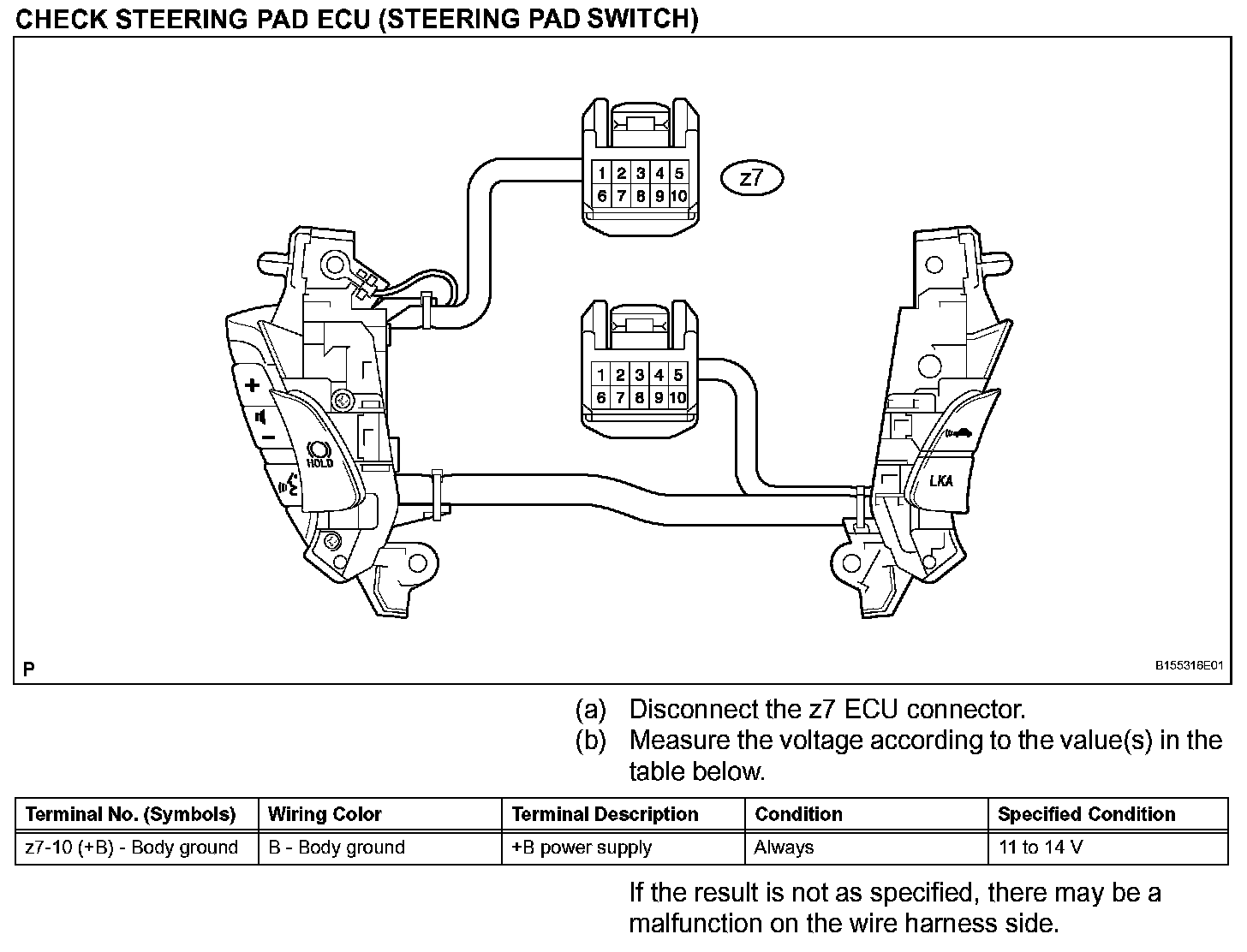

Terminals Of Control Module/Pinouts - Check Steering Pad ECU(Steering Pad Switch):
