Low Pitched Horn

INSPECTION

INSPECT LOW PITCHED HORN

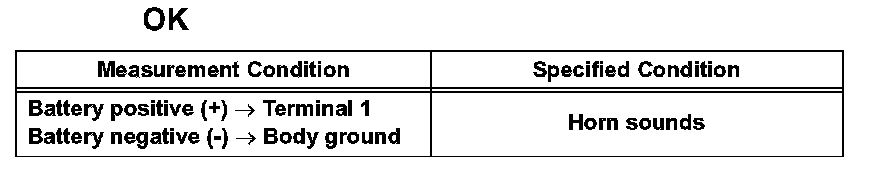

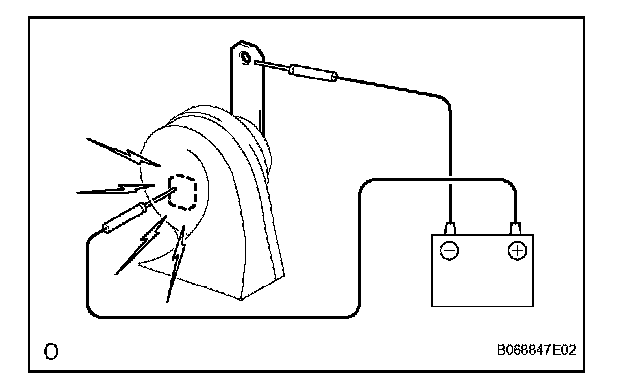

Apply battery voltage and check operation of the horn, as shown in the table.

If the result is not as specified, replace the horn.
