Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Headlamp Alignment Control Module >> Locations

Headlamp Alignment Control Module: Locations

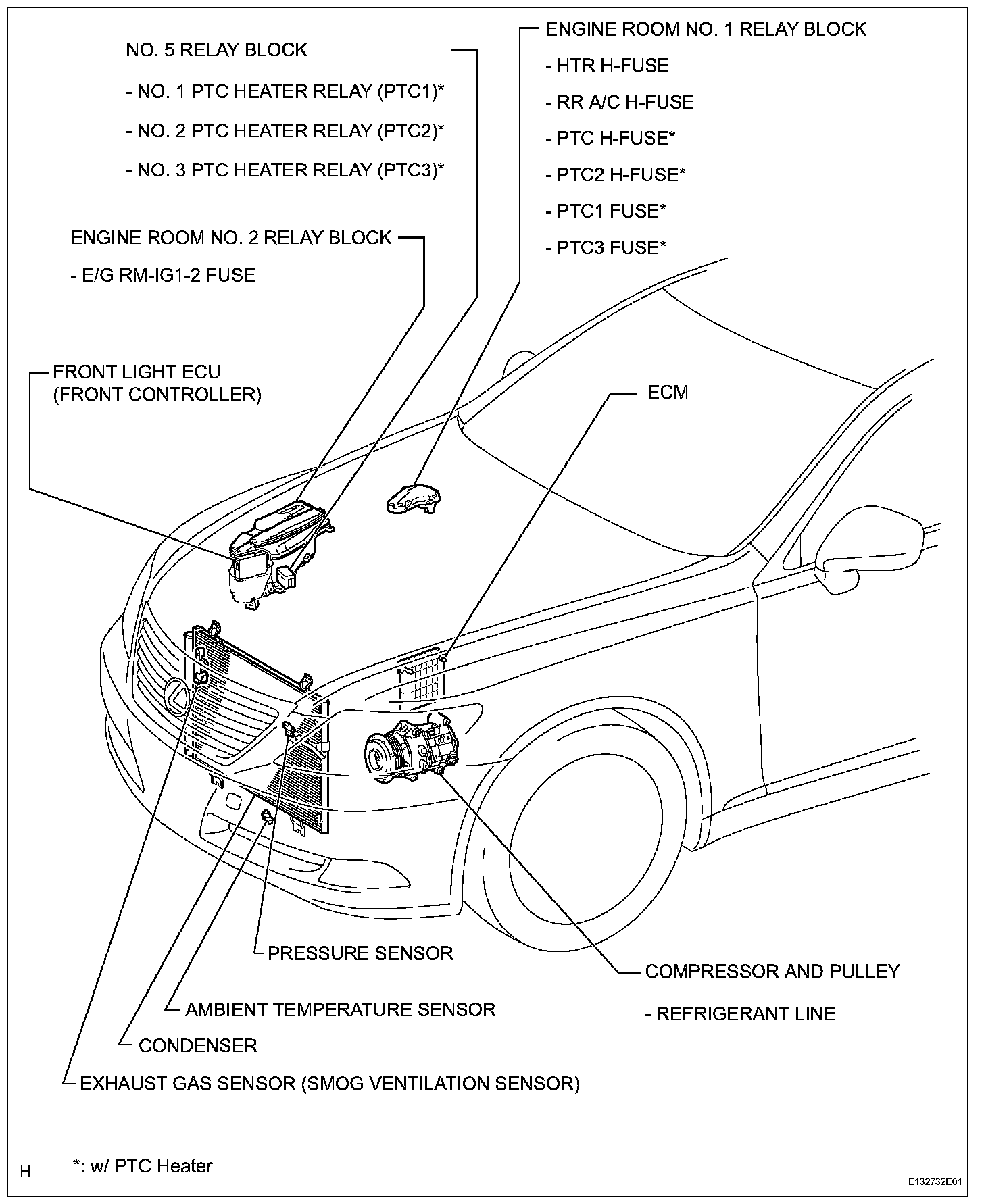

Air Conditioning System:

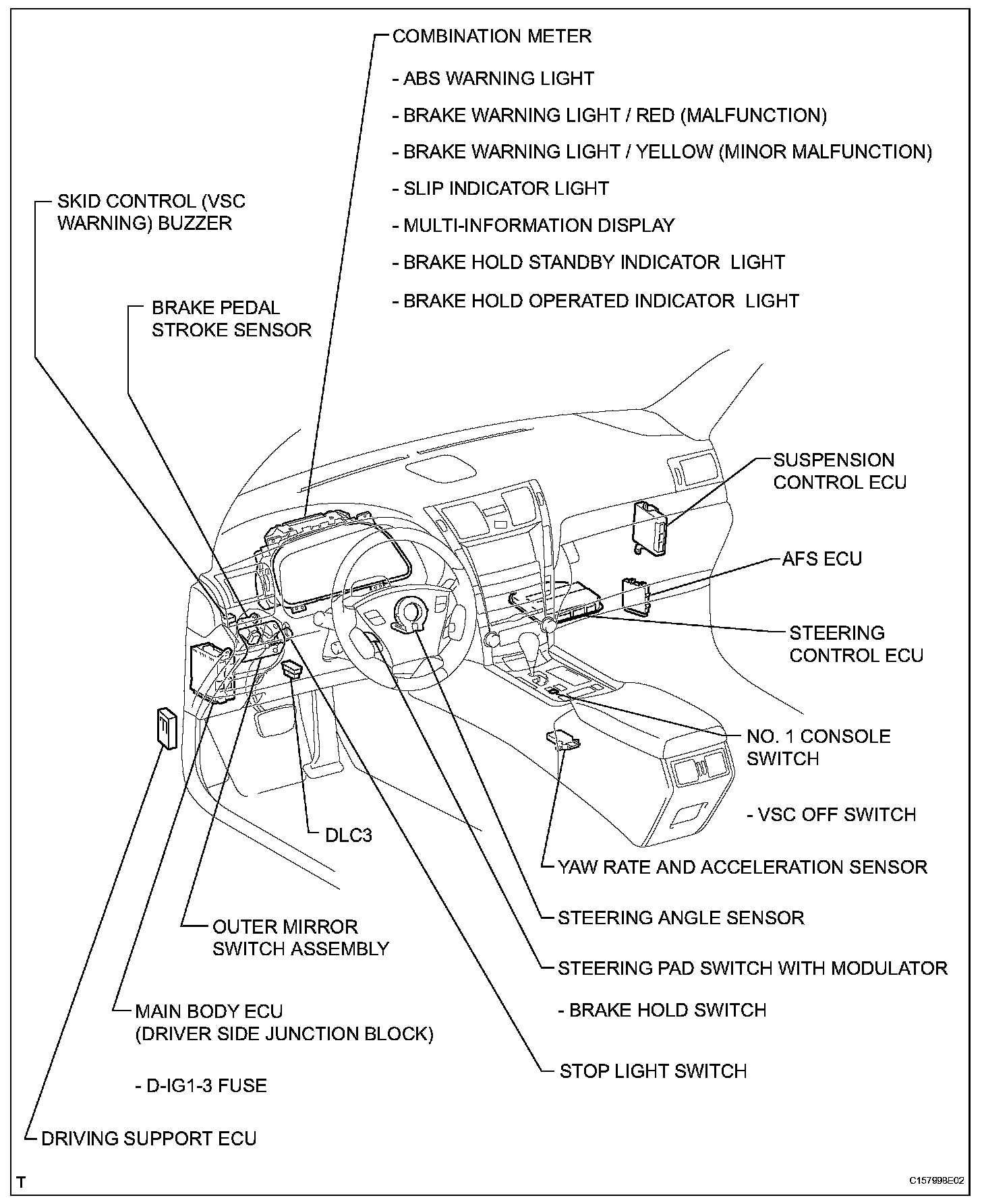

Electronically Controlled Brake System:

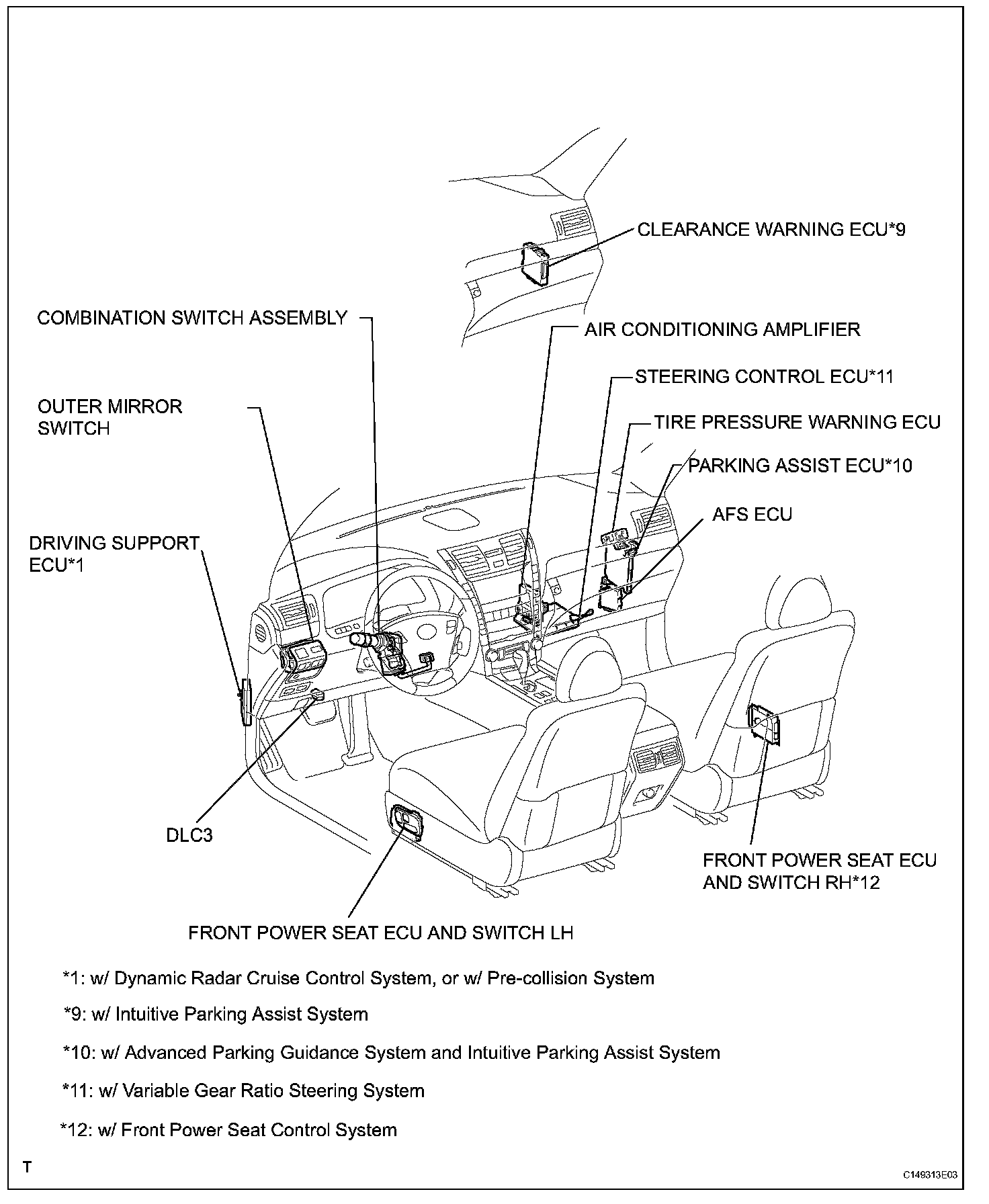

CAN Communication System:



Lighting System:
