Dome Lamp: Testing and Inspection

INSPECTION




1. INSPECT SPOT LIGHT ASSEMBLY
a. LED illumination inspection

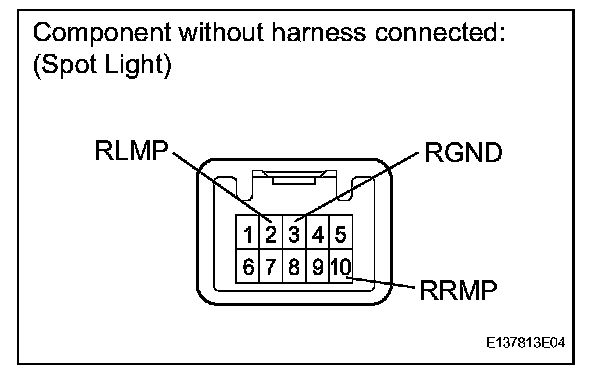

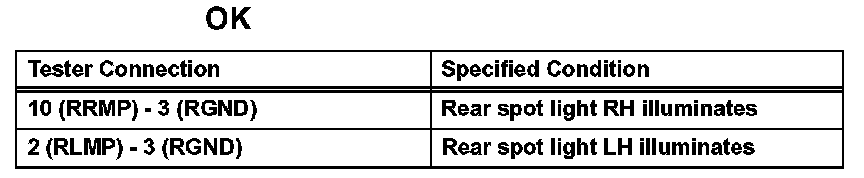

1. Apply battery voltage to the terminals of the connector, and check the LED illumination condition.

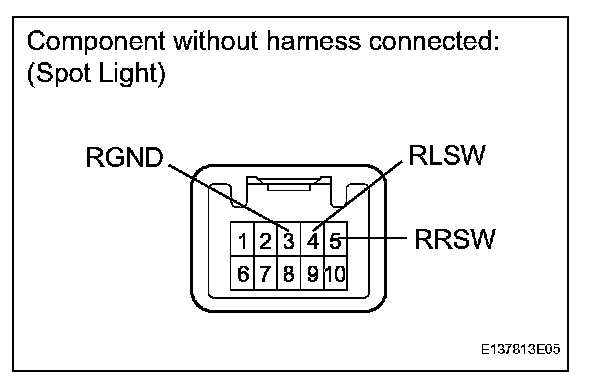

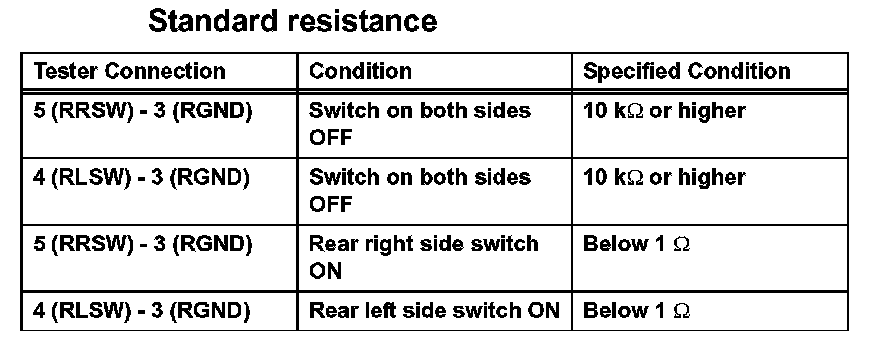

b. Measure the resistance according to the value(s) in the table.
