Inside Handle Light

INSPECTION

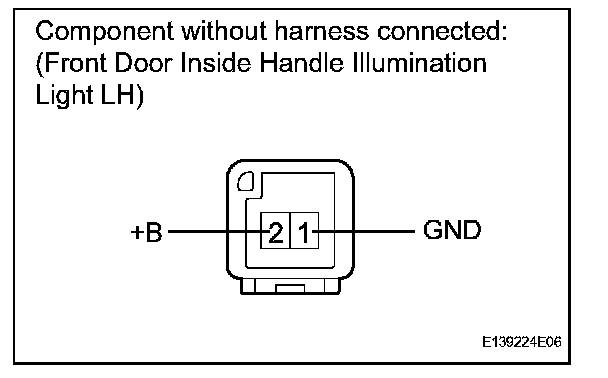

1. INSPECT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH

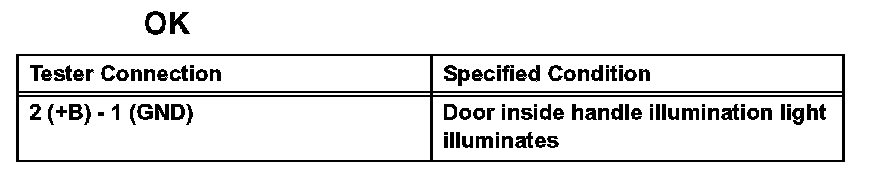

a. Apply battery voltage to the terminals of the connector, and check the LED illumination condition.

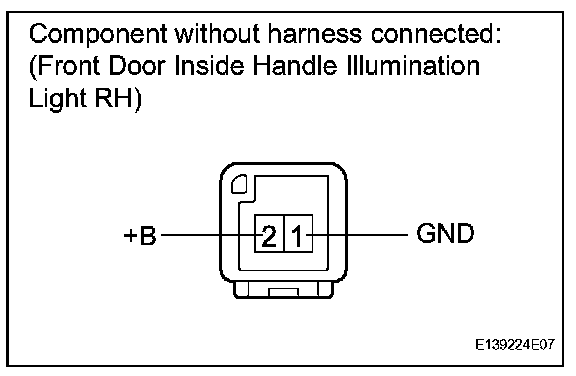

2. INSPECT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RH

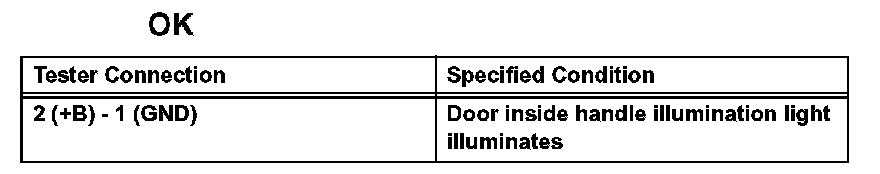

a. Apply battery voltage to the terminals of the connector, and check the LED illumination condition.

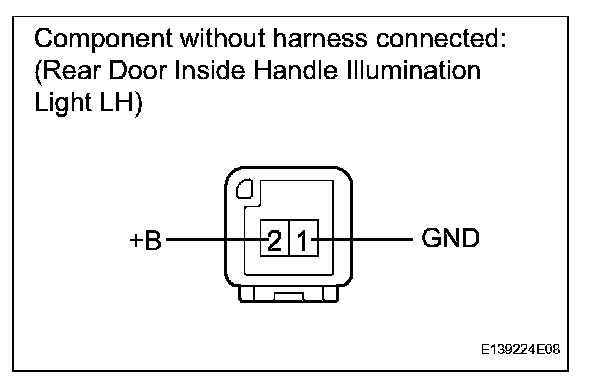

3. INSPECT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH

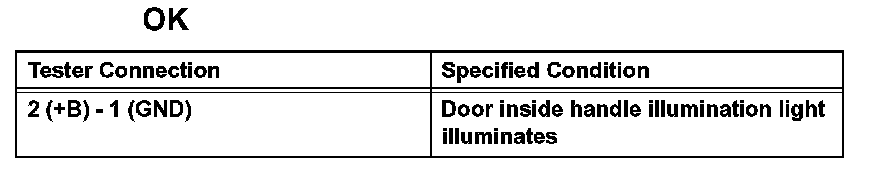

a. Apply battery voltage to the terminals of the connector, and check the LED illumination condition.

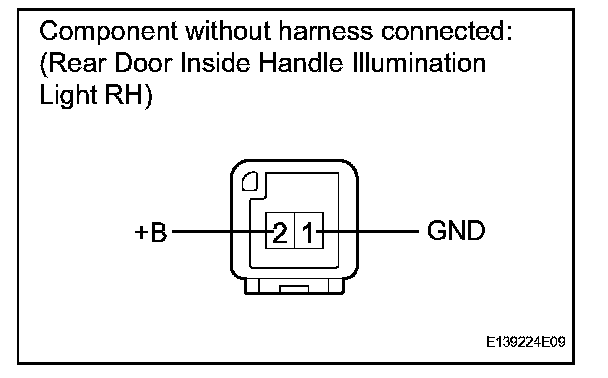

4. INSPECT REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY RH

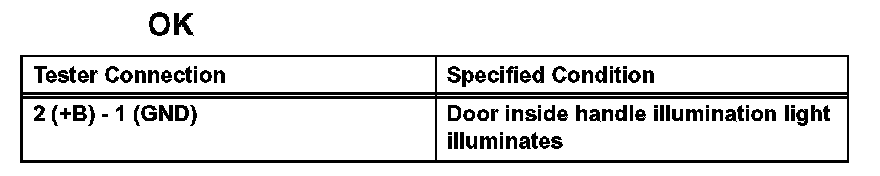

a. Apply battery voltage to the terminals of the connector, and check the LED illumination condition.
