Footwell Light

INSPECTION

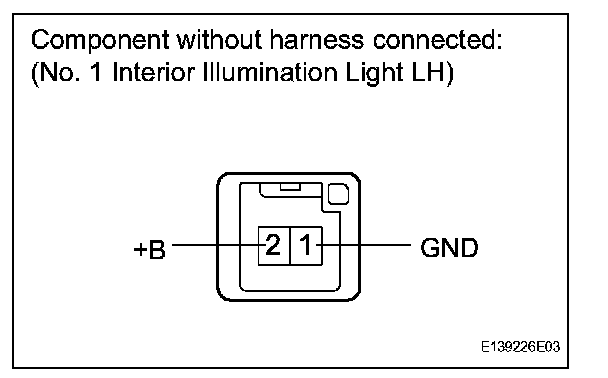

1. INSPECT NO.1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH

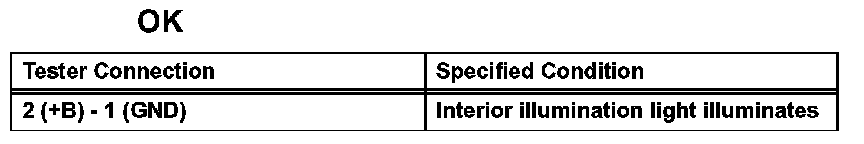

a. Apply battery voltage to the terminals of the connector, and check the LED illumination condition.

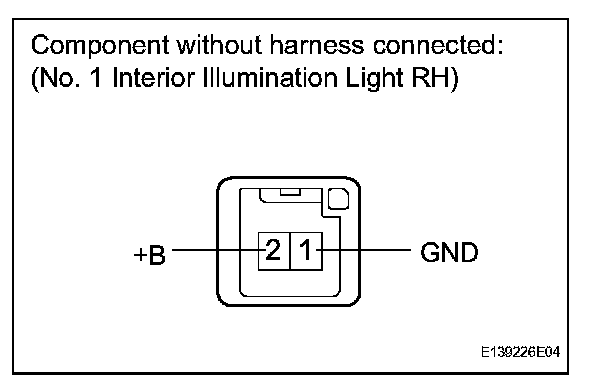

2. INSPECT NO.1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH

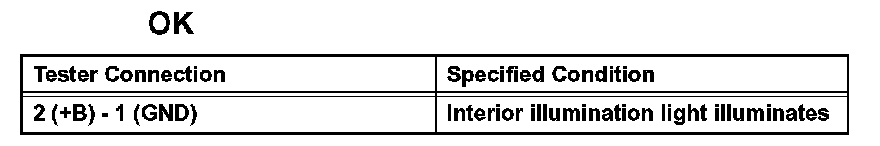

a. Apply battery voltage to the terminals of the connector, and check the LED illumination condition.

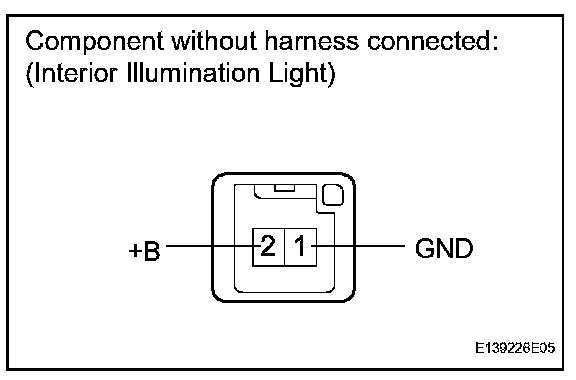

3. INSPECT INTERIOR ILLUMINATION LIGHT SUB-ASSEMBLY




a. Apply battery voltage to the terminals of the connector, and check the LED illumination condition.
