INSIDE HANDLE LIGHT

REMOVAL

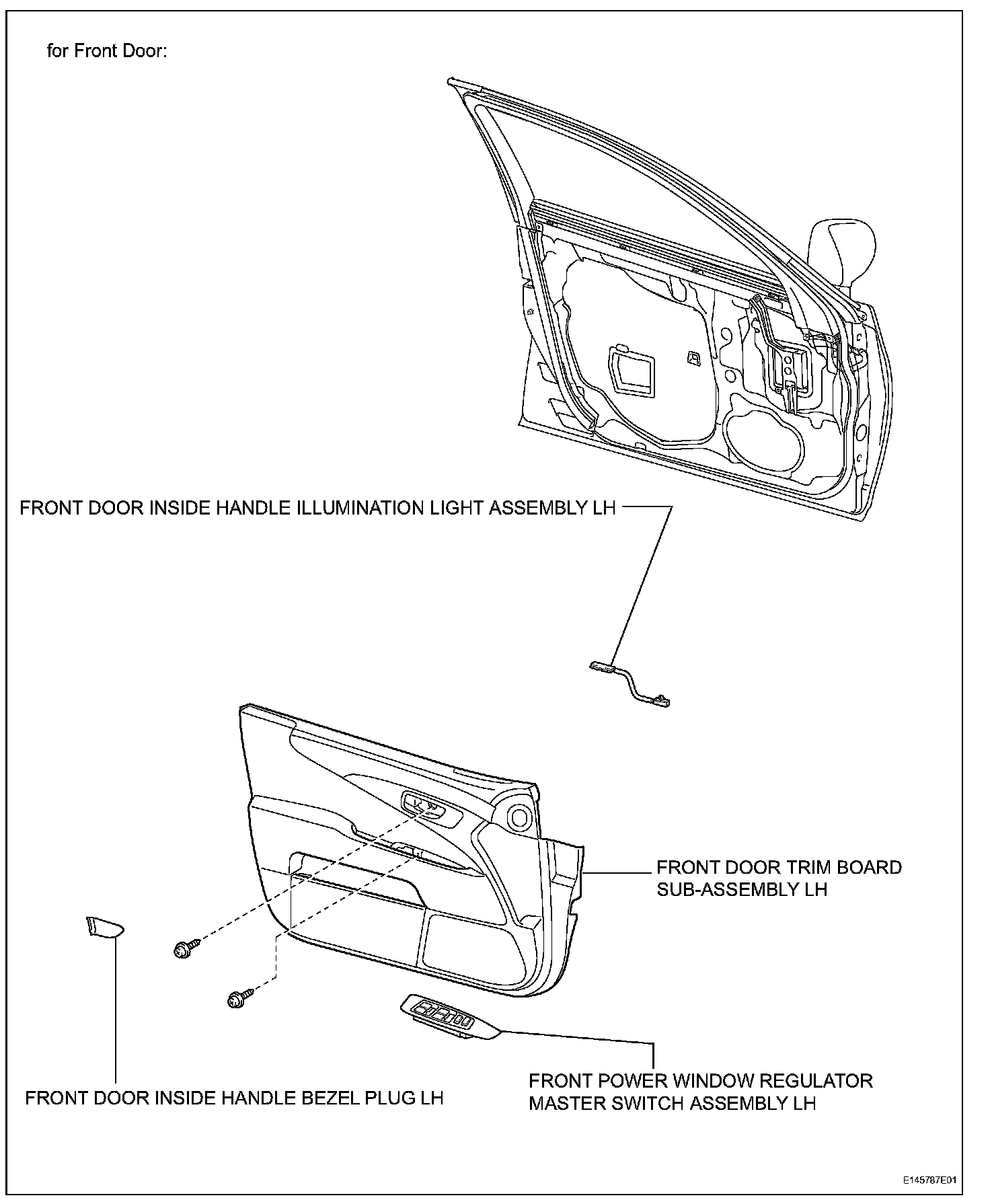

1. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
2. REMOVE FRONT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY LH
3. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH




4. REMOVE FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH

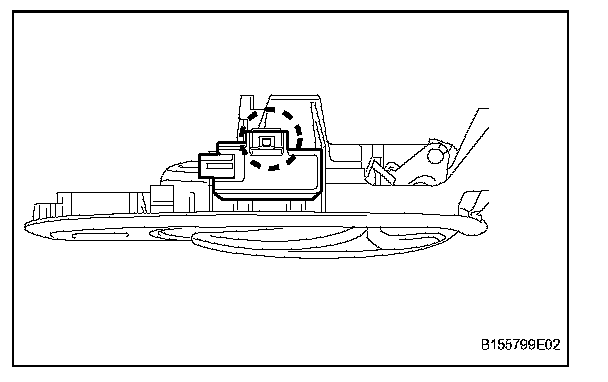

a. Detach the claw, disconnect the connector and then remove the light.

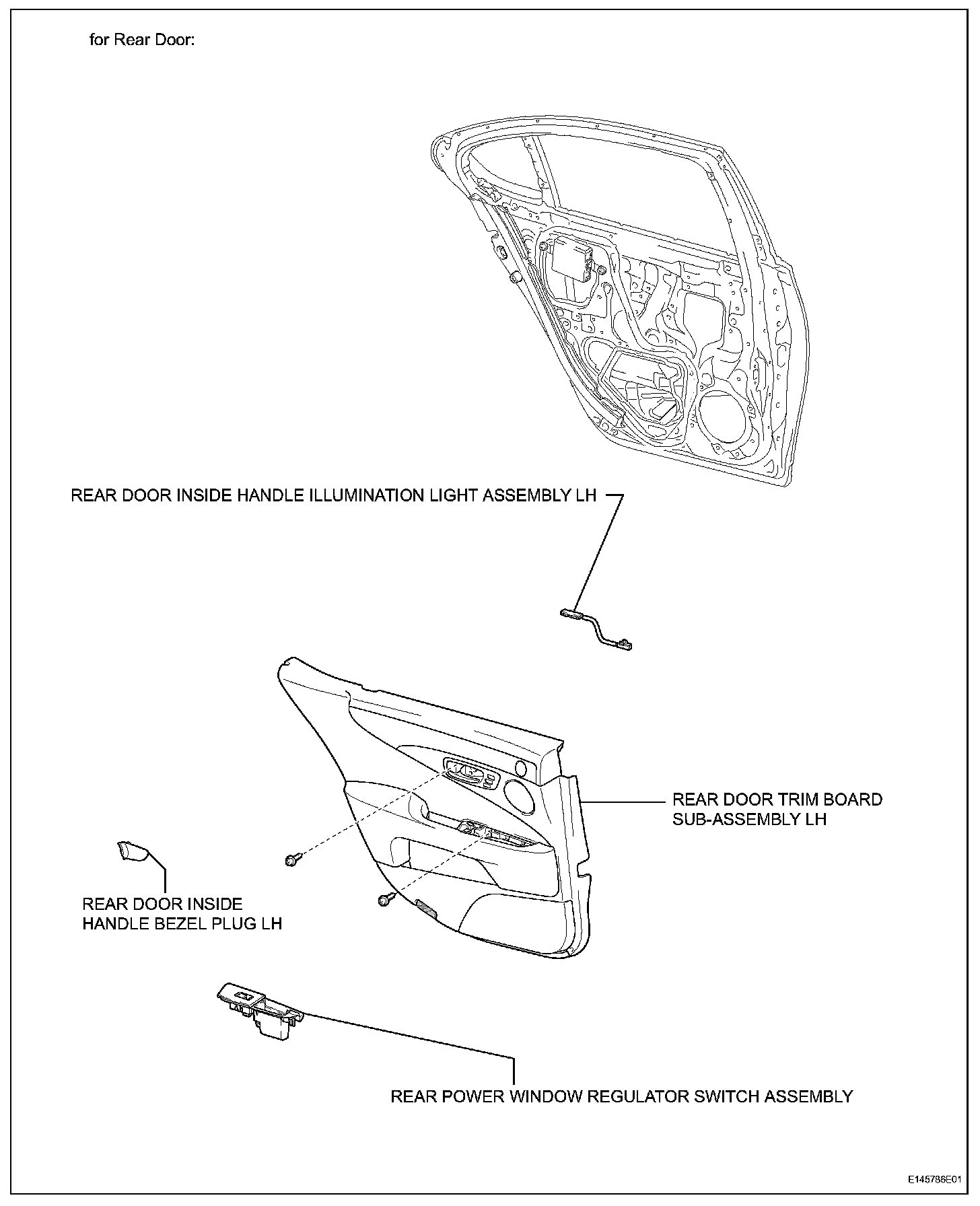

5. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH
6. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
7. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
8. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH (w/ Rear Door Sunshade)




9. REMOVE REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH

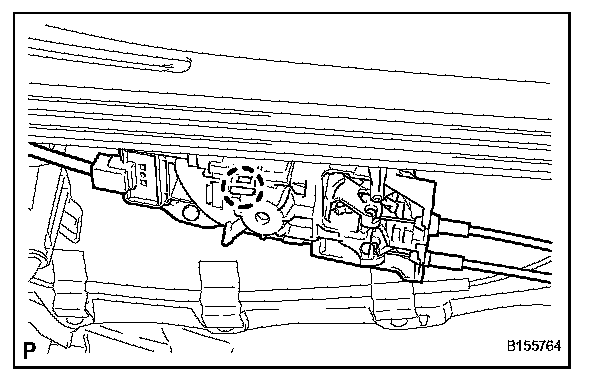

a. Detach the 2 claws, disconnect the connector and then remove the light.

INSTALLATION




1. INSTALL REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH

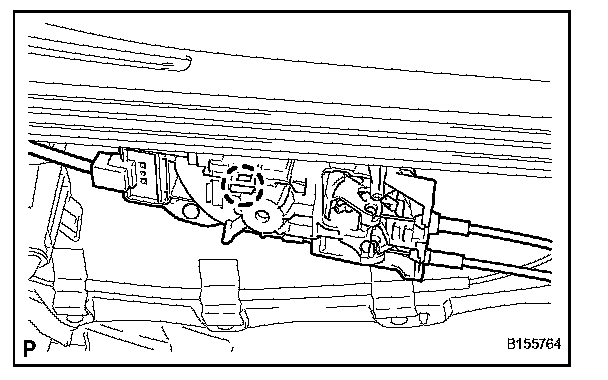

a. Connect the connector.

2. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH
3. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH (w/ Rear Door Sunshade)
4. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY
5. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG LH




6. INSTALL FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH
a. Connect the connector.
b. Attach the claw to install the light.

7. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
8. INSTALL FRONT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY LH
9. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH
