Console Lamp: Service and Repair

Console Box Light:

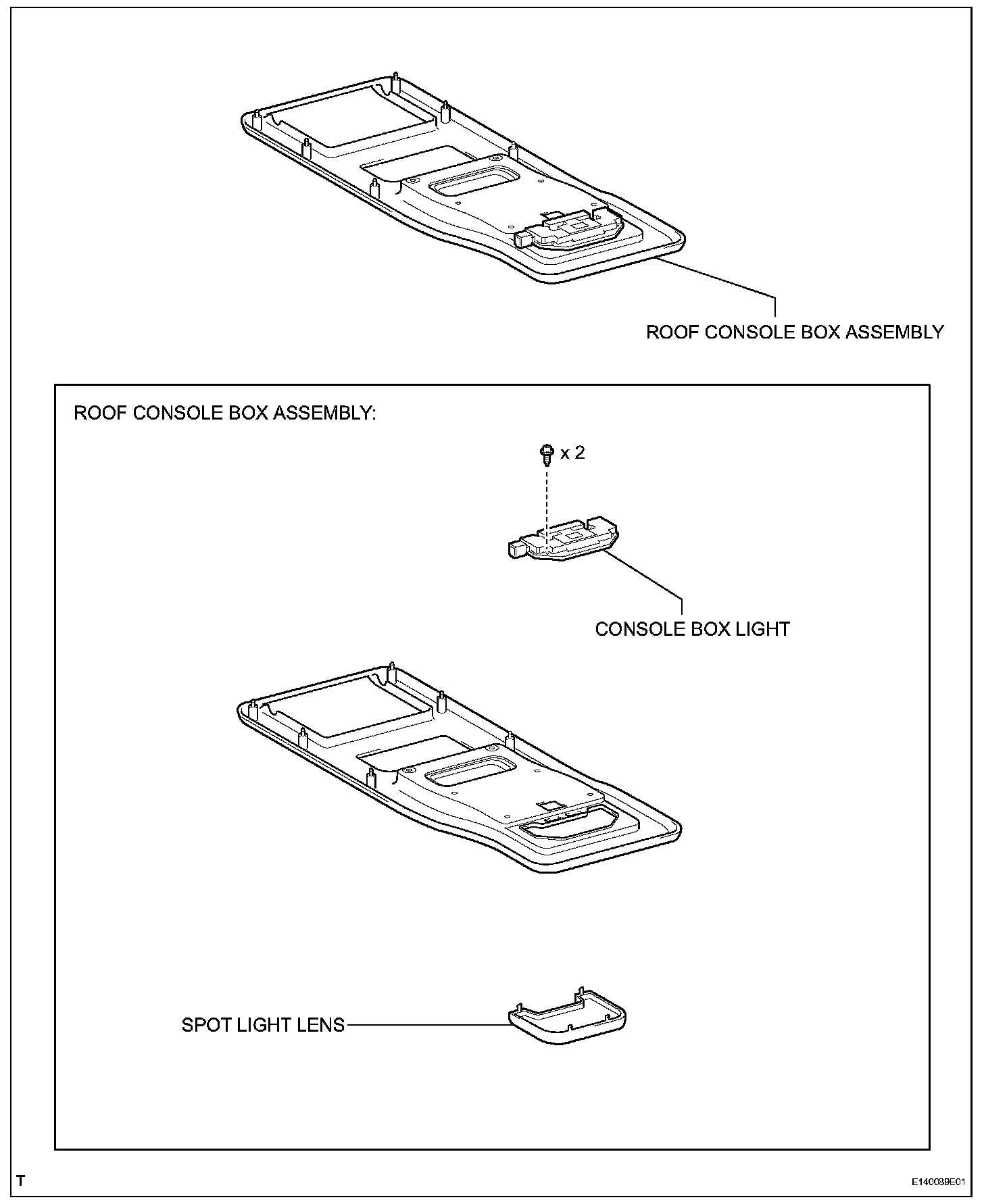

CONSOLE BOX LIGHT

REMOVAL




1. REMOVE SPOT LIGHT LENS
a. Using a screwdriver, detach the 4 claws and remove the spot light lens.

HINT: Tape the screwdriver tip before use.

2. REMOVE ROOF CONSOLE BOX ASSEMBLY

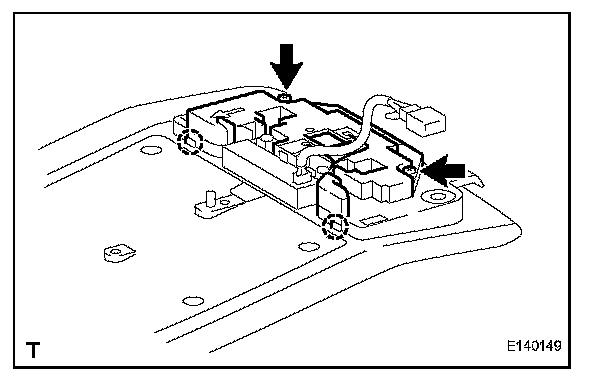

3. REMOVE CONSOLE BOX LIGHT
a. Remove the 2 screws.
b. Detach the 2 claws and remove the console box light.

INSTALLATION




1. INSTALL CONSOLE BOX LIGHT
a. Attach the 2 claws.
b. Install the console box light with the 2 screws.

2. INSTALL ROOF CONSOLE BOX ASSEMBLY




3. INSTALL SPOT LIGHT LENS
a. Attach the 4 claws and install the spot light lens.
