Operating Light Control Rheostat Does Not Change Light Brightness

Operating Light Control Rheostat does not Change Light Brightness

DESCRIPTION

The NO.1 meter ECU receives signals for adjusting illumination on the meter of this circuit. The NO.1 meter ECU detects the illumination level selected by the user according to the switch operation.

HINT: The meter illumination level can be adjusted by pushing the rheostat UP and DOWN switches.

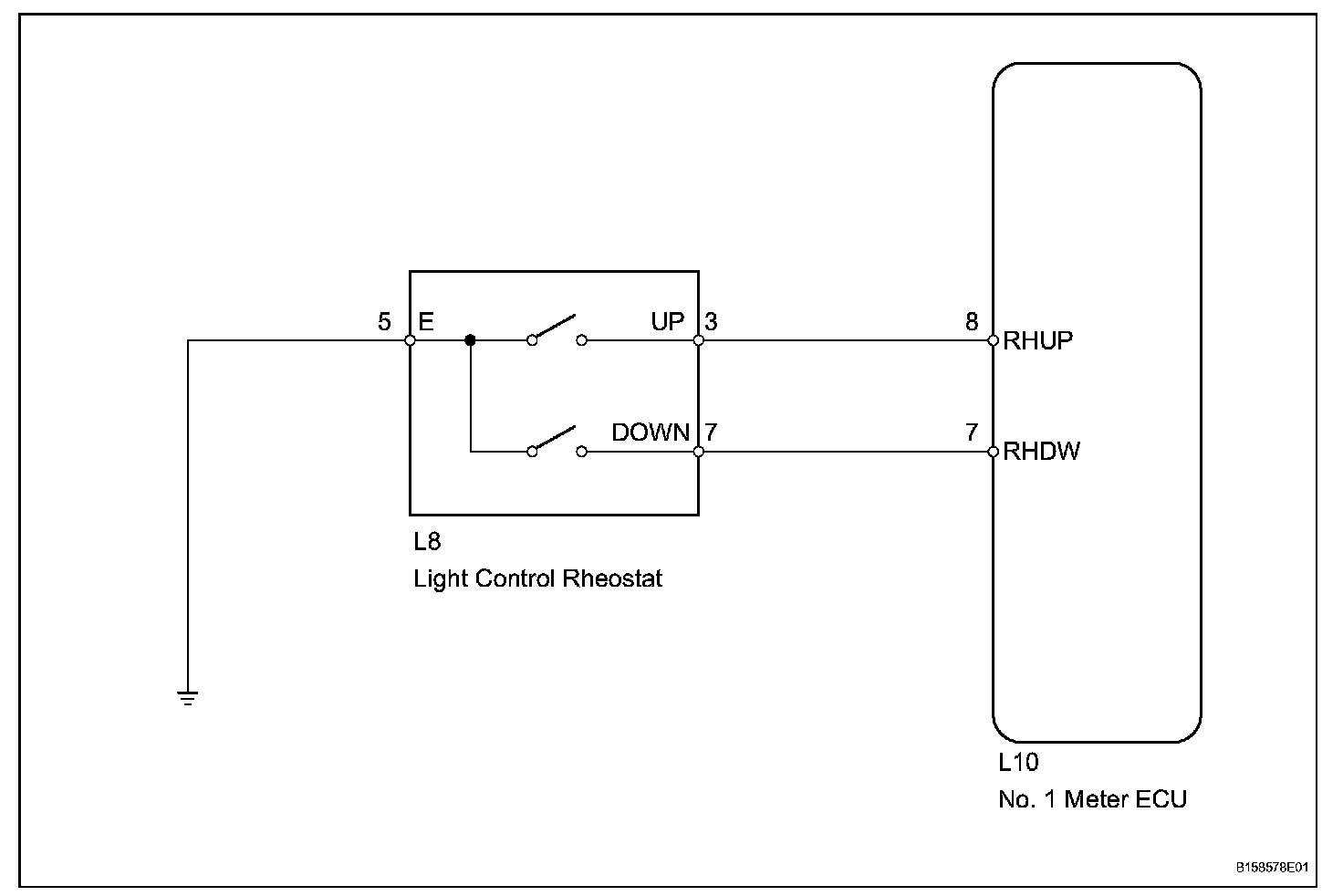

Wiring Diagram:

Step 1:

Step 1 (Continued)-2:

Step 3:

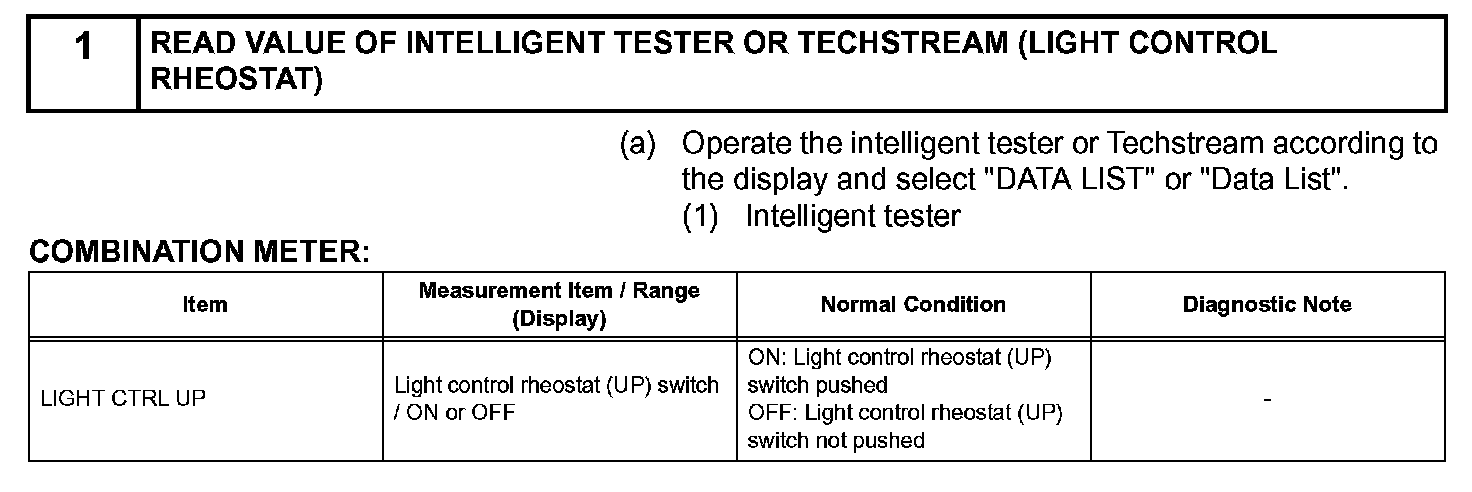

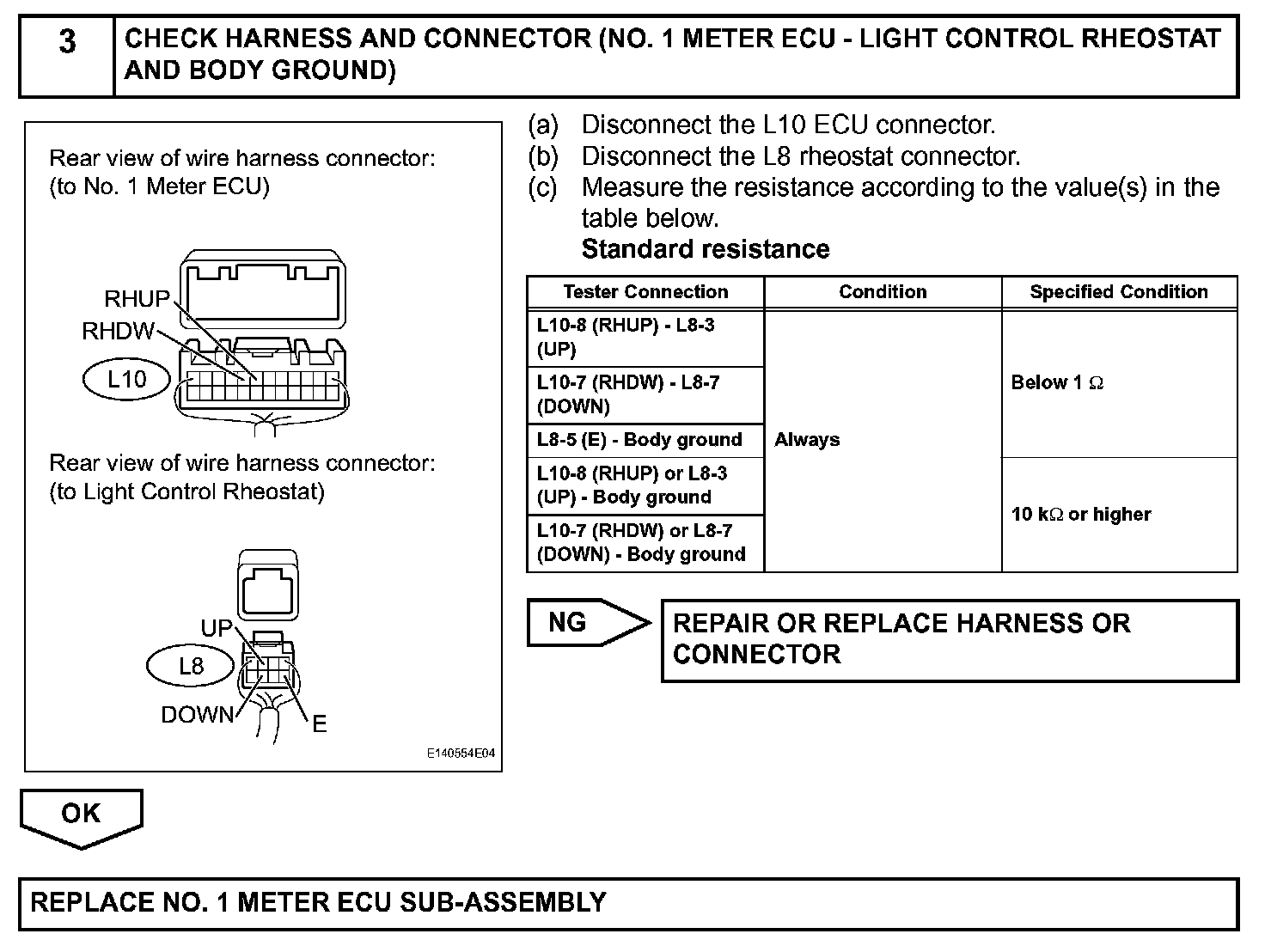

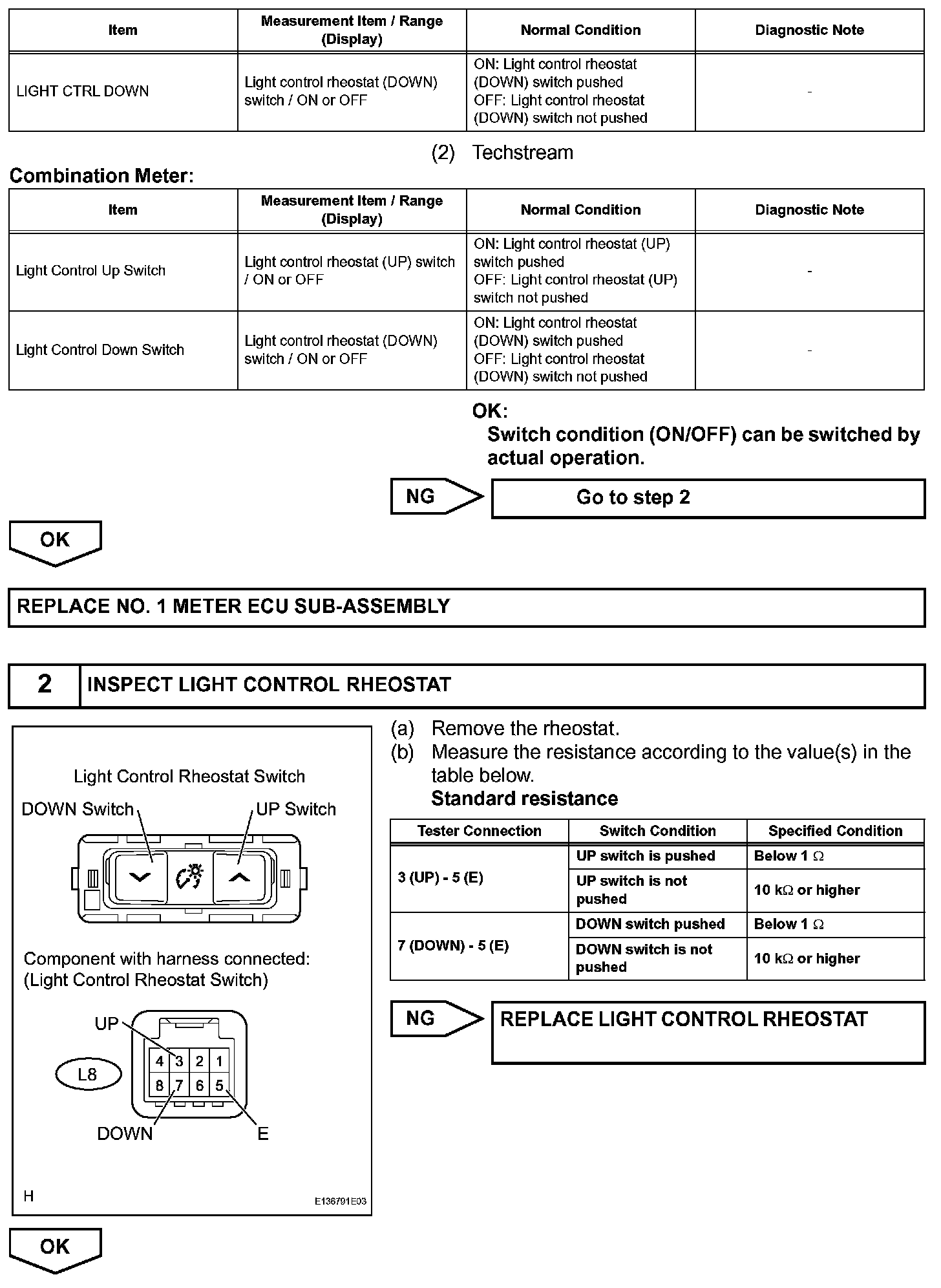

INSPECTION PROCEDURE
