Instrument Panel, Gauges and Warning Indicators
>>
Clock
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Clock Power Source Circuit
Clock Power Source Circuit
Clock Power Source Circuit
DESCRIPTION
The circuit provides power to the clock.

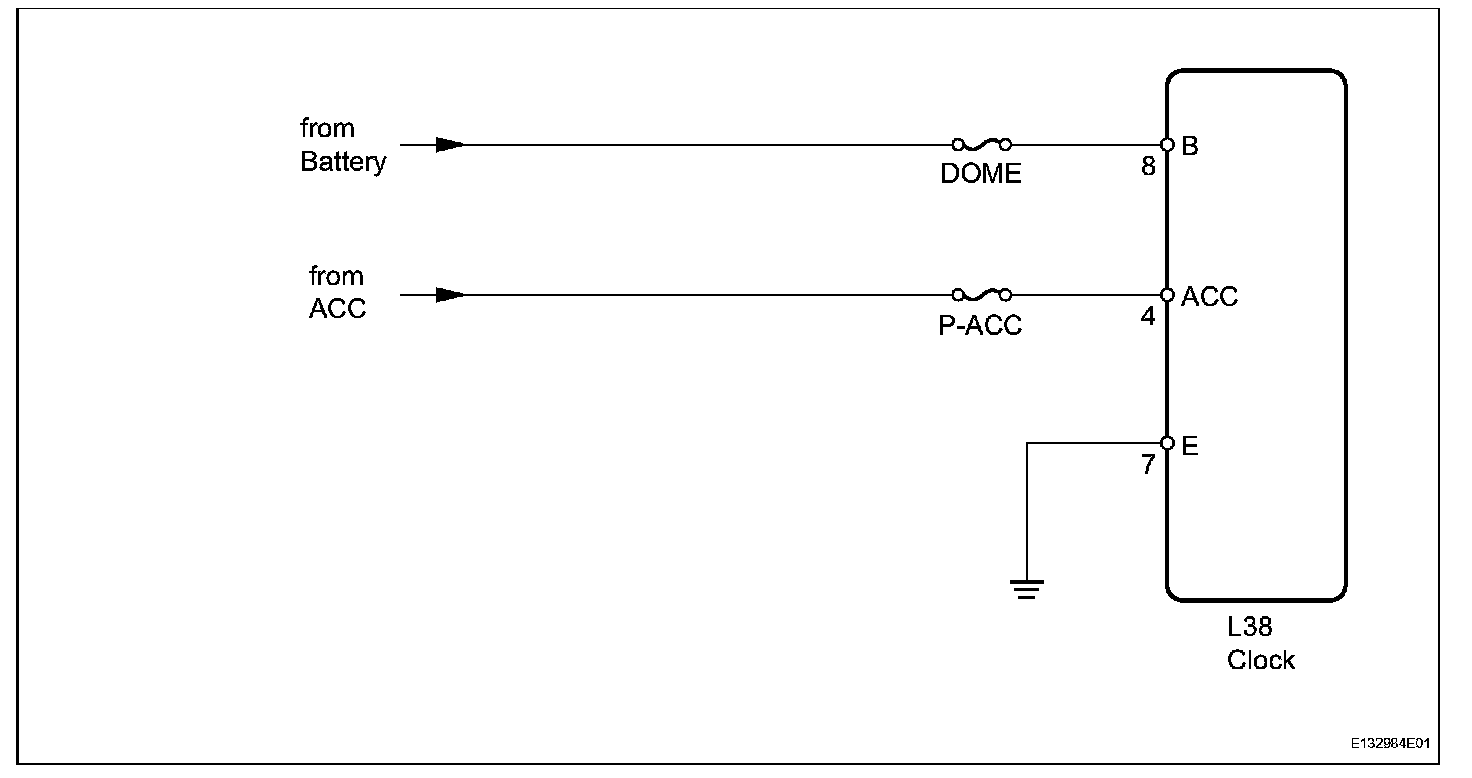

Wiring Diagram:

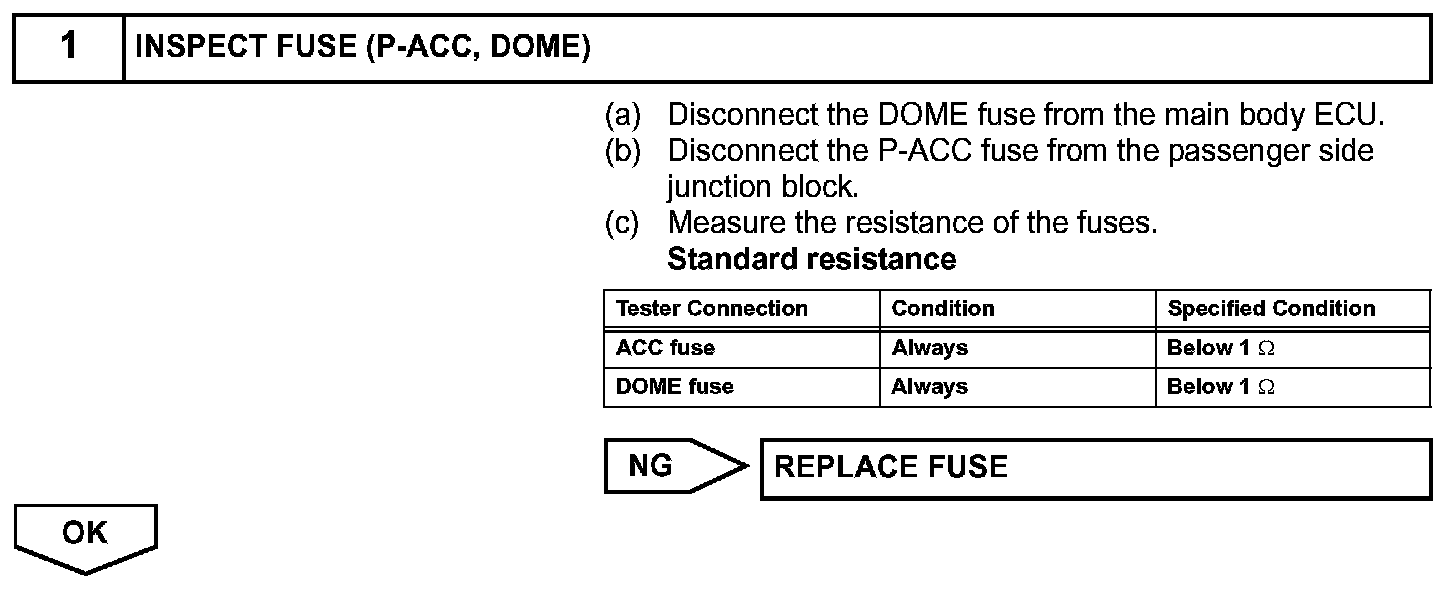

Step 1:

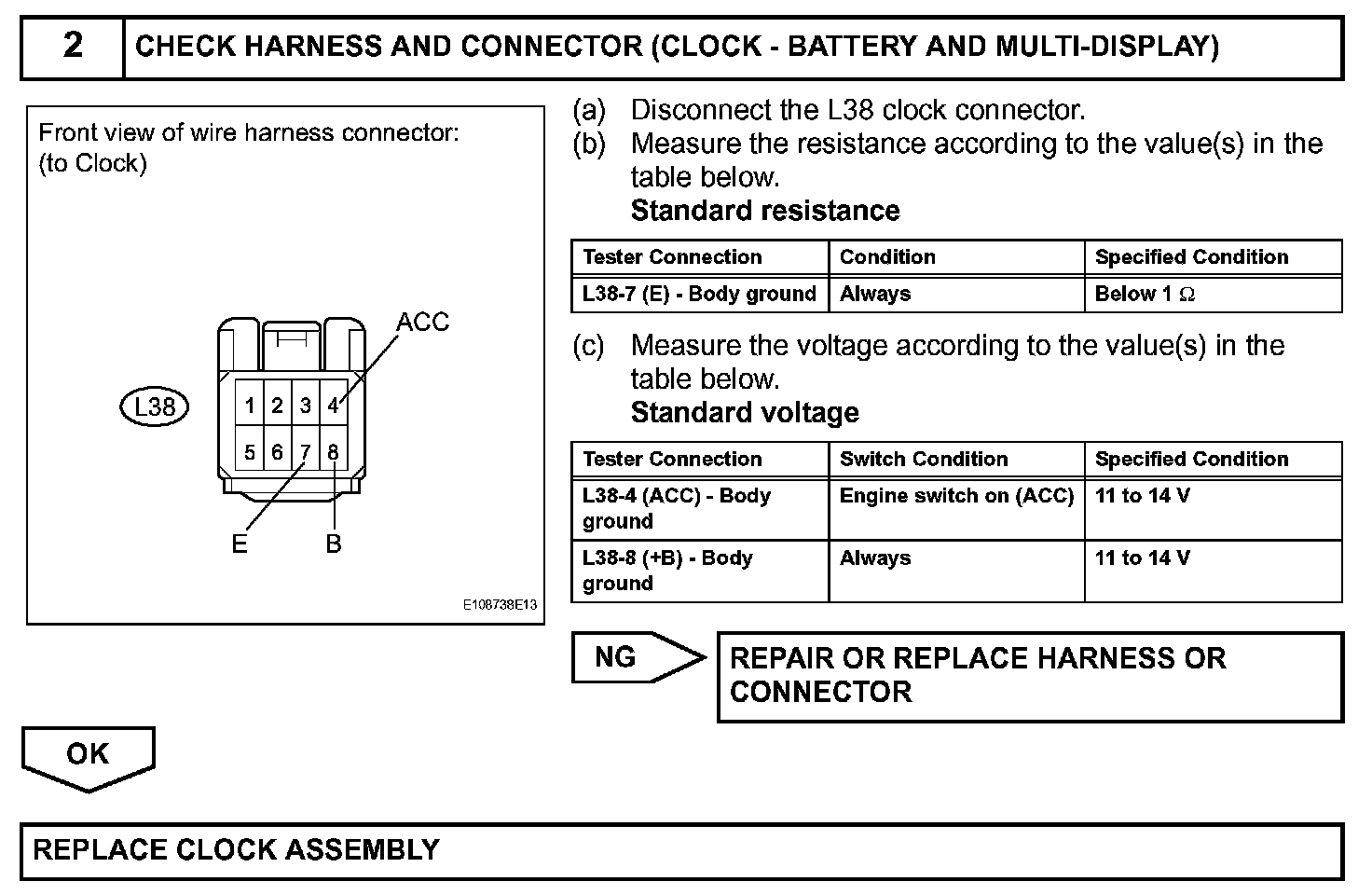

Step 2:
INSPECTION PROCEDURE
