Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Clock >> Testing and Inspection >> Component Tests and General Diagnostics >> AVC-LAN Circuit

AVC-LAN Circuit

AVC-LAN Circuit

DESCRIPTION

The clock receives light control switch position information and GPS information via the AVC-LAN. When a short to +B or short to ground occurs in this AVC-LAN, the clock system will not function normally as communication is discontinued.

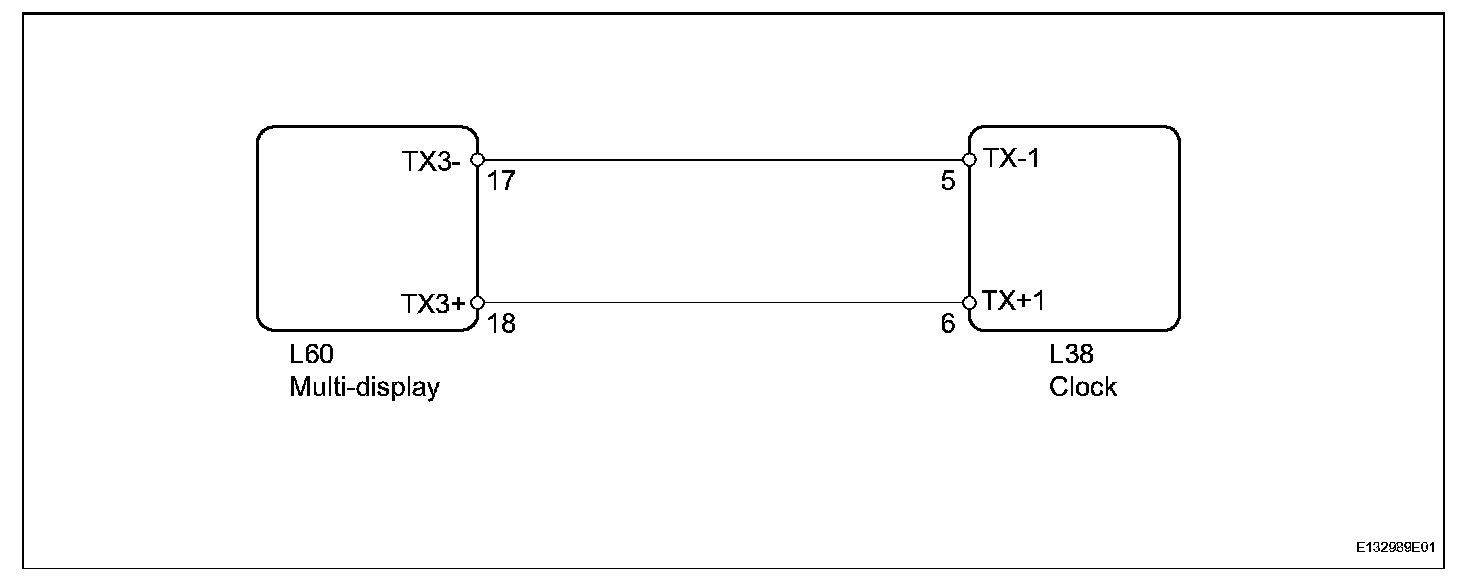

Wiring Diagram:

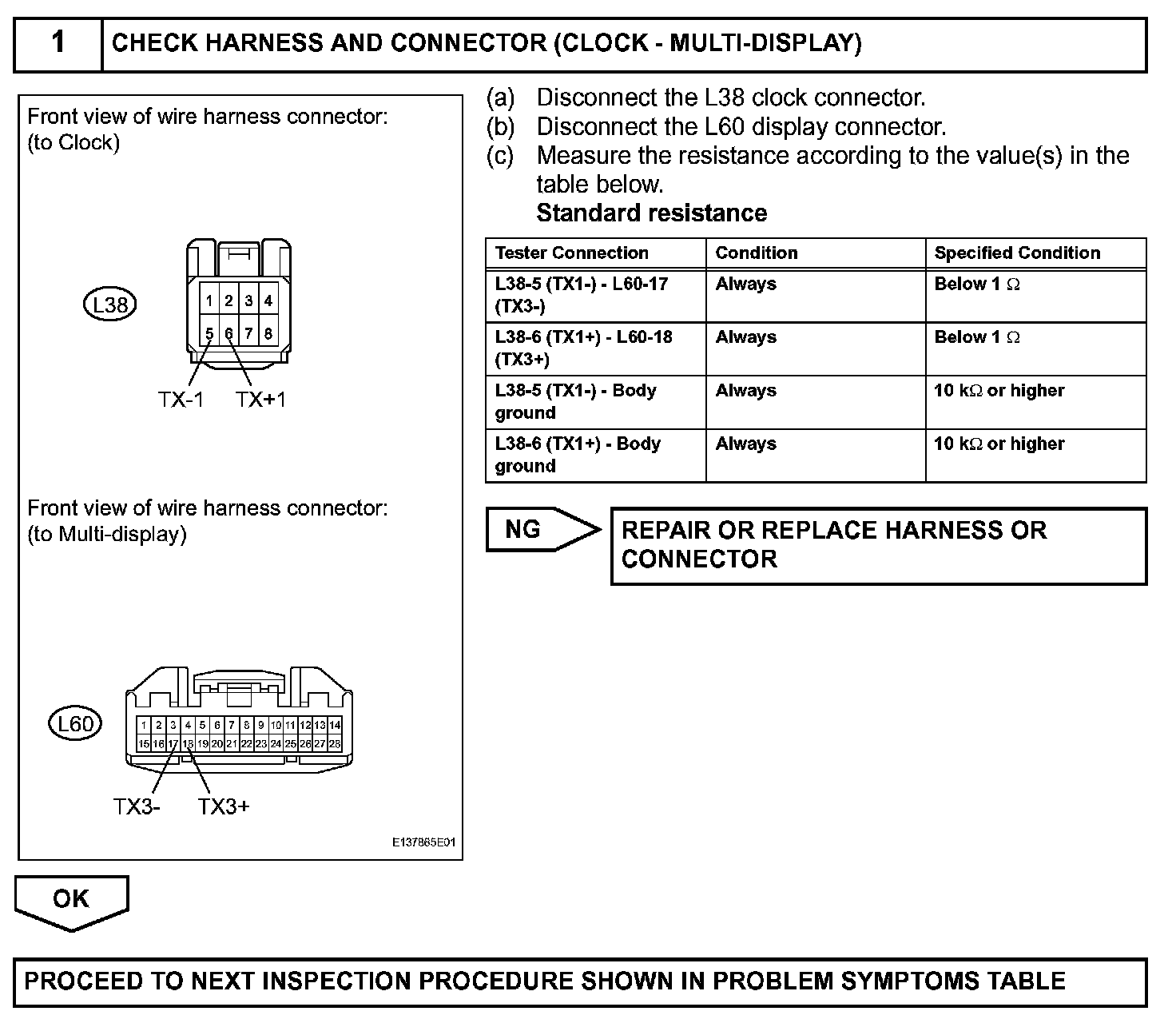

Step 1:




INSPECTION PROCEDURE
