Brake Warning Indicator: Testing and Inspection
INSPECTION1. INSPECT SKID CONTROL BUZZER ASSEMBLY

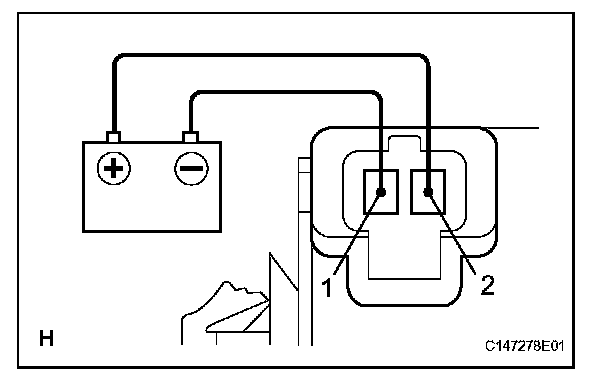

a. Apply negative battery voltage to terminal 1, and positive battery voltage to terminal 2 of the skid control buzzer, and then check that the buzzer sounds.
OK: Skid control buzzer sounds.
If the result is not as specified, replace the skid control buzzer assembly.
