Pinout Values and Diagnostic Parameters

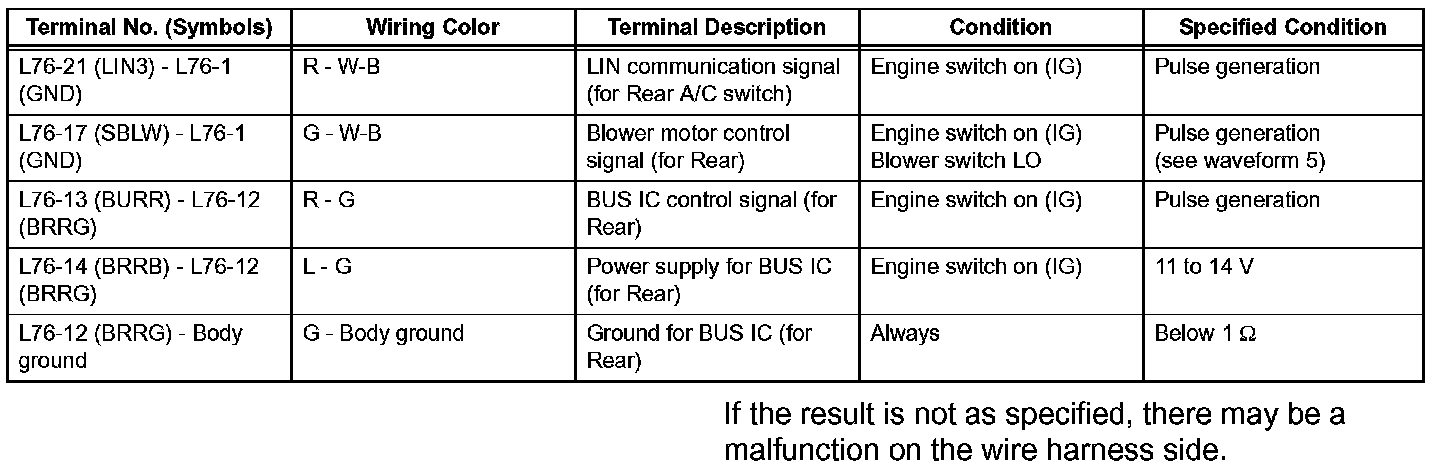

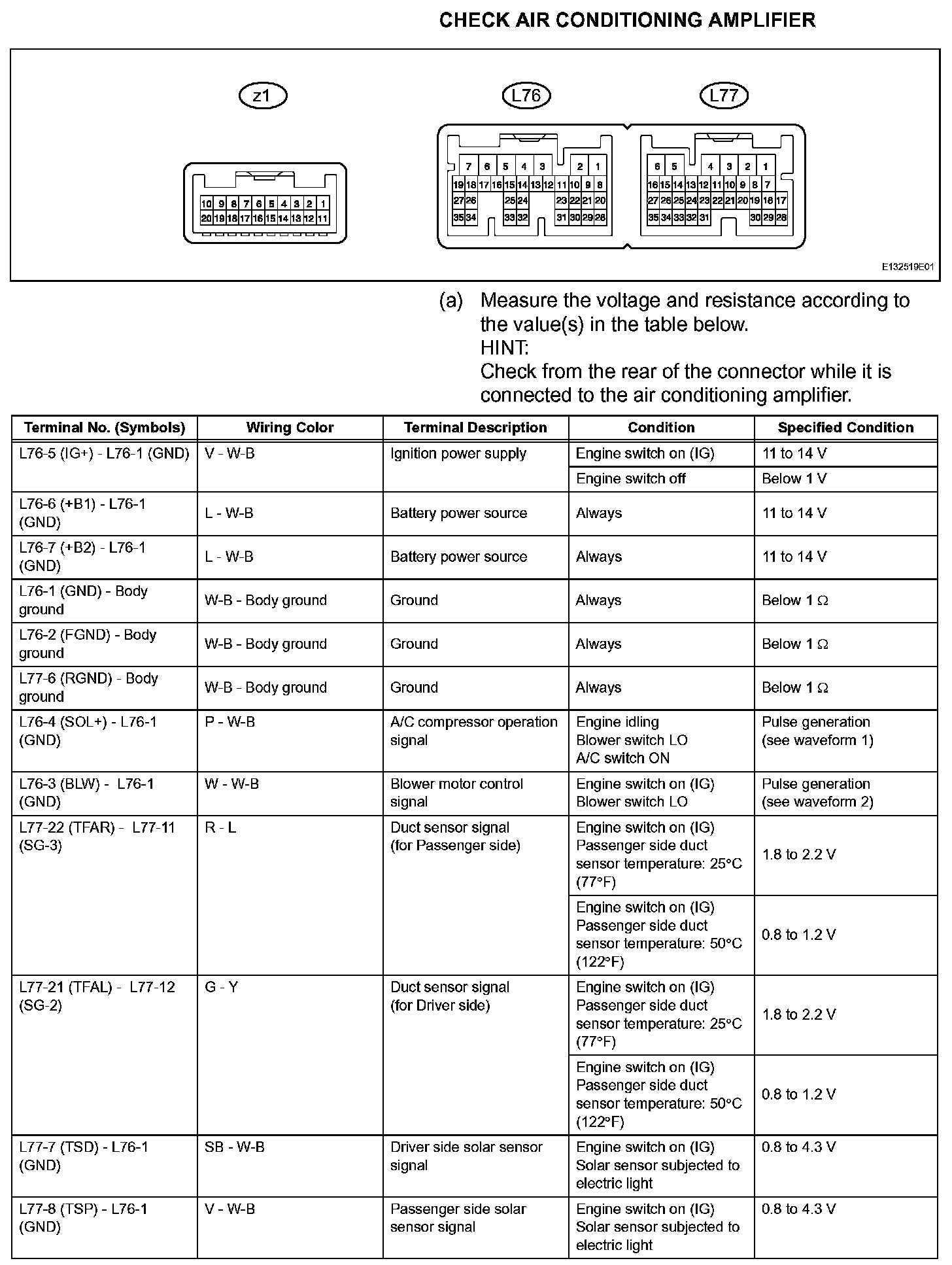

Terminals Of Control Module/Pinouts-Check Air Conditioning Amplifier (Part 1):

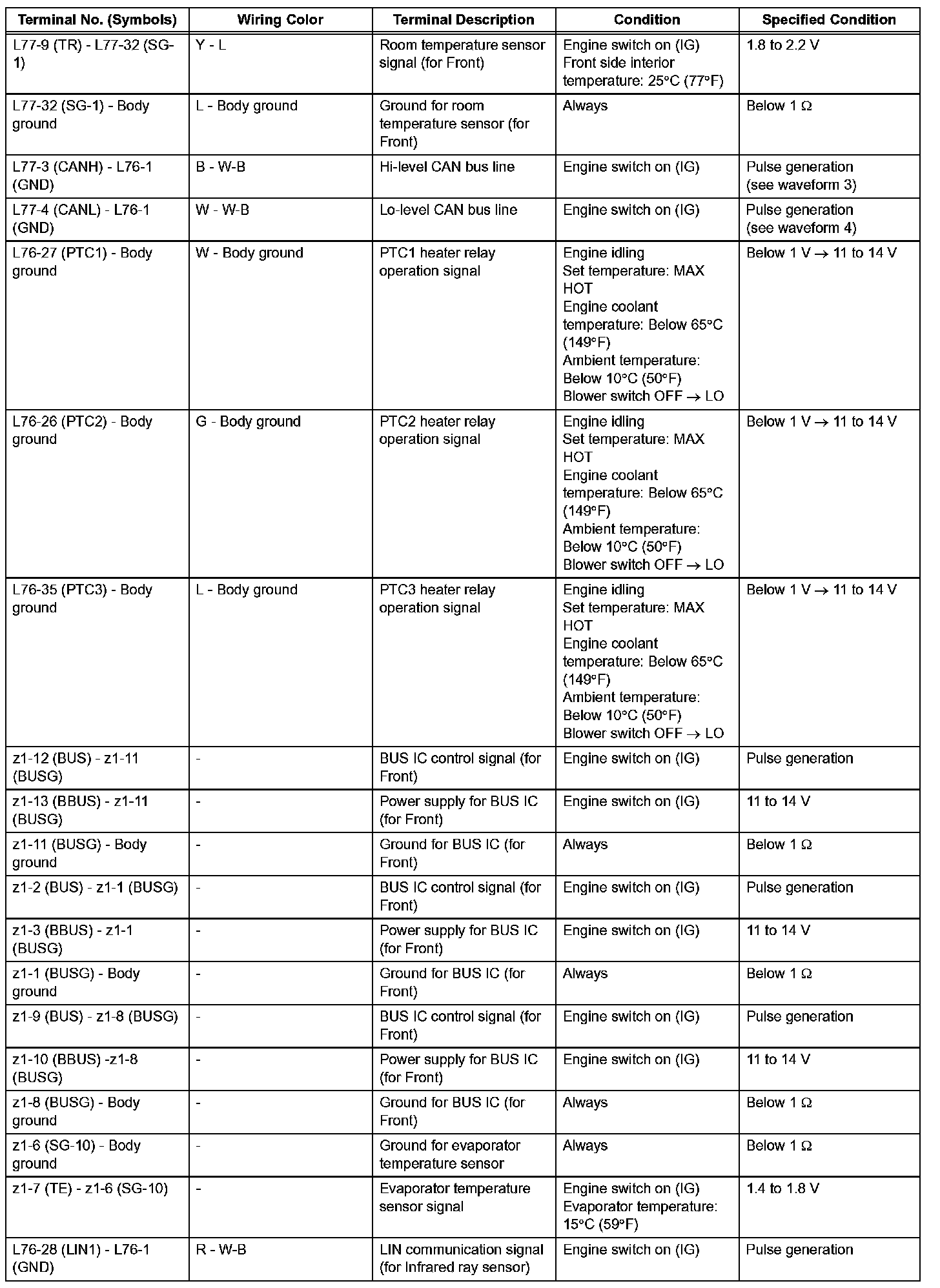

Terminals Of Control Module/Pinouts-Check Air Conditioning Amplifier (Part 2):

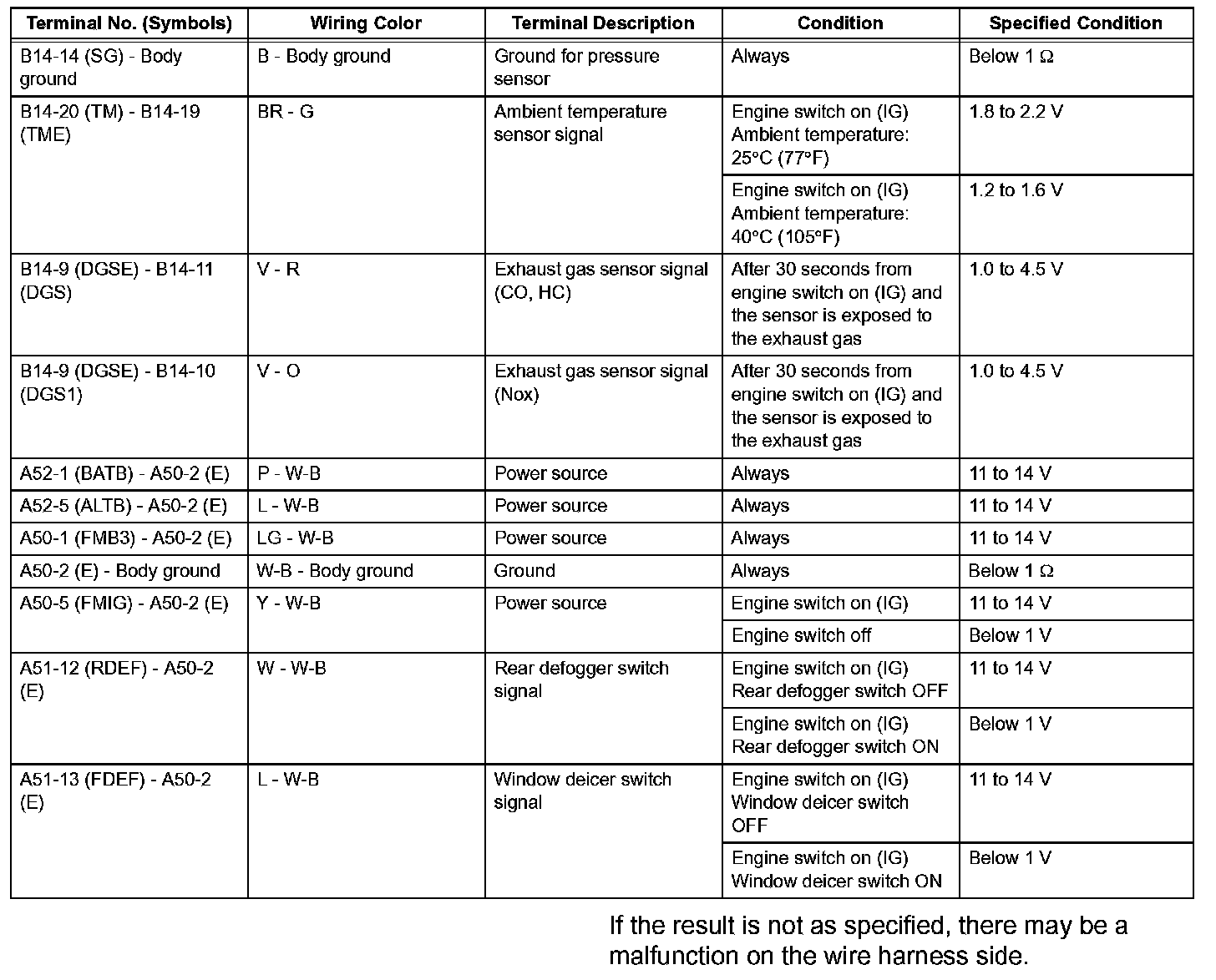

Terminals Of Control Module/Pinouts-Check Air Conditioning Amplifier (Part 3):

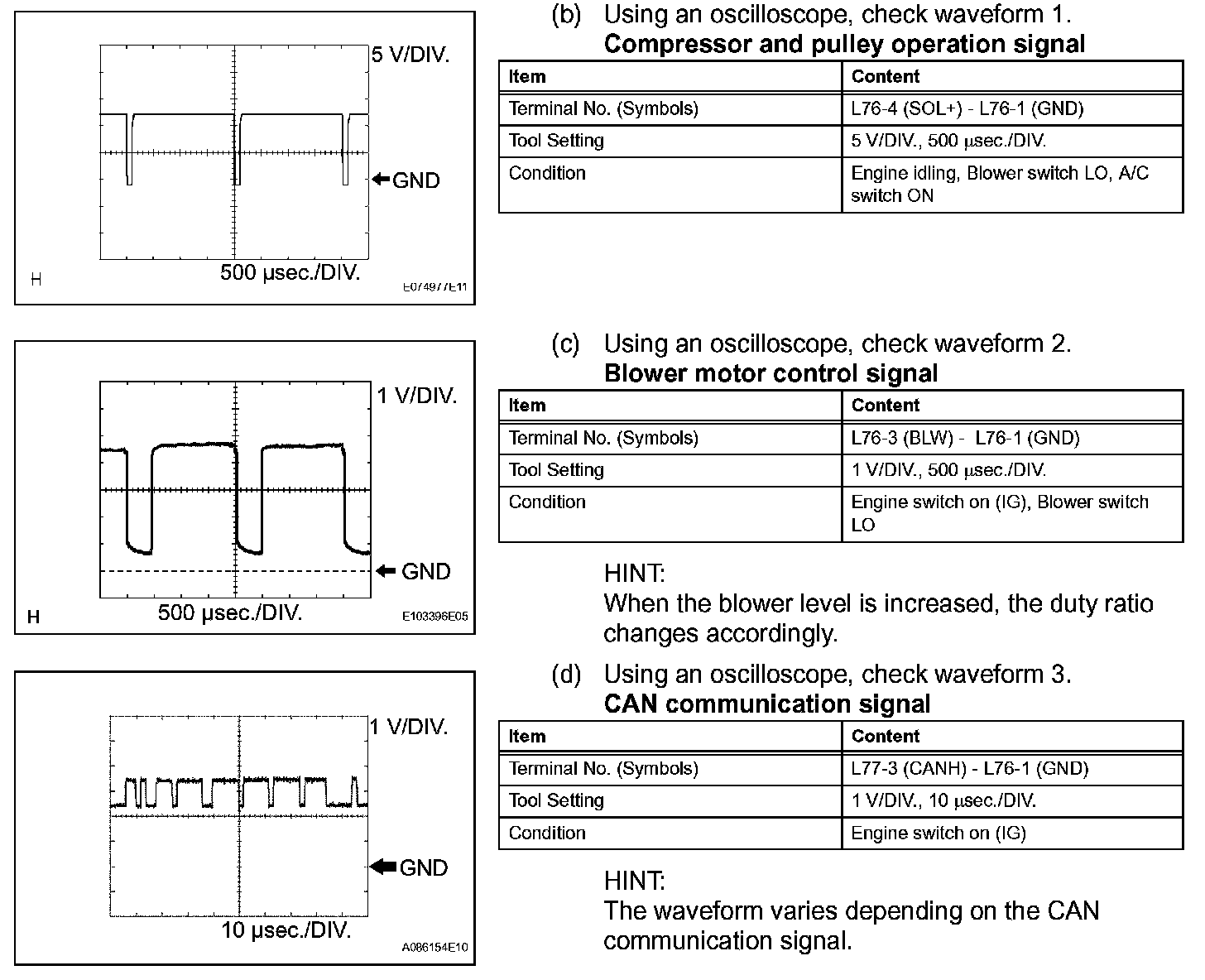

Oscilloscope Waveforms (Part 1):

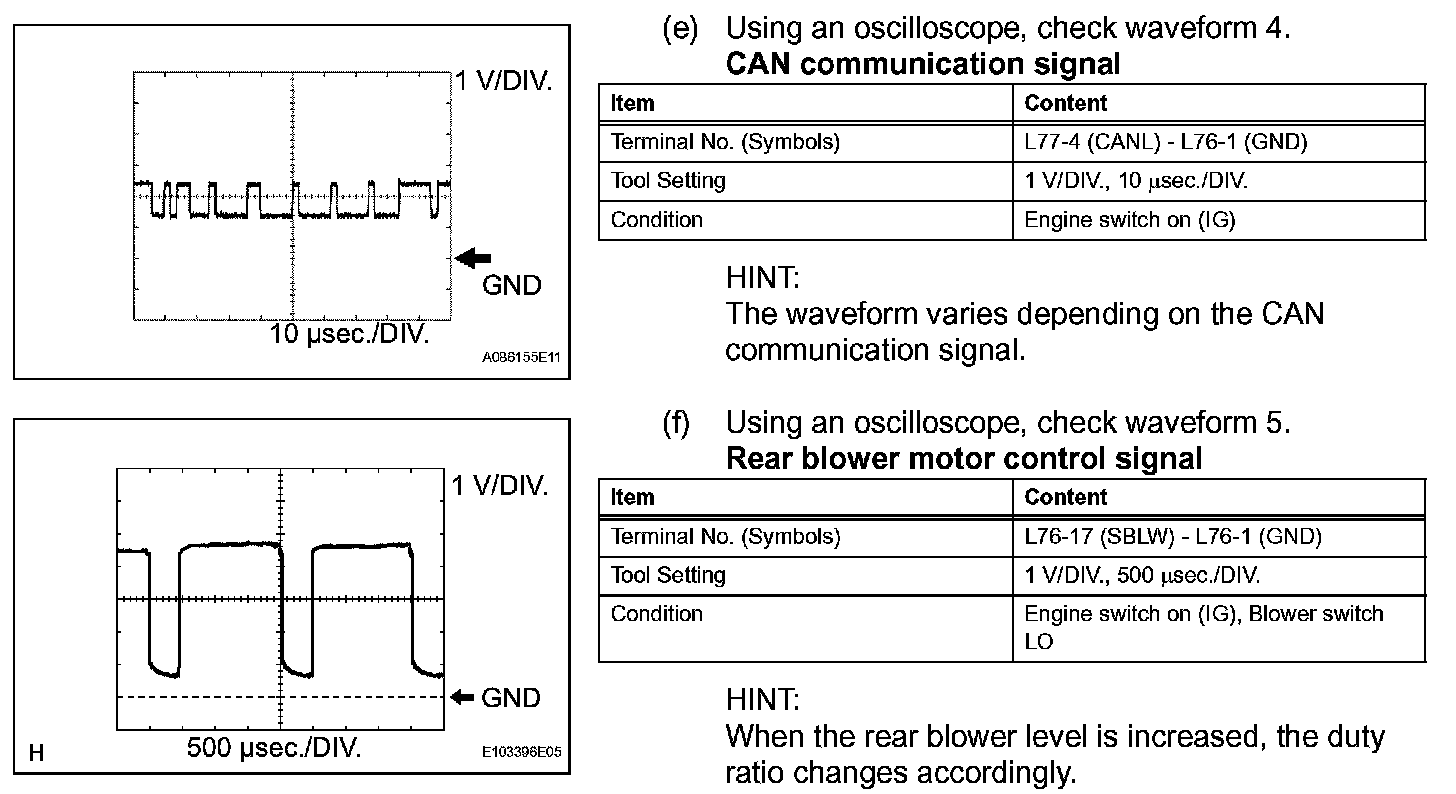

Oscilloscope Waveforms (Part 2):

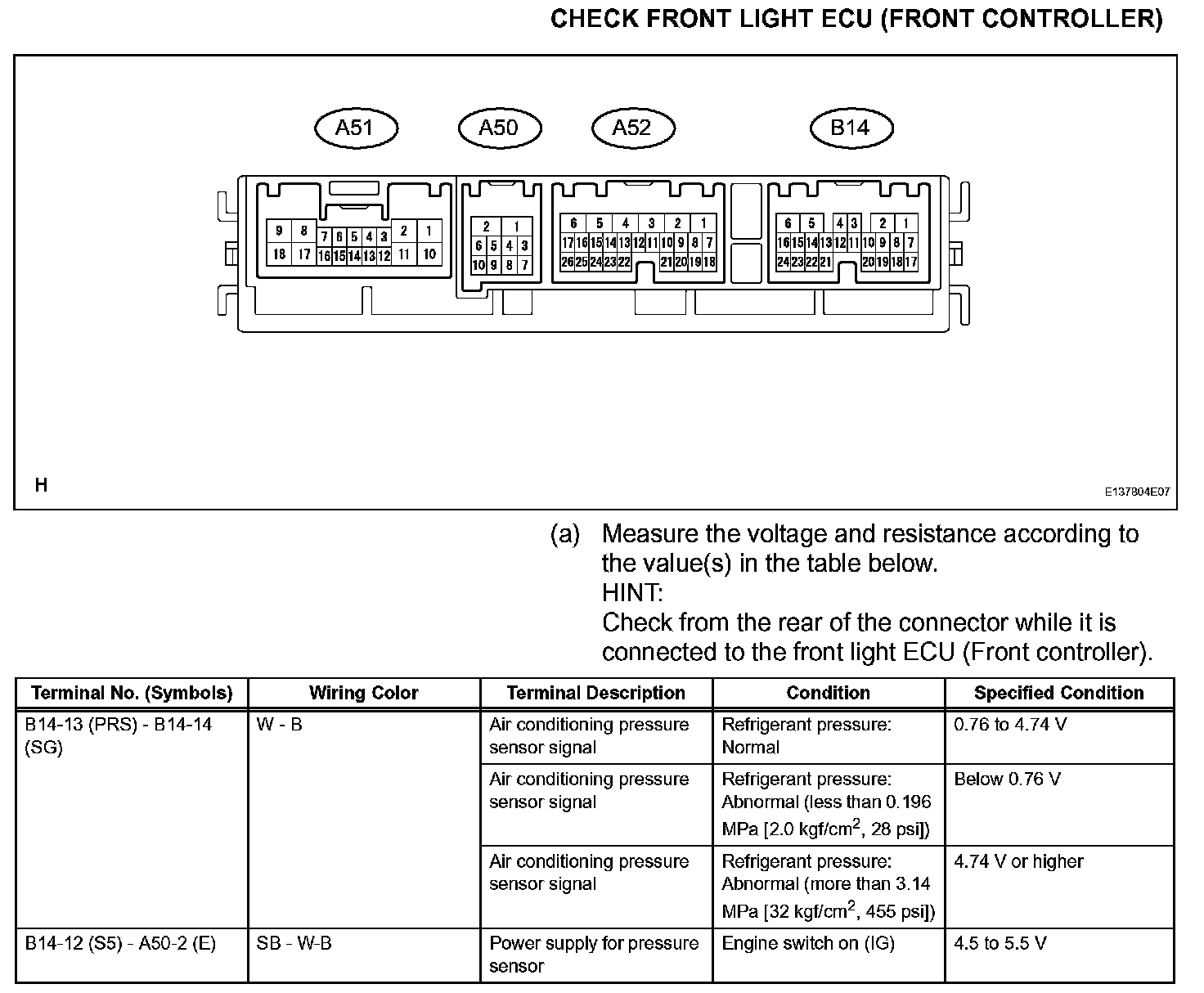

Terminals Of Control Module/Pinouts-Check Front Light ECU (Front Controller) (Part 1):

Terminals Of Control Module/Pinouts-Check Front Light ECU (Front Controller) (Part 2):

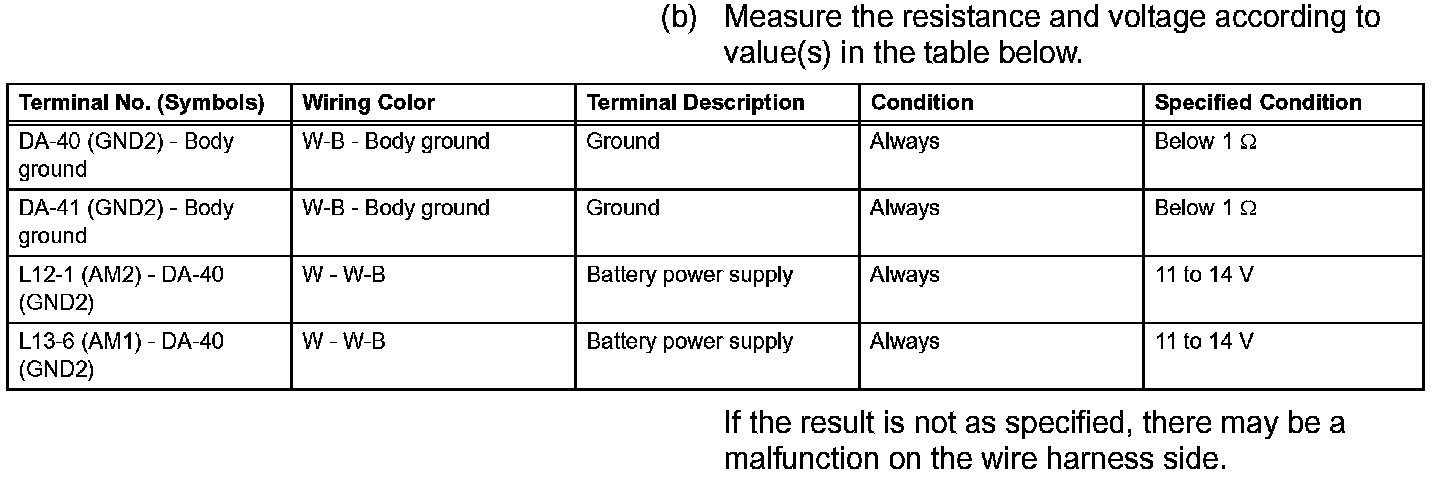

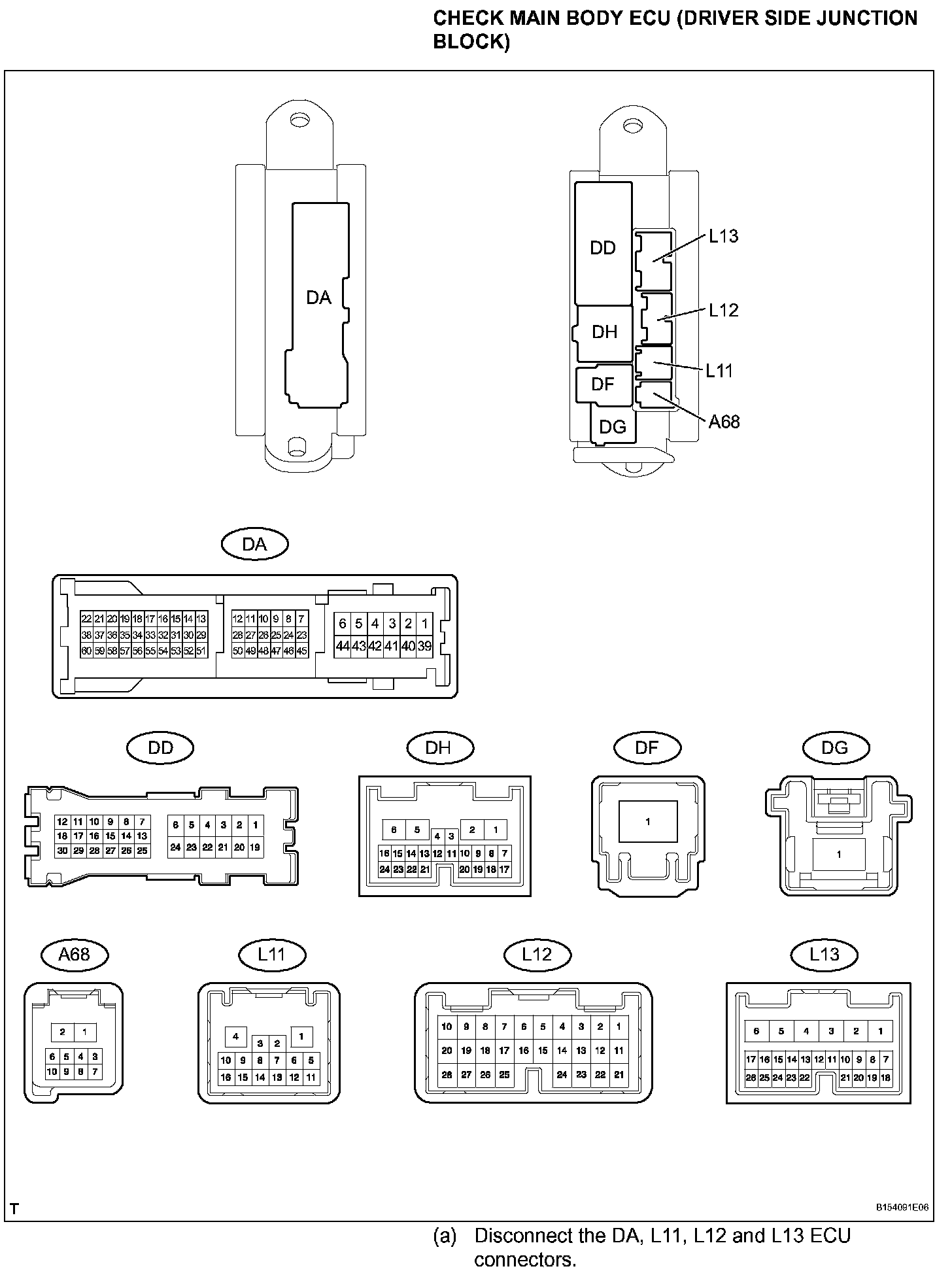

Terminals Of Control Module/Pinouts-Check Main Body ECU (Driver Side Junction Block) (Part 1):

Terminals Of Control Module/Pinouts-Check Main Body ECU (Driver Side Junction Block) (Part 2):

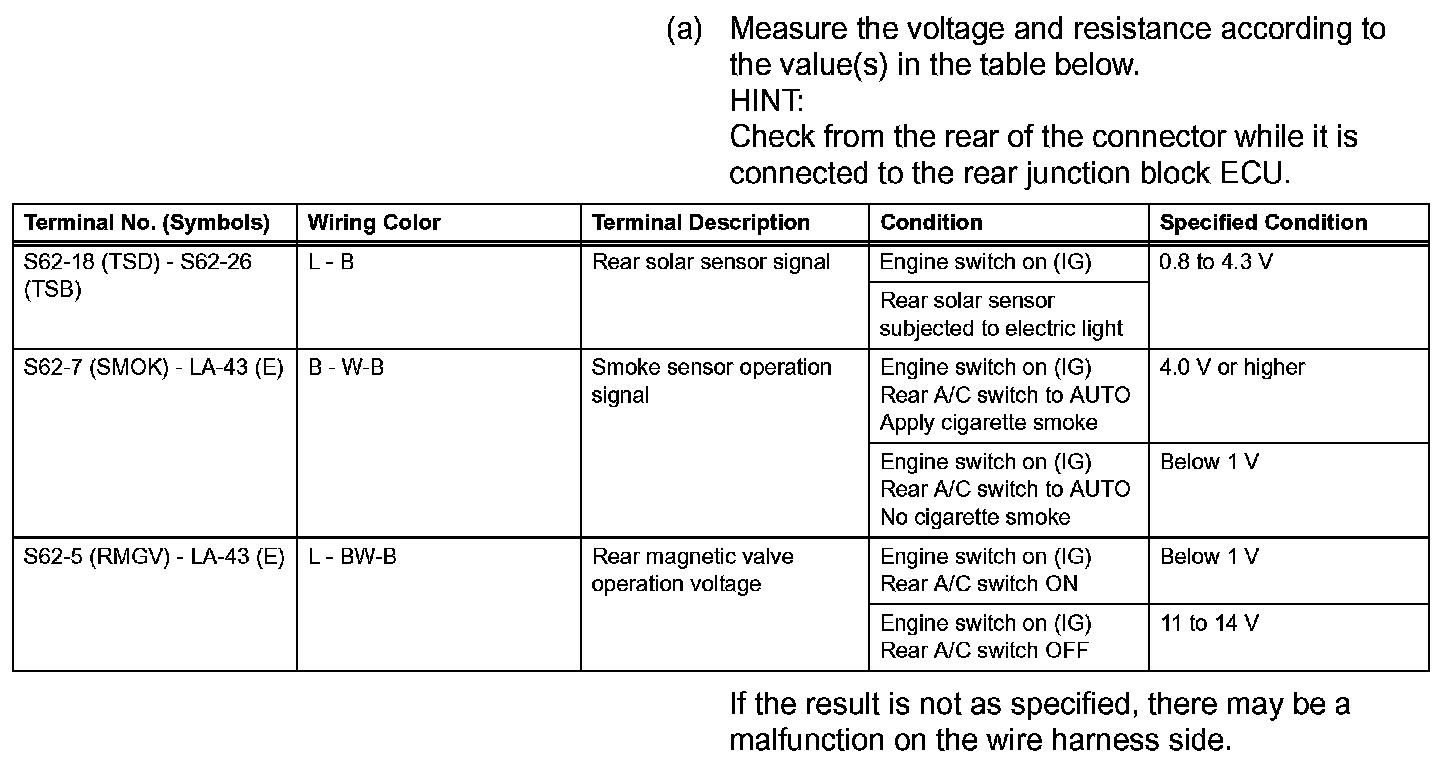

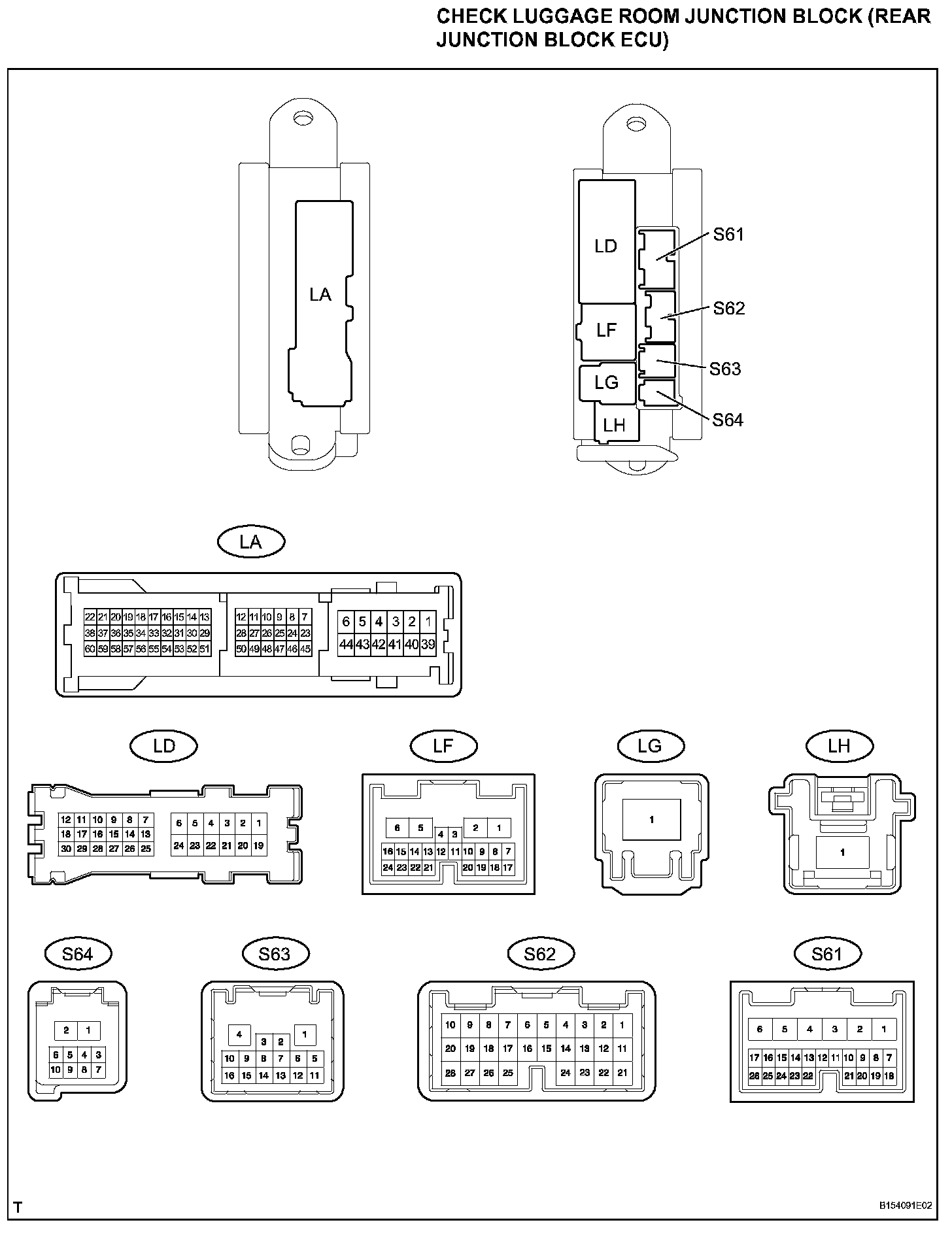

Terminals Of Control Module/Pinouts-Check Luggage Room Junction Block (Rear Junction Block ECU) (Part 1):

Terminals Of Control Module/Pinouts-Check Luggage Room Junction Block (Rear Junction Block ECU) (Part 2):

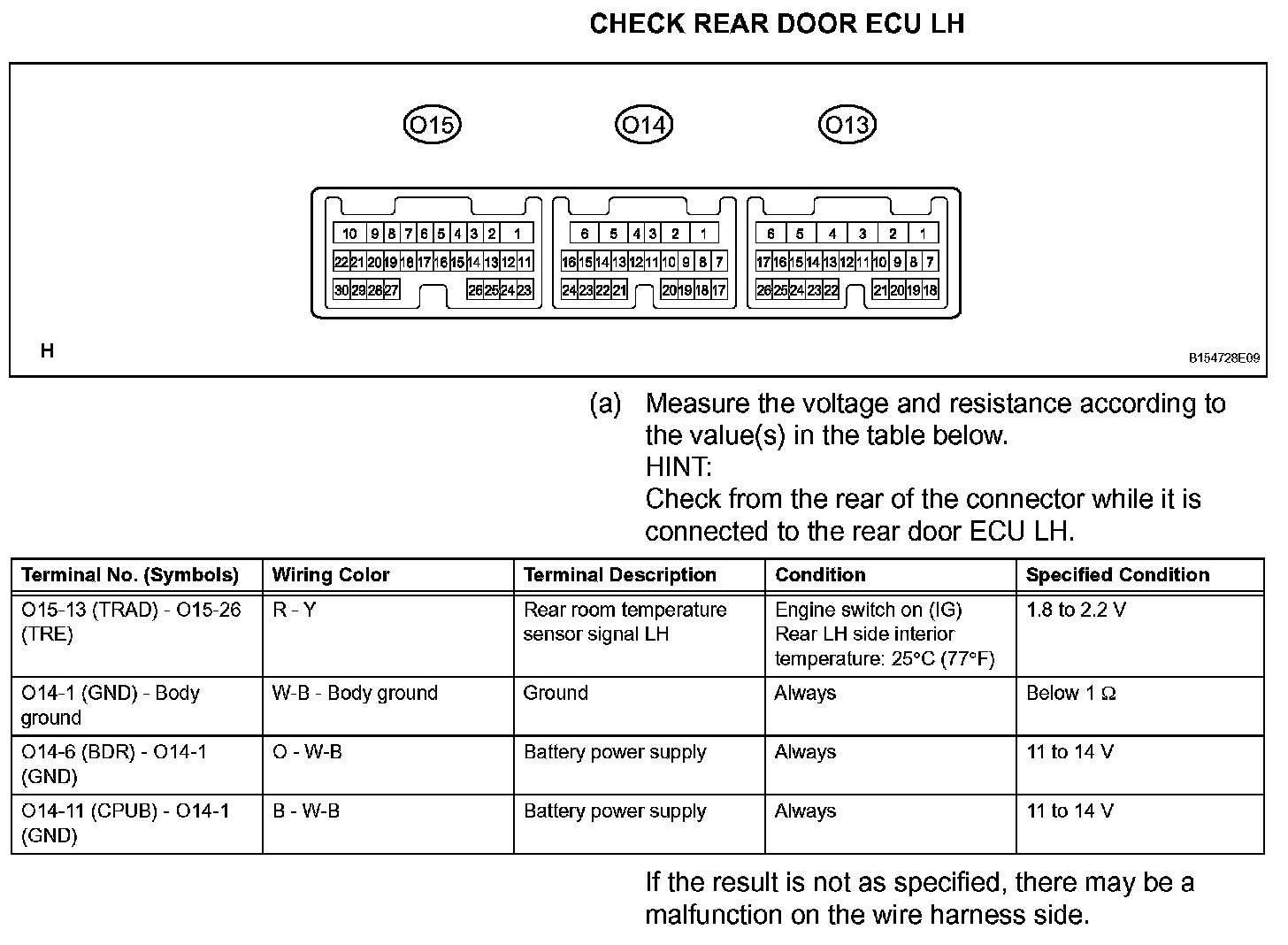

Terminals Of Control Module/Pinouts-Check Rear Door ECU LH:

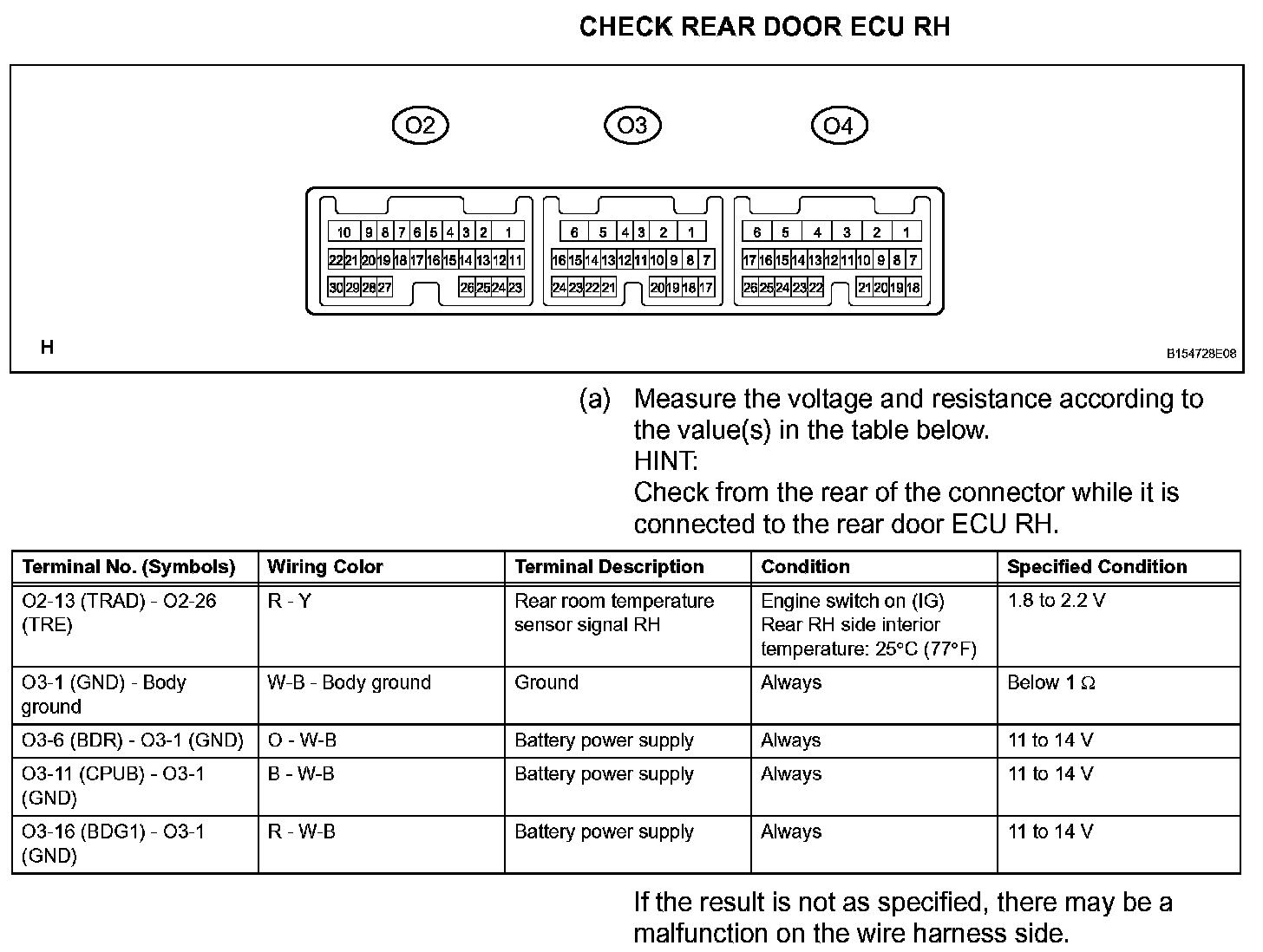

Terminals Of Control Module/Pinouts-Check Rear Door ECU RH:

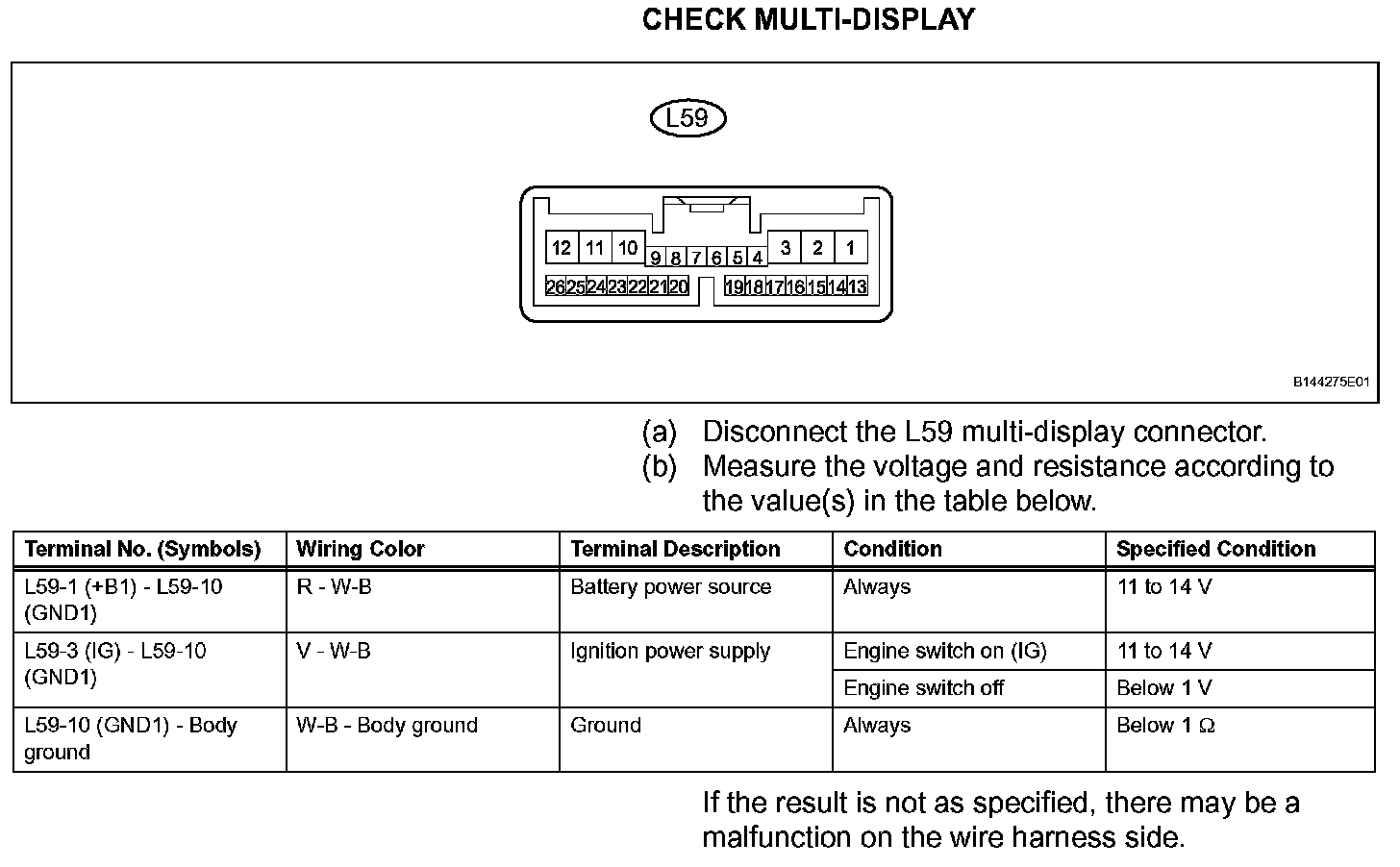

Terminals Of Control Module/Pinouts-Check Multi-Display:

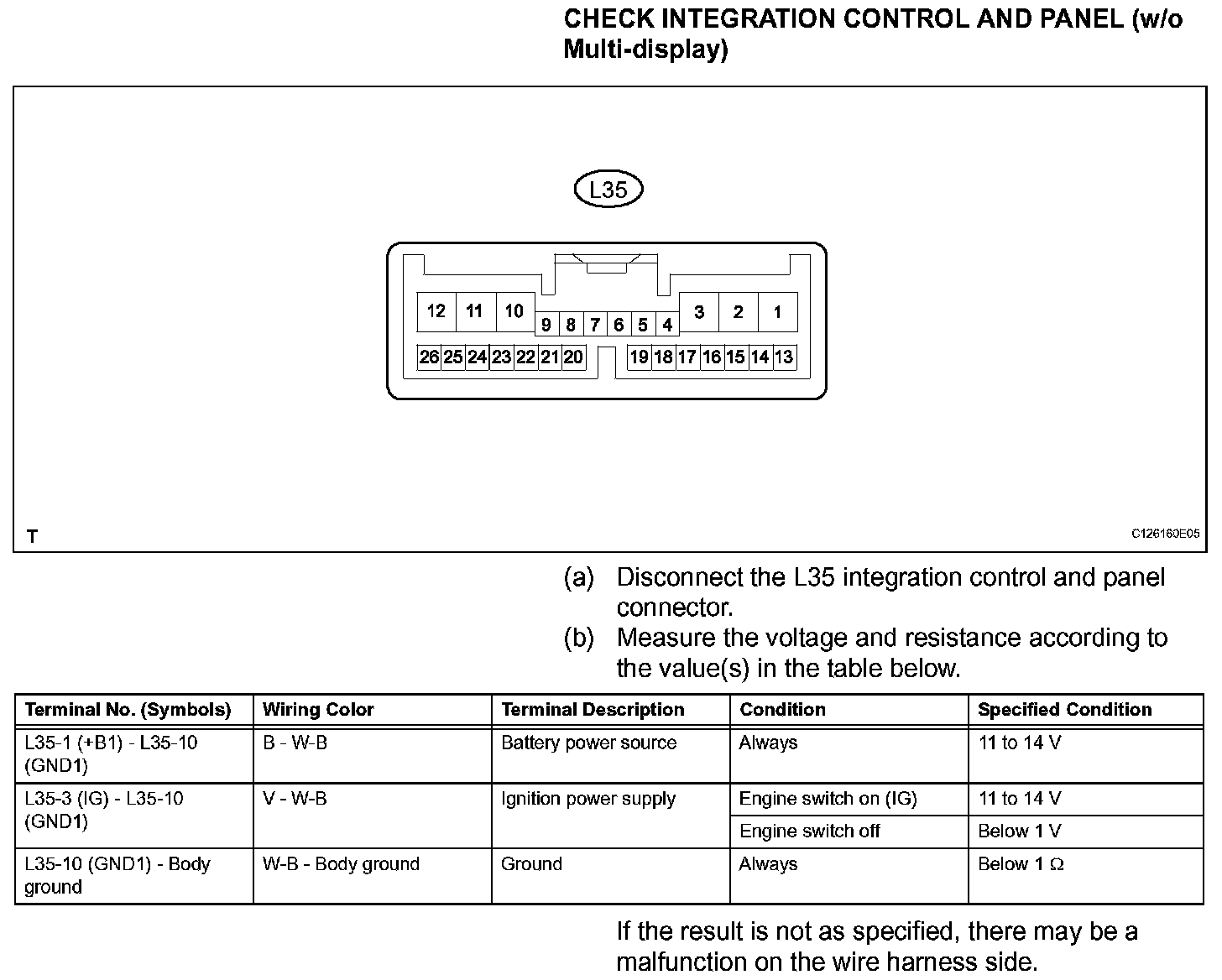

Terminals Of Control Module/Pinouts-Check Integration Control And Panel (W/O Multi-Display):

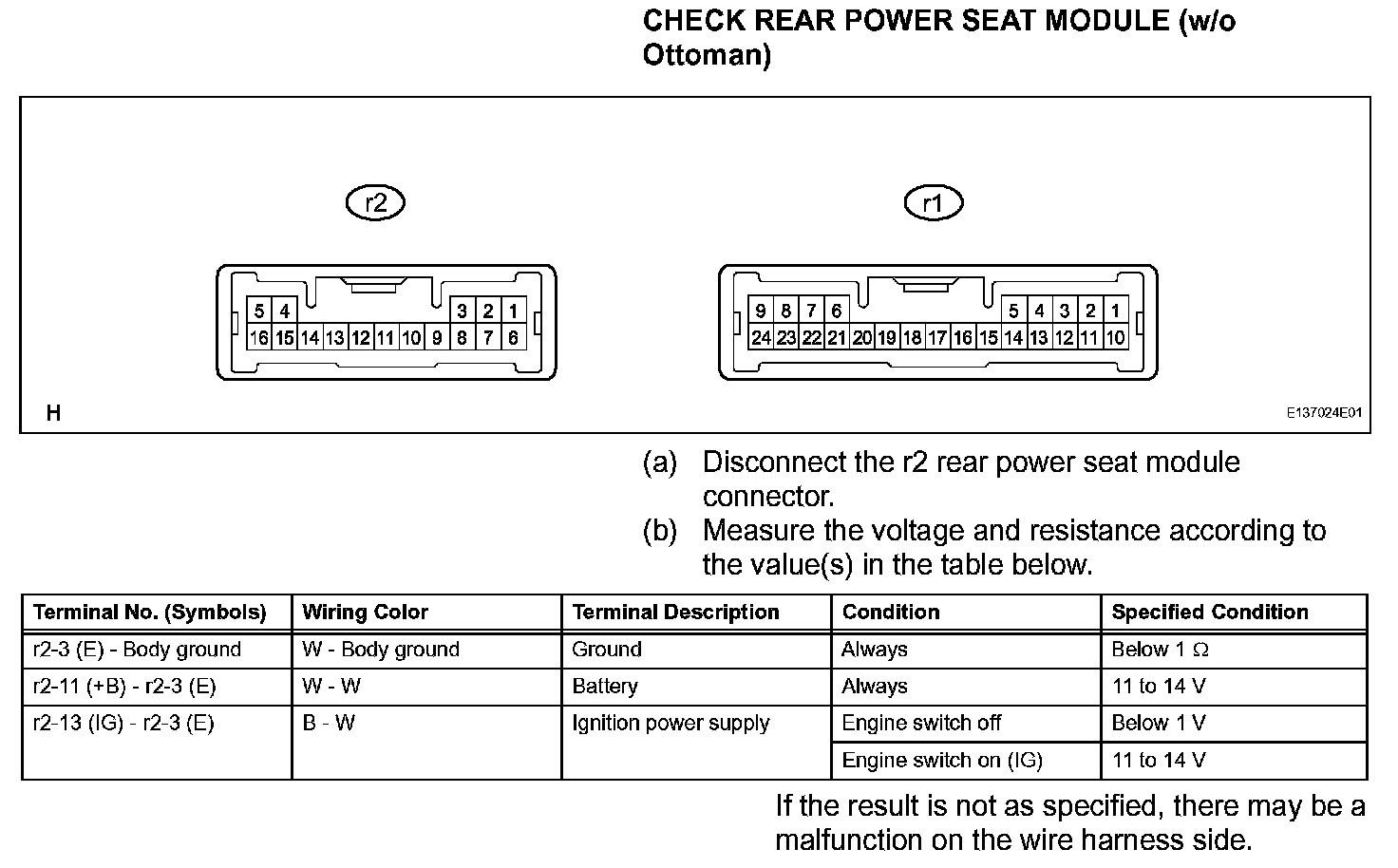

Terminals Of Control Module/Pinouts-Check Rear Power Seat Module (W/O Ottoman):

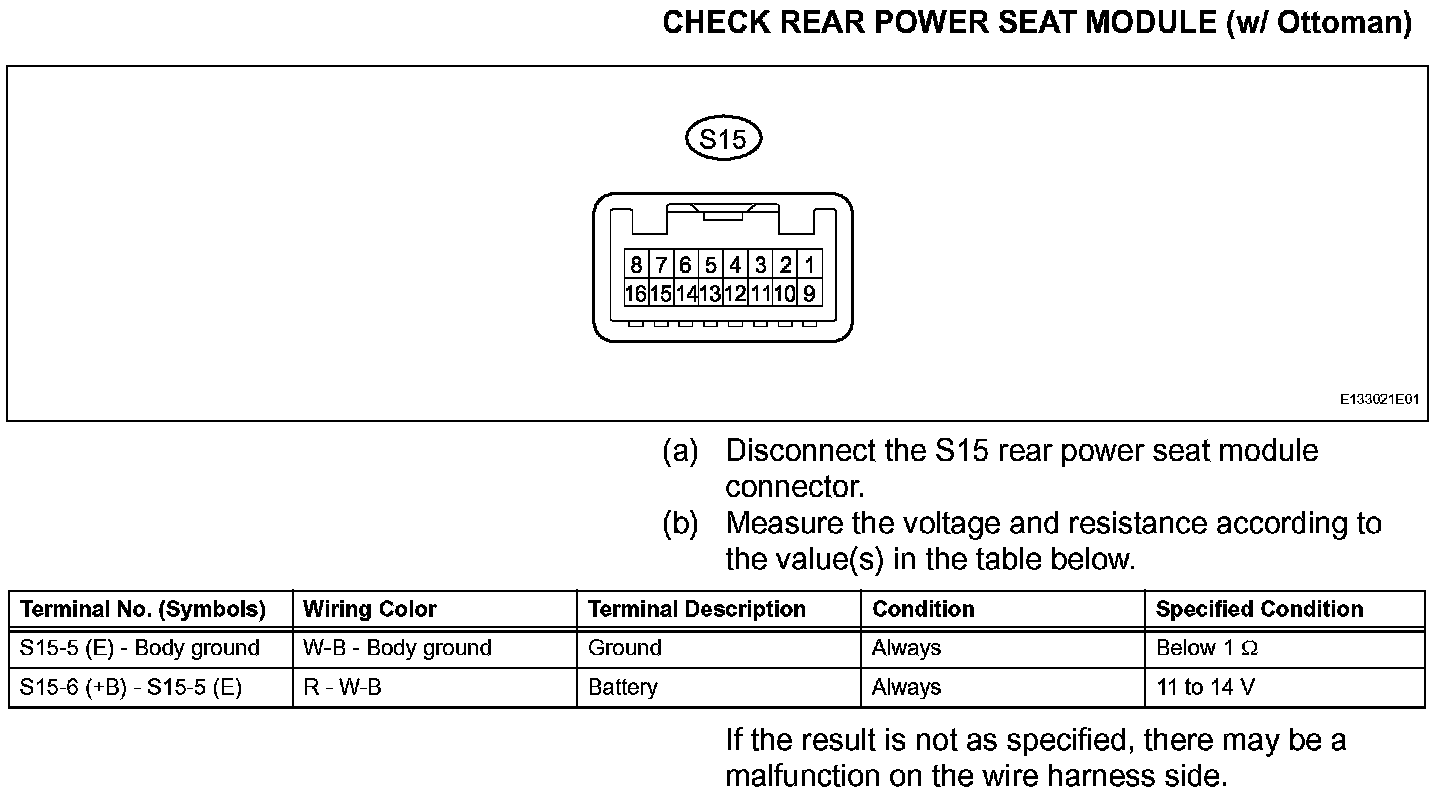

Terminals Of Control Module/Pinouts-Check Rear Power Seat Module (W/ Ottoman):

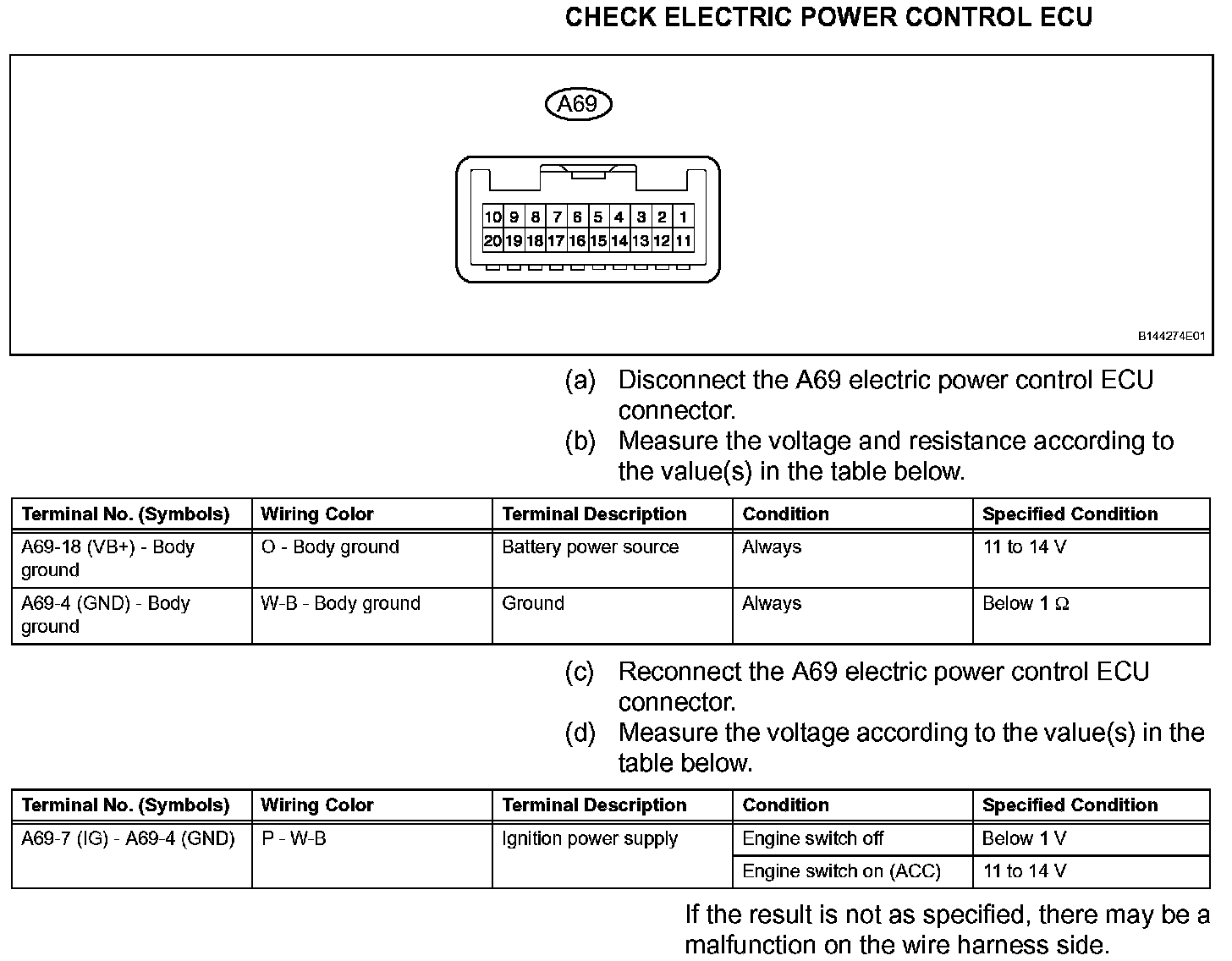

Terminals Of Control Module/Pinouts-Check Electric Power Control ECU:
