Room Temperature Sensor (For Rear Side)

Room Temperature Sensor (For Rear Side):

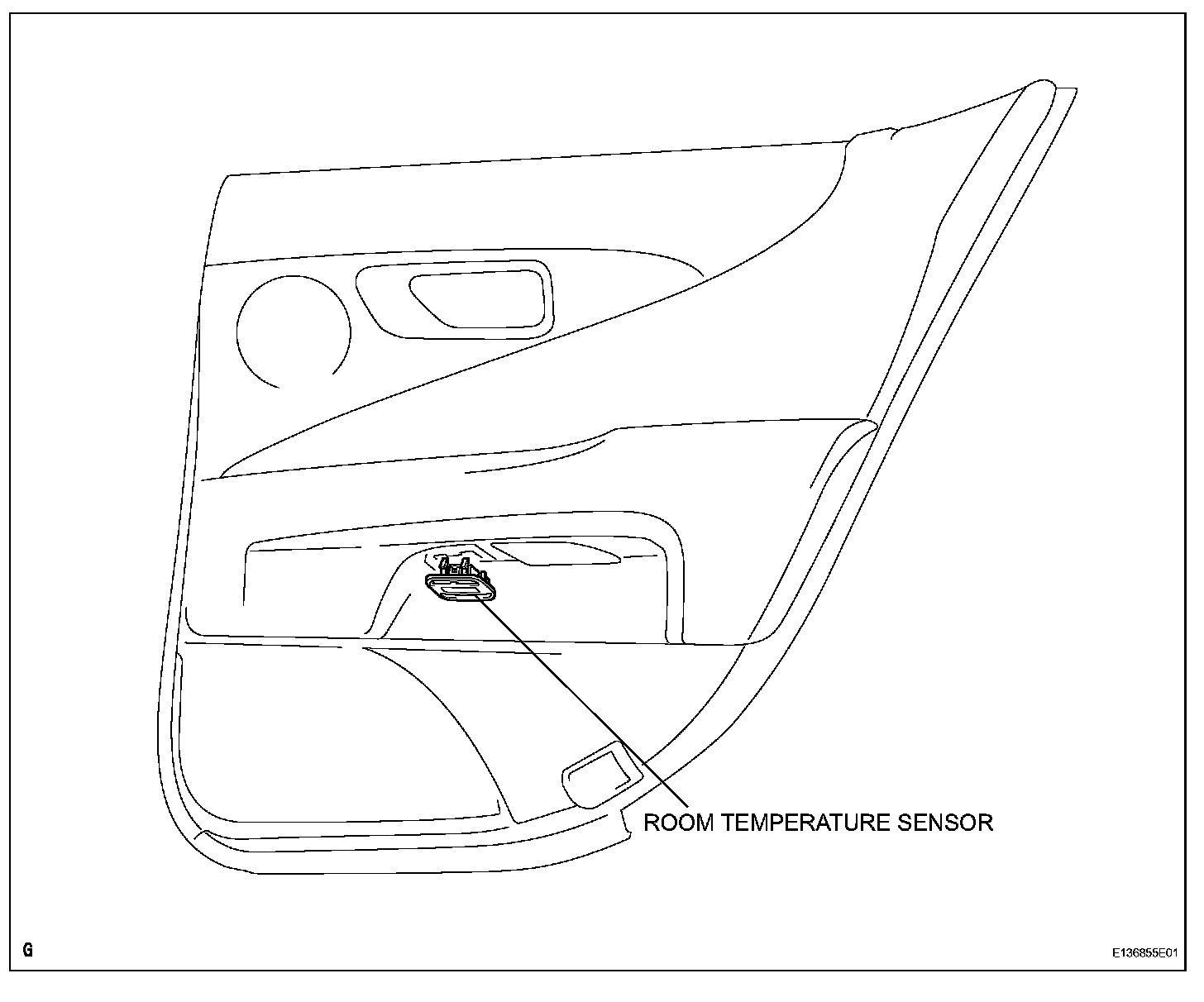

ROOM TEMPERATURE SENSOR (for Rear Side)

REMOVAL

REMOVE ROOM TEMPERATURE SENSOR

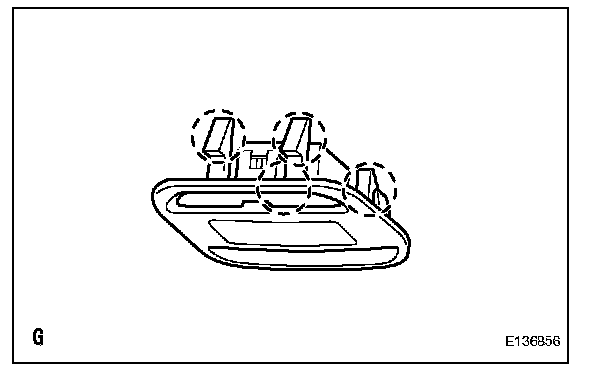

Using a screwdriver, detach the 4 claws and remove the sensor, and then disconnect the connector.

INSTALLATION

INSTALL ROOM TEMPERATURE SENSOR




a. Connect the connector.

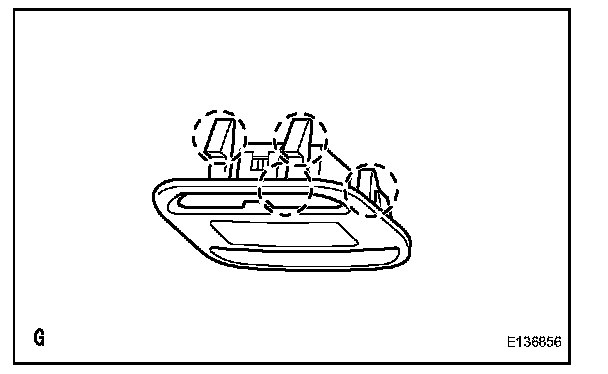

b. Attach the 4 claws to install the sensor.
