Room Temperature Sensor (For Front Side)

Room Temperature Sensor (For Front Side):

ROOM TEMPERATURE SENSOR (for Front Side)

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

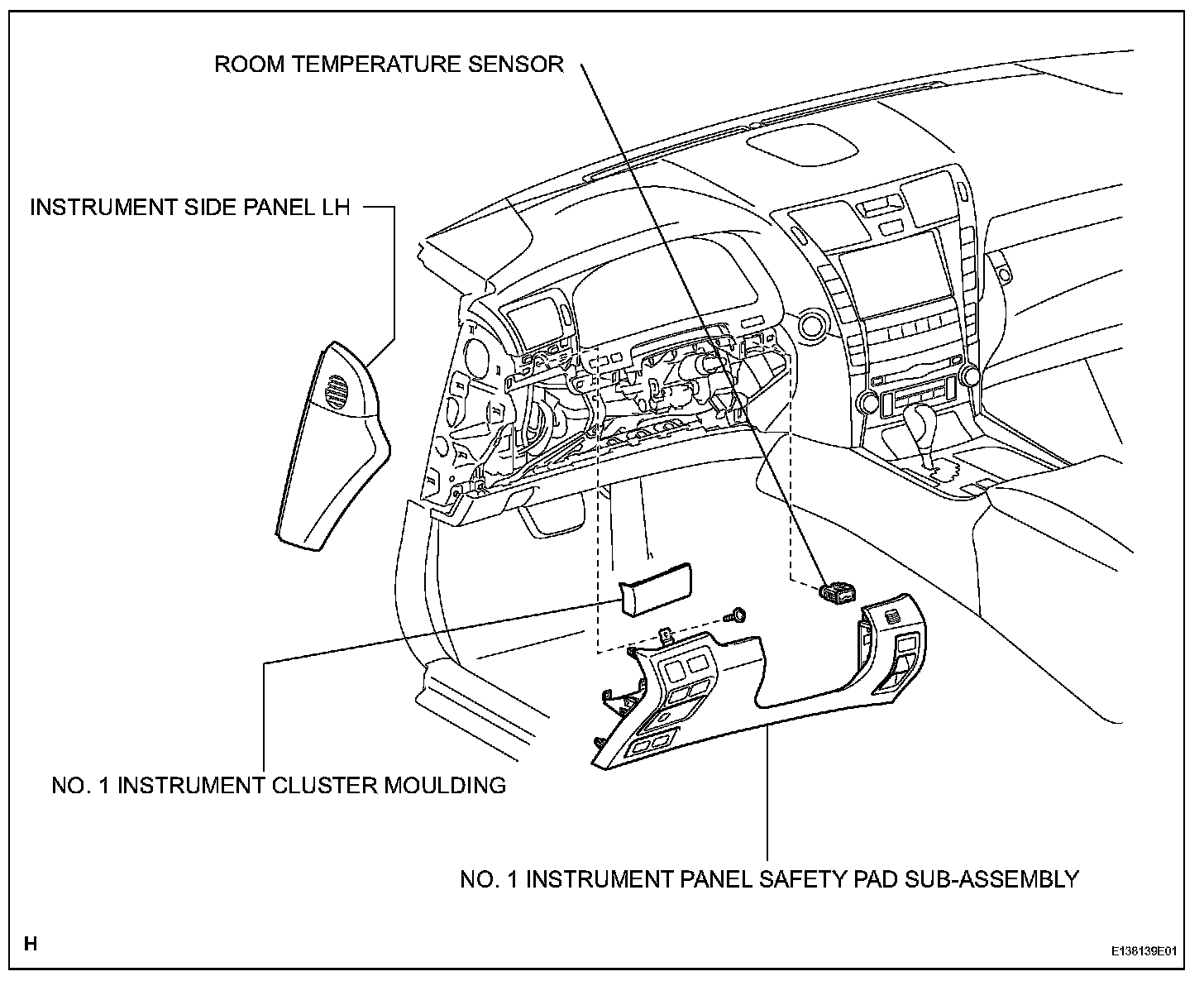

3. REMOVE INSTRUMENT SIDE PANEL LH
4. REMOVE NO. 1 INSTRUMENT CLUSTER MOULDING
5. REMOVE NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

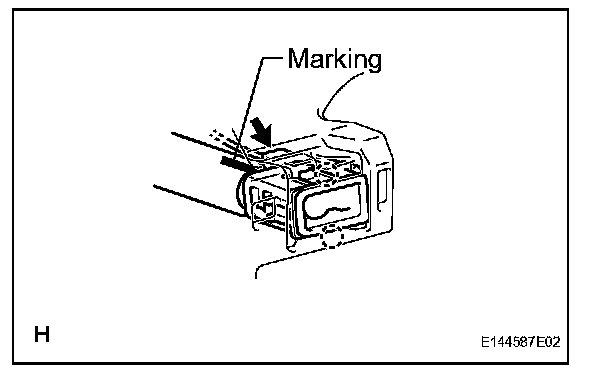

6. REMOVE ROOM TEMPERATURE SENSOR




a. Disconnect the duct.
b. Disconnect the connector.
c. Detach the claws and remove the sensor.

INSTALLATION

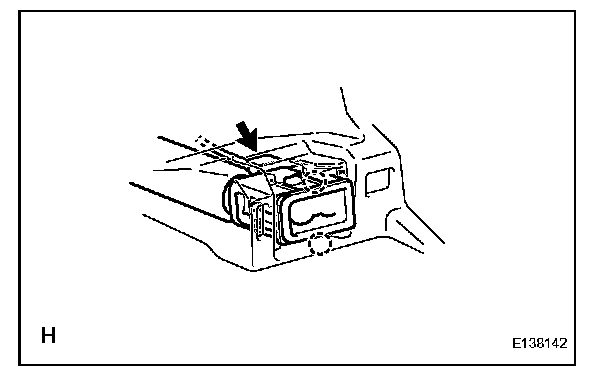

1. INSTALL ROOM TEMPERATURE SENSOR




a. Attach the claws to install the sensor.
b. Connect the connector.
c. Connect the duct.

2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
3. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING
4. INSTALL INSTRUMENT SIDE PANEL LH
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. REMOVE COWL TOP VENTILATOR LOUVER RH
7. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

8. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
