Control Module HVAC: Service and Repair

Air Conditioning Amplifier:

AIR CONDITIONING AMPLIFIER

REMOVAL

1. REMOVE COWL TOP VENTILATOR LOUVER RH
2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

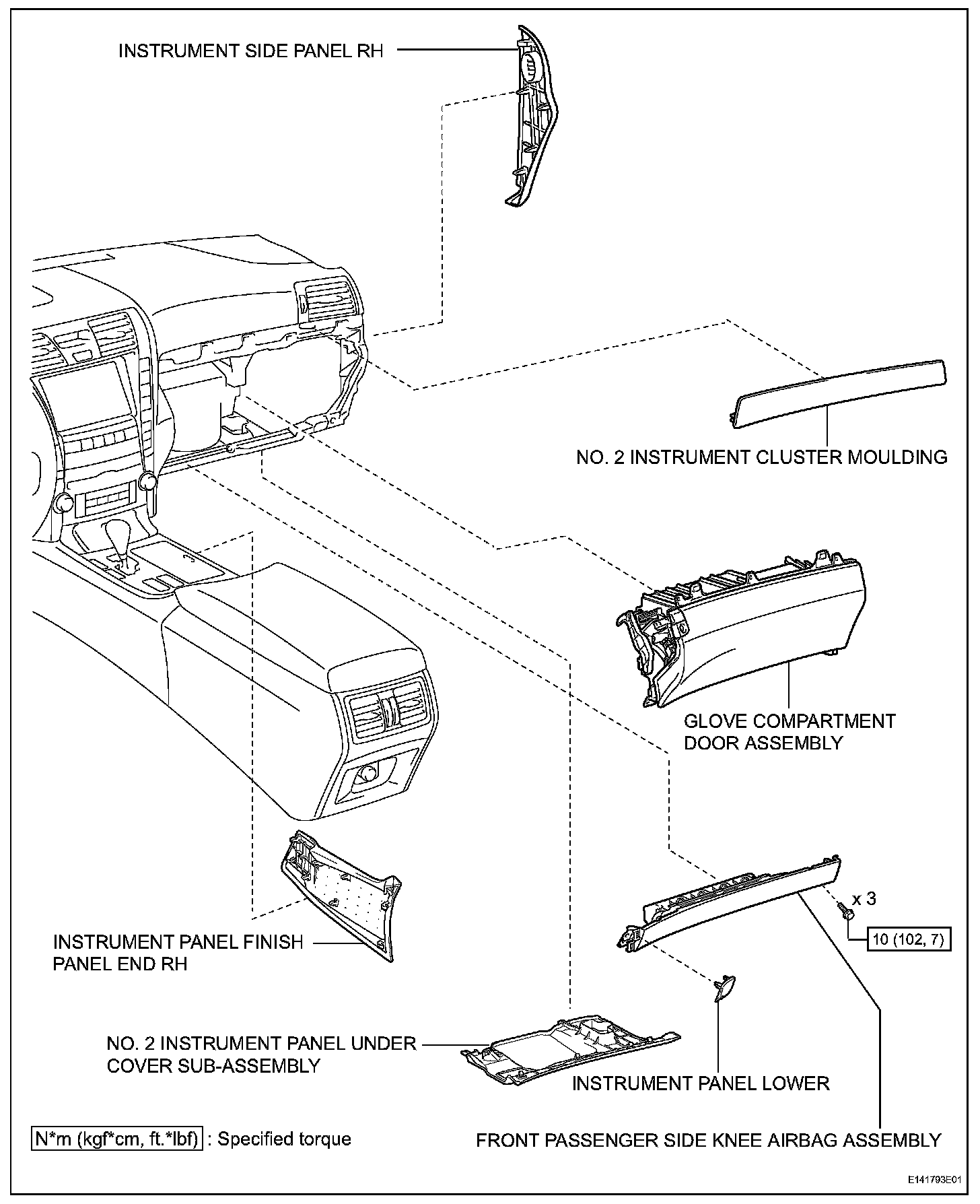

3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
4. REMOVE INSTRUMENT SIDE PANEL RH
5. REMOVE NO. 2 INSTRUMENT CLUSTER MOULDING
6. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
7. REMOVE INSTRUMENT PANEL LOWER
8. REMOVE FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
9. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
10. REMOVE AIR CONDITIONING AMPLIFIER ASSEMBLY

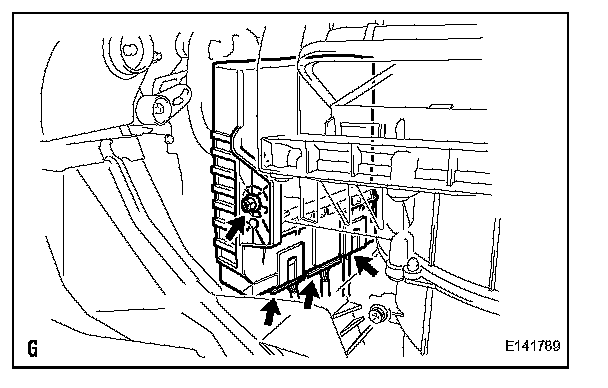

a. Disconnect the 3 connectors.

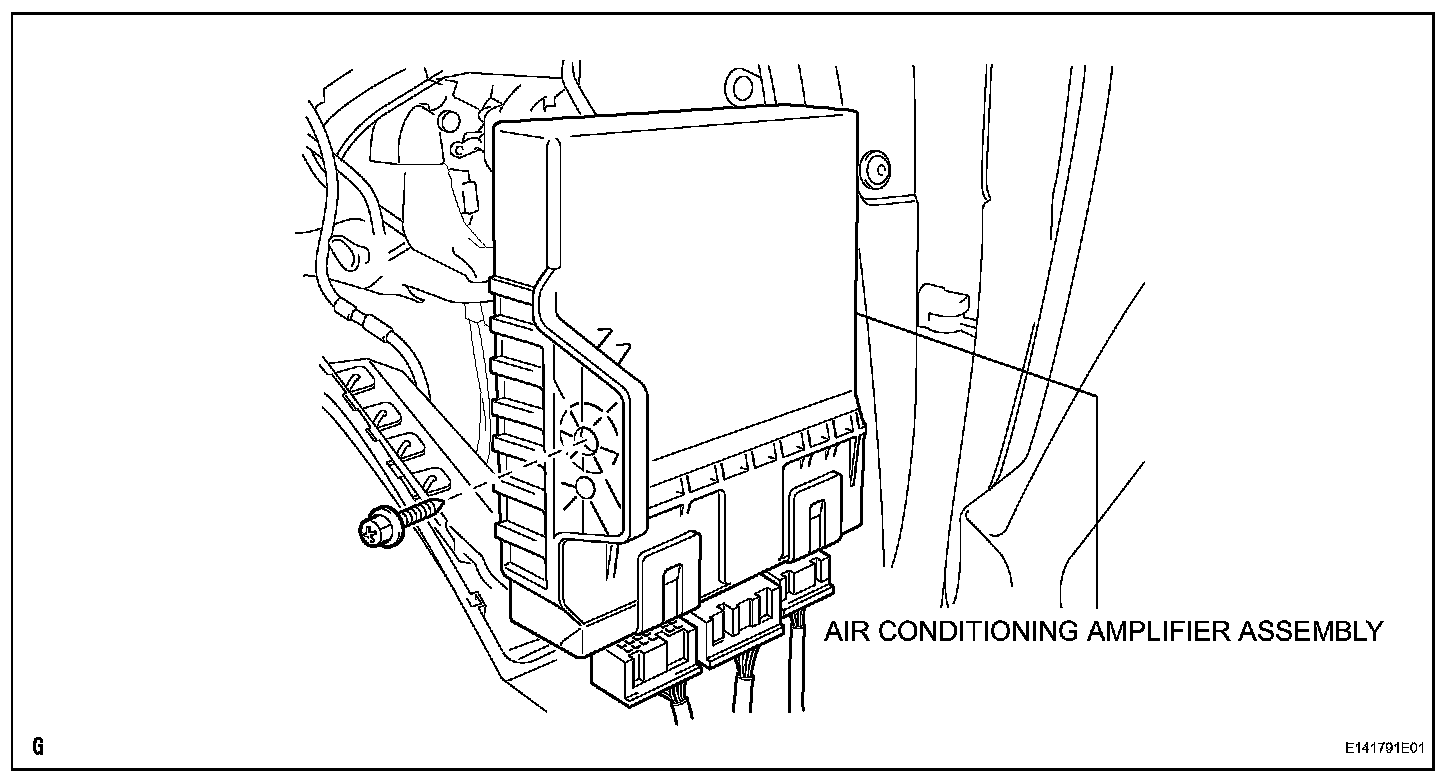

b. Remove the screw and amplifier.

INSTALLATION

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

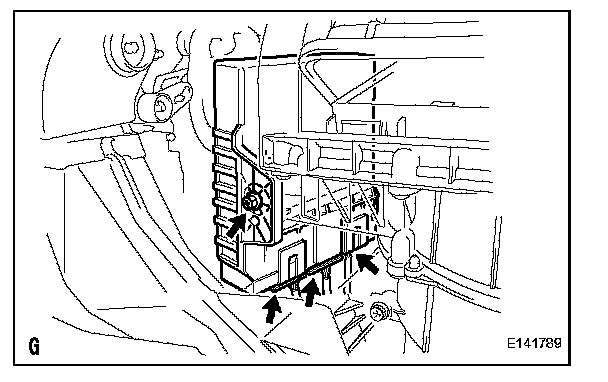

a. Install the amplifier with the screw.
b. Connect the 3 connectors.

2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
3. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY
4. INSTALL INSTRUMENT PANEL LOWER
5. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
6. INSTALL NO. 2 INSTRUMENT CLUSTER MOULDING
7. INSTALL INSTRUMENT SIDE PANEL RH
8. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
10. INSTALL COWL TOP VENTILATOR LOUVER RH
11. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

12. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
