Removal and Replacement

Integration Control And Panel (For Front Side):

INTEGRATION CONTROL AND PANEL (for Front Side)

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

NOTE: After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

2. REMOVE INSTRUMENT PANEL FINISH PANEL END LH
3. REMOVE INSTRUMENT PANEL FINISH PANEL END RH
4. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
5. REMOVE NO. 3 BOX PANEL
6. REMOVE REAR CONSOLE PANEL UPPER
7. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
8. REMOVE RADIO RECEIVER ASSEMBLY
9. REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY WITH BRACKET

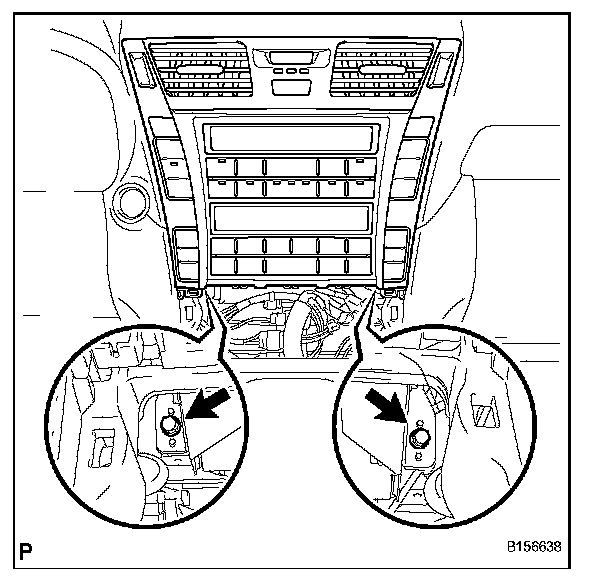

a. Remove the 2 bolts.

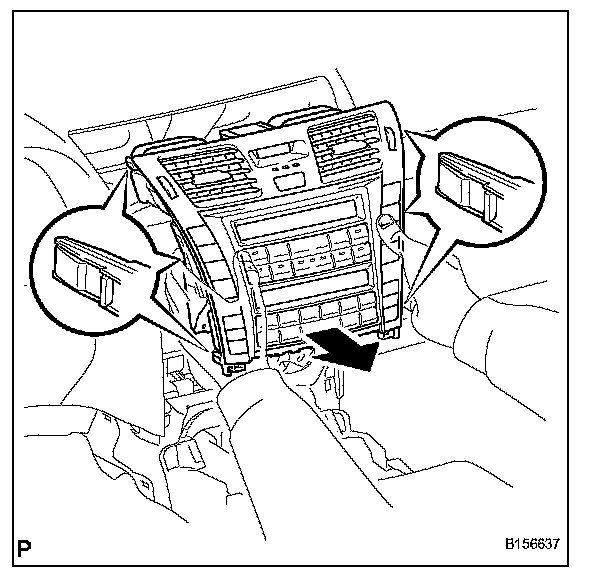

b. Pull the panel to detach the 6 clips on the backside of the panel.
c. Disconnect the connectors and remove the panel.

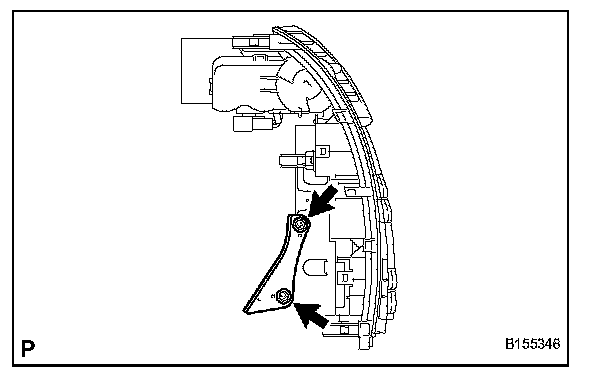

10. REMOVE NO. 2 RADIO BRACKET

a. Remove the 2 bolts and bracket.

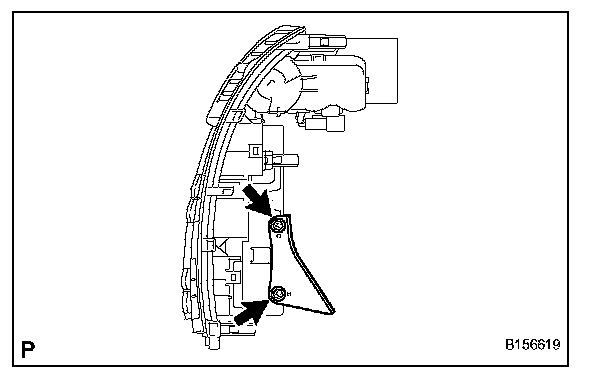

11. REMOVE NO. 1 RADIO BRACKET

a. Remove the 2 bolts and bracket.

INSTALLATION

1. INSTALL NO. 1 RADIO BRACKET

a. Install the bracket with the 2 bolts.

2. INSTALL NO. 2 RADIO BRACKET

a. Install the bracket with the 2 bolts.

3. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY WITH BRACKET

a. Connect the connectors.
b. Insert the panel and attach the 6 clips on its backside.

c. Install the panel with the 2 bolts.

4. INSTALL RADIO RECEIVER ASSEMBLY
5. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER
6. INSTALL REAR CONSOLE PANEL UPPER
7. INSTALL NO. 3 BOX PANEL
8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
9. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
10. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
11. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
12. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
