PTC Heater System

INSPECTION

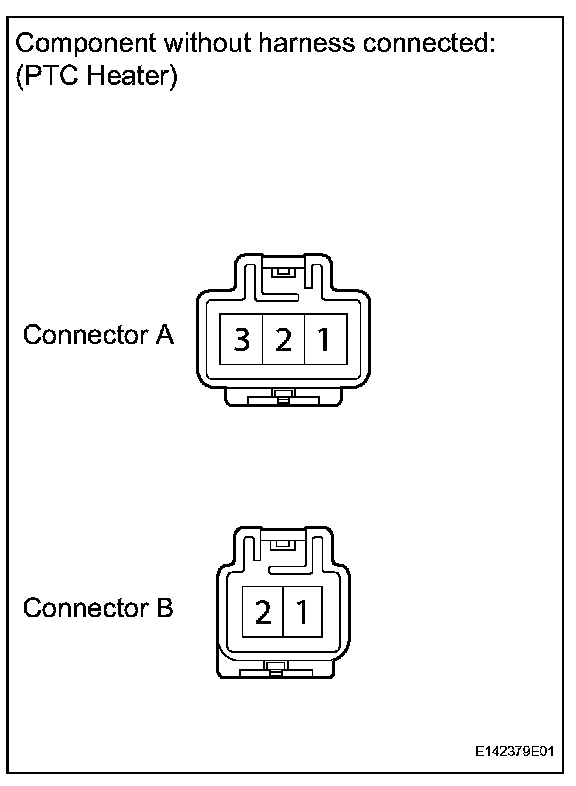

INSPECT PTC HEATER ASSEMBLY

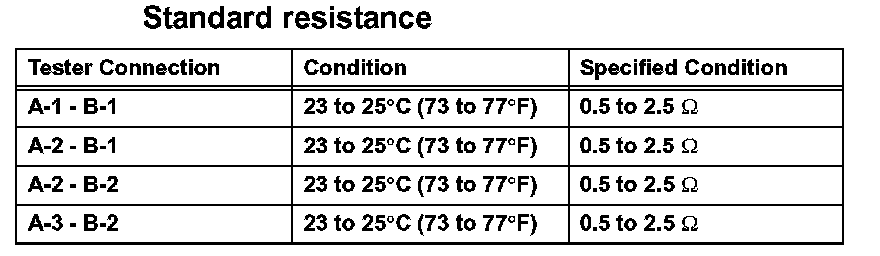

Measure the resistance of the PTC heater.

If the result is not as specified, replace the PTC heater assembly.
