Overhaul

OIL PUMP

COMPONENTS (Part 1):

COMPONENTS (Part 2):

COMPONENTS (Part 3):

COMPONENTS (Part 4):

COMPONENTS (Part 5):

COMPONENTS (Part 6):

COMPONENTS (Part 7):

COMPONENTS (Part 8):

COMPONENTS (Part 9):

COMPONENTS (Part 10):

COMPONENTS (Part 11):

COMPONENTS (Part 12):

COMPONENTS (Part 13):

COMPONENTS (Part 14):

DISASSEMBLY





1. REMOVE OIL PUMP COVER

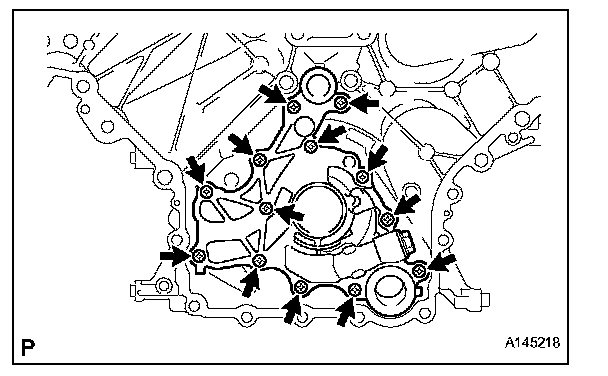

(a) Remove the 13 bolts, oil pump cover, drive rotor and driven rotor.





2. REMOVE OIL PUMP RELIEF VALVE

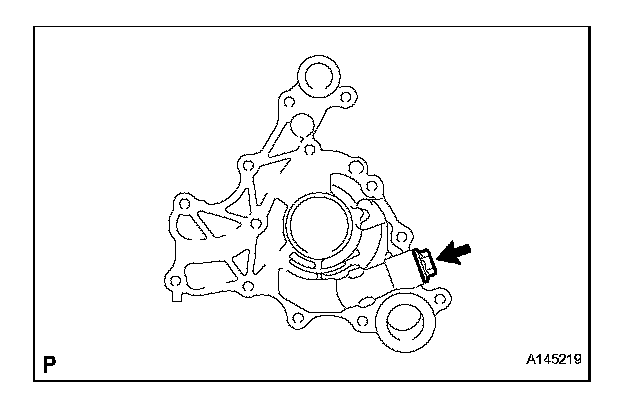

(a) Using a 19 mm socket wrench, remove the relief valve plug.
(b) Remove the valve spring and oil pump relief valve.

INSPECTION
1. INSPECT OIL PUMP RELIEF VALVE
(a) Coat the relief valve with engine oil.





(b) Check that it falls smoothly into the valve hole by its own weight.
If it does not, replace the relief valve. If necessary, replace the timing chain cover assembly.





2. INSPECT OIL PUMP ROTOR SET

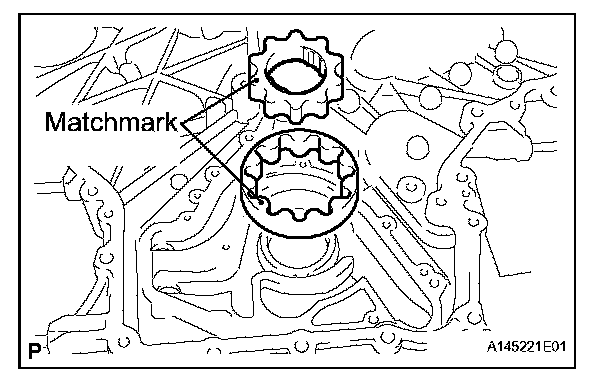

(a) Install the rotors to the timing chain cover with the rotors' marks facing outward. Check that the rotors revolve smoothly.





(b) Check the tip clearance.

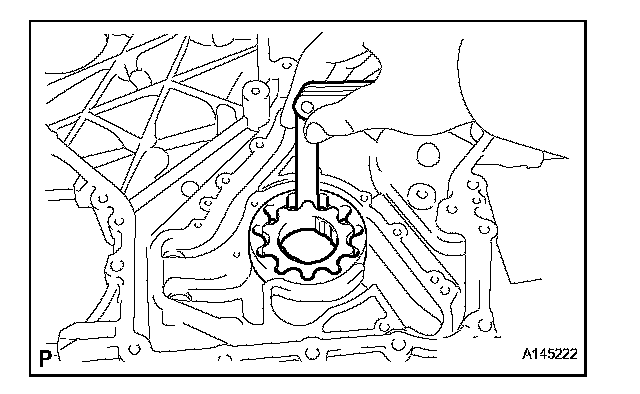

(1) Using a feeler gauge, measure the clearance between the drive and driven rotor tips, as shown in the illustration.
Standard tip clearance: 0.180 to 0.300 mm (0.0071 to 0.0118 in.)
Maximum tip clearance: 0.300 mm (0.0118 in.)
If the tip clearance is greater than the maximum, replace the timing chain cover assembly.





(c) Check the side clearance.

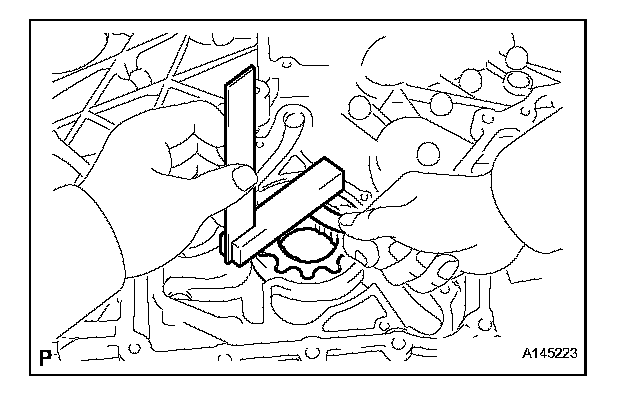

(1) Using a feeler gauge and steel square, measure the clearance between the rotors and steel square.
Standard side clearance: 0.030 to 0.060 mm (0.0012 to 0.0024 in.)
Maximum side clearance: 0.060 mm (0.0024 in.)
If the side clearance is greater than the maximum, replace the timing chain cover assembly.





(d) Check the body clearance.

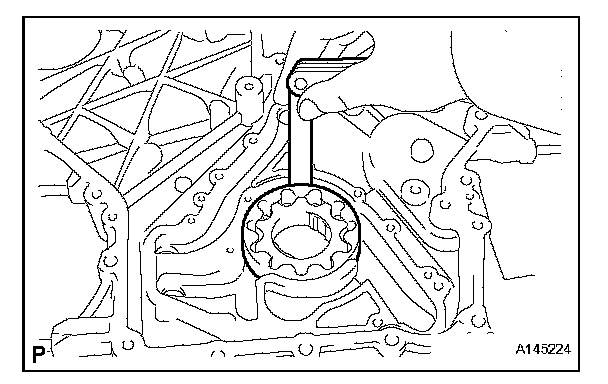

(1) Using a feeler gauge, measure the clearance between the timing chain cover and driven rotor, as shown in the illustration.
Standard body clearance: 0.175 to 0.250 mm (0.0069 to 0.0098 in.)
Maximum body clearance: 0.250 mm (0.0098 in.)
If the body clearance is greater than the maximum, replace the timing chain cover assembly.

REASSEMBLY





1. INSTALL OIL PUMP RELIEF VALVE
(a) Coat the oil pump relief valve with engine oil.

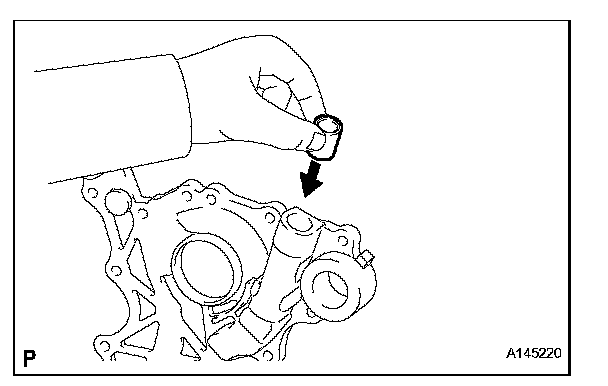

(b) Install the relief valve and relief valve spring into the oil pump cover hole.

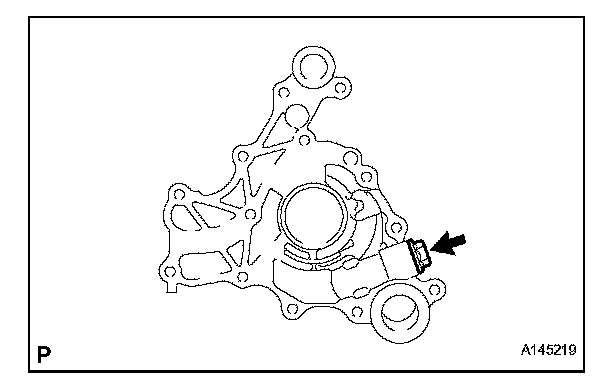

(c) Using a 19 mm socket wrench, install the plug.
Torque: 53 N*m (540 kgf*cm, 39 ft.*lbf)





2. INSTALL OIL PUMP COVER
(a) Install the oil pump cover, drive rotor and driven rotor with the 13 bolts.
Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)
