Rear Engine Mounting

REAR ENGINE MOUNTING

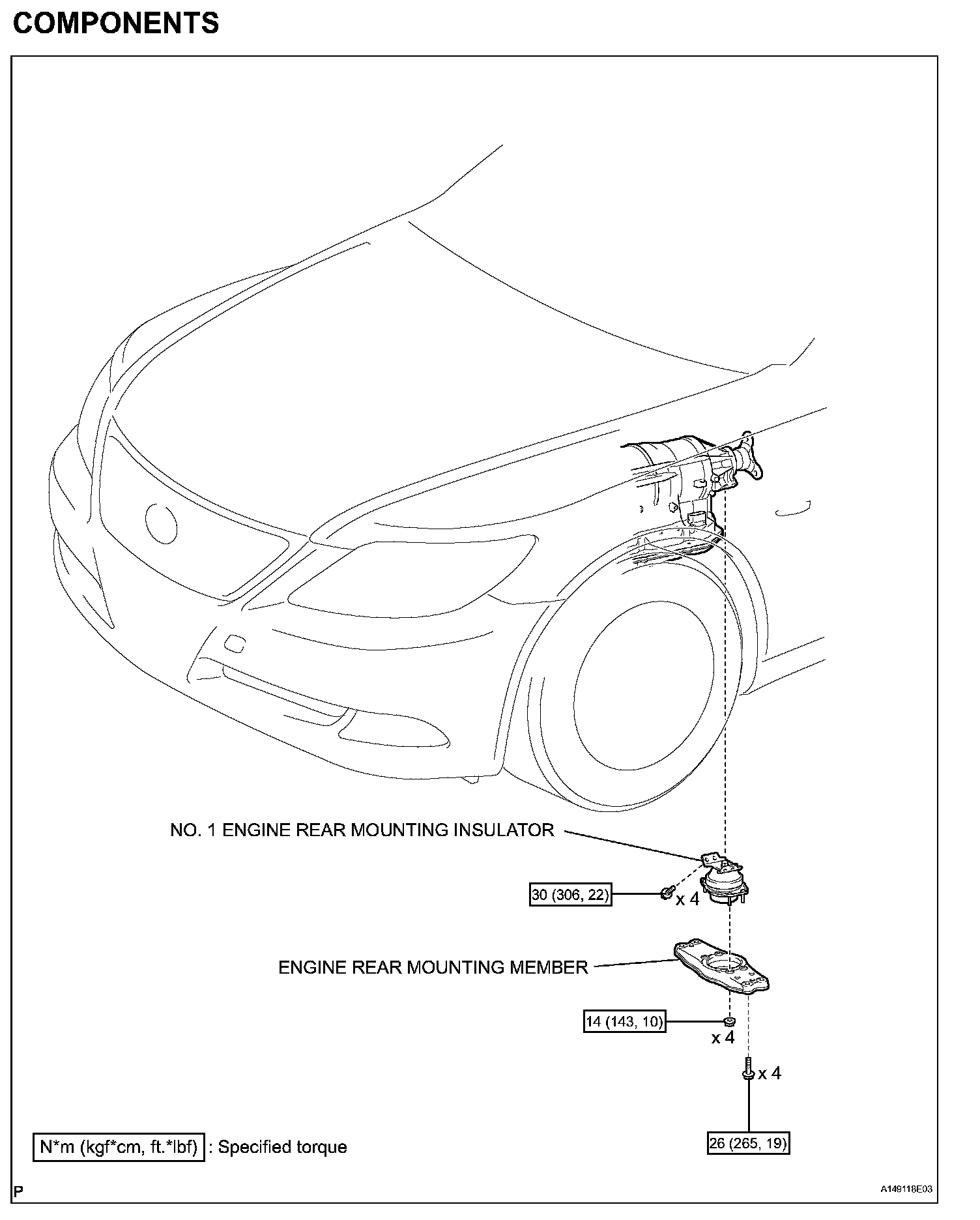

COMPONENTS:





REMOVAL
1. SUPPORT AUTOMATIC TRANSMISSION ASSEMBLY
2. REMOVE ENGINE REAR MOUNTING MEMBER
3. REMOVE NO. 1 ENGINE REAR MOUNTING INSULATOR

INSTALLATION
1. INSTALL NO. 1 ENGINE REAR MOUNTING INSULATOR
2. INSTALL ENGINE REAR MOUNTING MEMBER
