Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Diagrams >> Grounds

Grounds

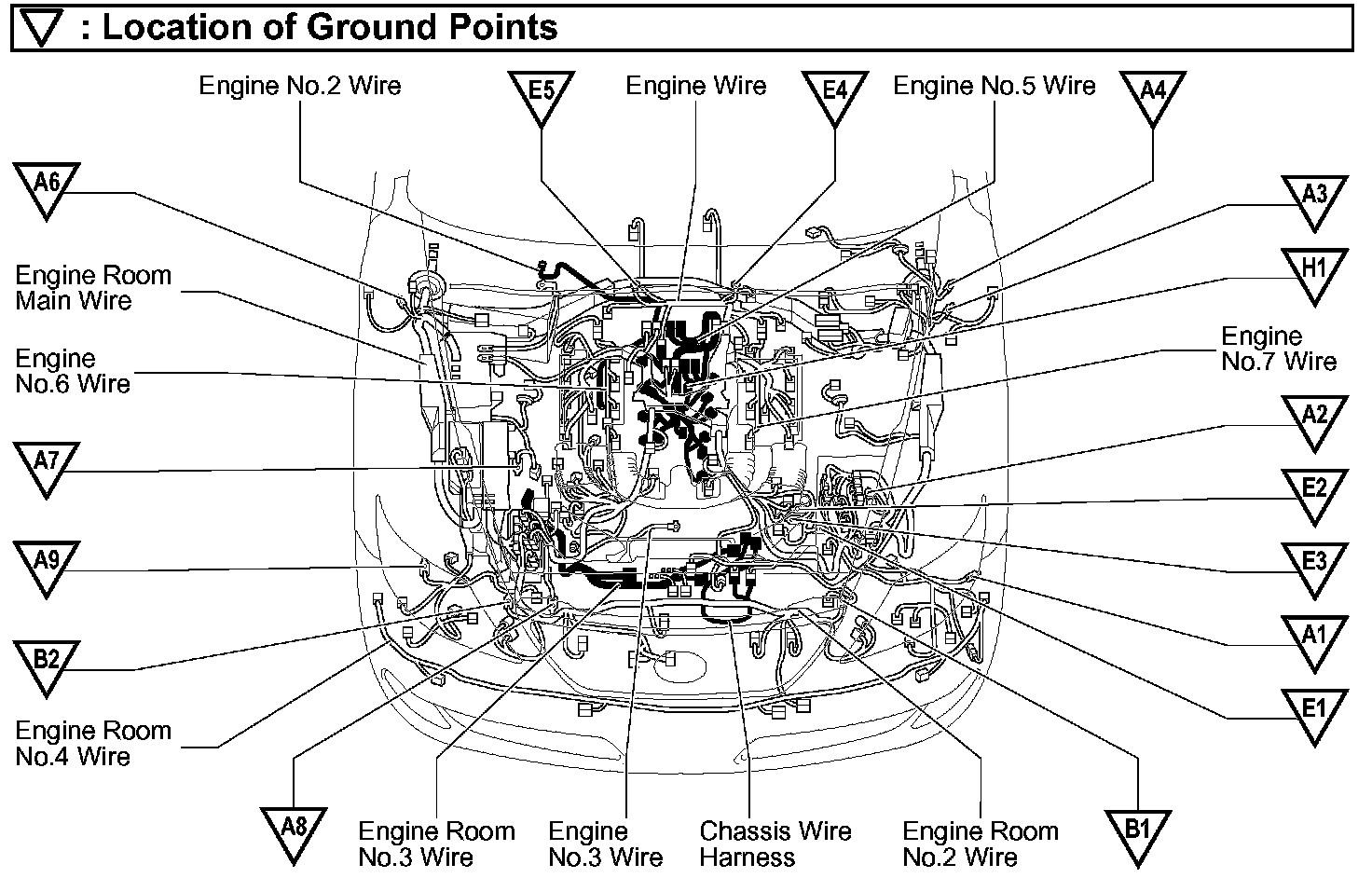

A1 - H1:

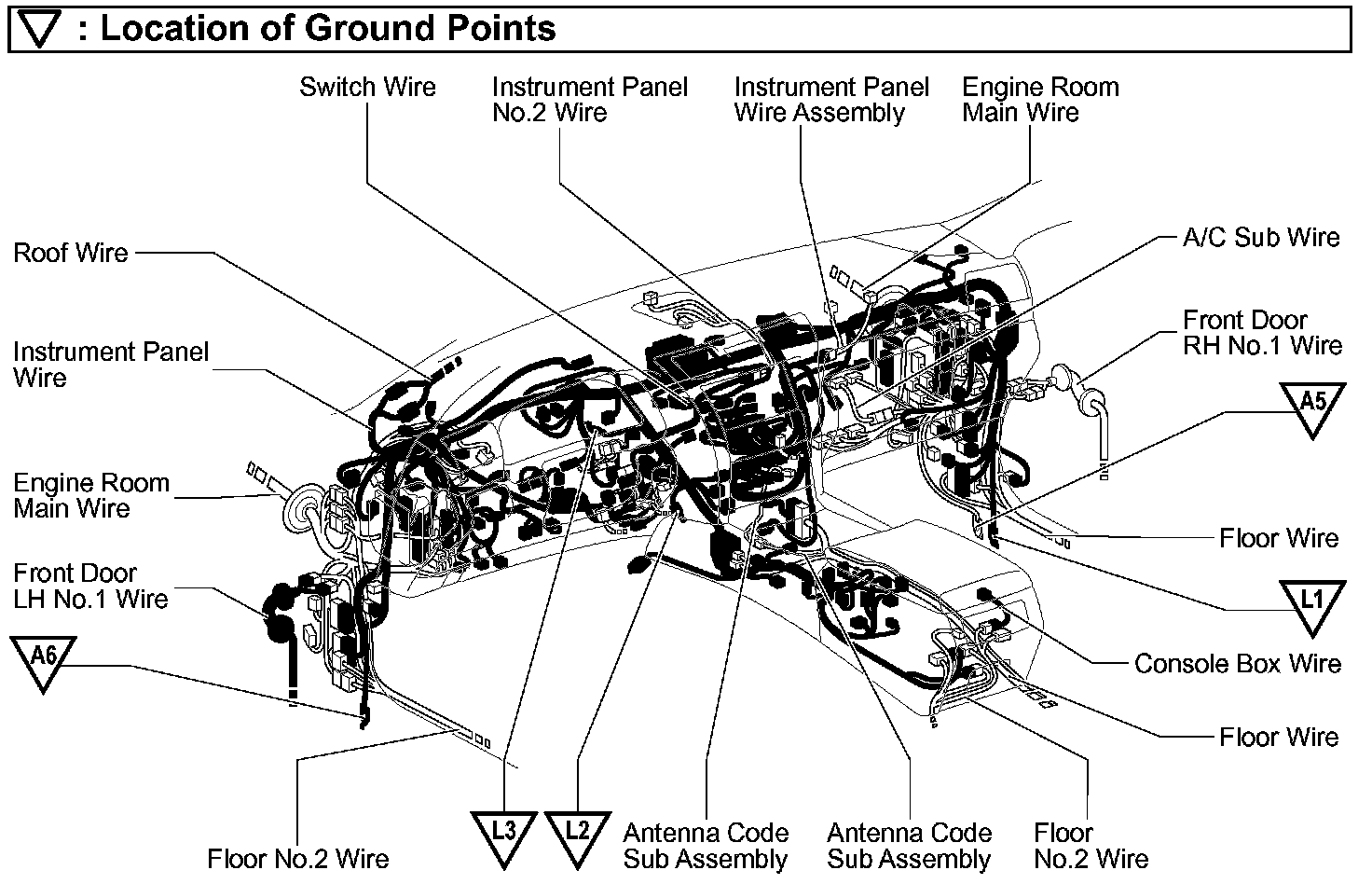

A5 - L3:

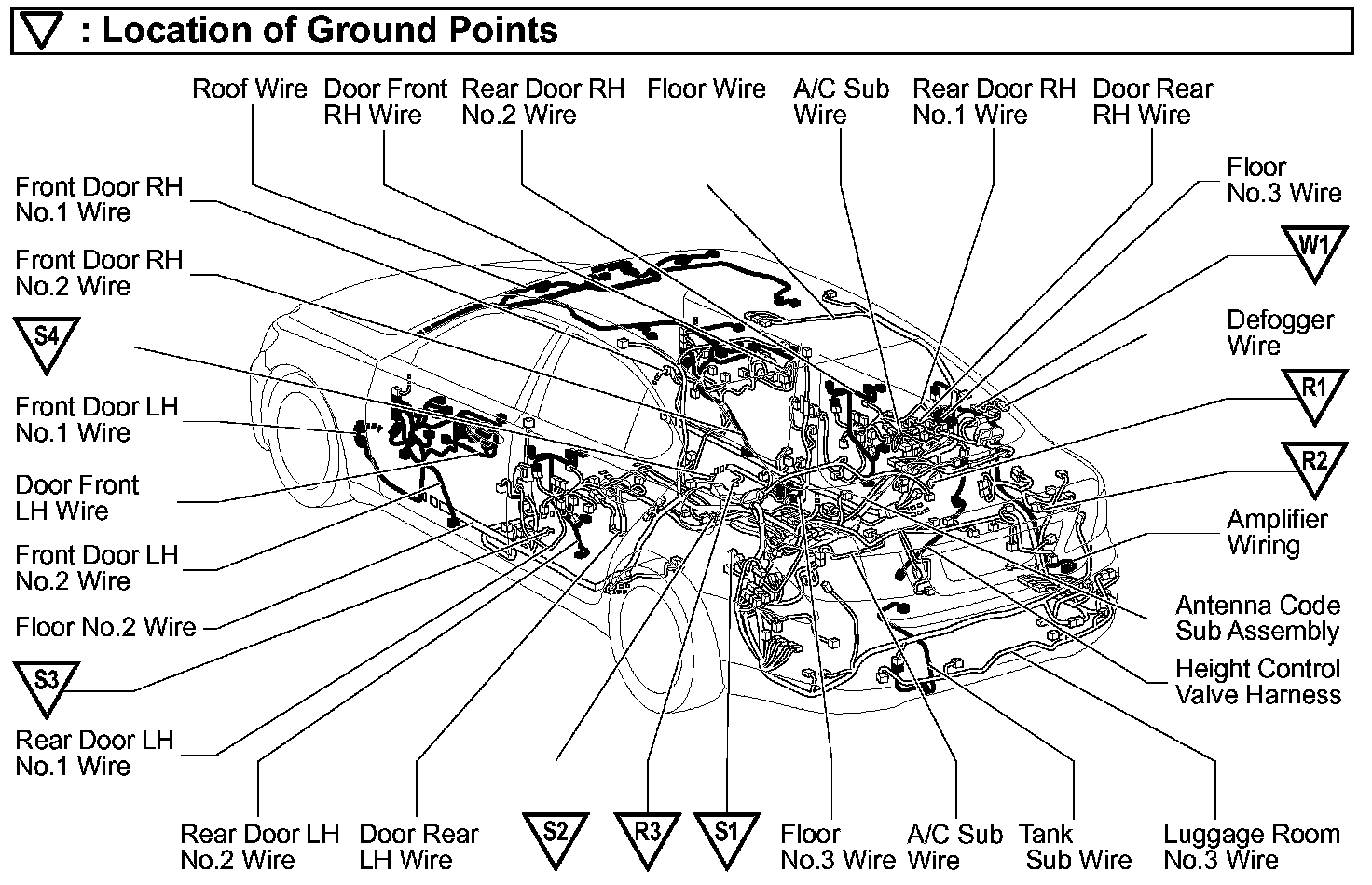

R1 - W1:
