Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Fuel Injector

Fuel Injector

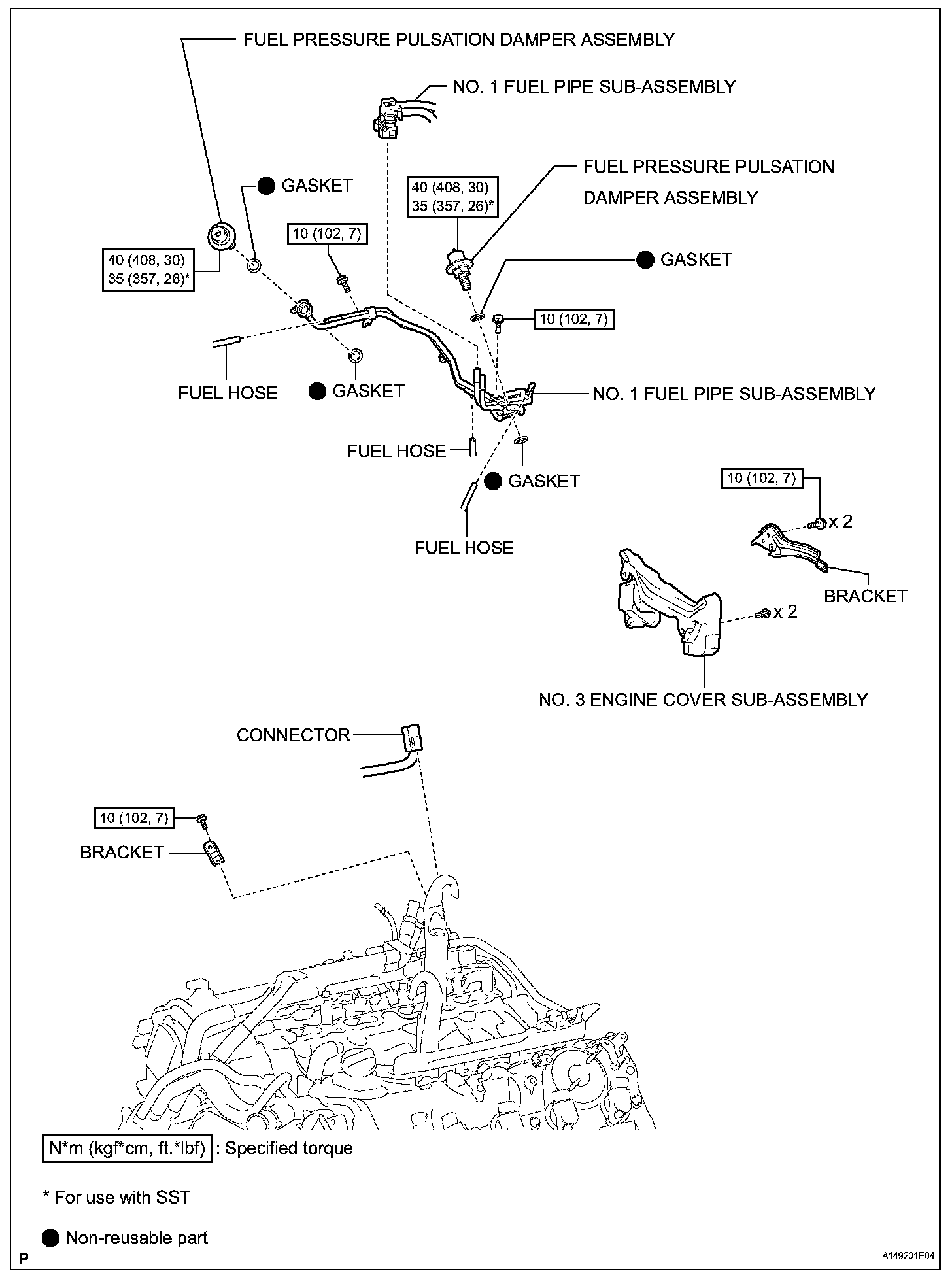

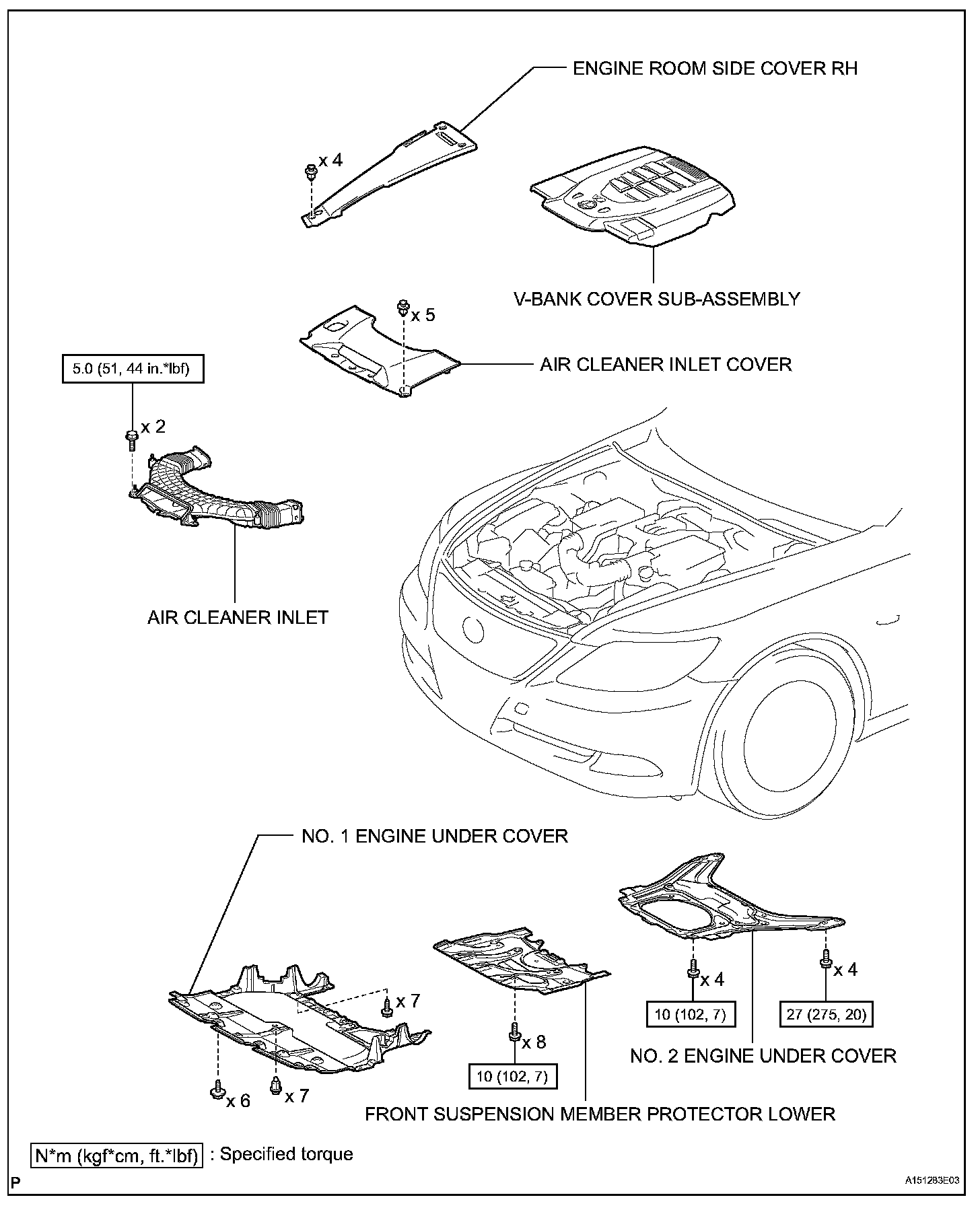

Fuel Injector (for Port Injection):

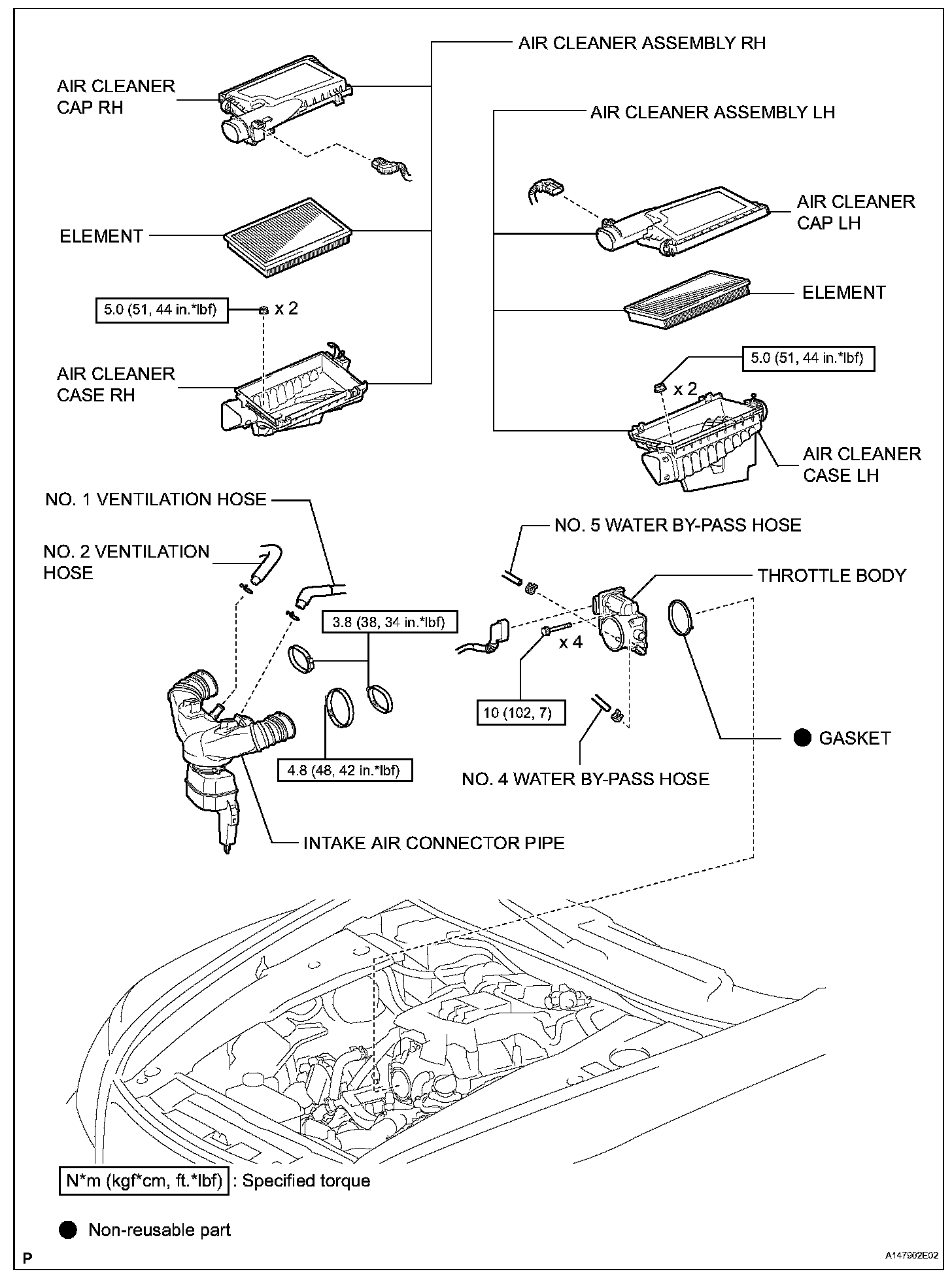

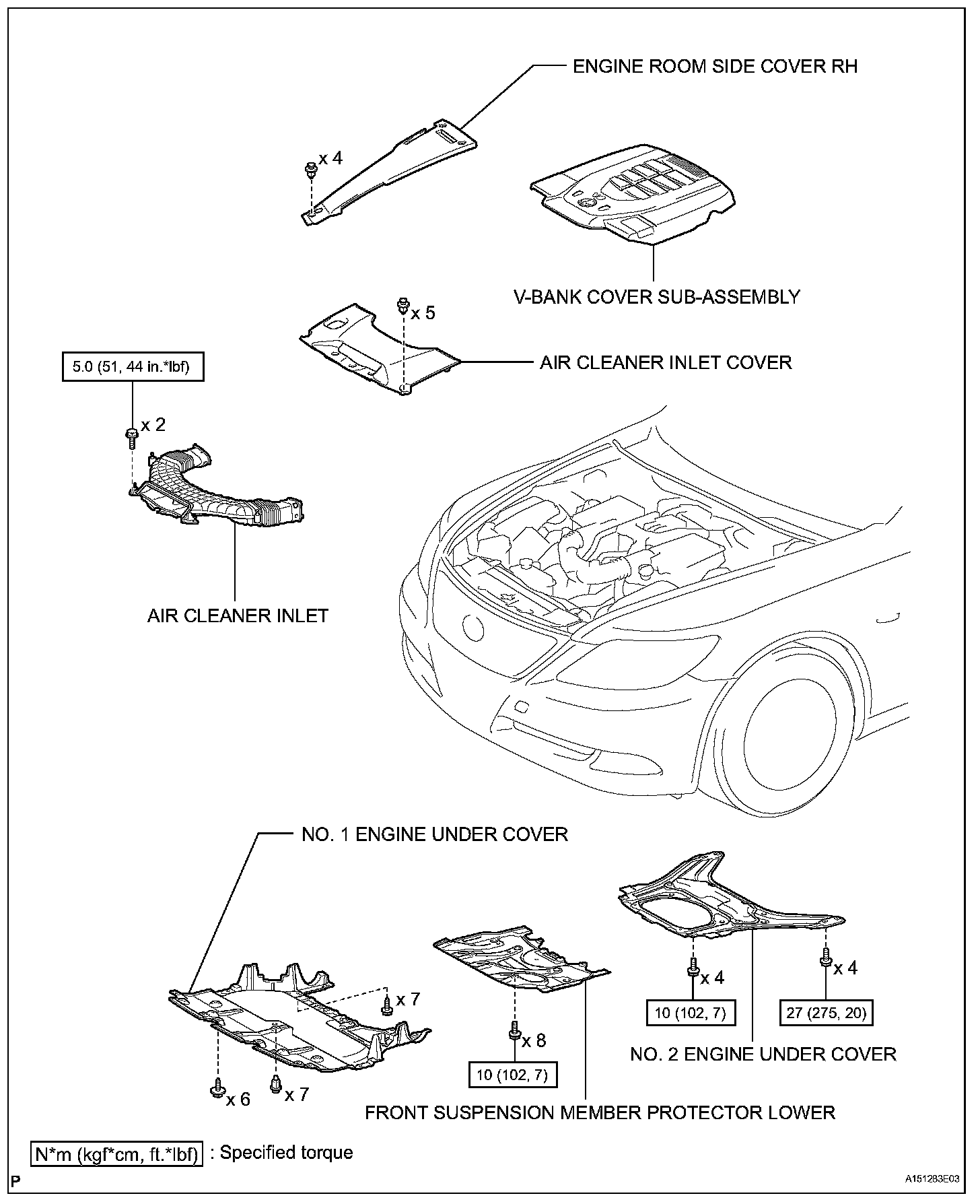

Fuel Injector (for Port Injection):

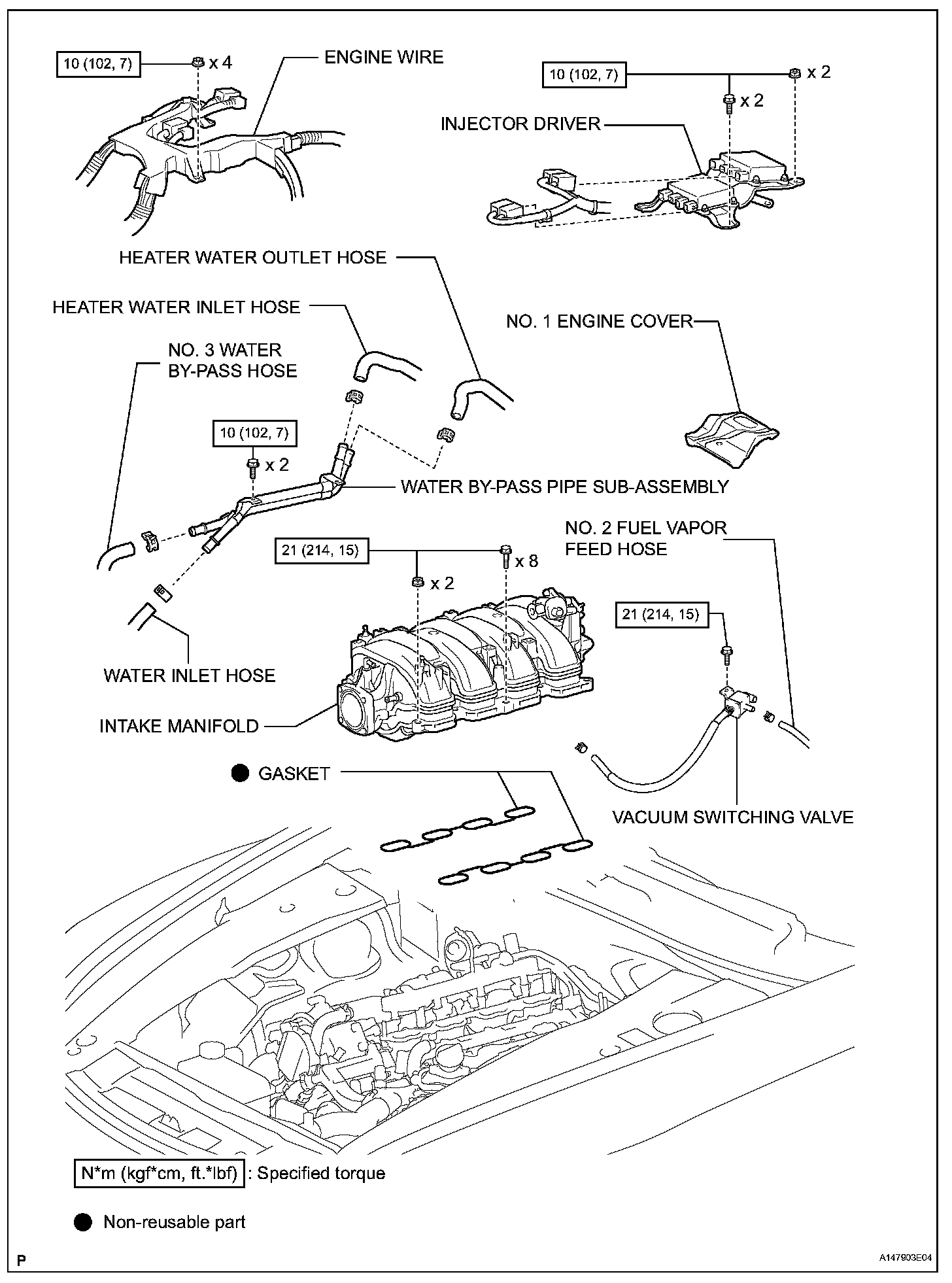

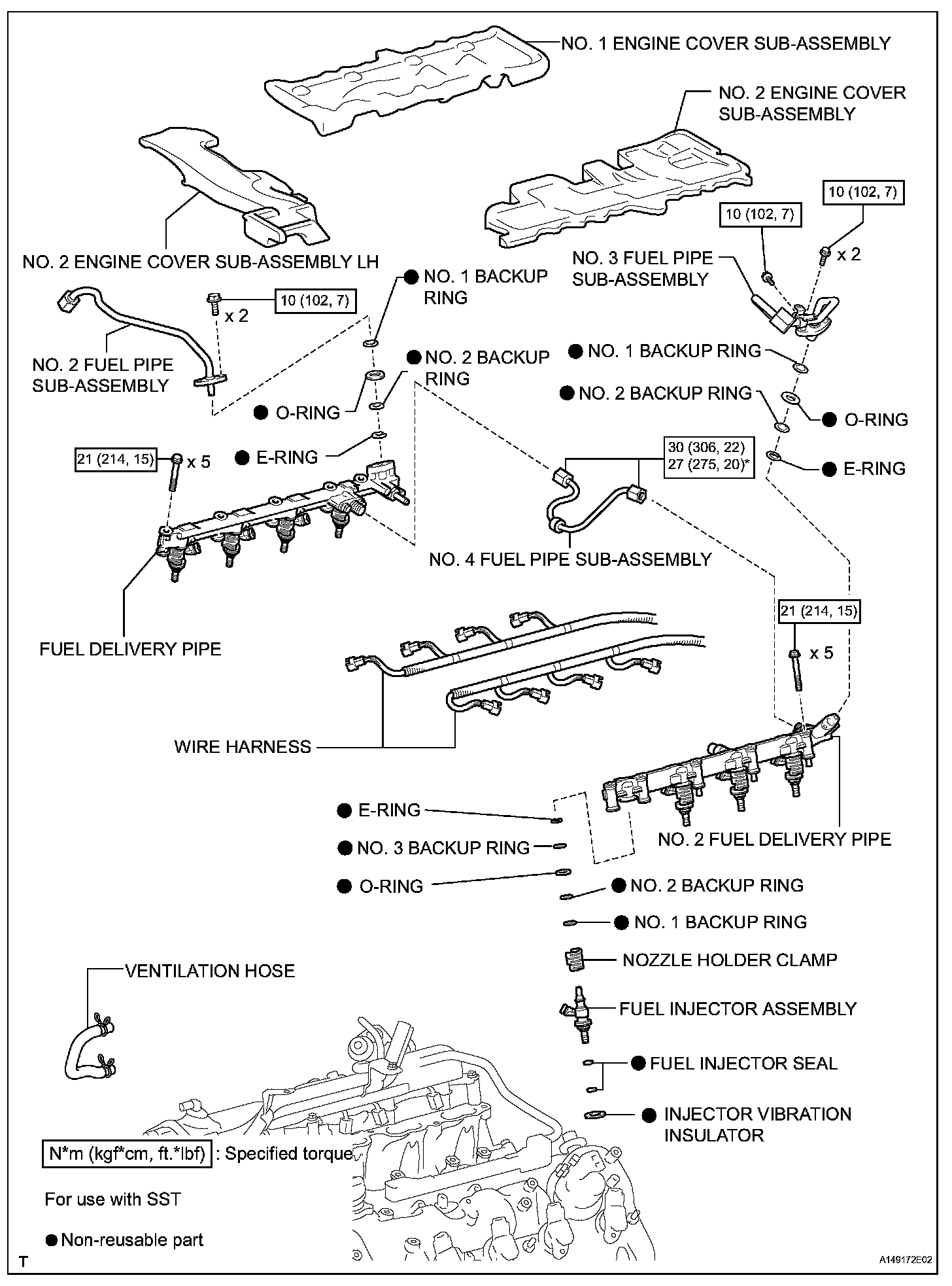

Fuel Injector (for Port Injection):

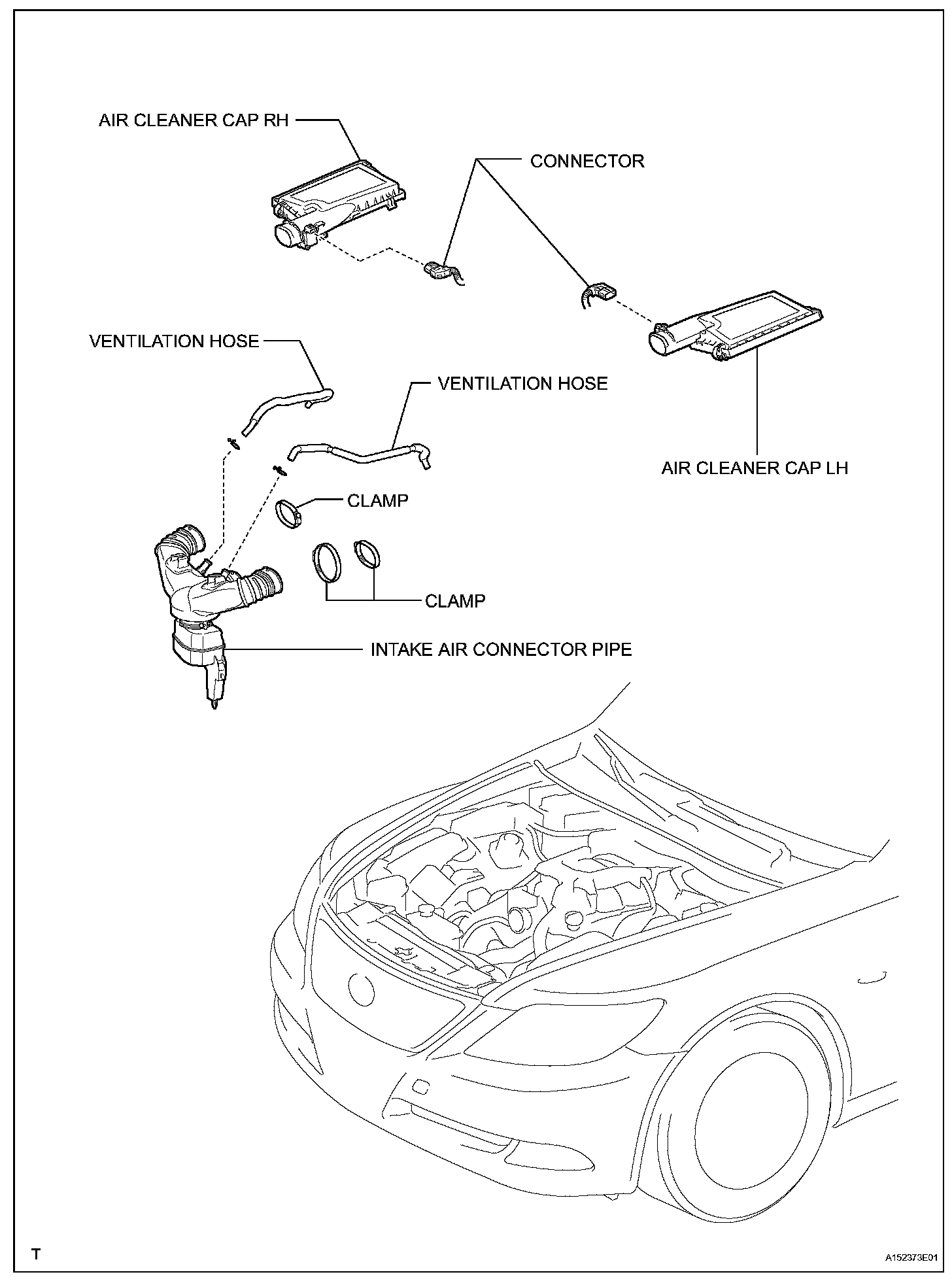

Fuel Injector (for Port Injection):

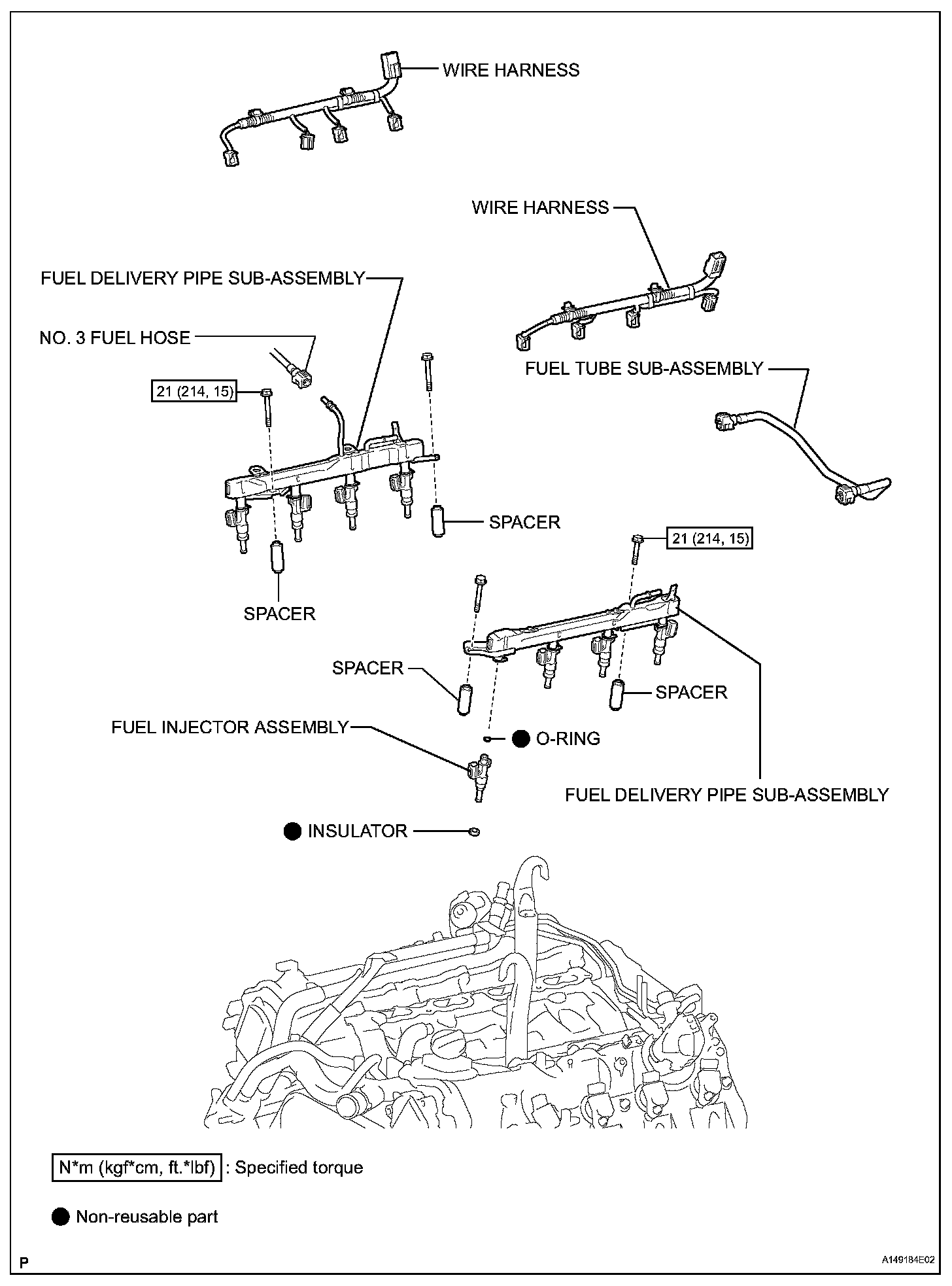

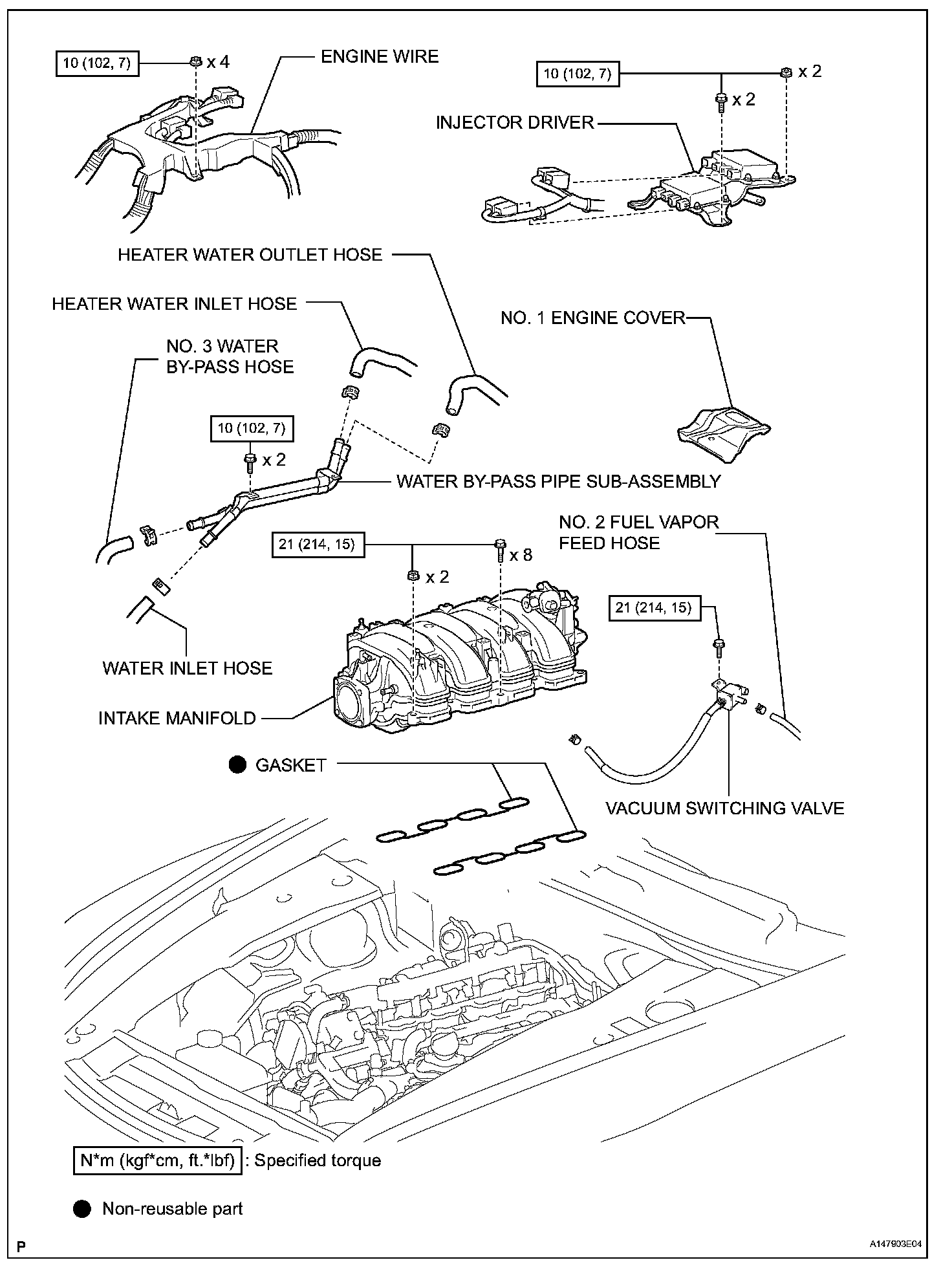

Fuel Injector (for Direct Injection):

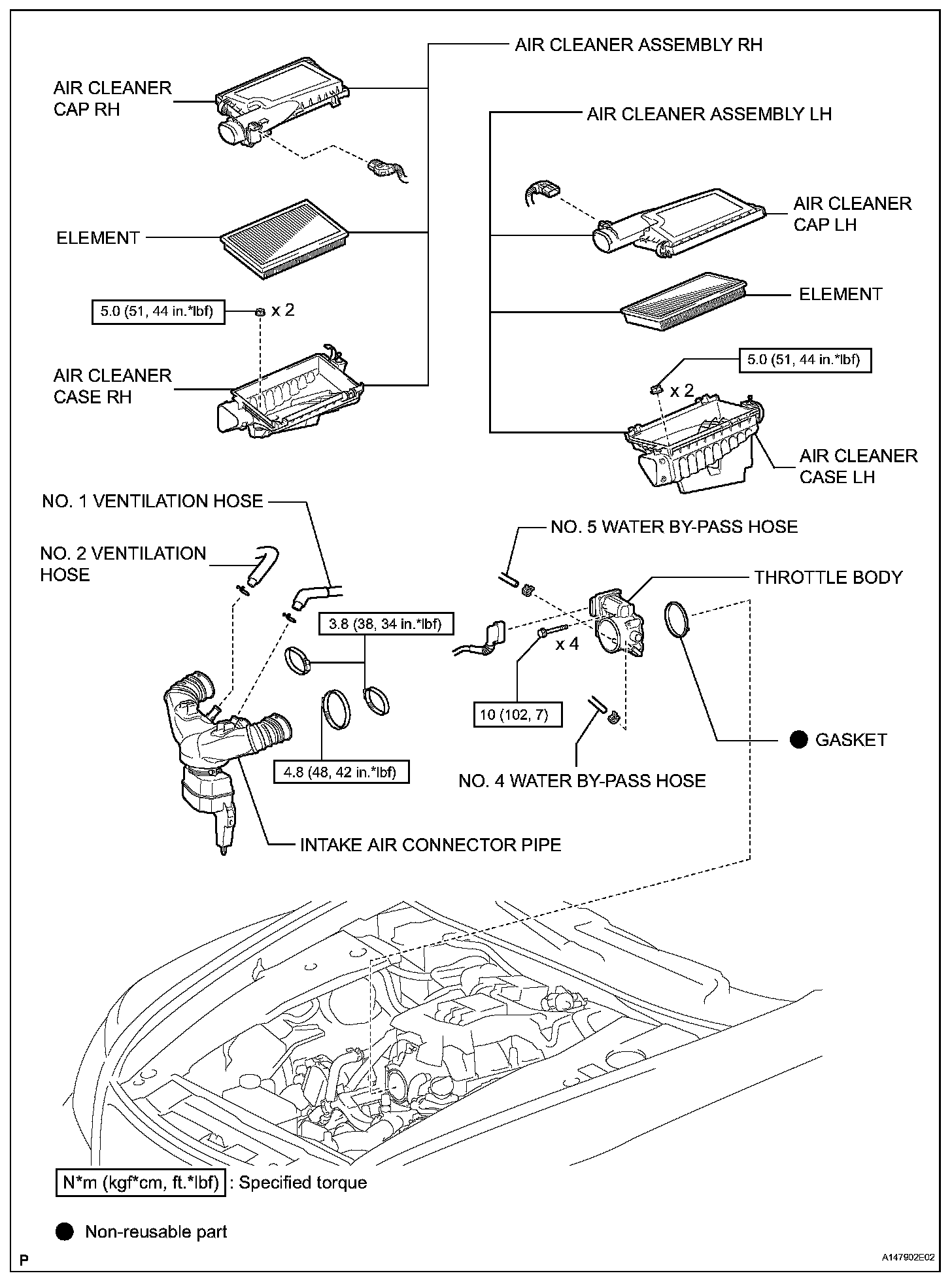

Fuel Injector (for Direct Injection):

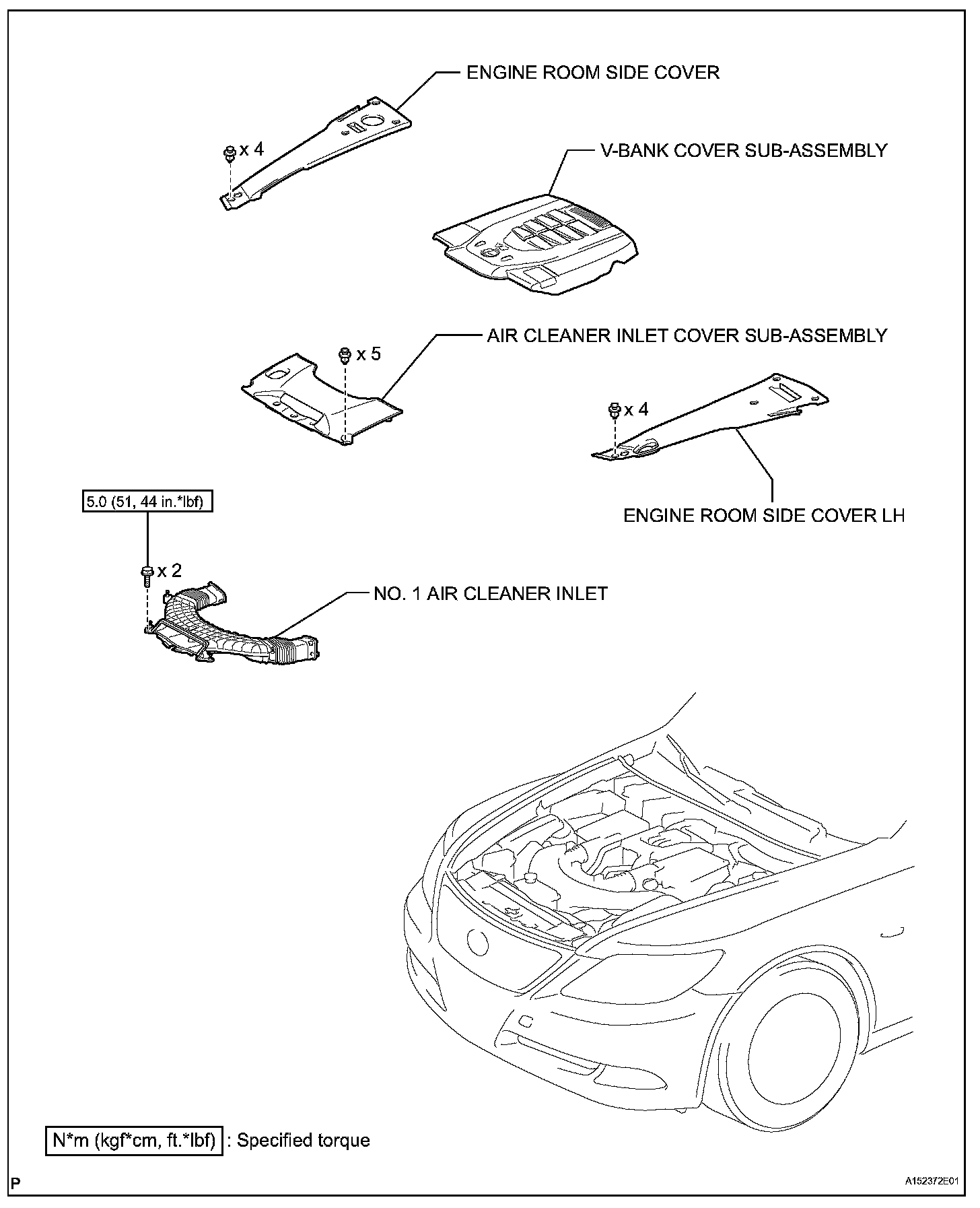

Fuel Injector (for Direct Injection):



Fuel Injector (for Direct Injection):



Fuel Injector (for Direct Injection):

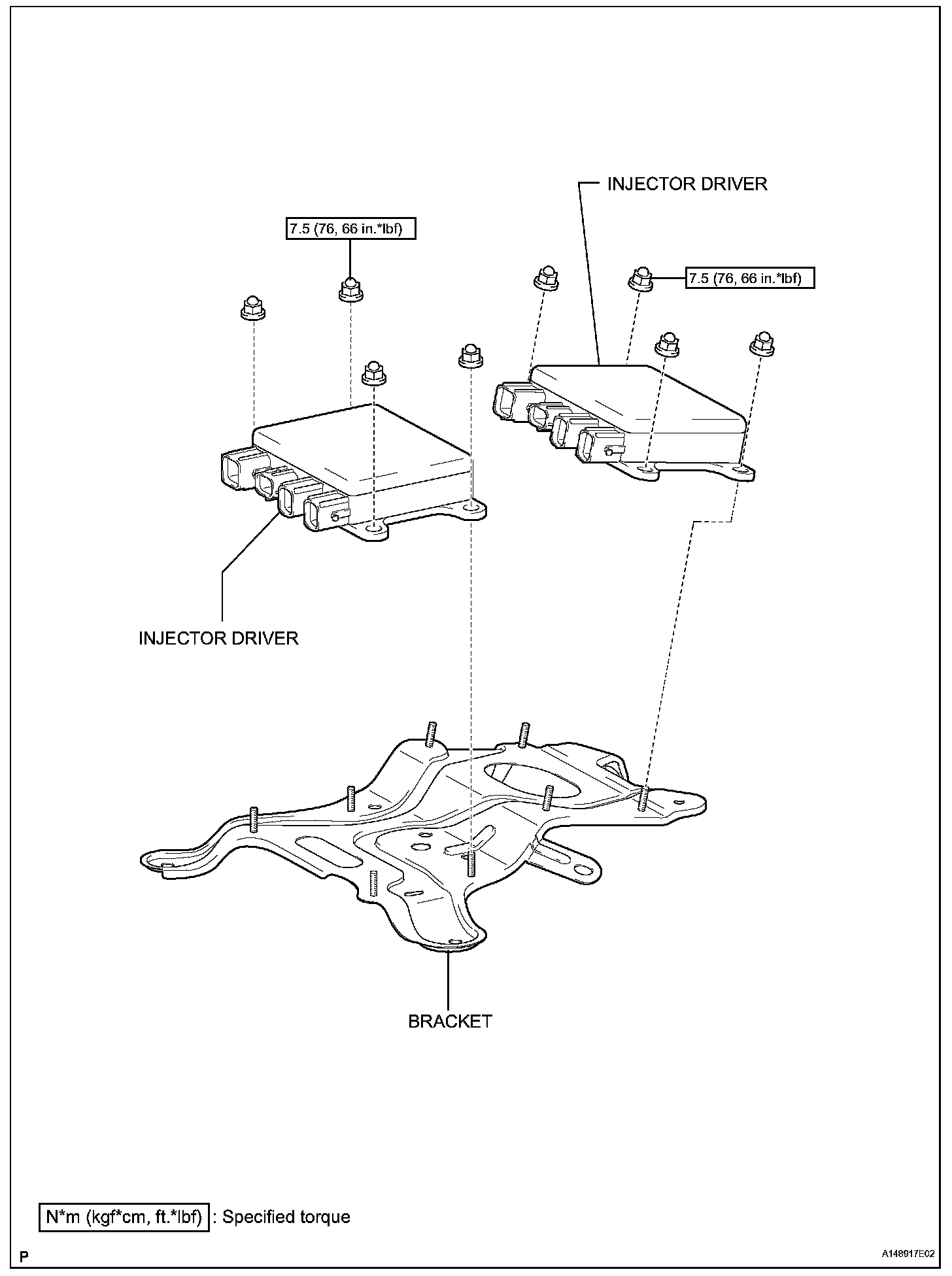

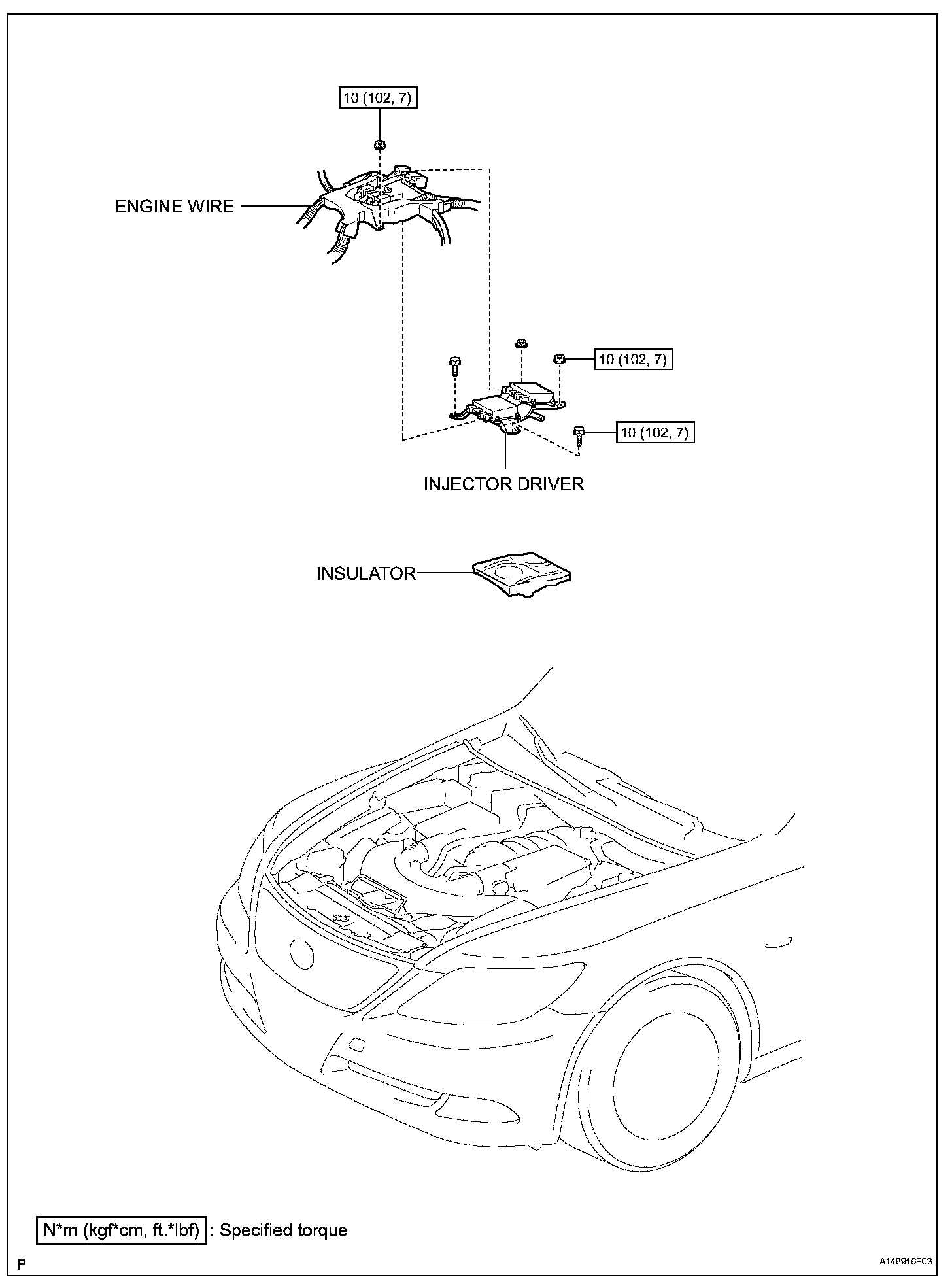

Injector Driver:



Injector Driver:



Injector Driver:



Injector Driver:
