Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Variable Valve Timing Actuator

Variable Valve Timing Actuator

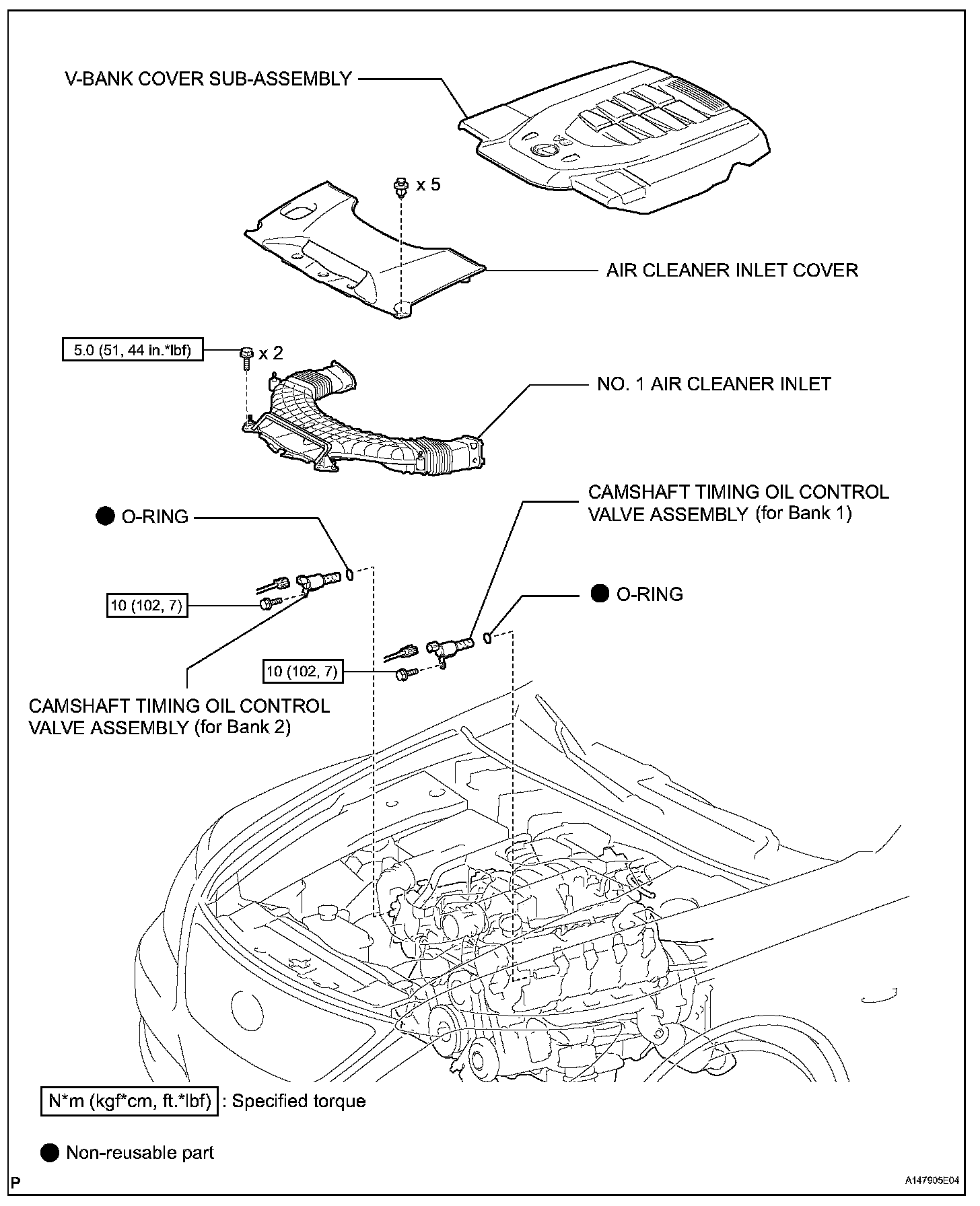

Camshaft Oil Control Valve:

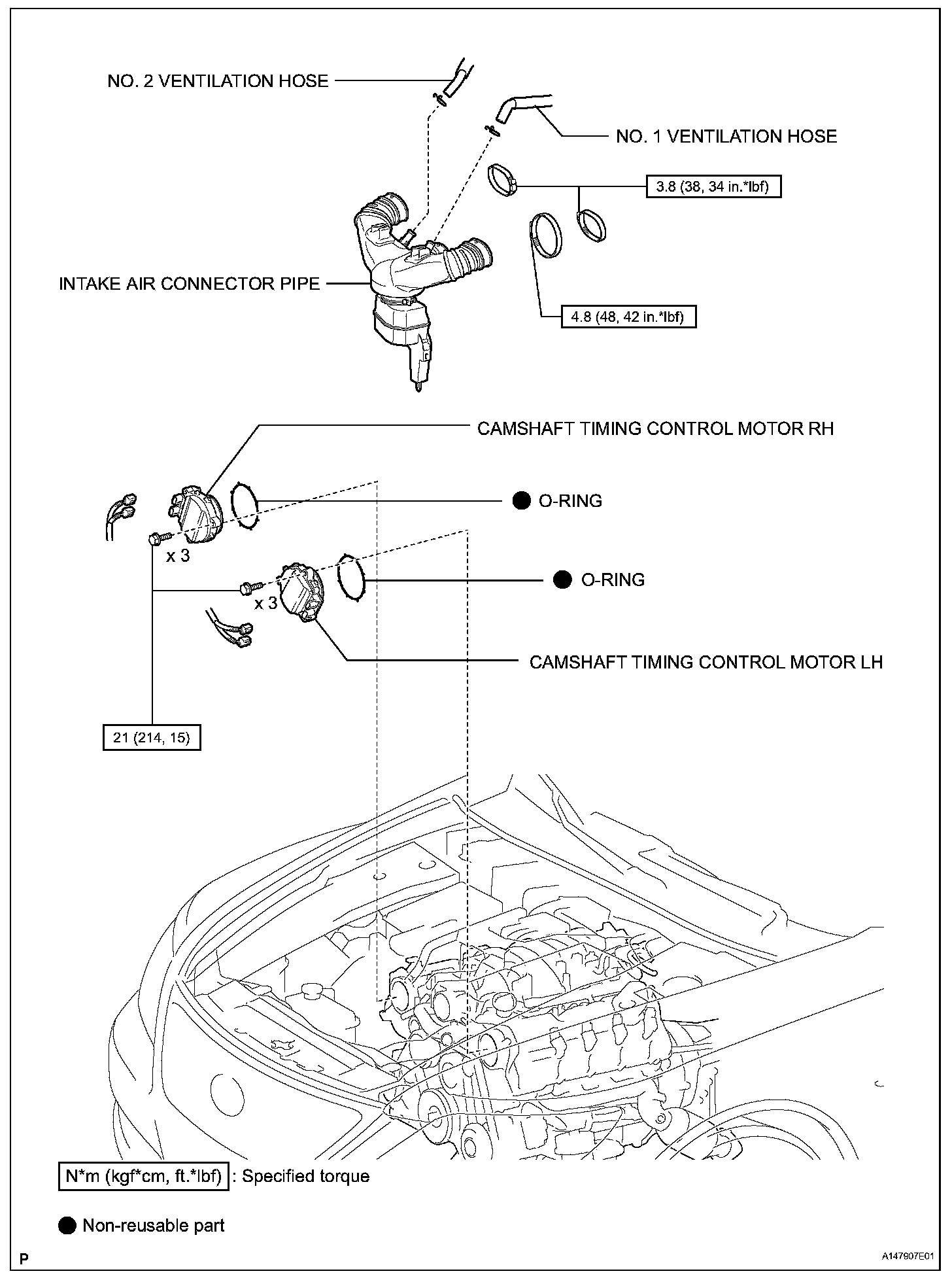

Camshaft Timing Control Motor:



Camshaft Timing Control Motor:
