System Diagram

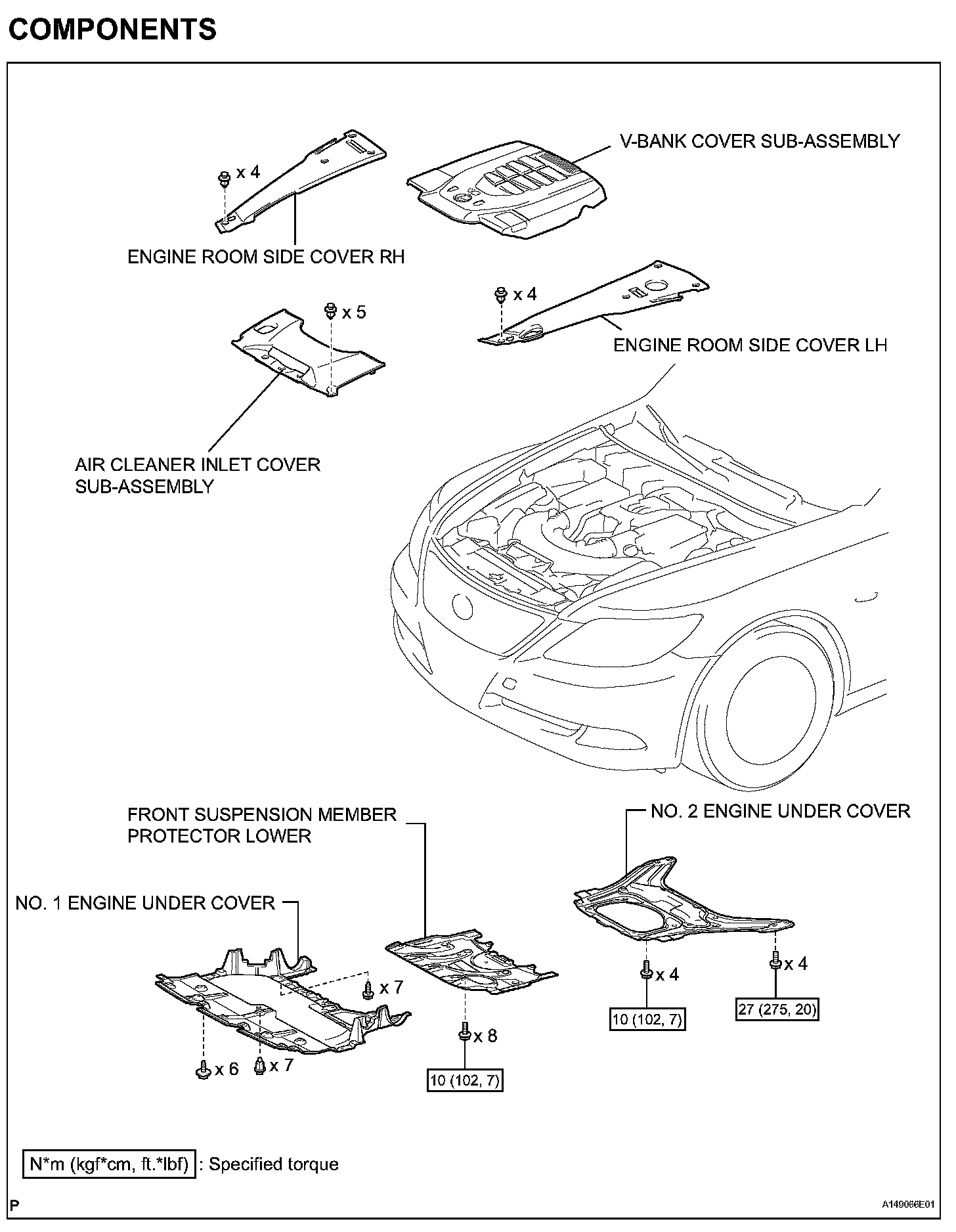

ENGINECOMPONENTS (Part 1):
COMPONENTS (Part 2):
COMPONENTS (Part 3):
COMPONENTS (Part 4):
COMPONENTS (Part 5):
COMPONENTS (Part 6):
COMPONENTS (Part 7):
COMPONENTS (Part 8):
COMPONENTS (Part 9):
COMPONENTS (Part 10):
COMPONENTS (Part 11):
COMPONENTS (Part 12):
COMPONENTS (Part 13):
COMPONENTS (Part 14):
COMPONENTS (Part 15):
COMPONENTS (Part 16):
