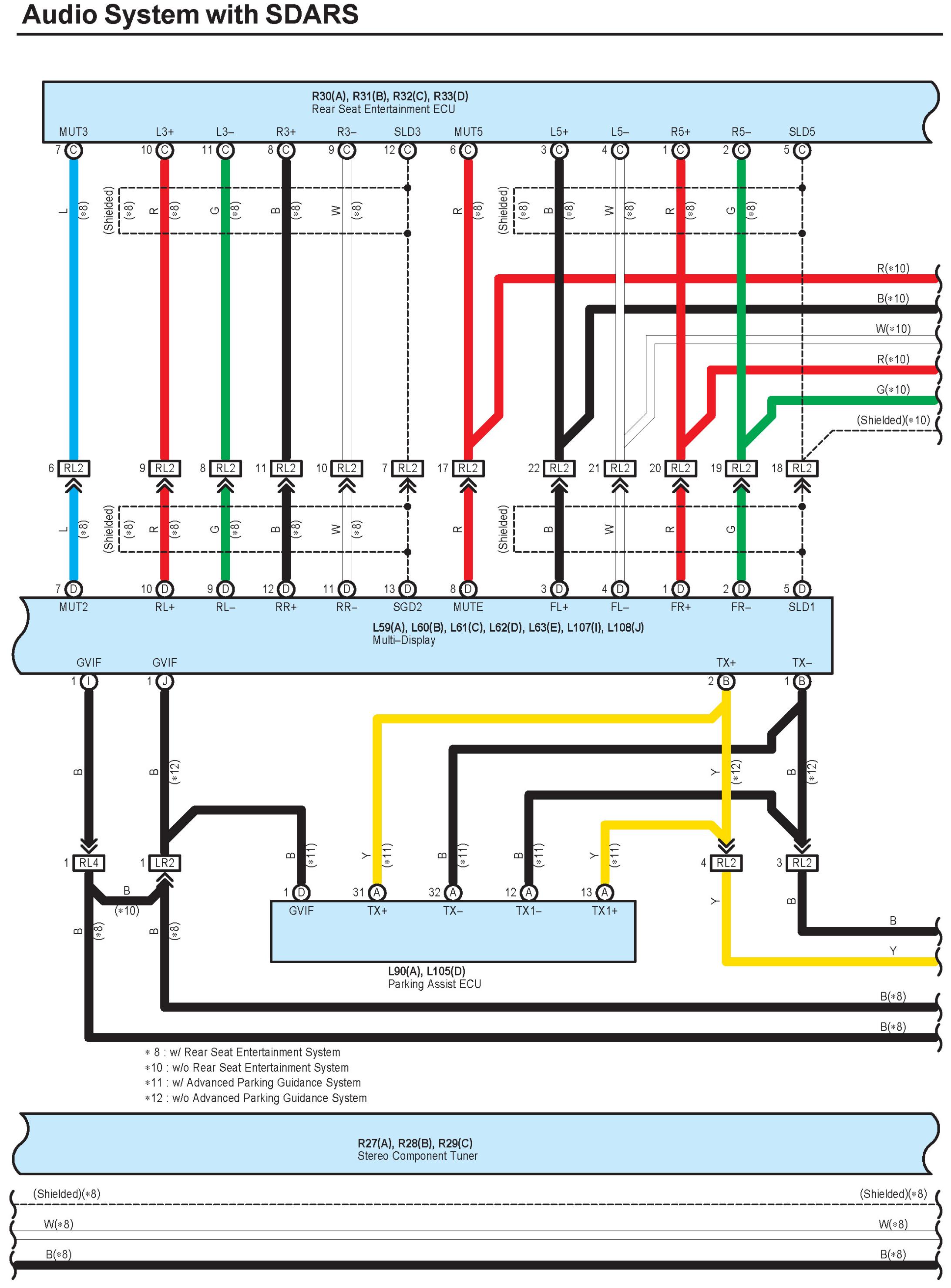

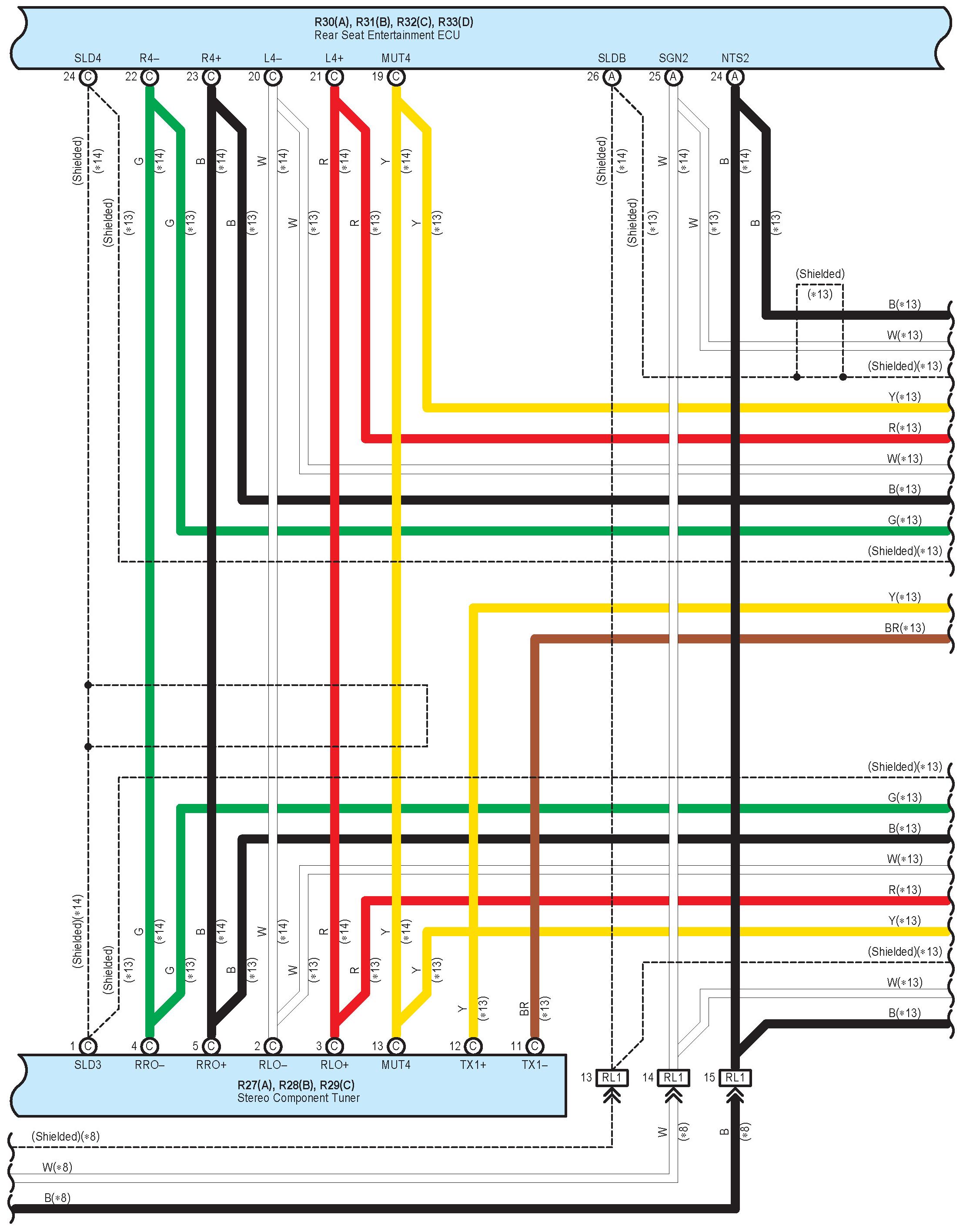

Audio System With SDARS

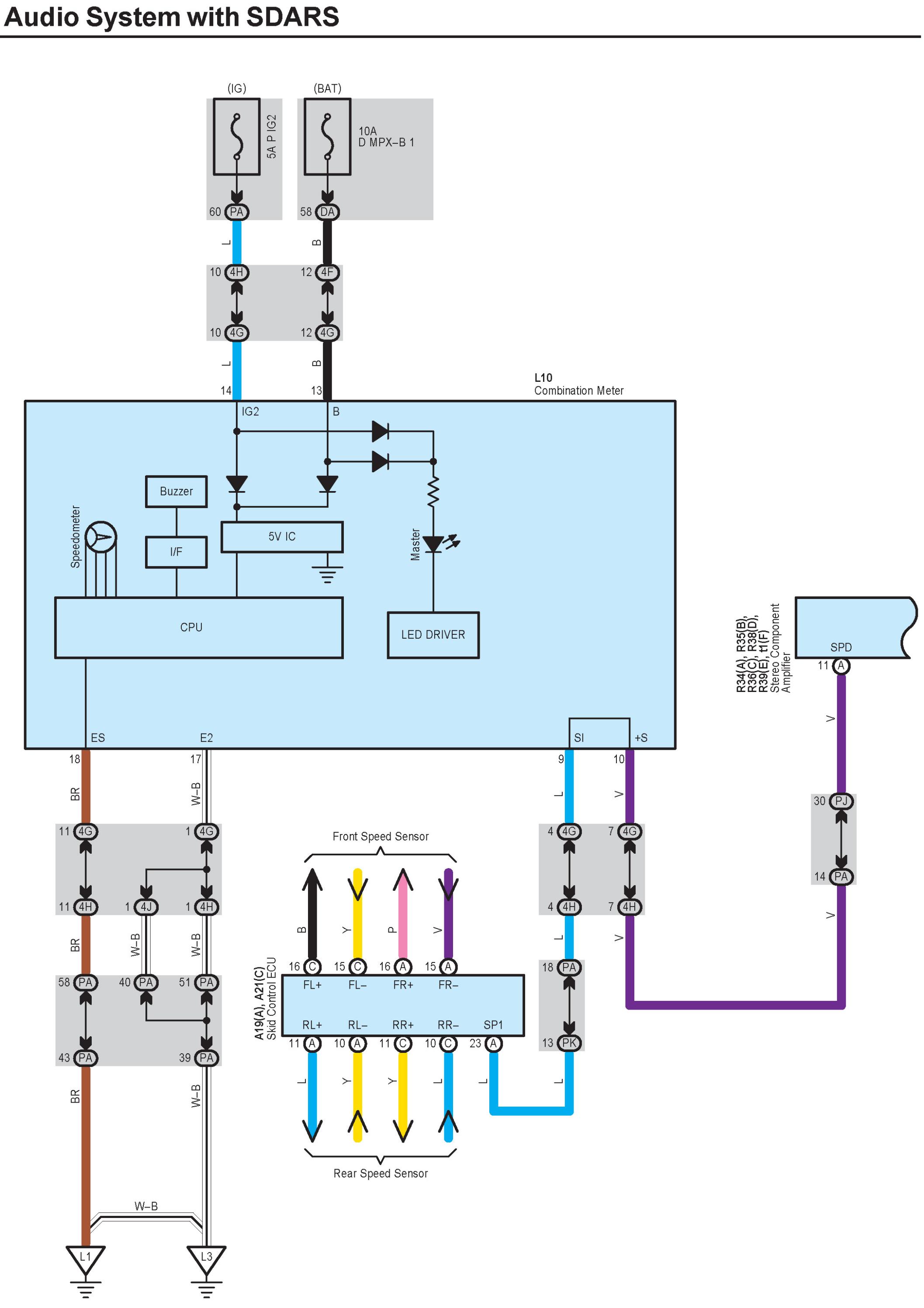

Audio System With SDARS Part 1:

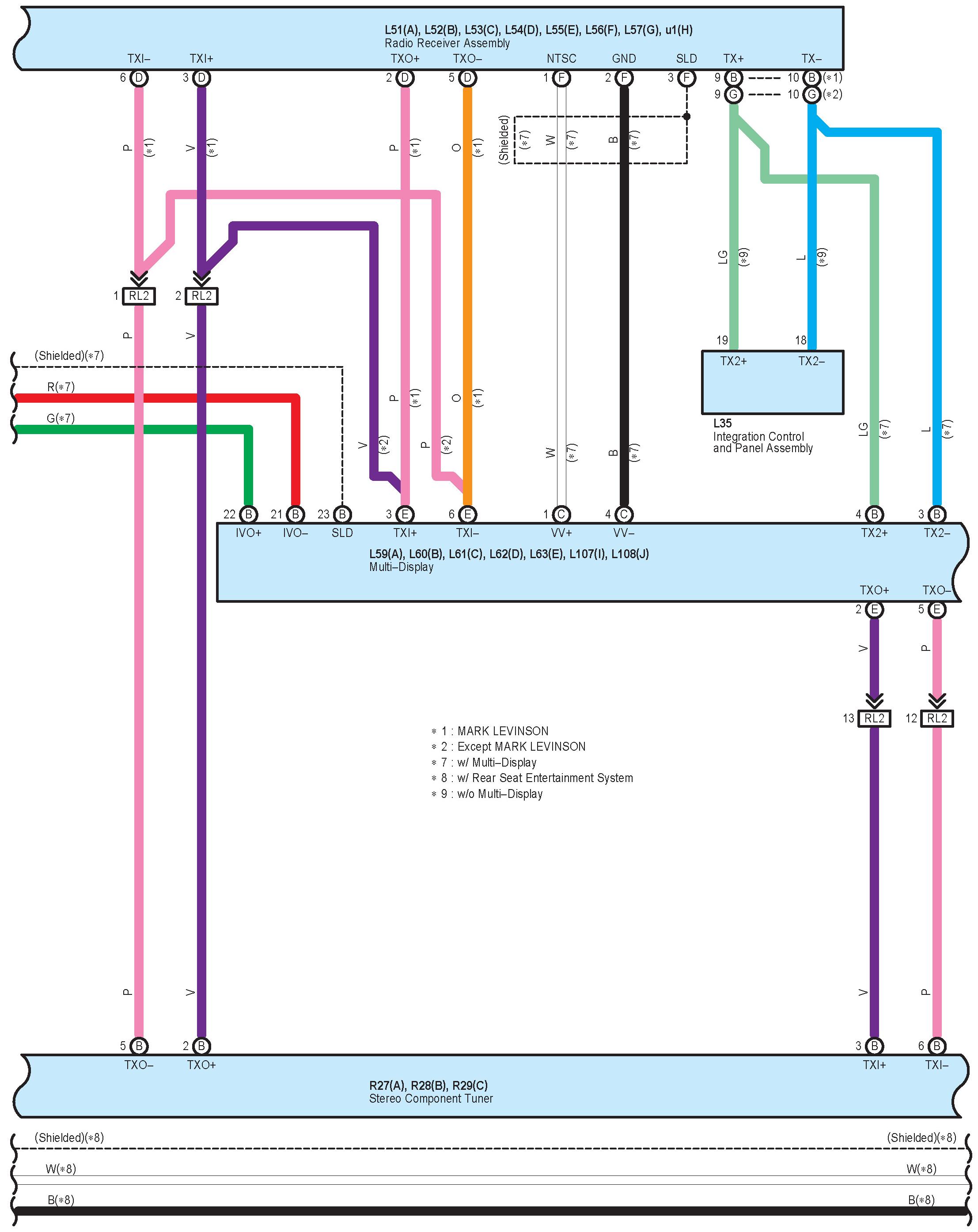

Audio System With SDARS Part 2:

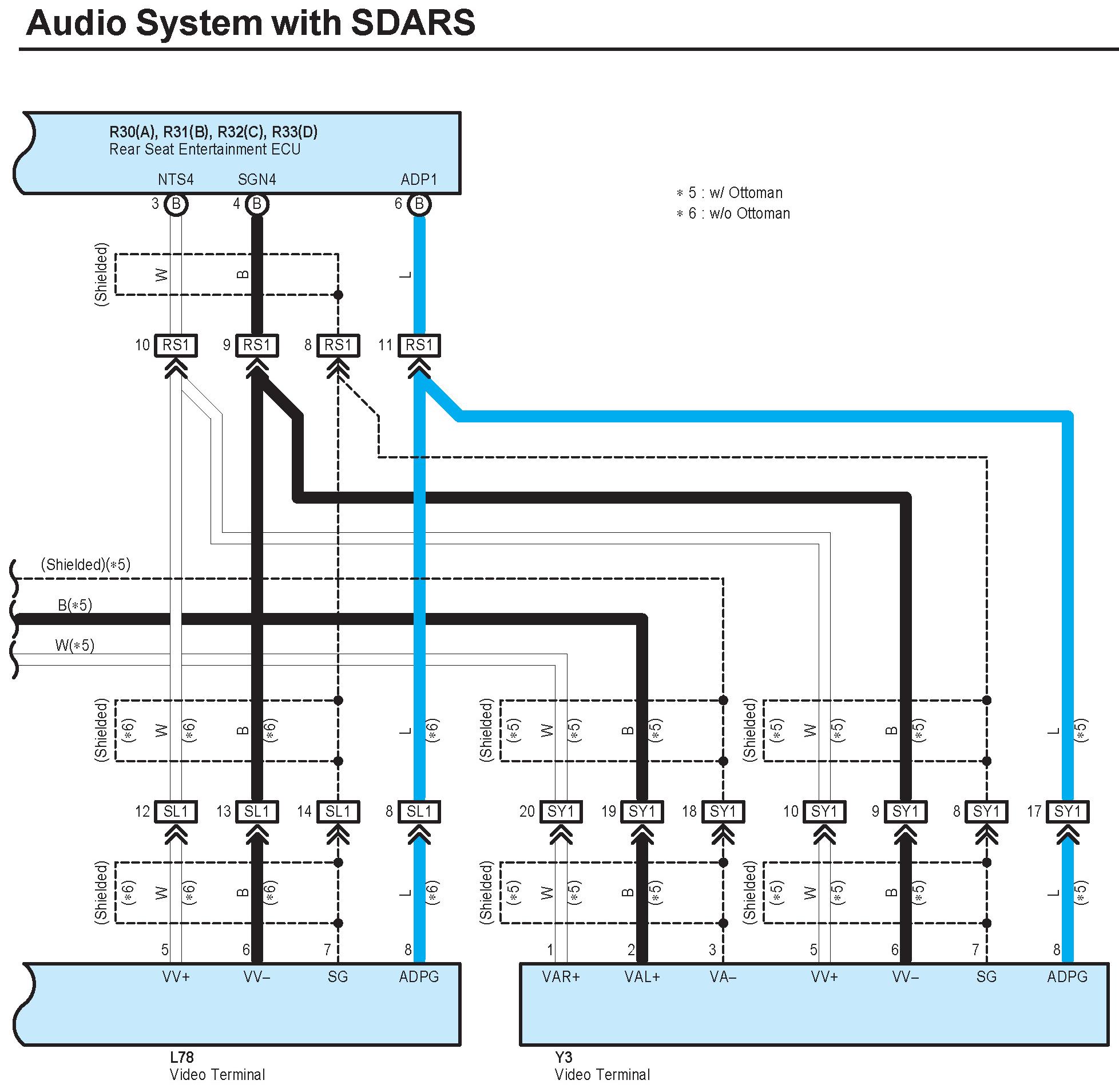

Audio System With SDARS Part 3:

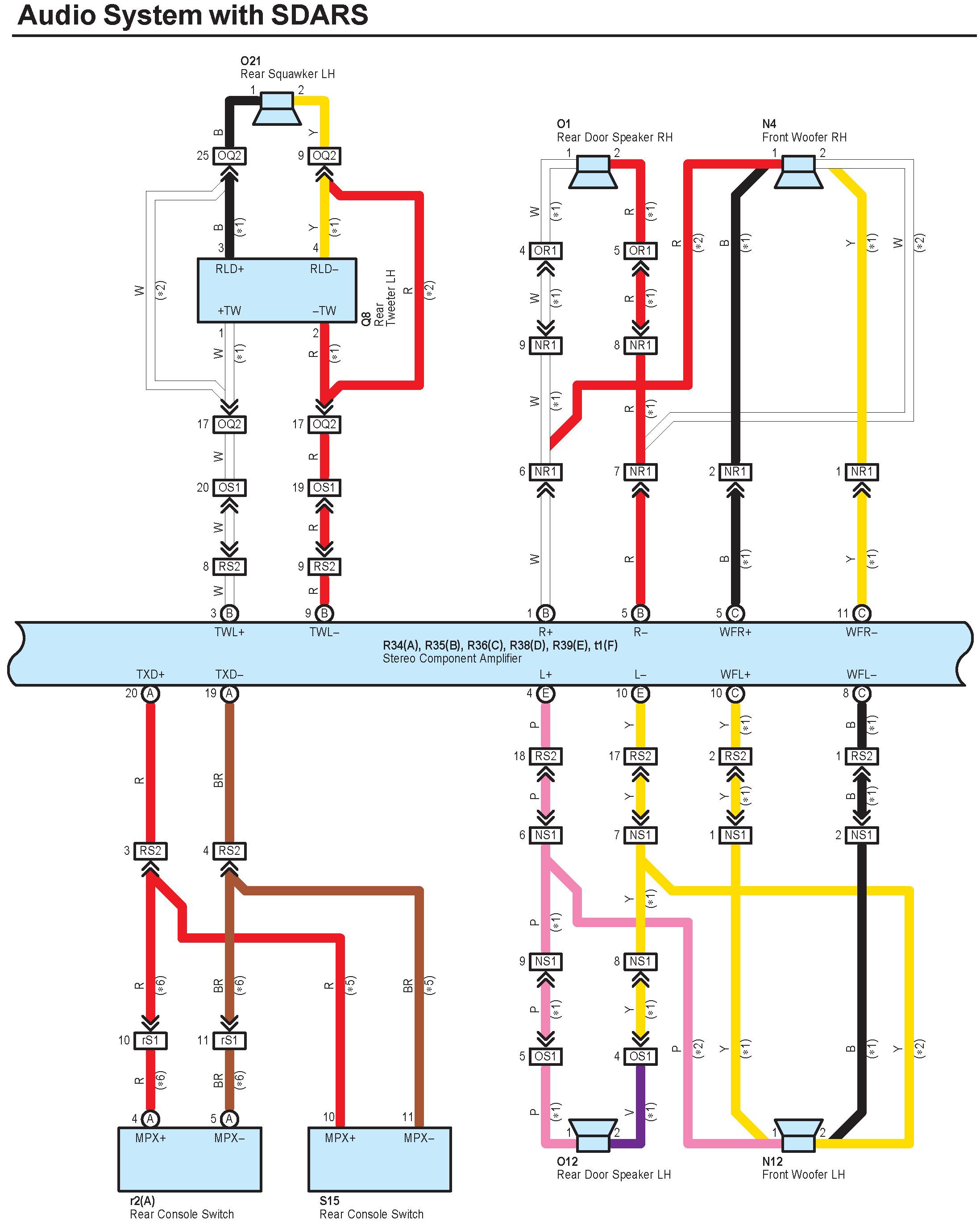

Audio System With SDARS Part 4:

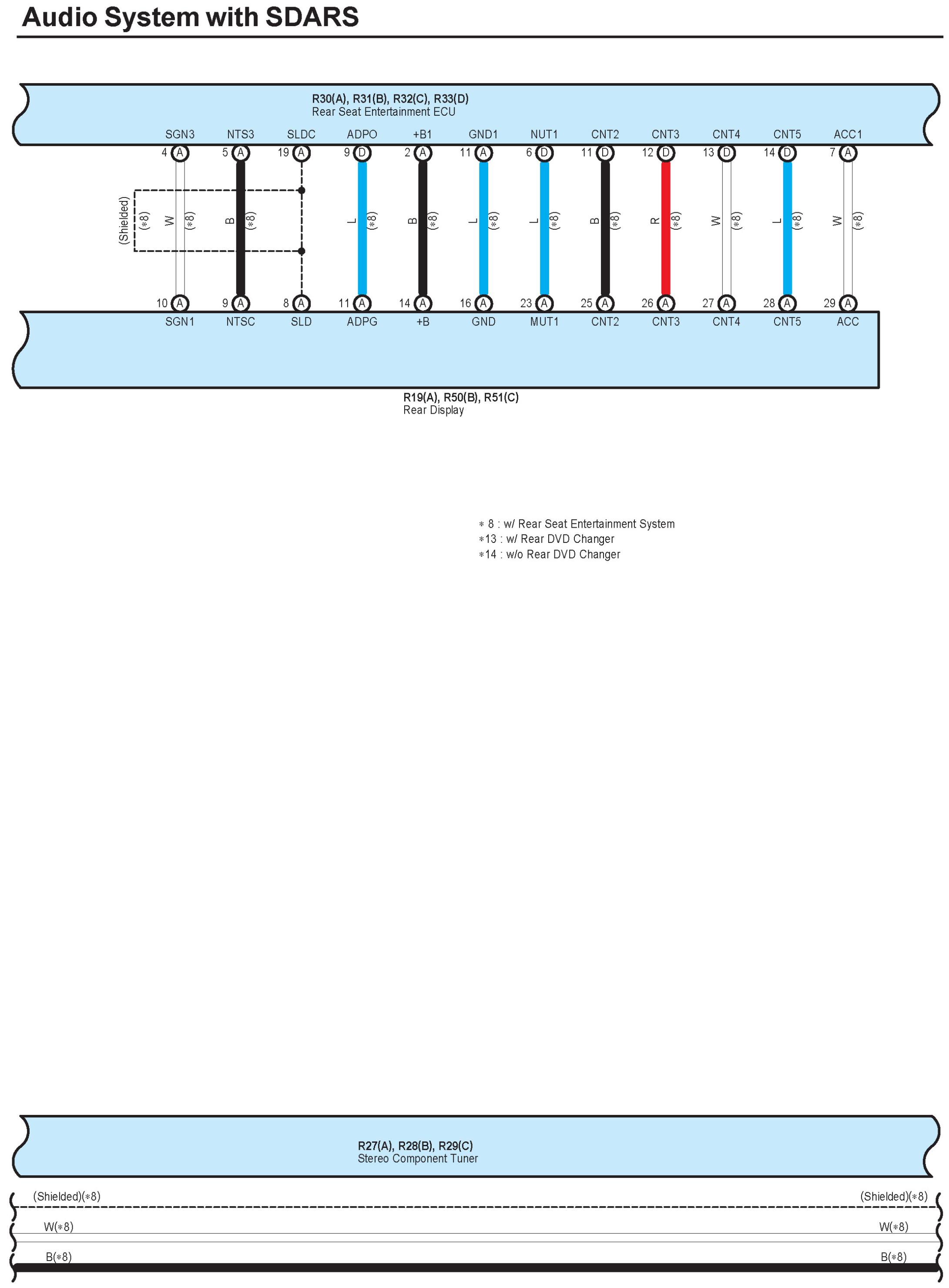

Audio System With SDARS Part 5:

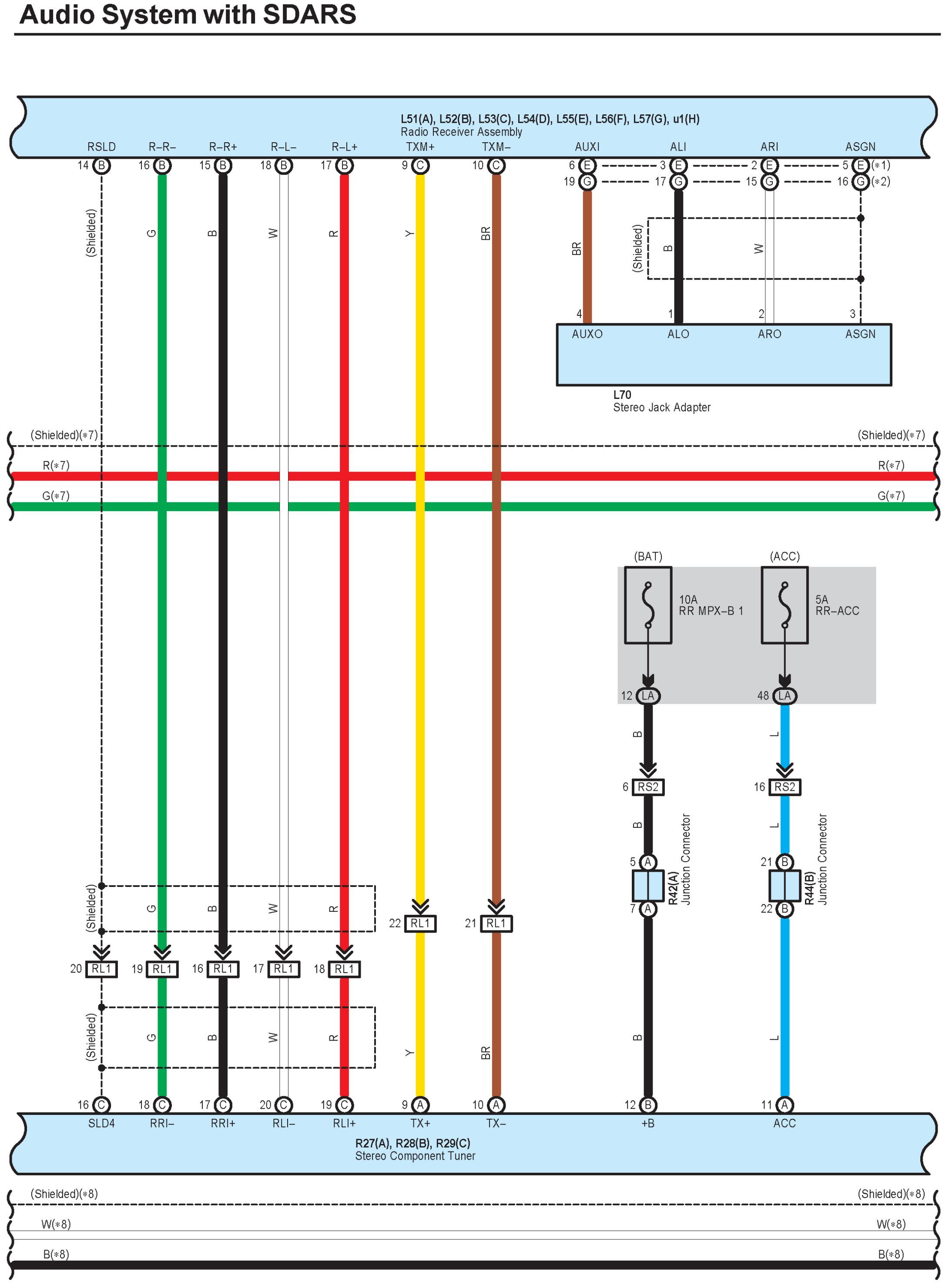

Audio System With SDARS Part 6:

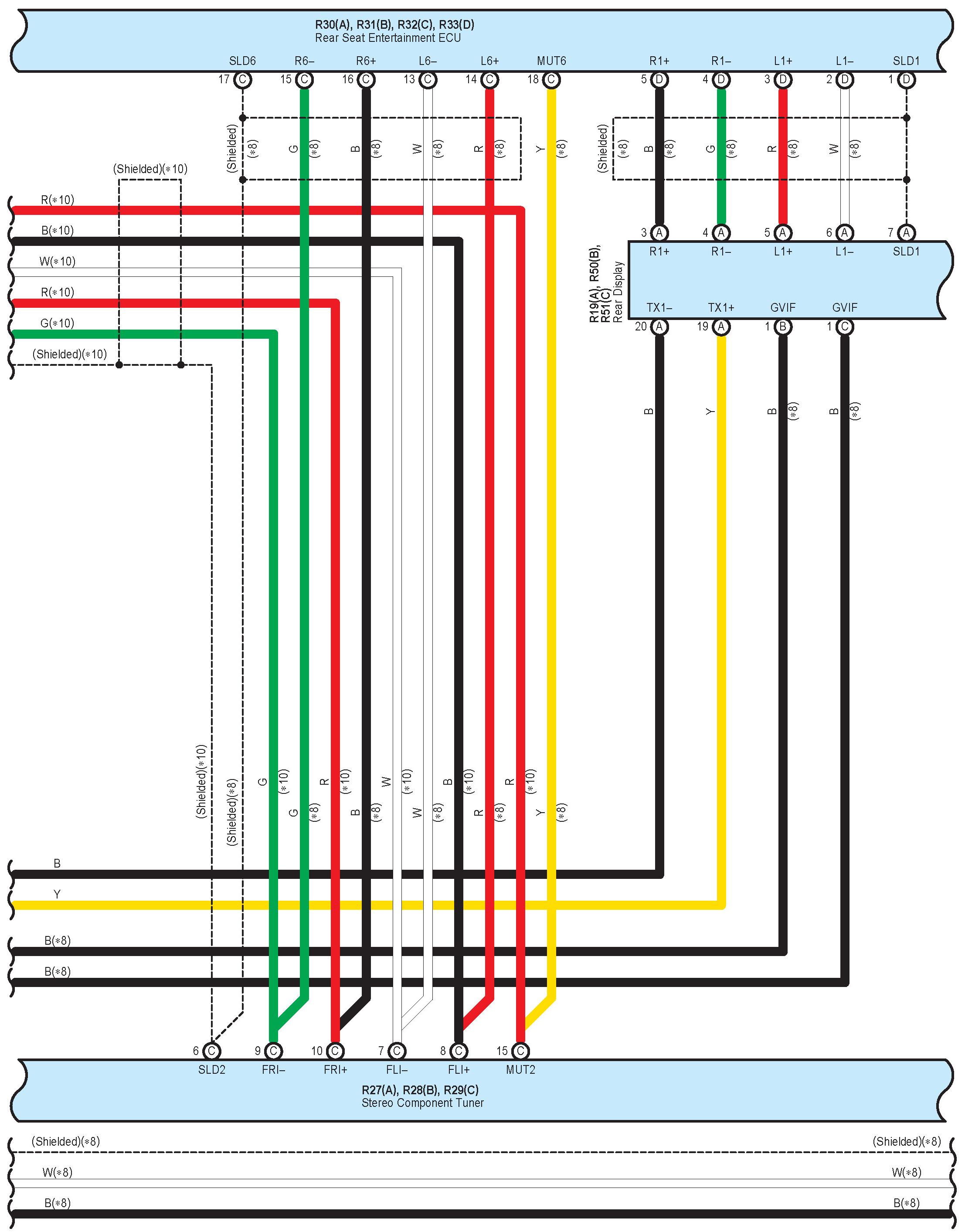

Audio System With SDARS Part 7:

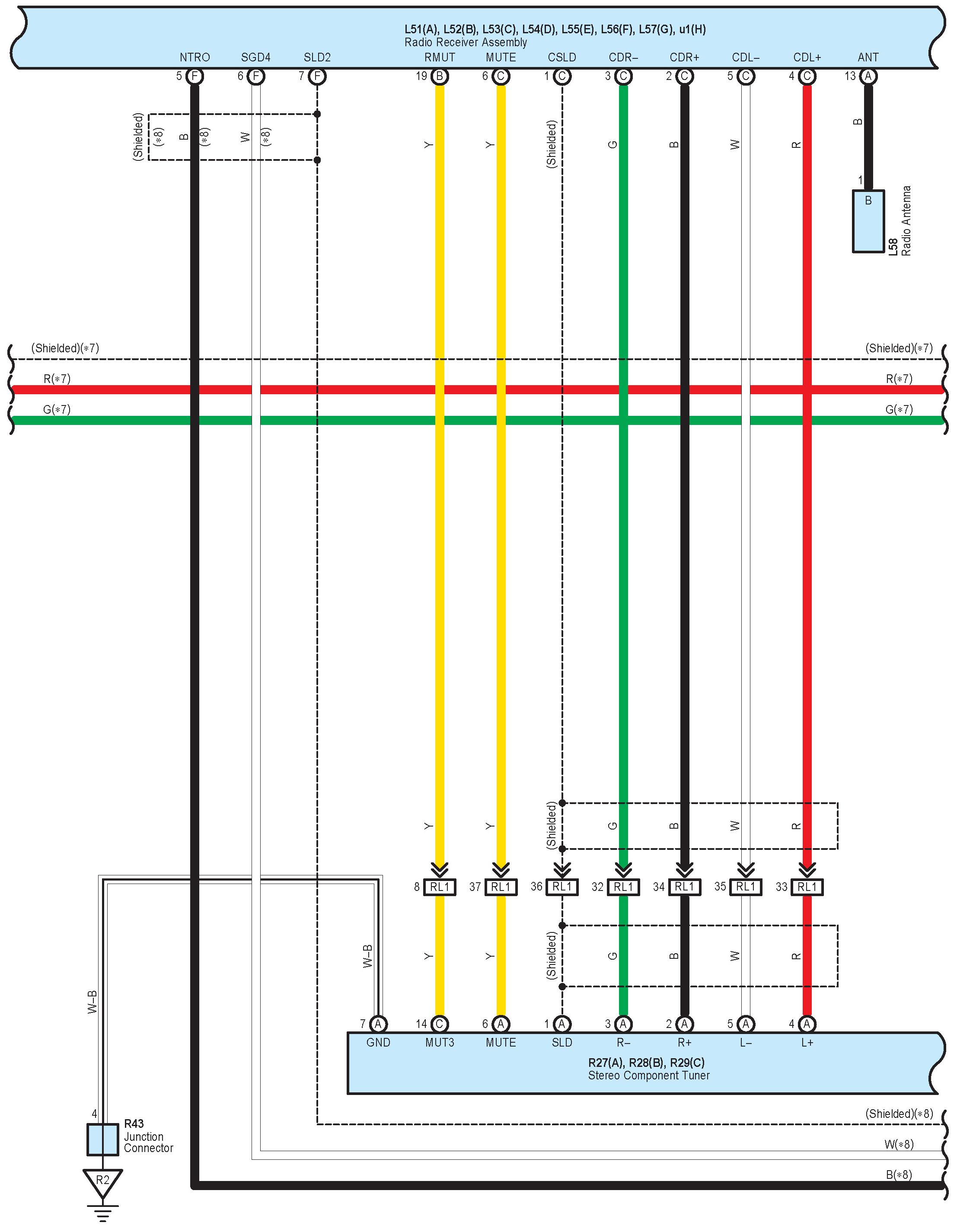

Audio System With SDARS Part 8:

Audio System With SDARS Part 9:

Audio System With SDARS Part 10:

Audio System With SDARS Part 11:

Audio System With SDARS Part 12:

Audio System With SDARS Part 13:

Audio System With SDARS Part 14:

Audio System With SDARS Part 15:

Audio System With SDARS Part 16:

Audio System With SDARS Part 17:

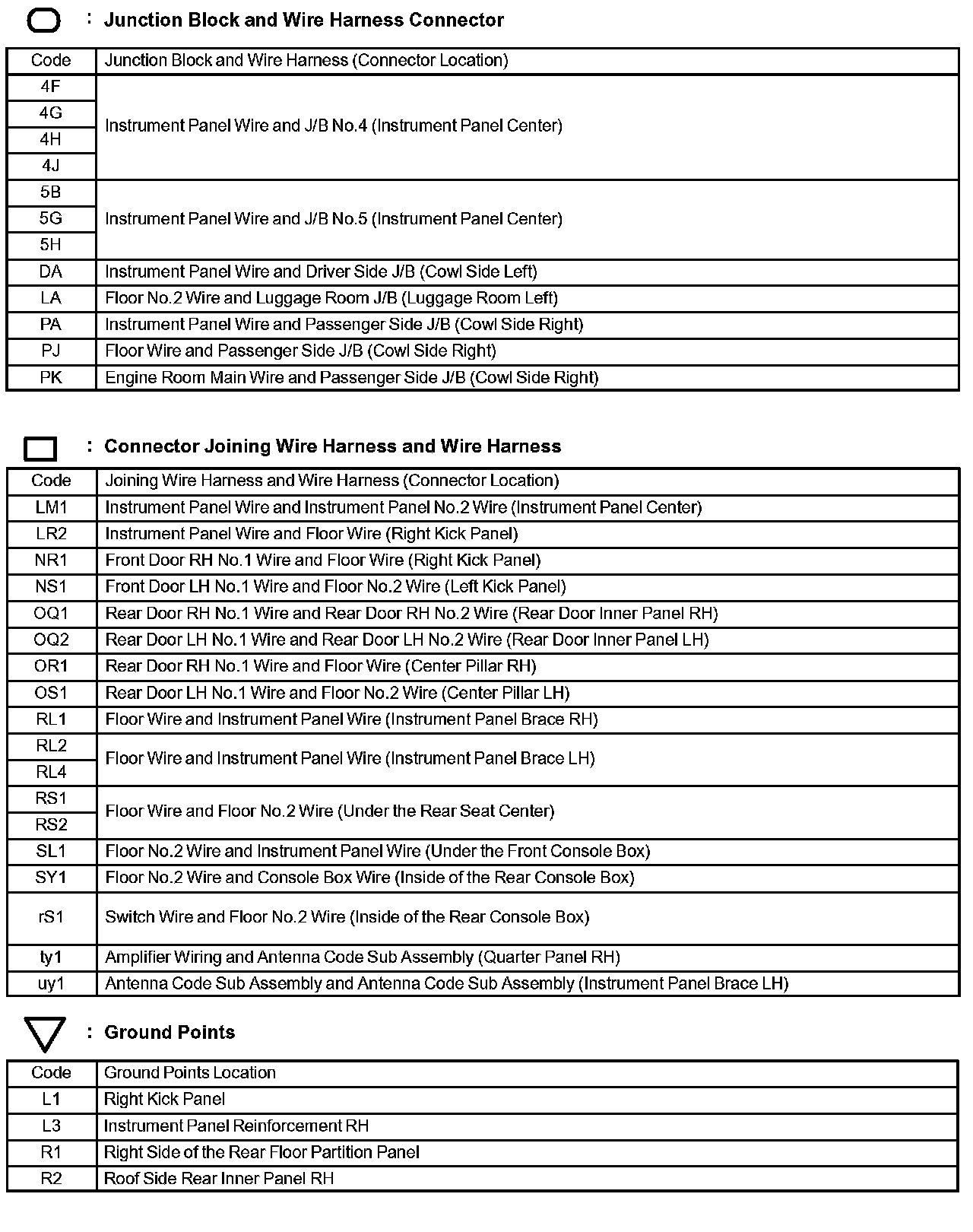

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
