Navigation, Parking Assist (Rear View Monitor) and Multi-Display

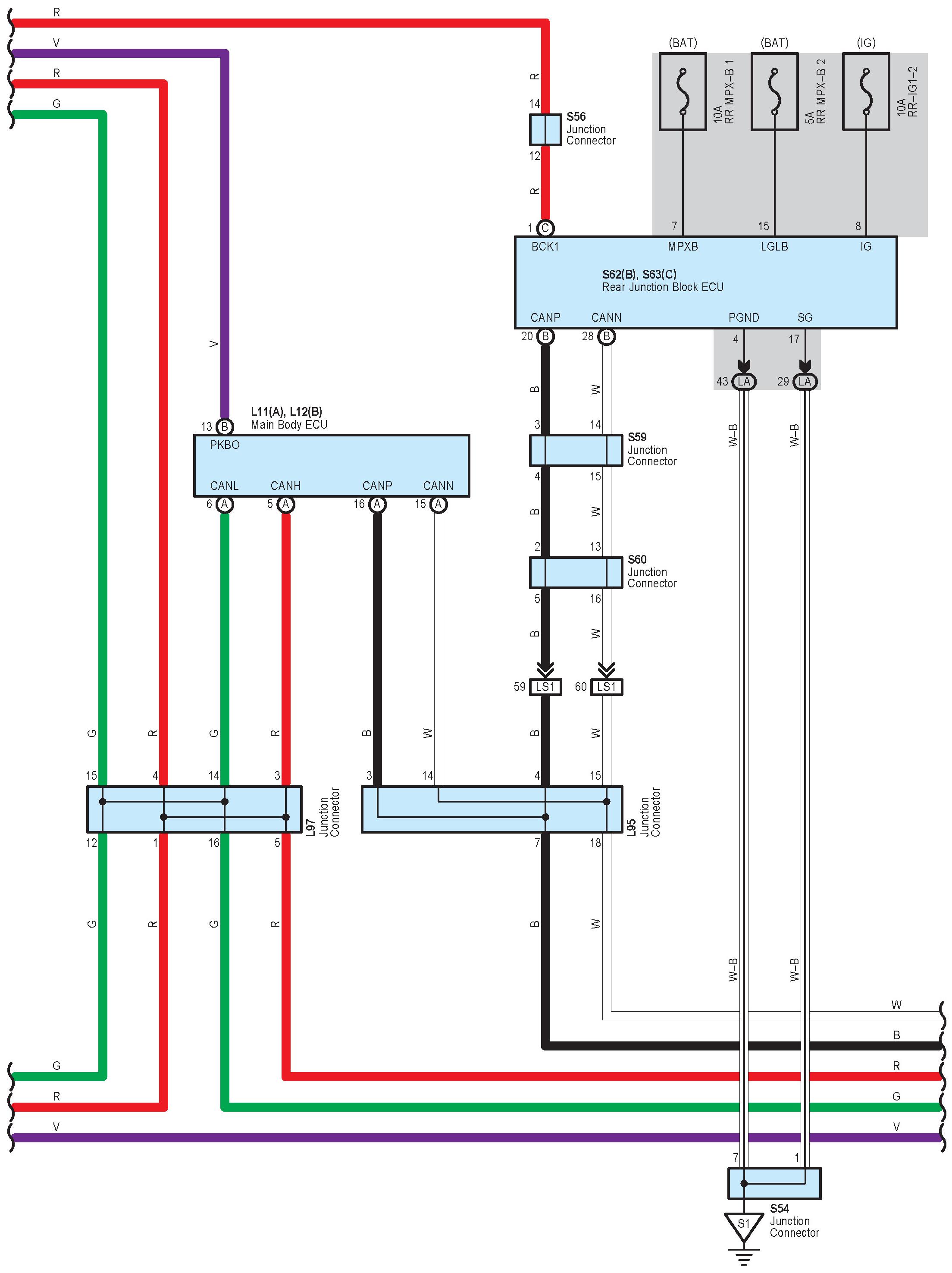

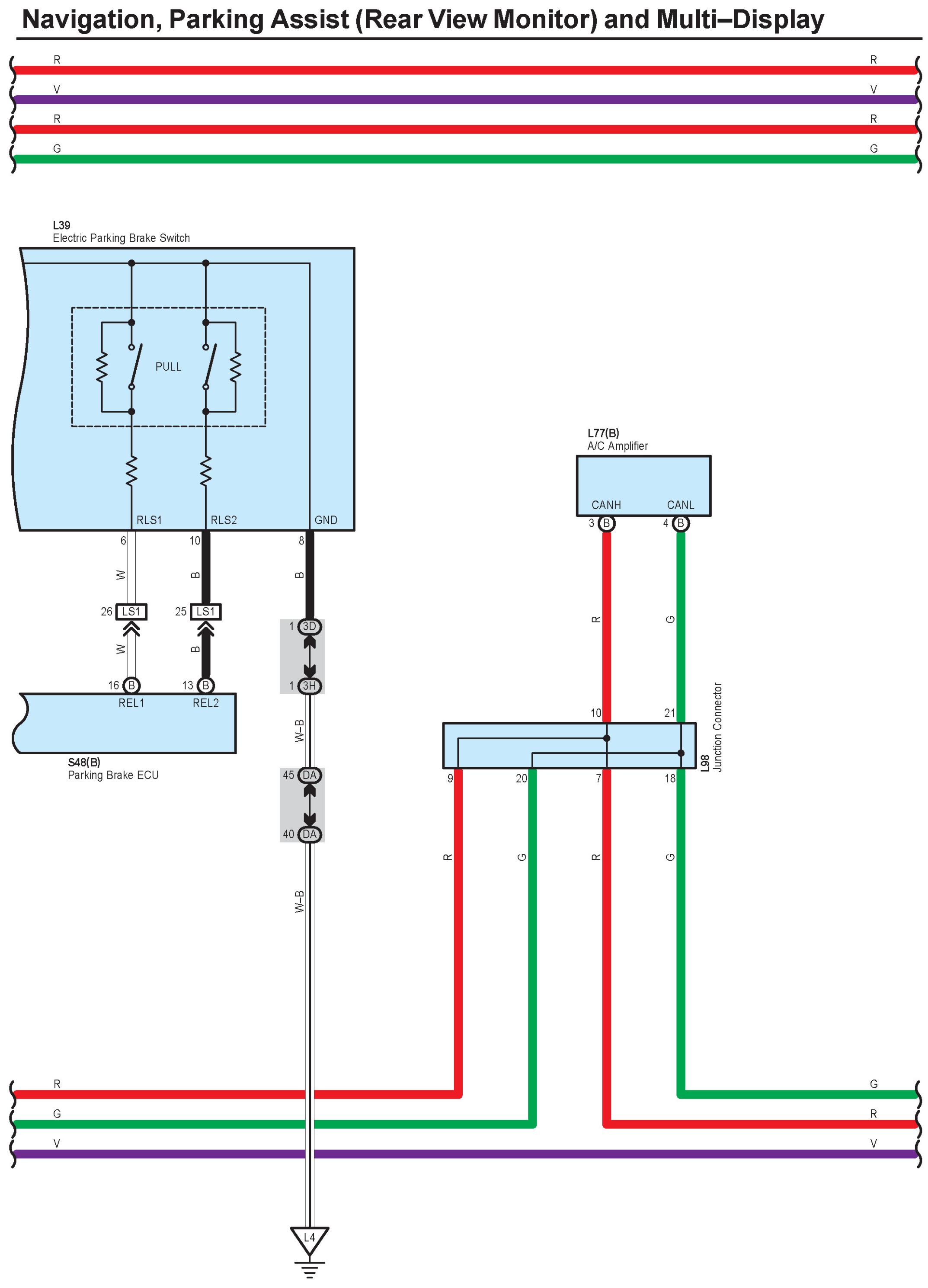

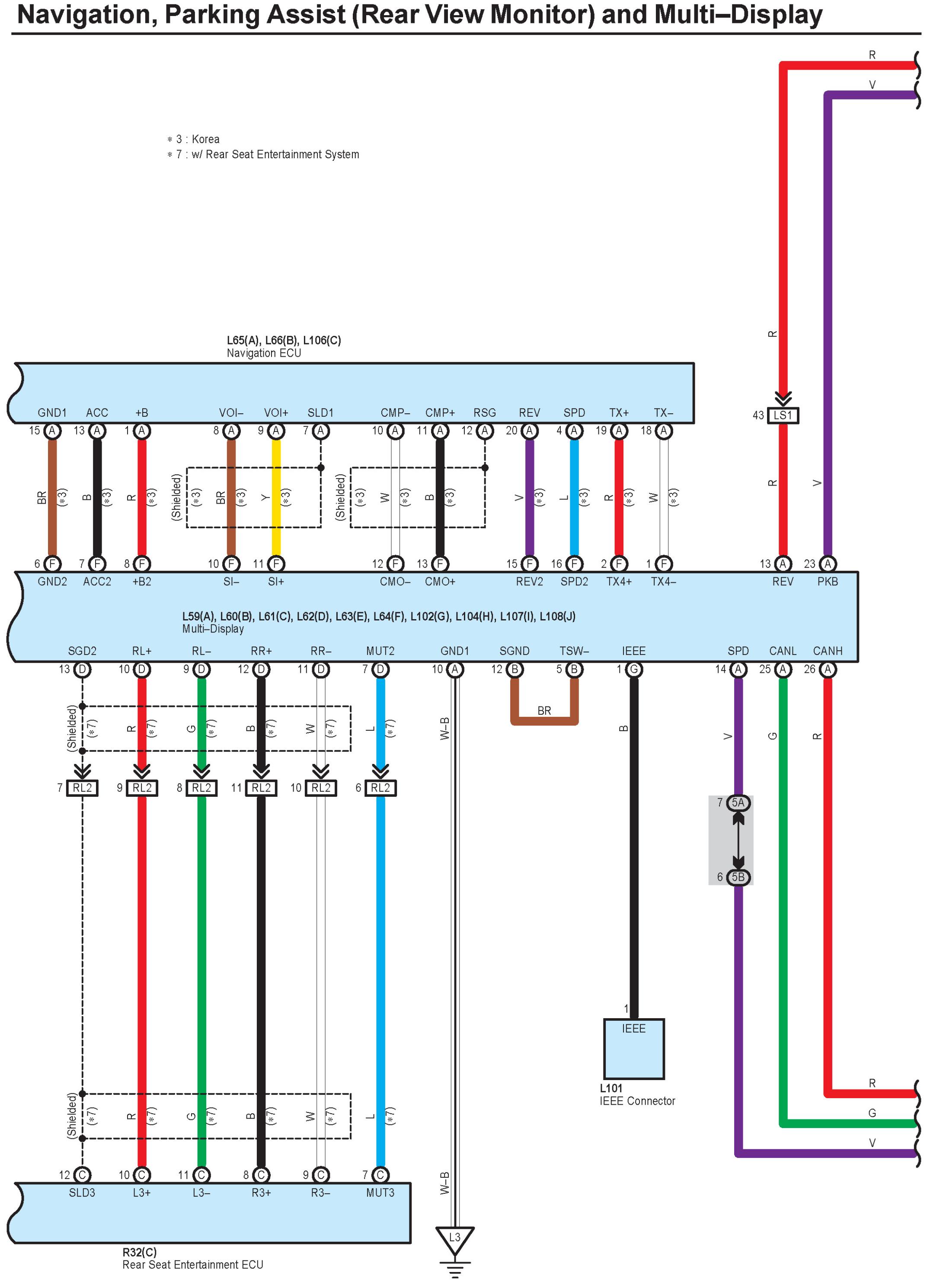

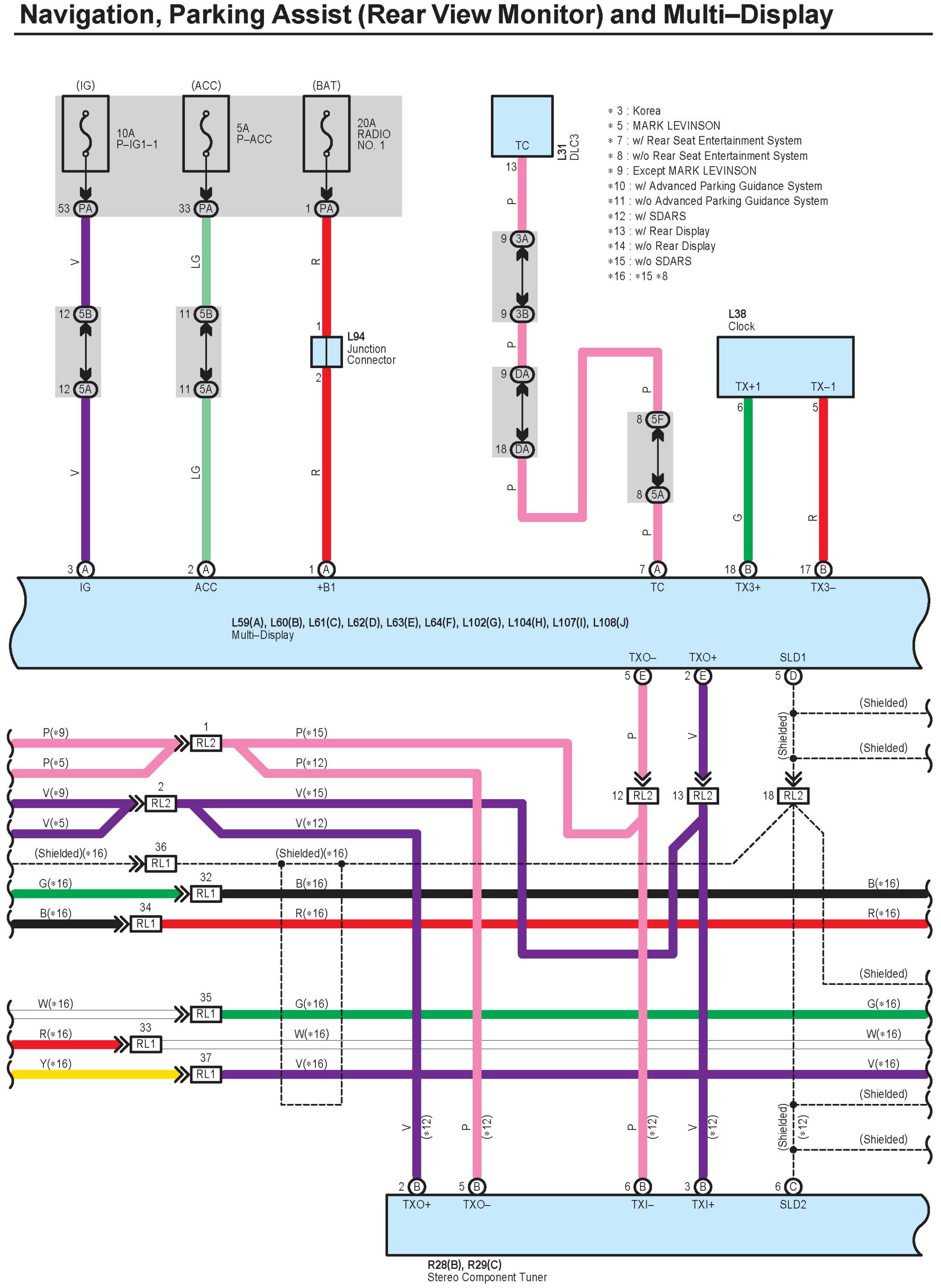

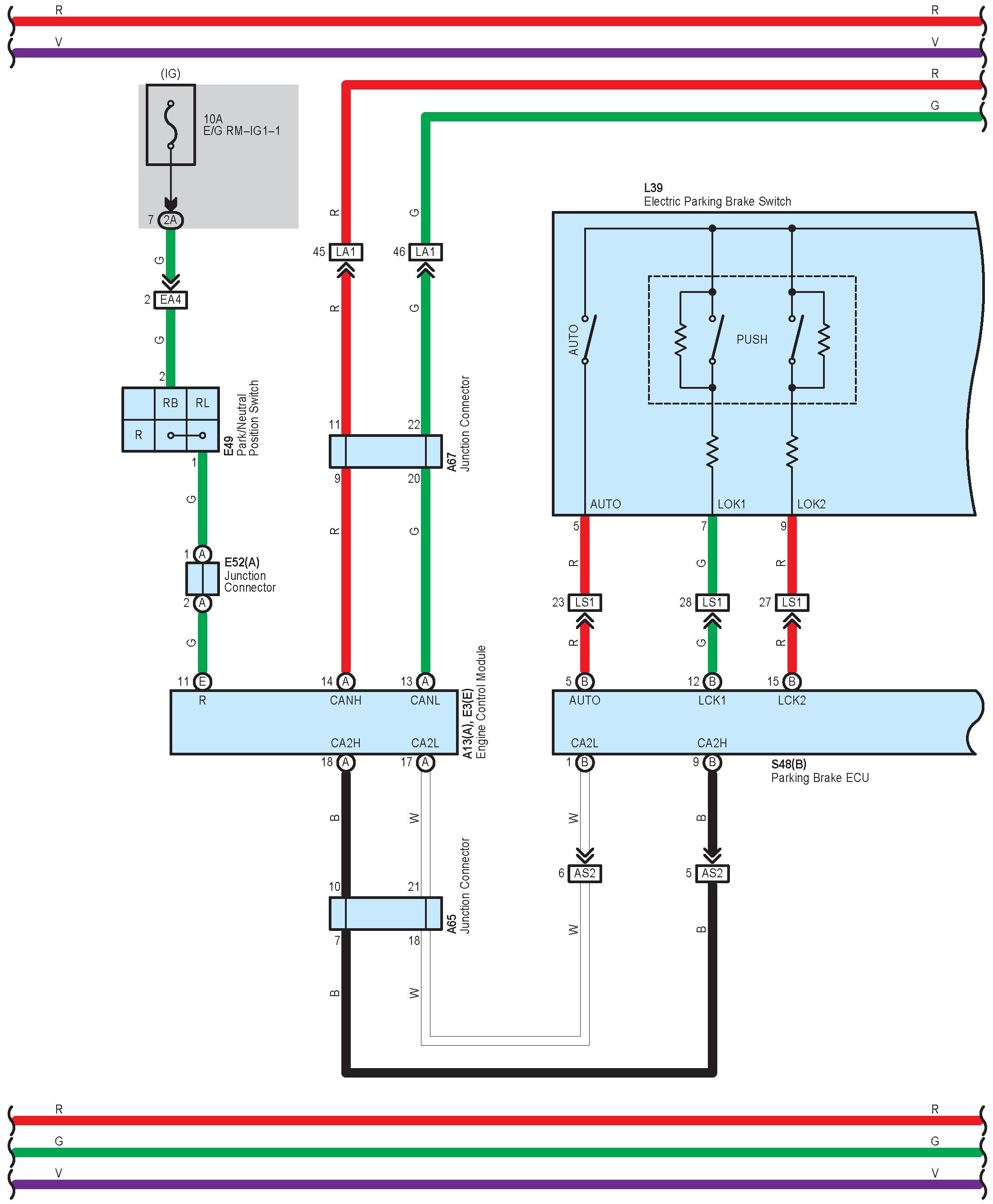

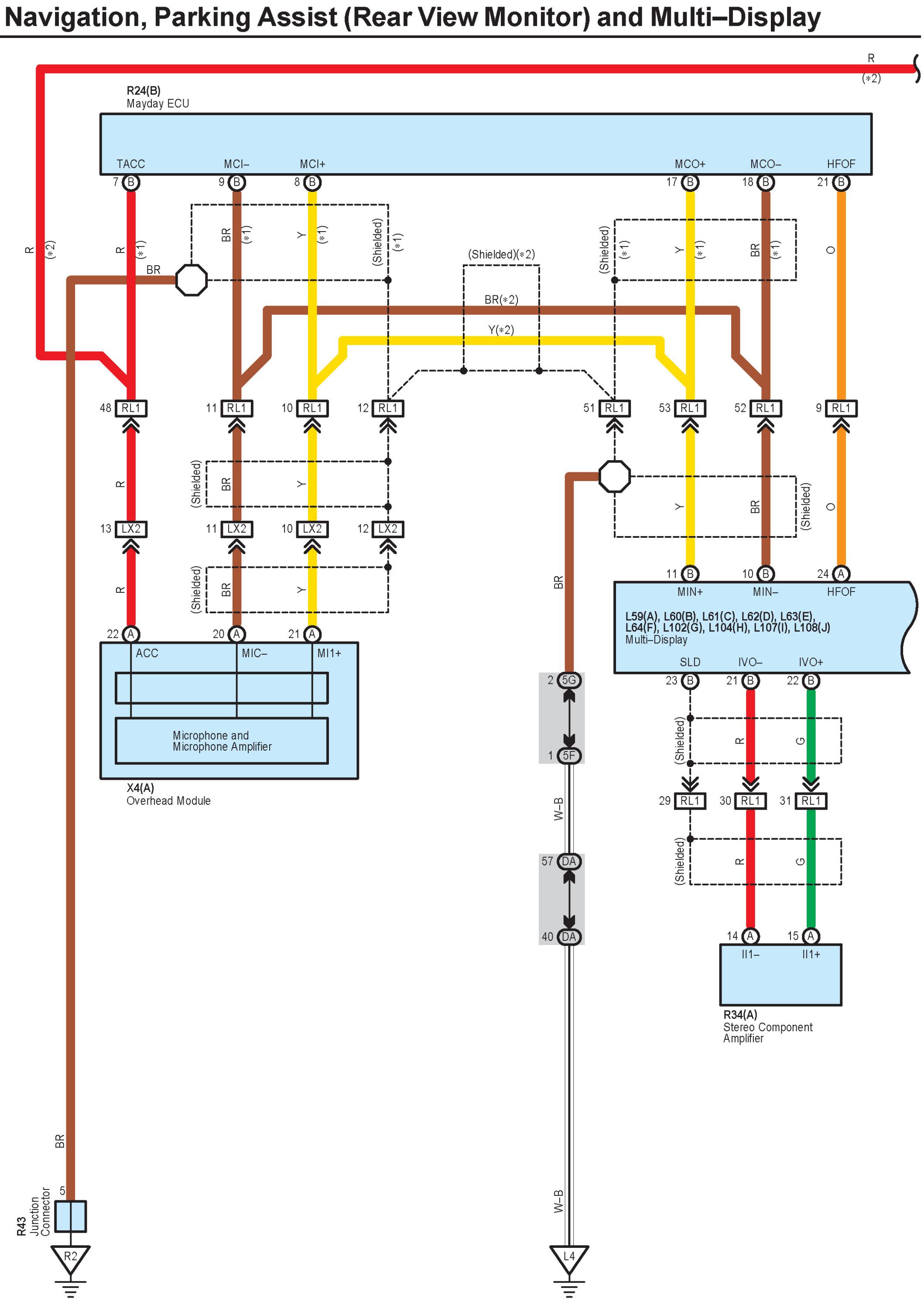

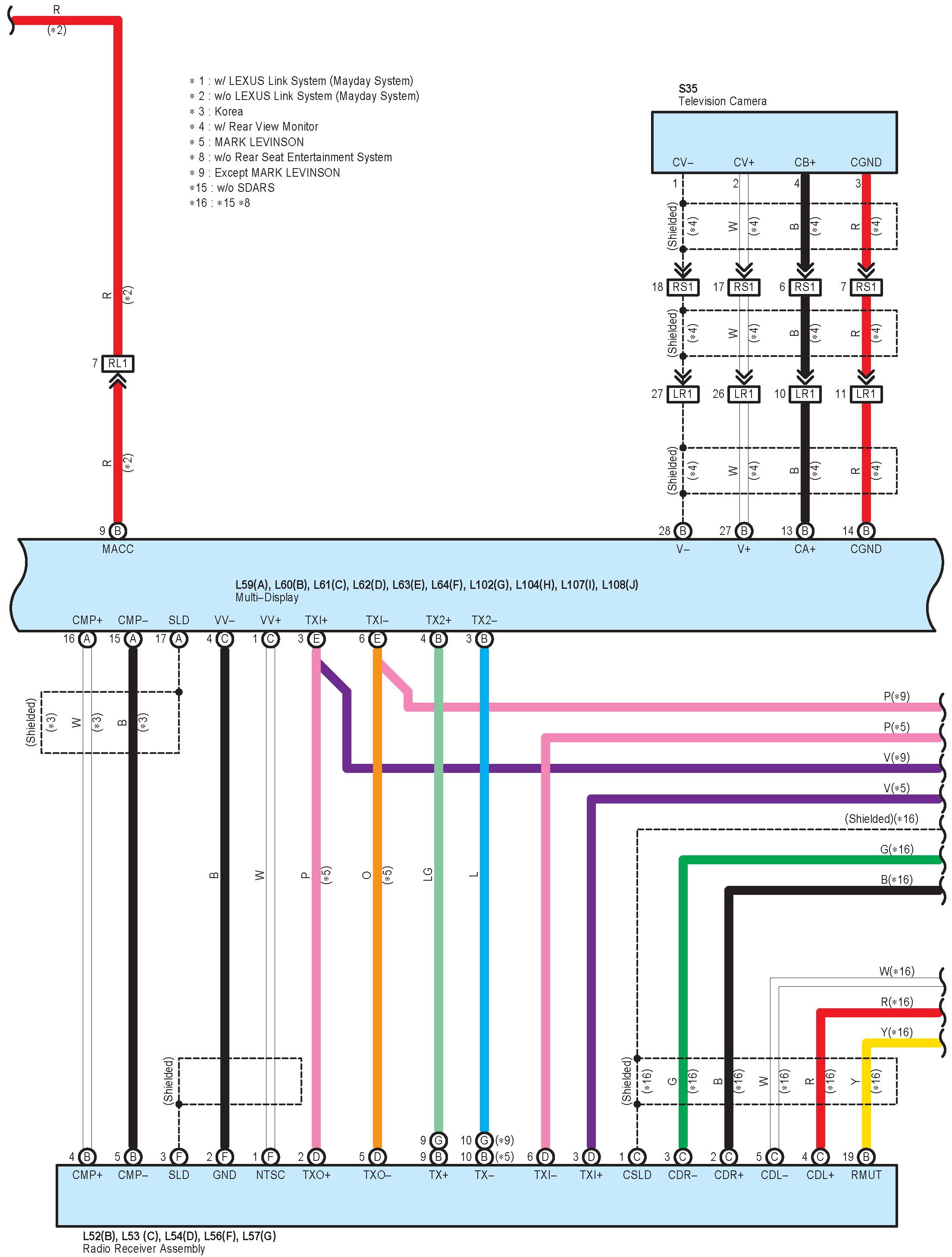

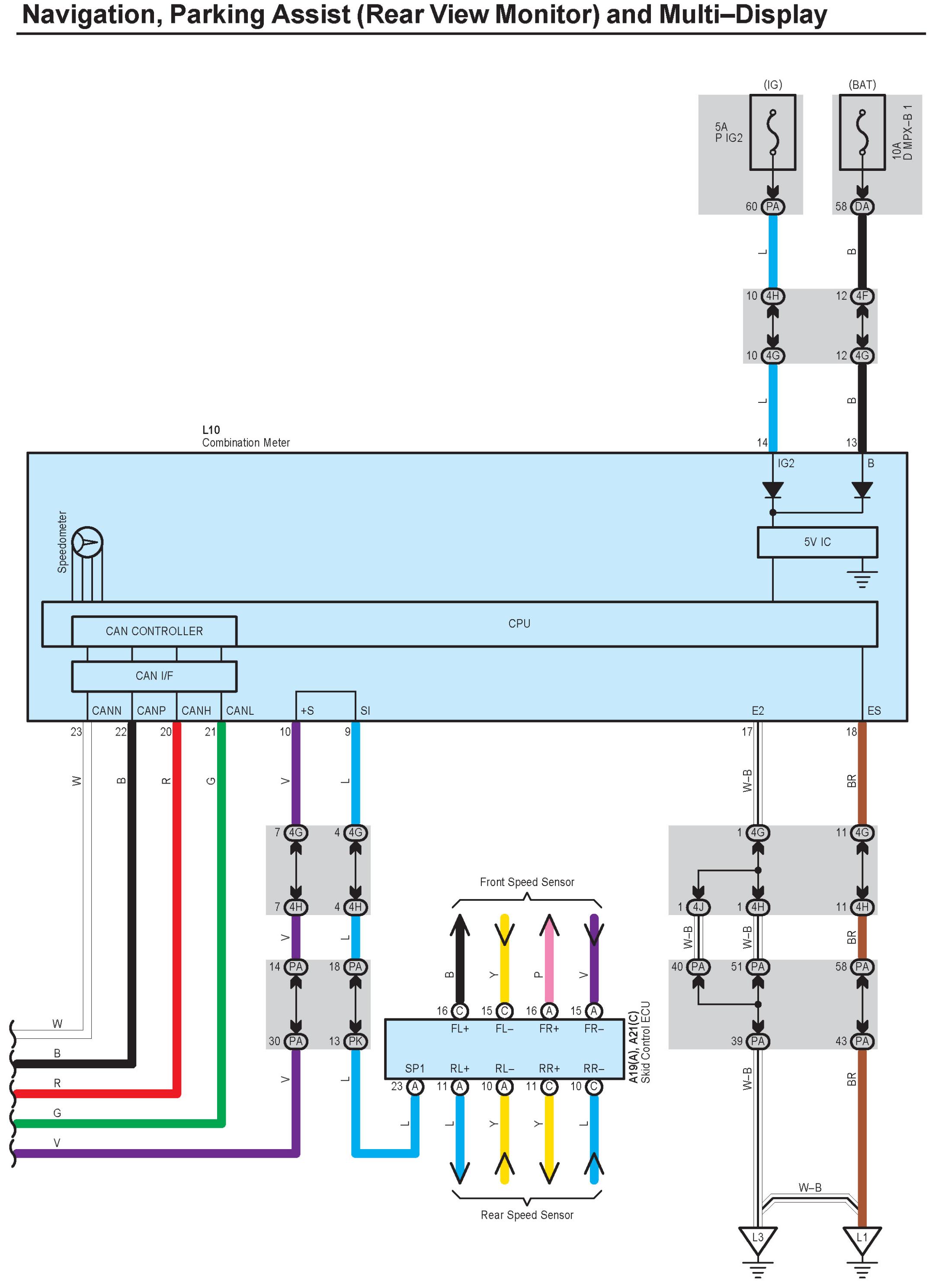

Navigation, Parking Assist (Rear View Monitor) And Multi-Display Part 1:

Navigation, Parking Assist (Rear View Monitor) And Multi-Display Part 2:

Navigation, Parking Assist (Rear View Monitor) And Multi-Display Part 3:

Navigation, Parking Assist (Rear View Monitor) And Multi-Display Part 4:

Navigation, Parking Assist (Rear View Monitor) And Multi-Display Part 5:

Navigation, Parking Assist (Rear View Monitor) And Multi-Display Part 6:

Navigation, Parking Assist (Rear View Monitor) And Multi-Display Part 7:

Navigation, Parking Assist (Rear View Monitor) And Multi-Display Part 8:

Navigation, Parking Assist (Rear View Monitor) And Multi-Display Part 9:

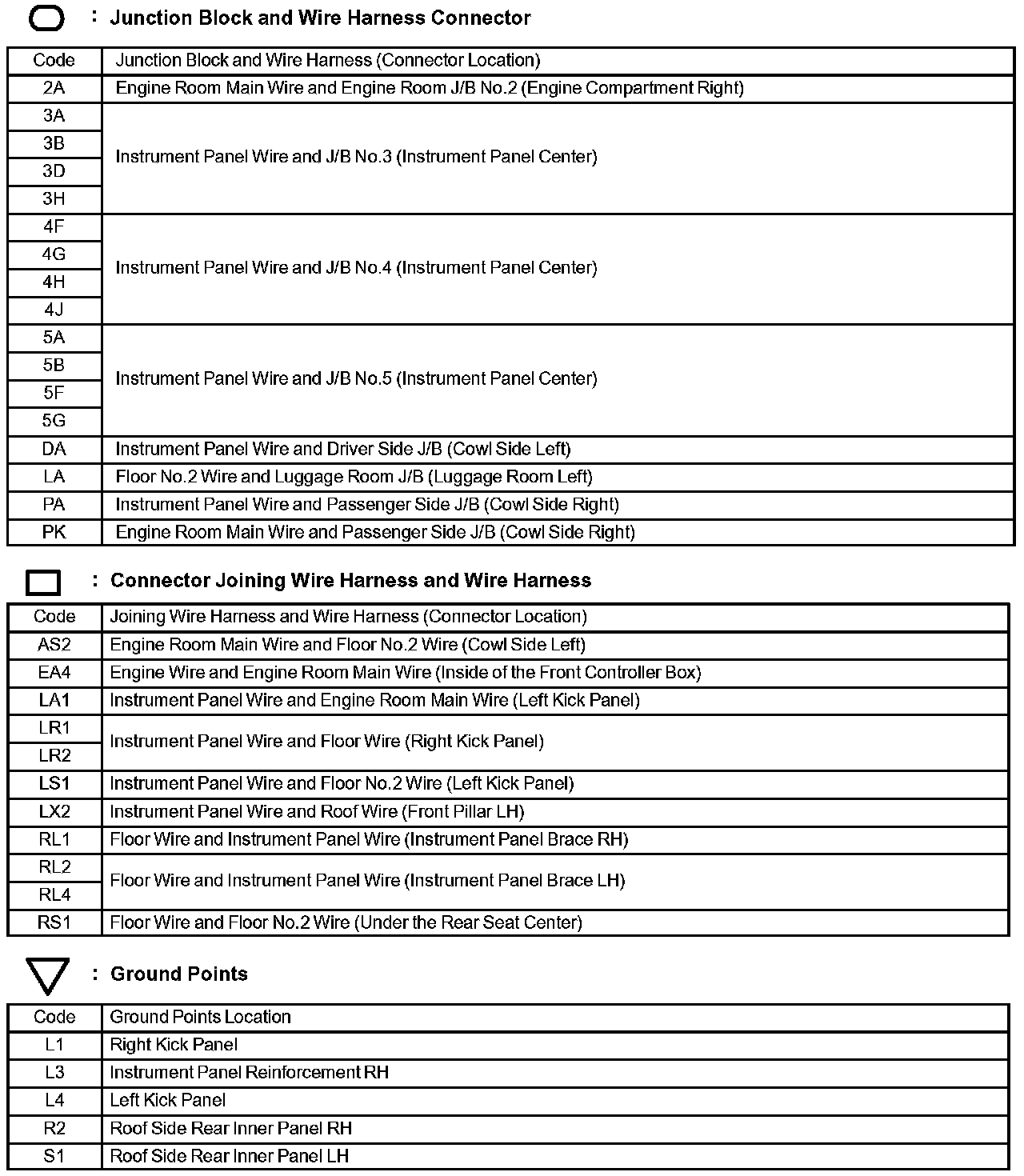

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
