Advanced Parking Guidance System

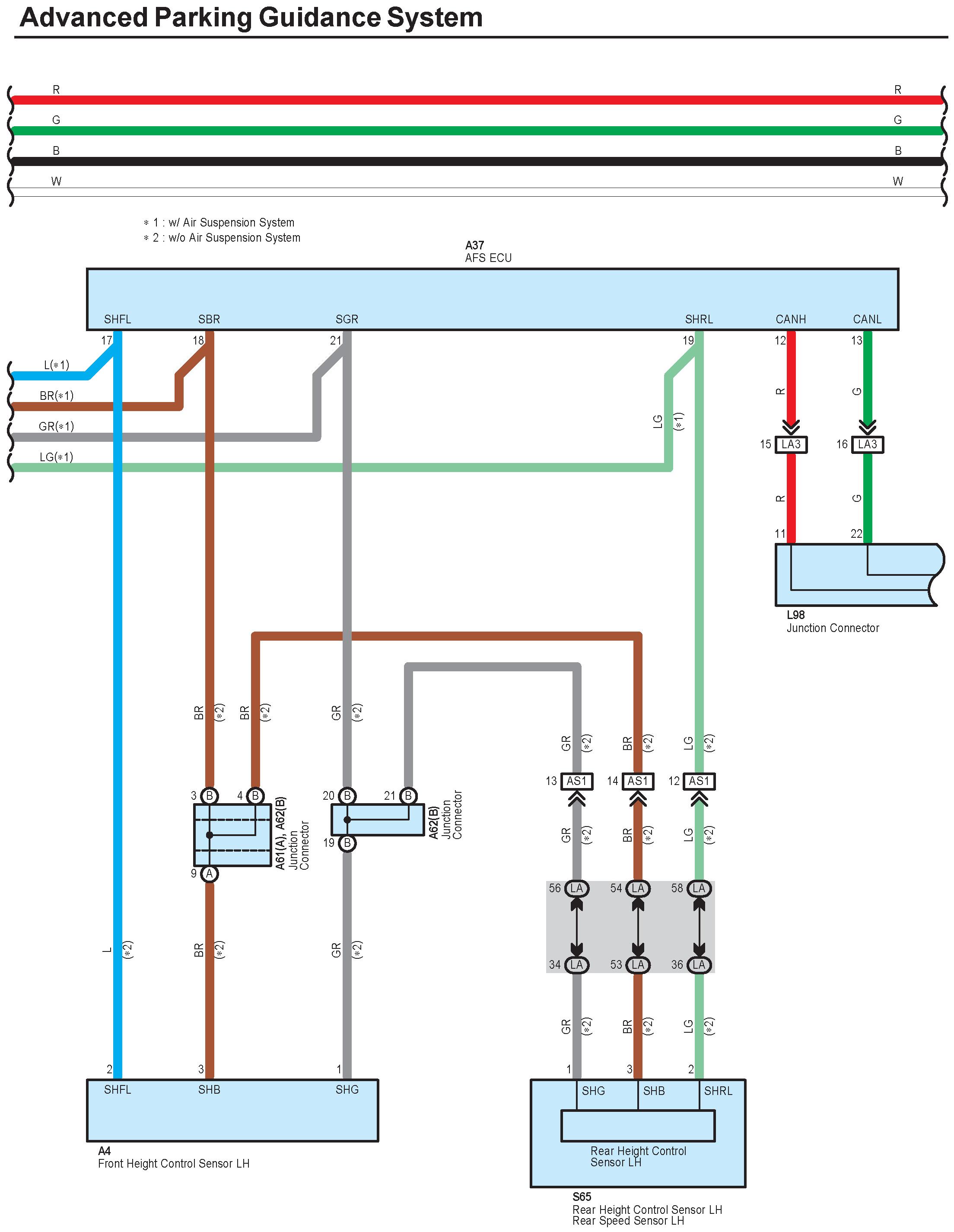

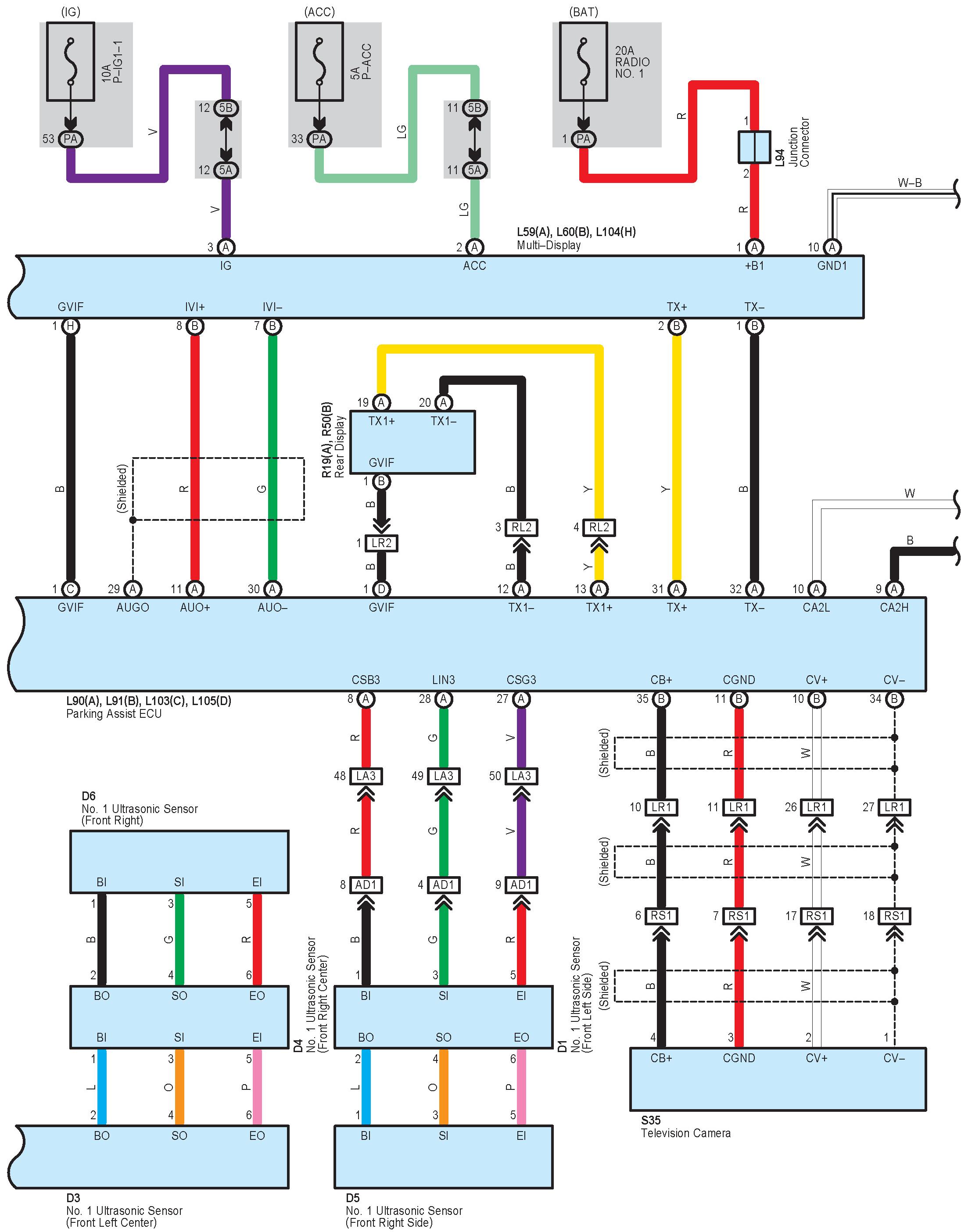

Advanced Parking Guidance System Part 1:

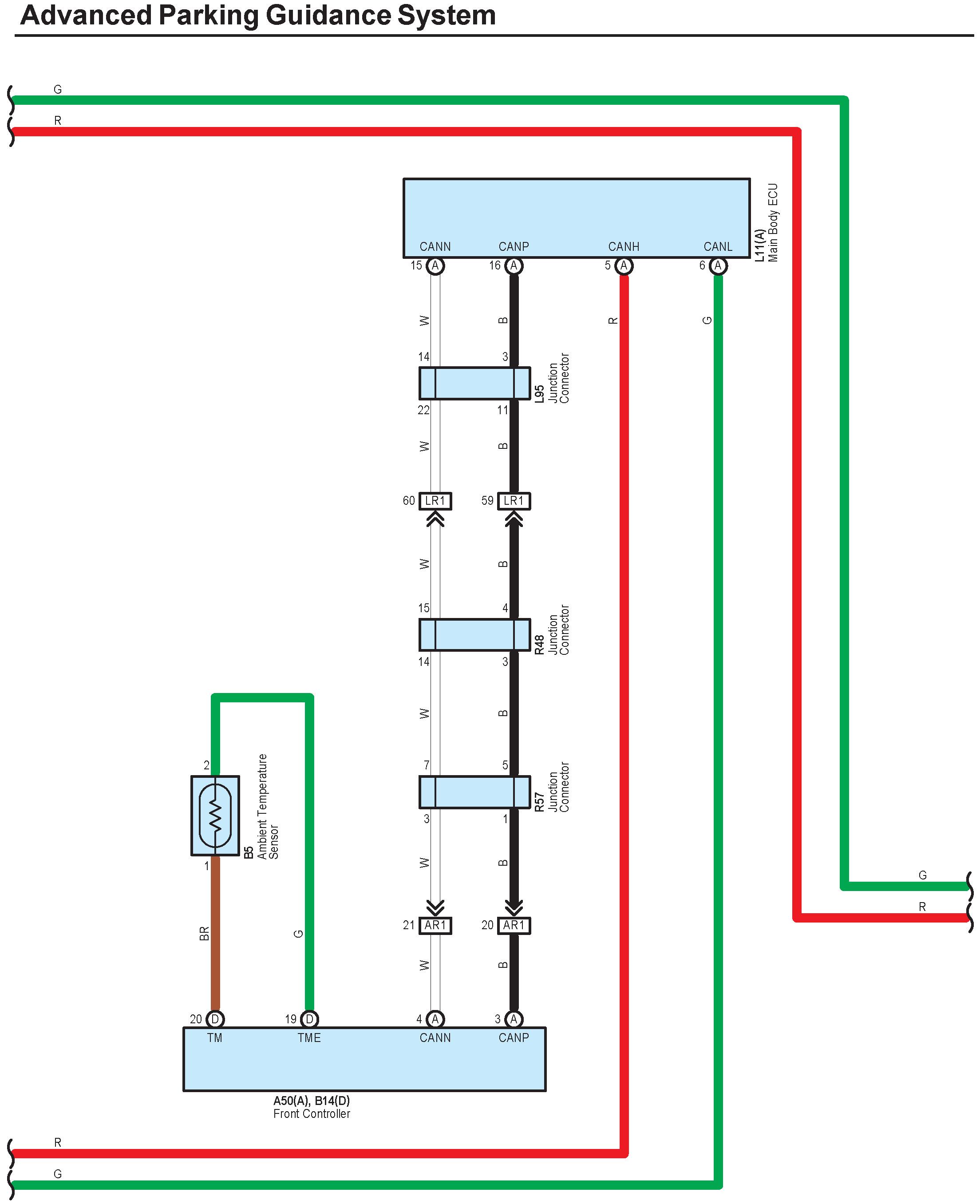

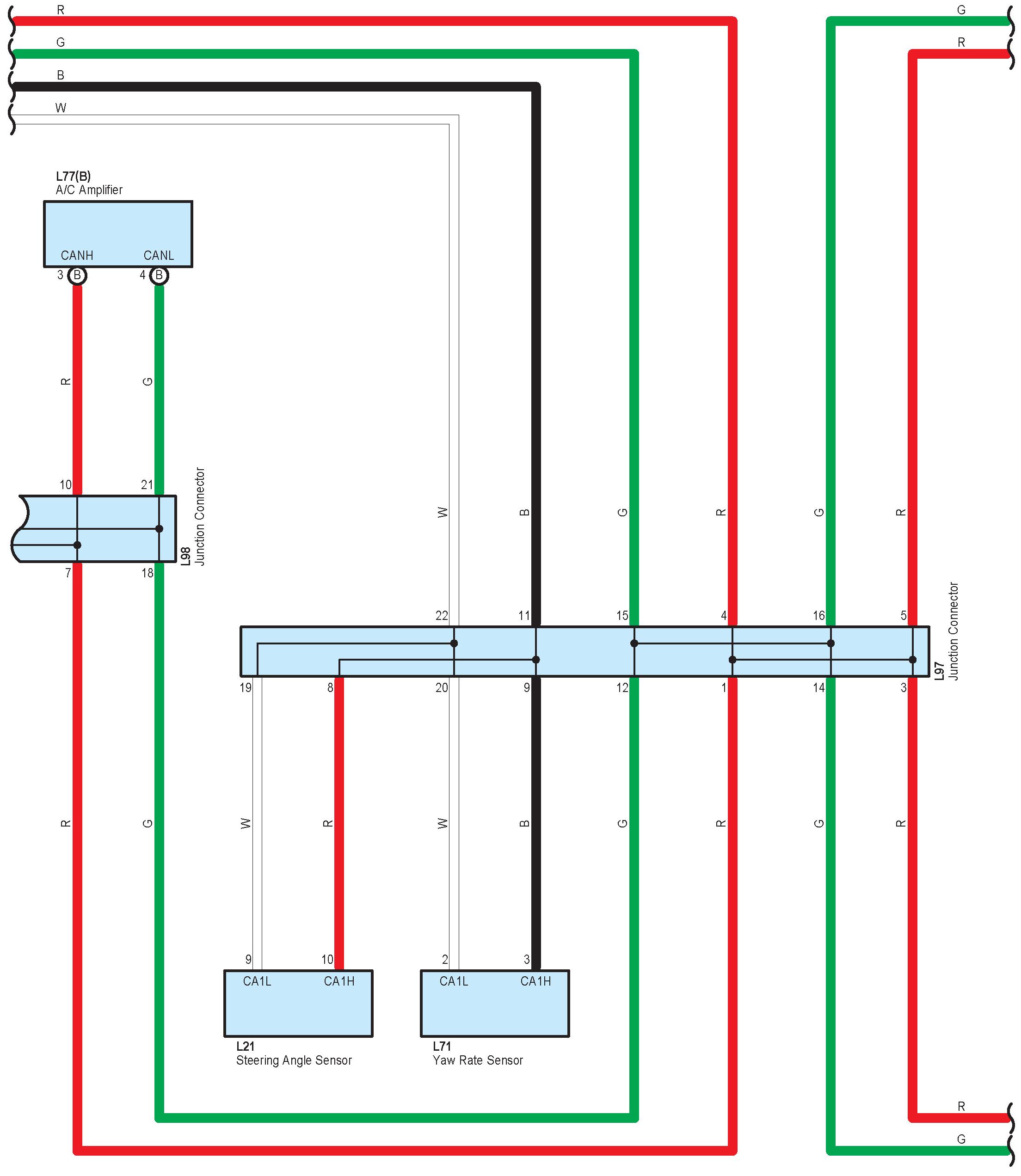

Advanced Parking Guidance System Part 2:

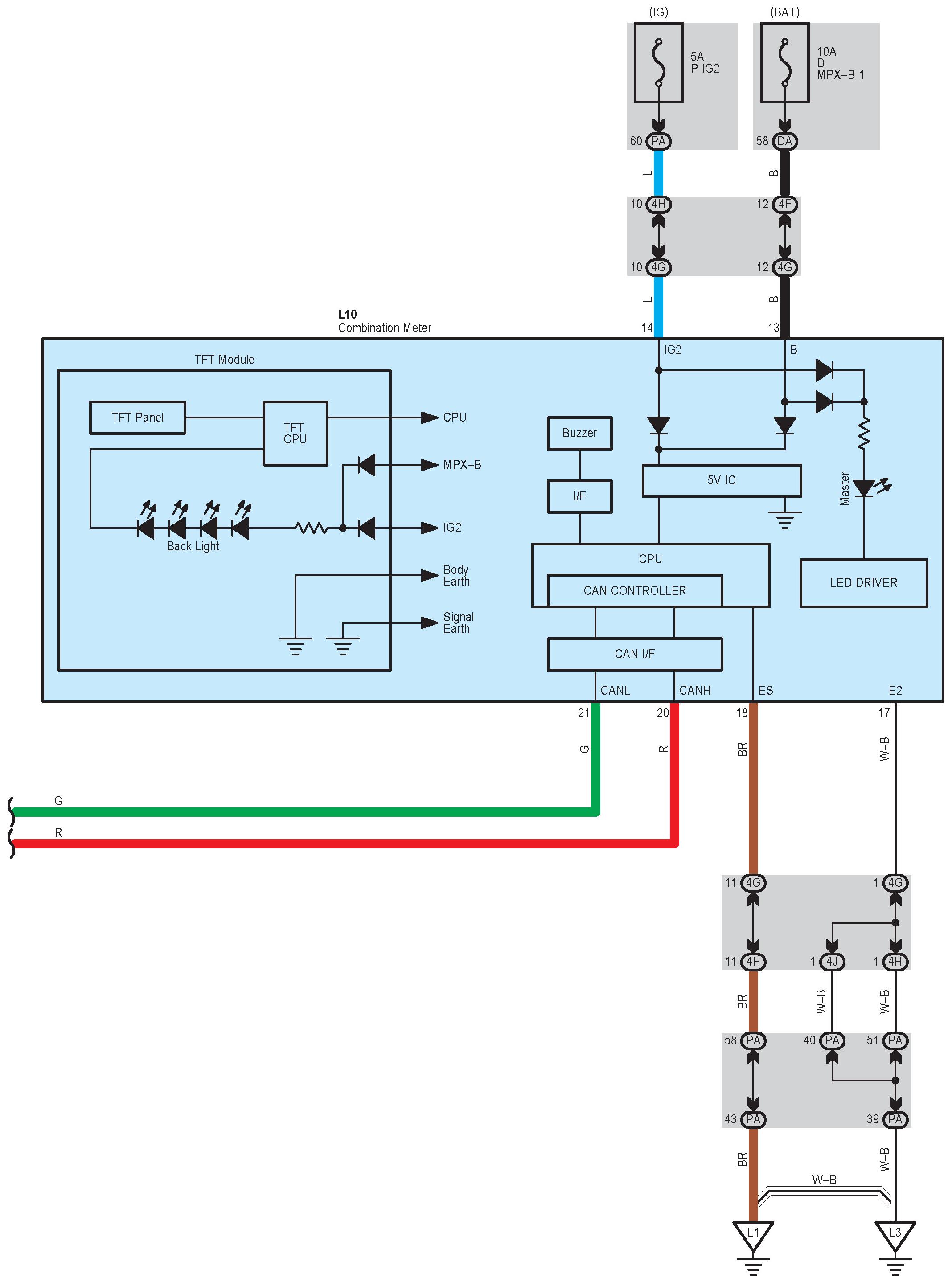

Advanced Parking Guidance System Part 3:

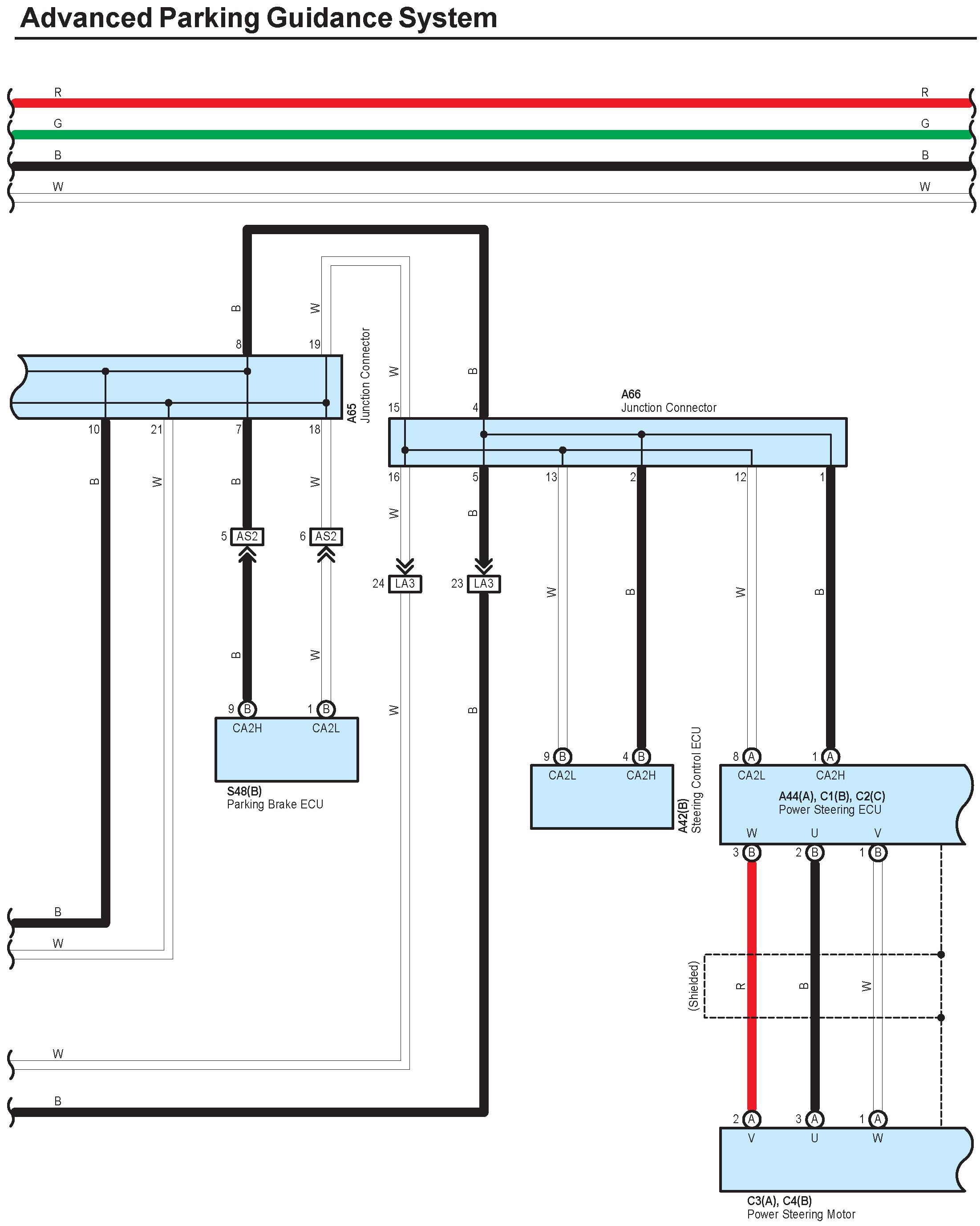

Advanced Parking Guidance System Part 4:

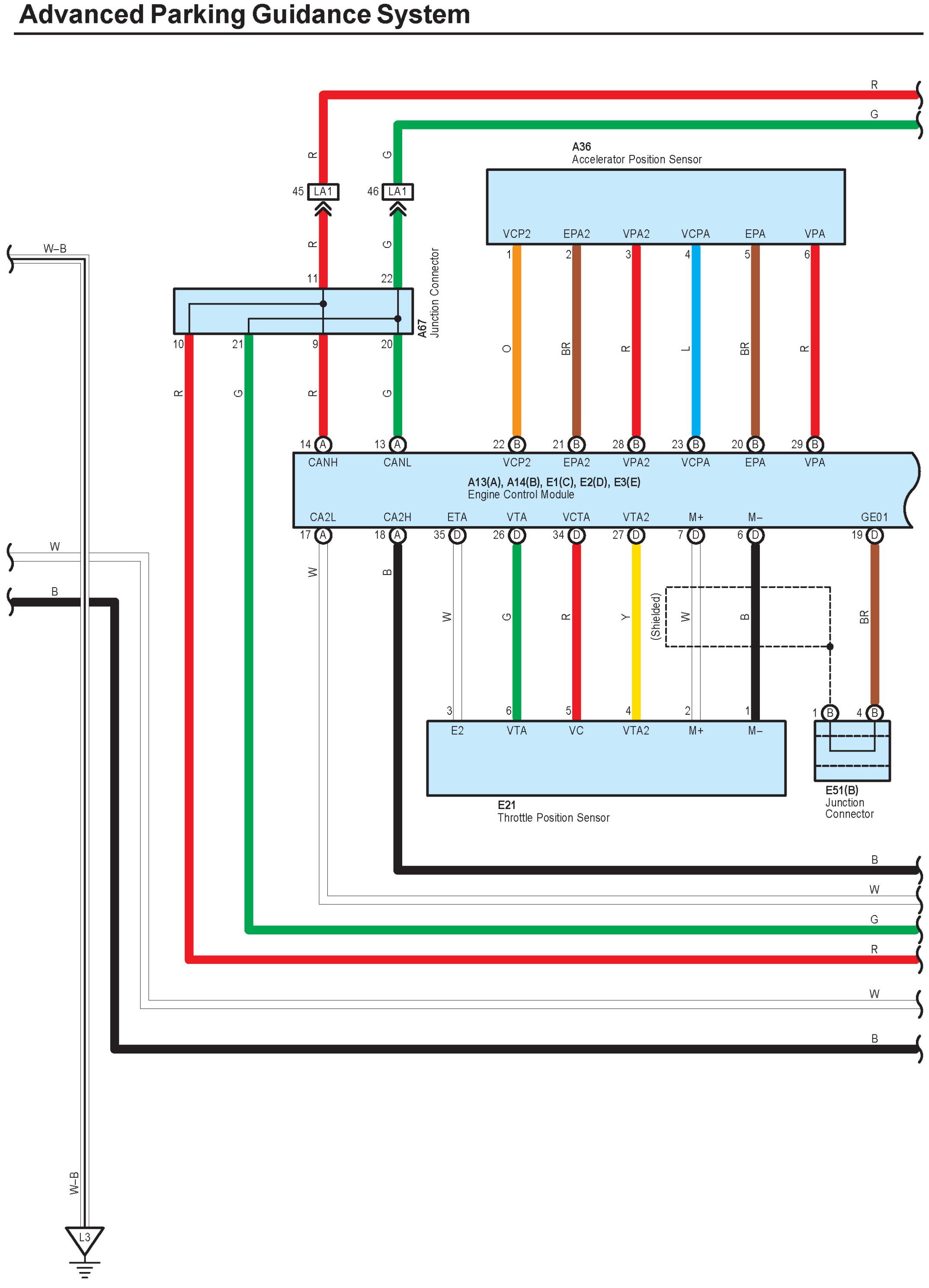

Advanced Parking Guidance System Part 5:

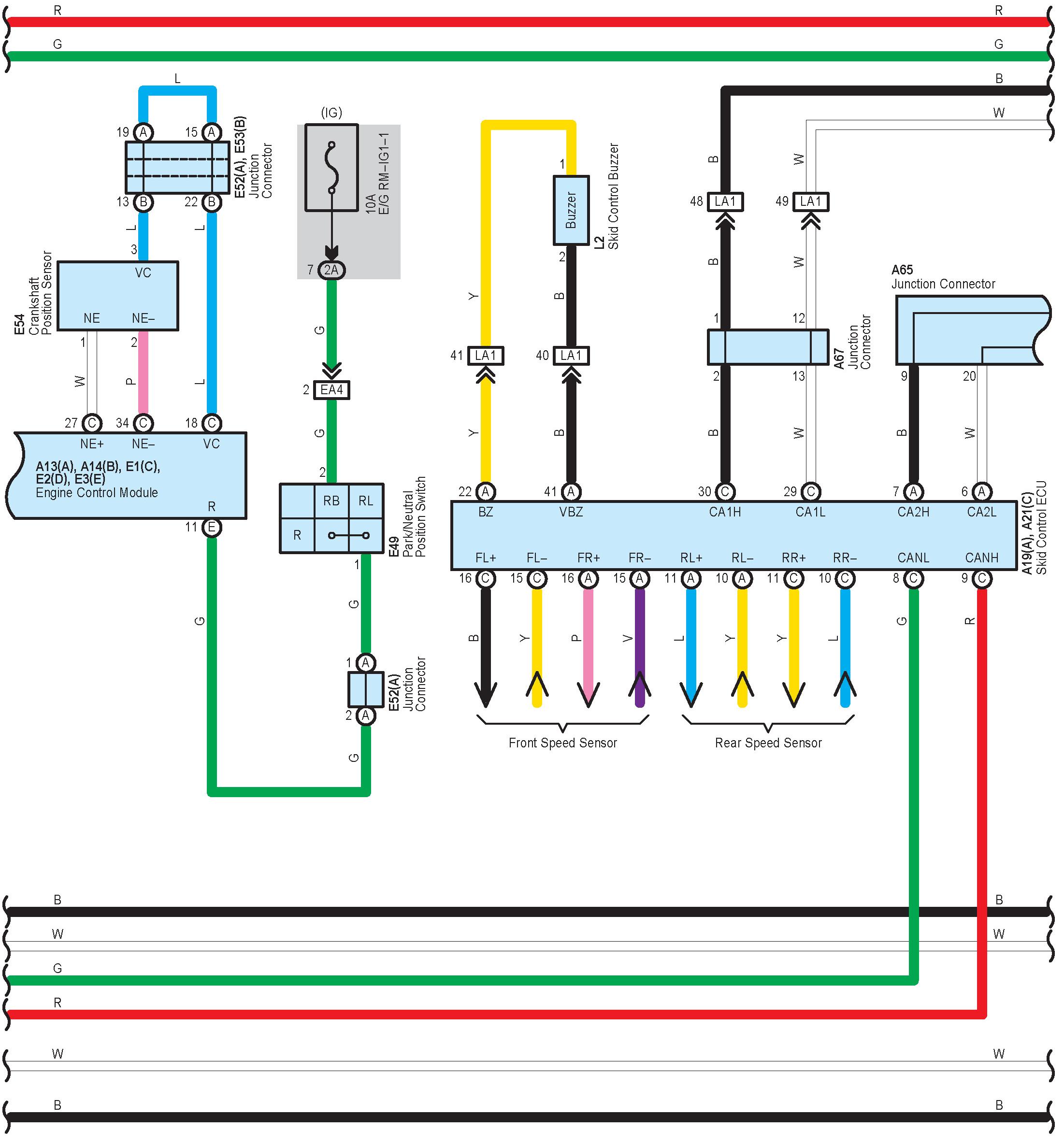

Advanced Parking Guidance System Part 6:

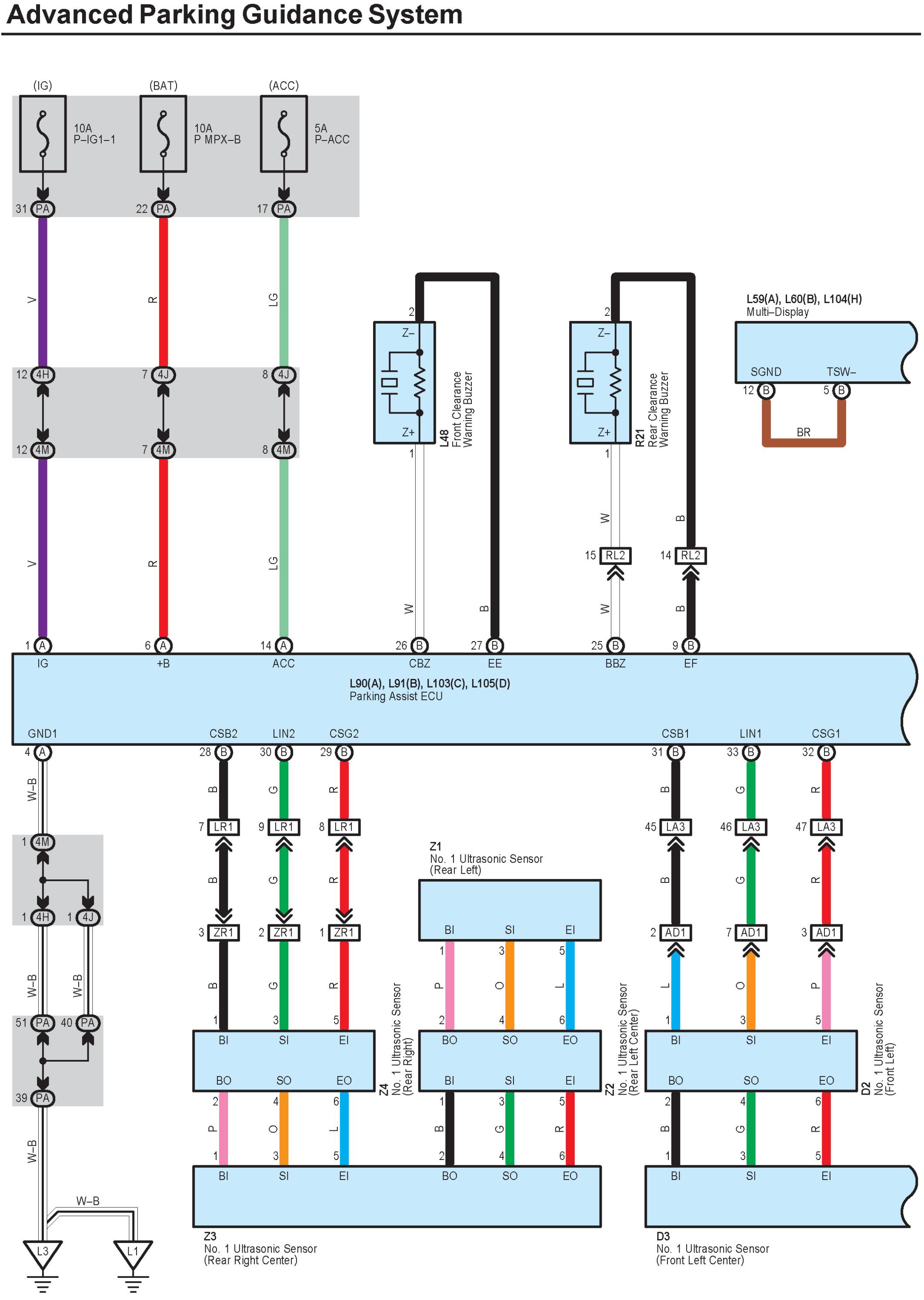

Advanced Parking Guidance System Part 7:

Advanced Parking Guidance System Part 8:

Advanced Parking Guidance System Part 9:

Advanced Parking Guidance System Part 10:

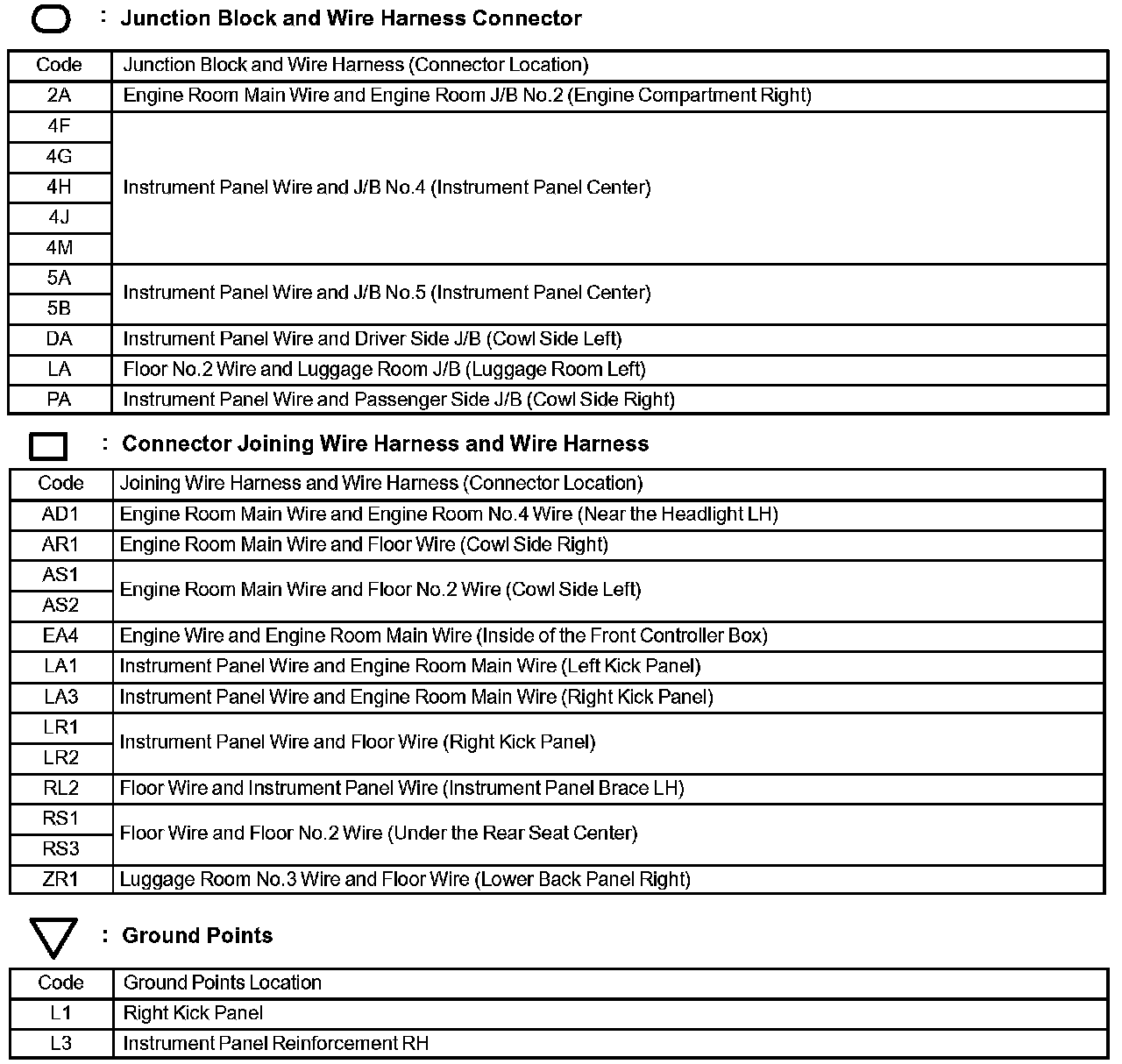

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at Vehicle level Connector Views. Connector Views
