System Diagram

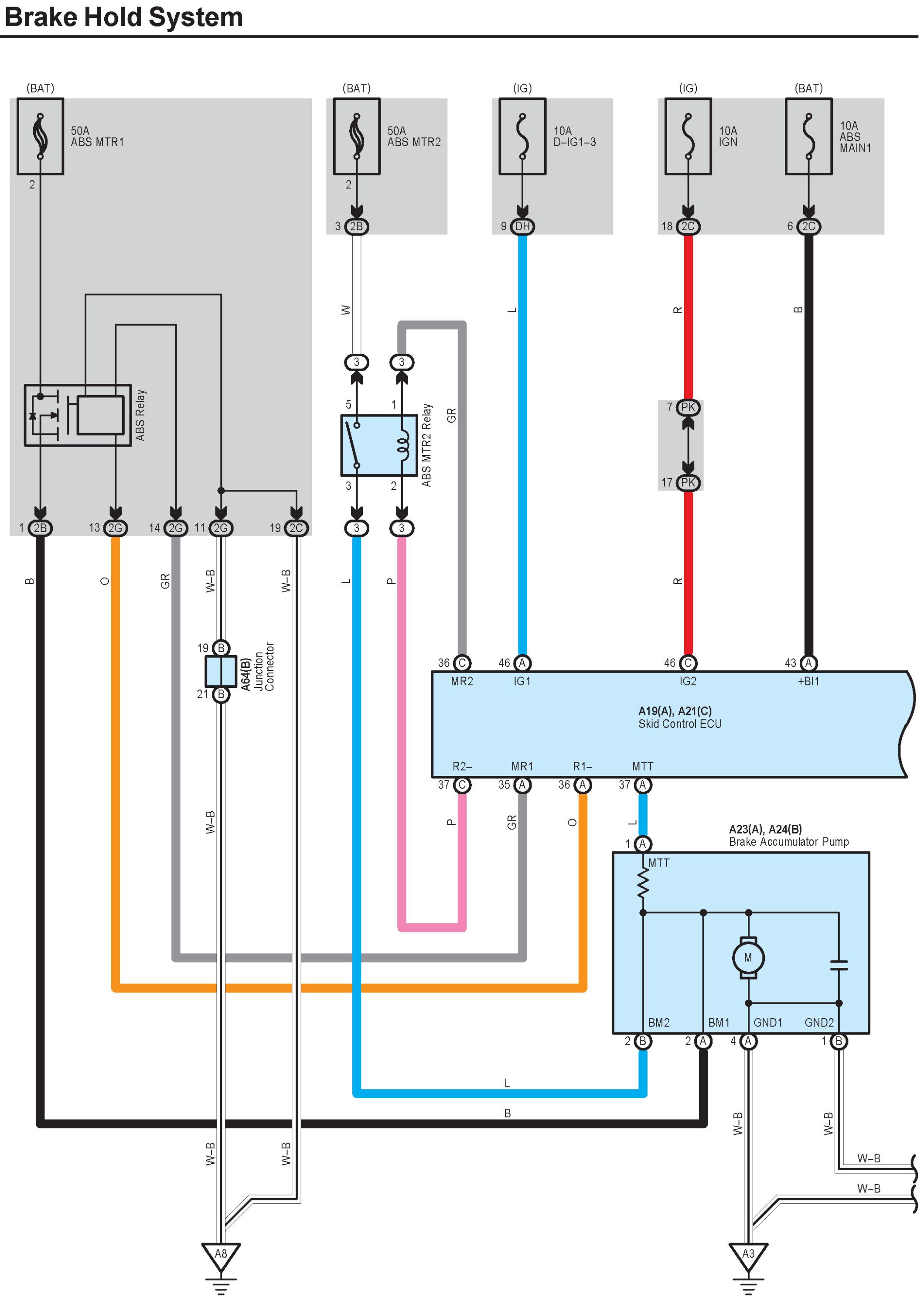

Brake Hold System Part 1:

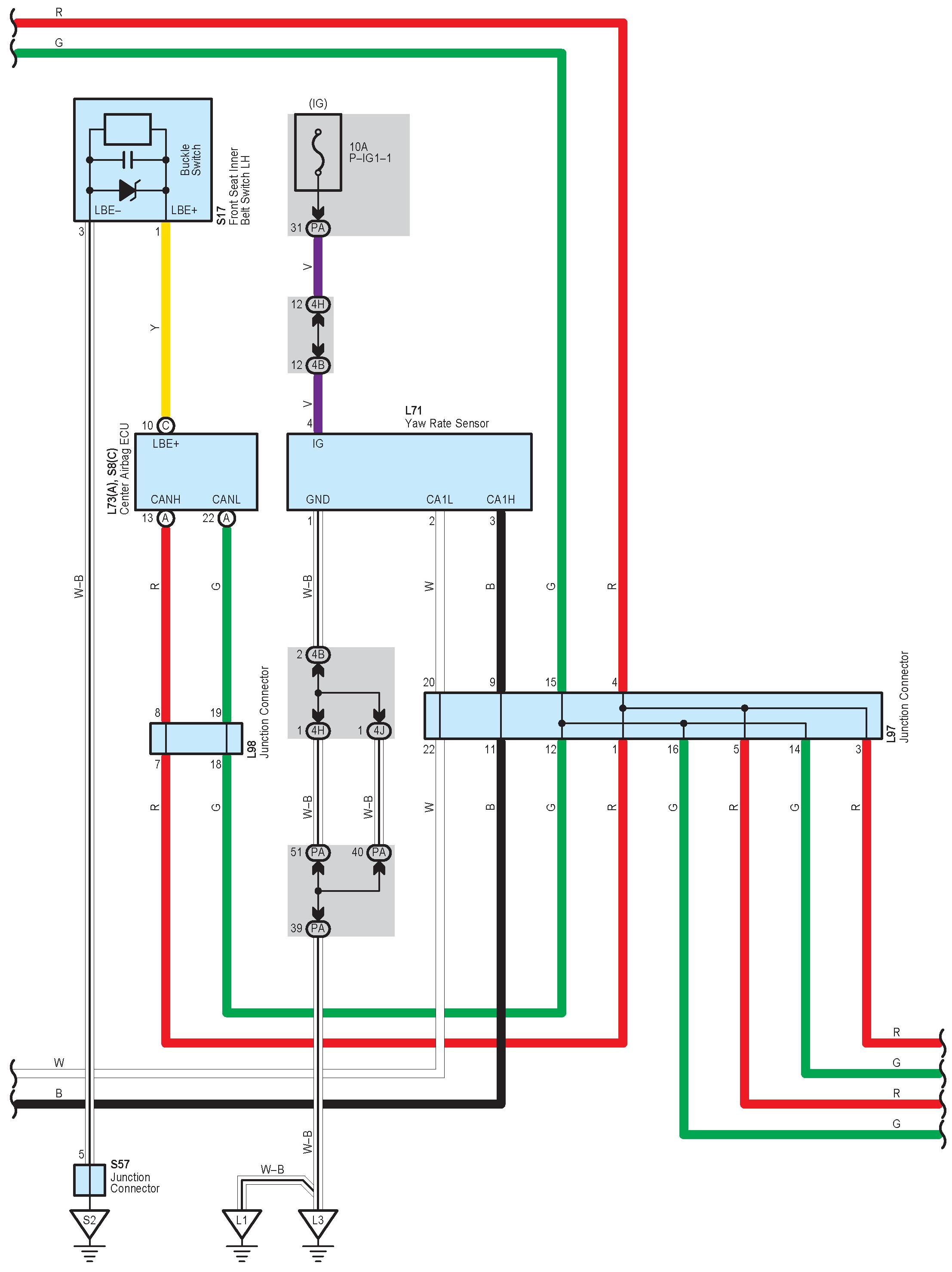

Brake Hold System Part 2:

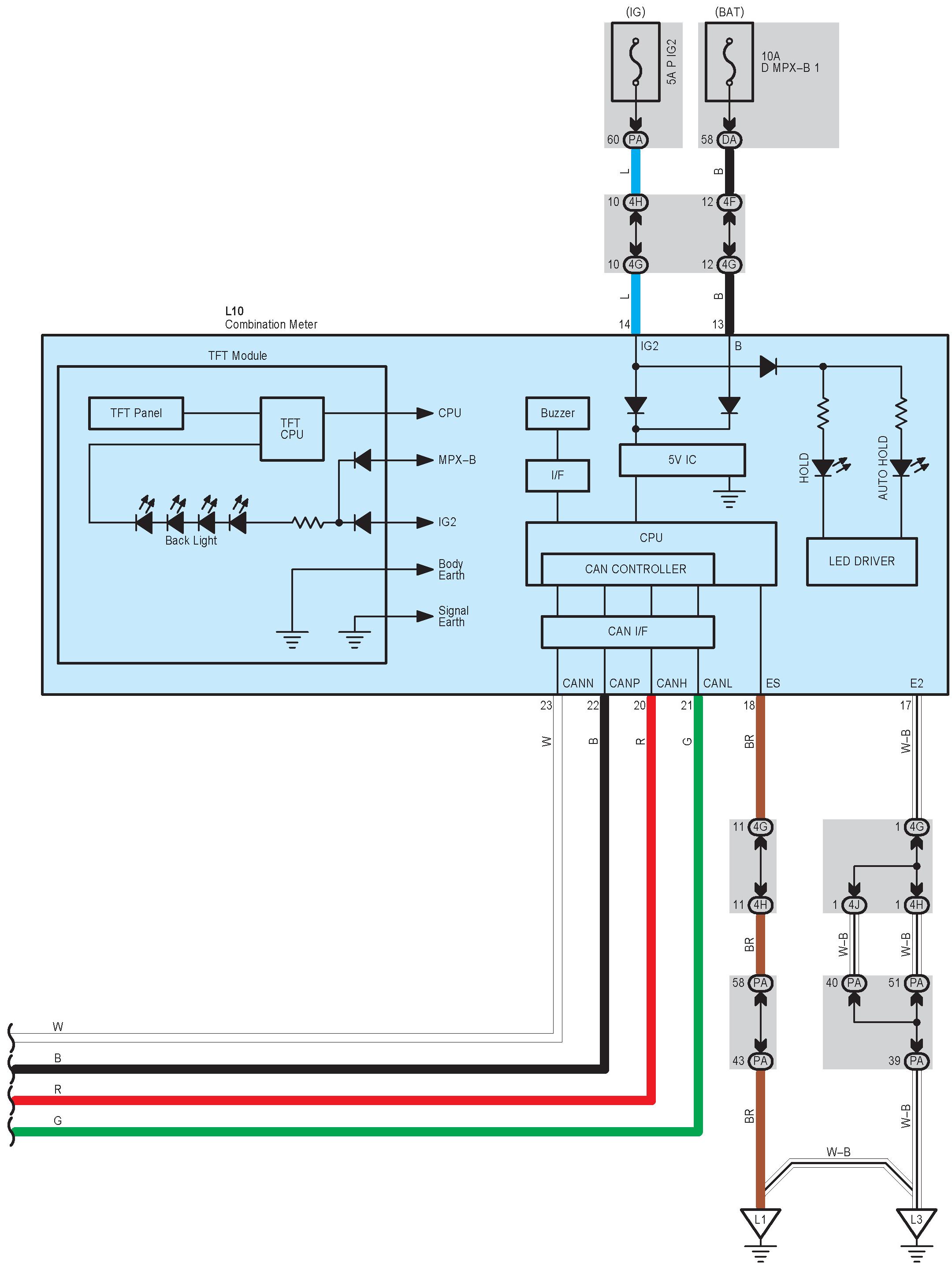

Brake Hold System Part 3:

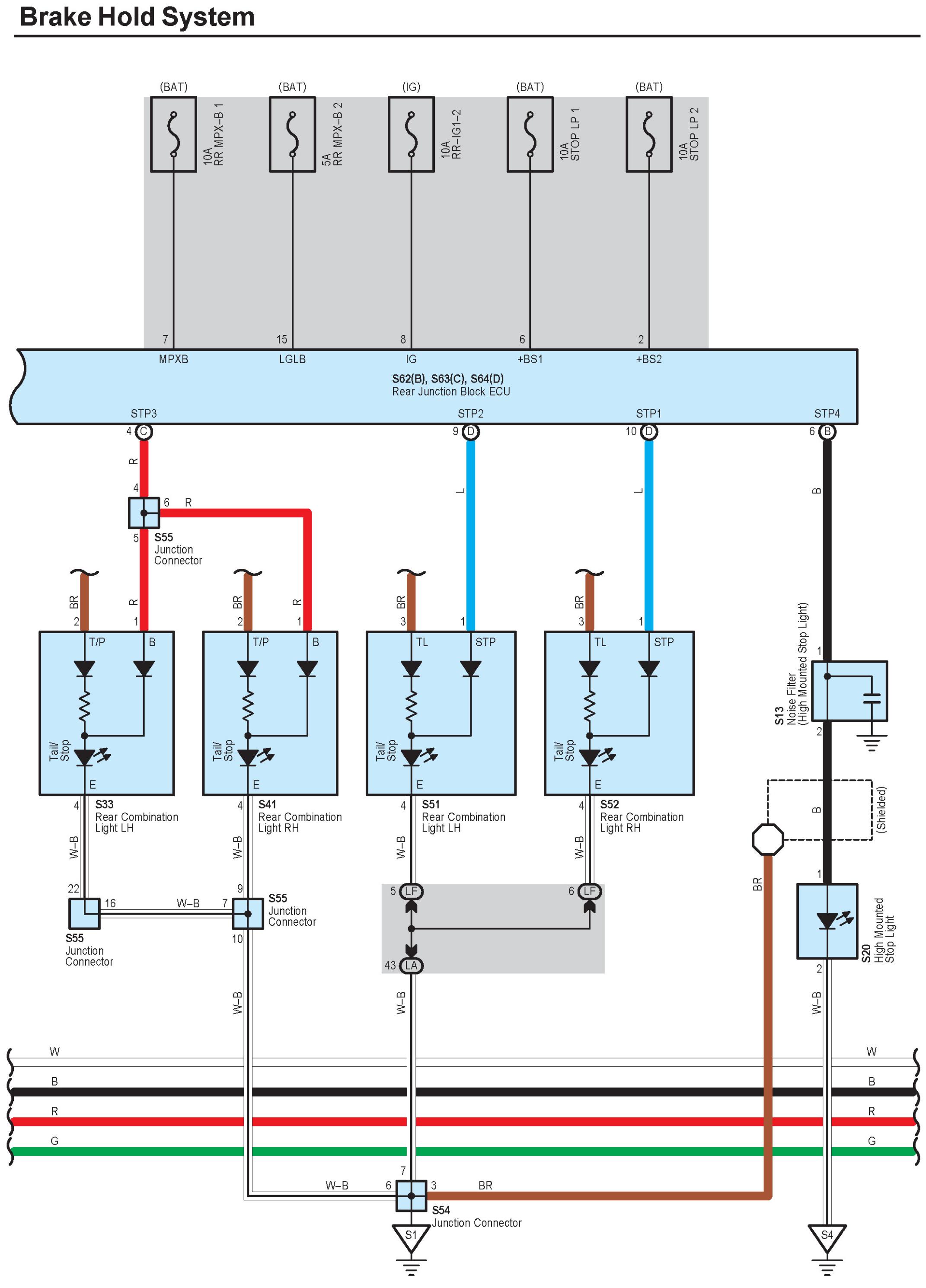

Brake Hold System Part 4:

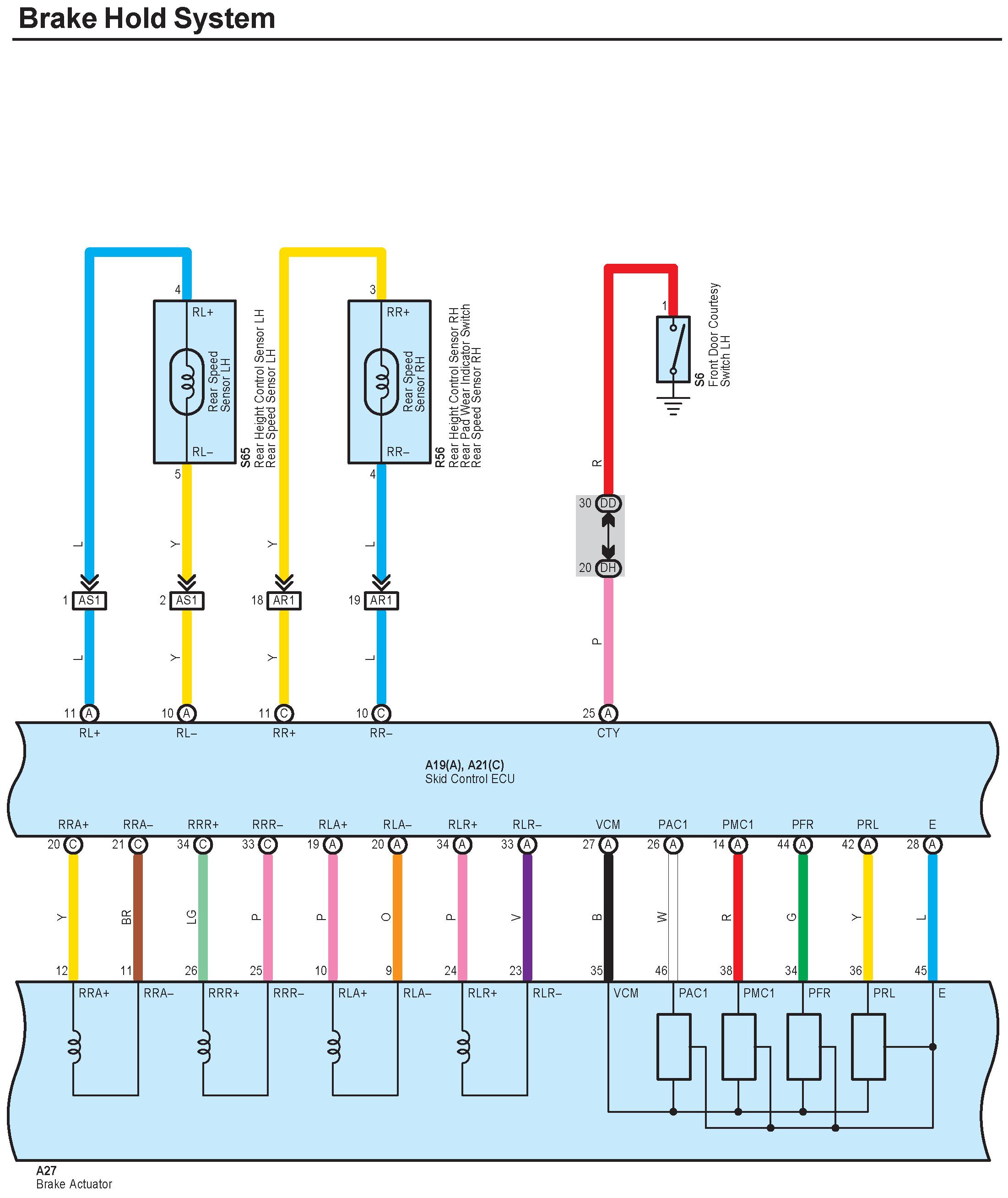

Brake Hold System Part 5:

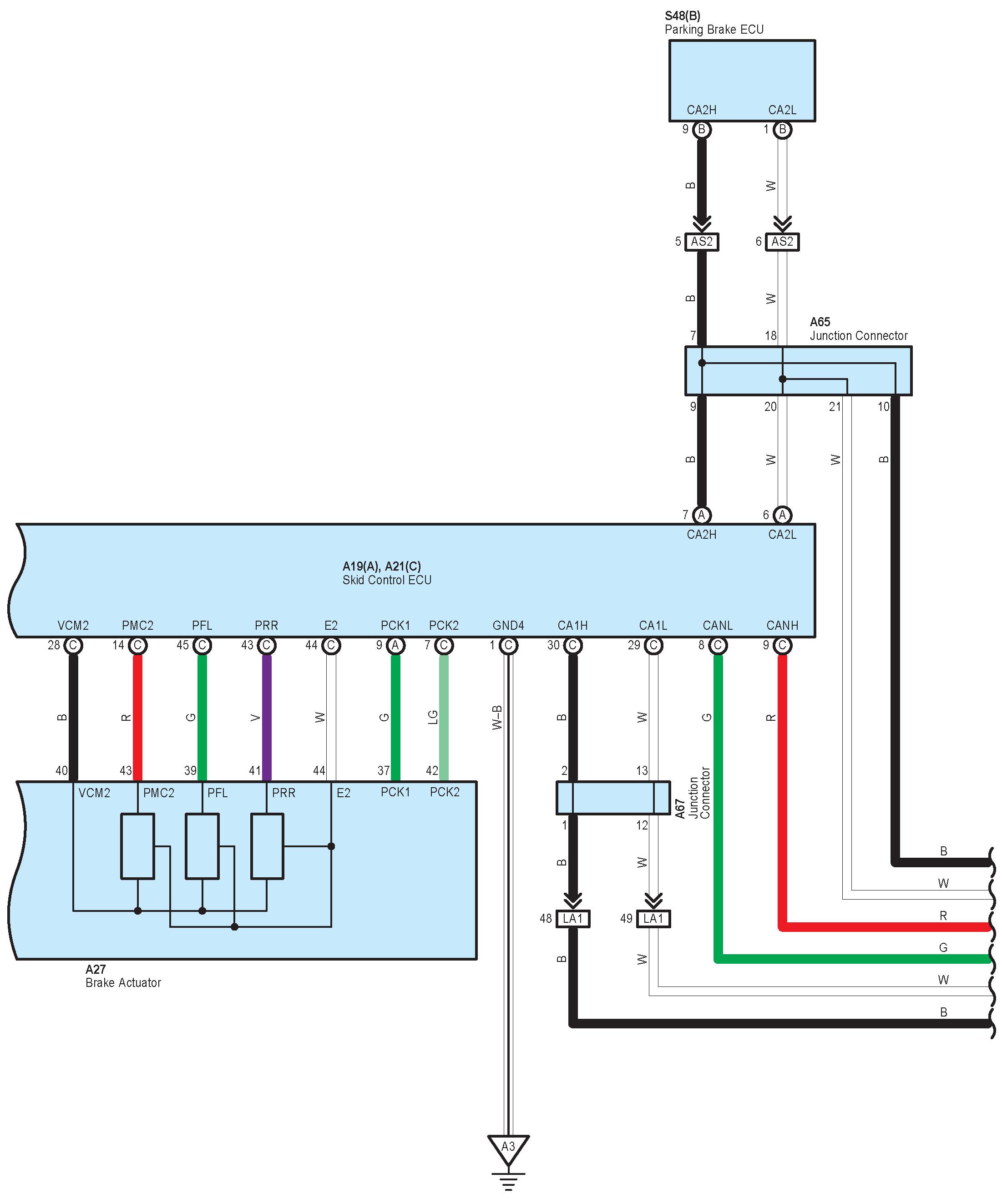

Brake Hold System Part 6:

Brake Hold System Part 7:

Brake Hold System Part 8:

Brake Hold System Part 9:

Brake Hold System Part 10:

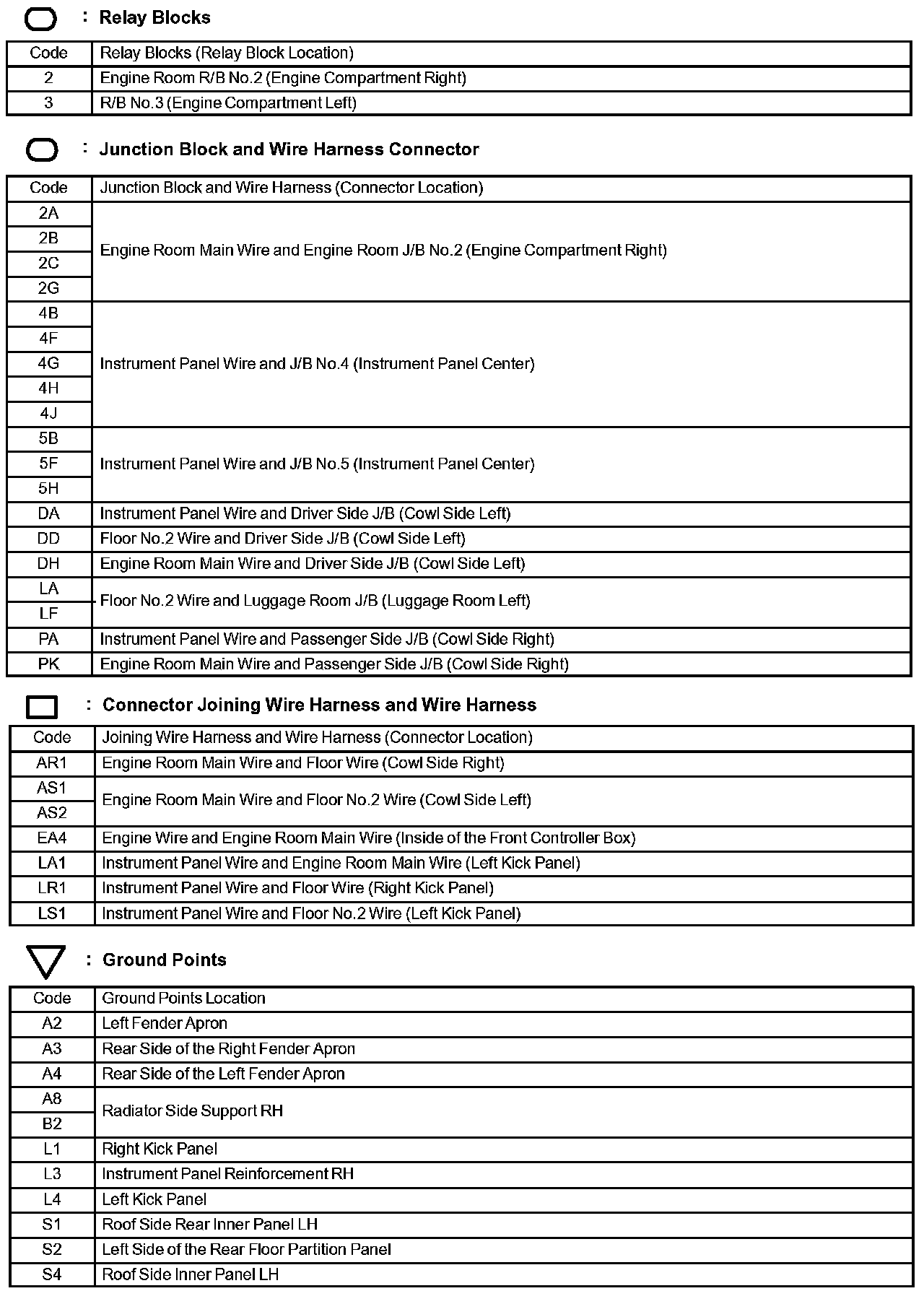

Diagram Legend:
