Home >> Lexus >> 2007 >> LS 460 V8-4.6L (1UR-FSE) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By Connector Number >> OR1 - RL1

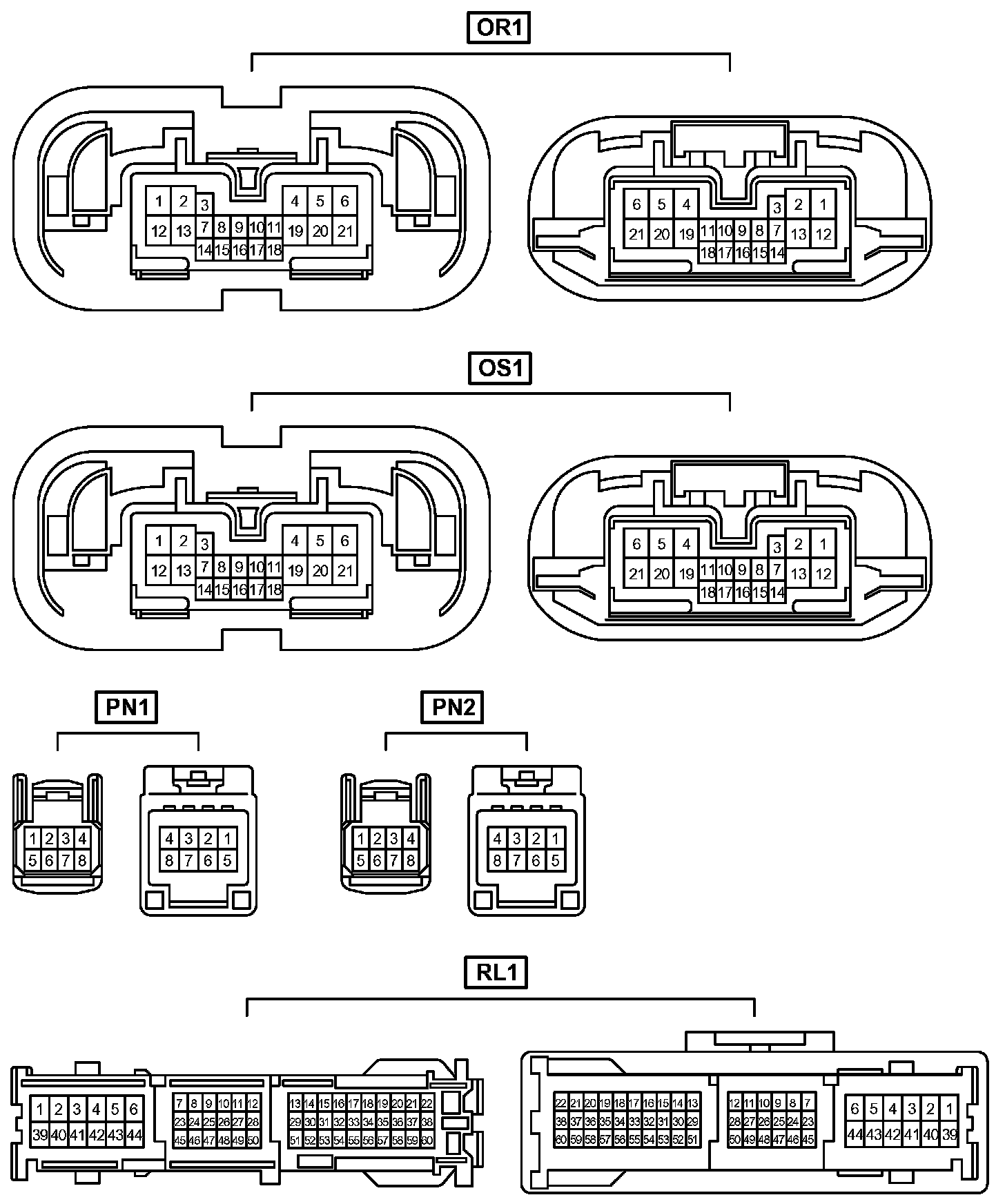

OR1 - RL1

OR1 - RL1:
