FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Lexus
>>
2007
>>
LS 460 V8-4.6L (1UR-FSE)
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Dynamic Radar Cruise Control System
Dynamic Radar Cruise Control System

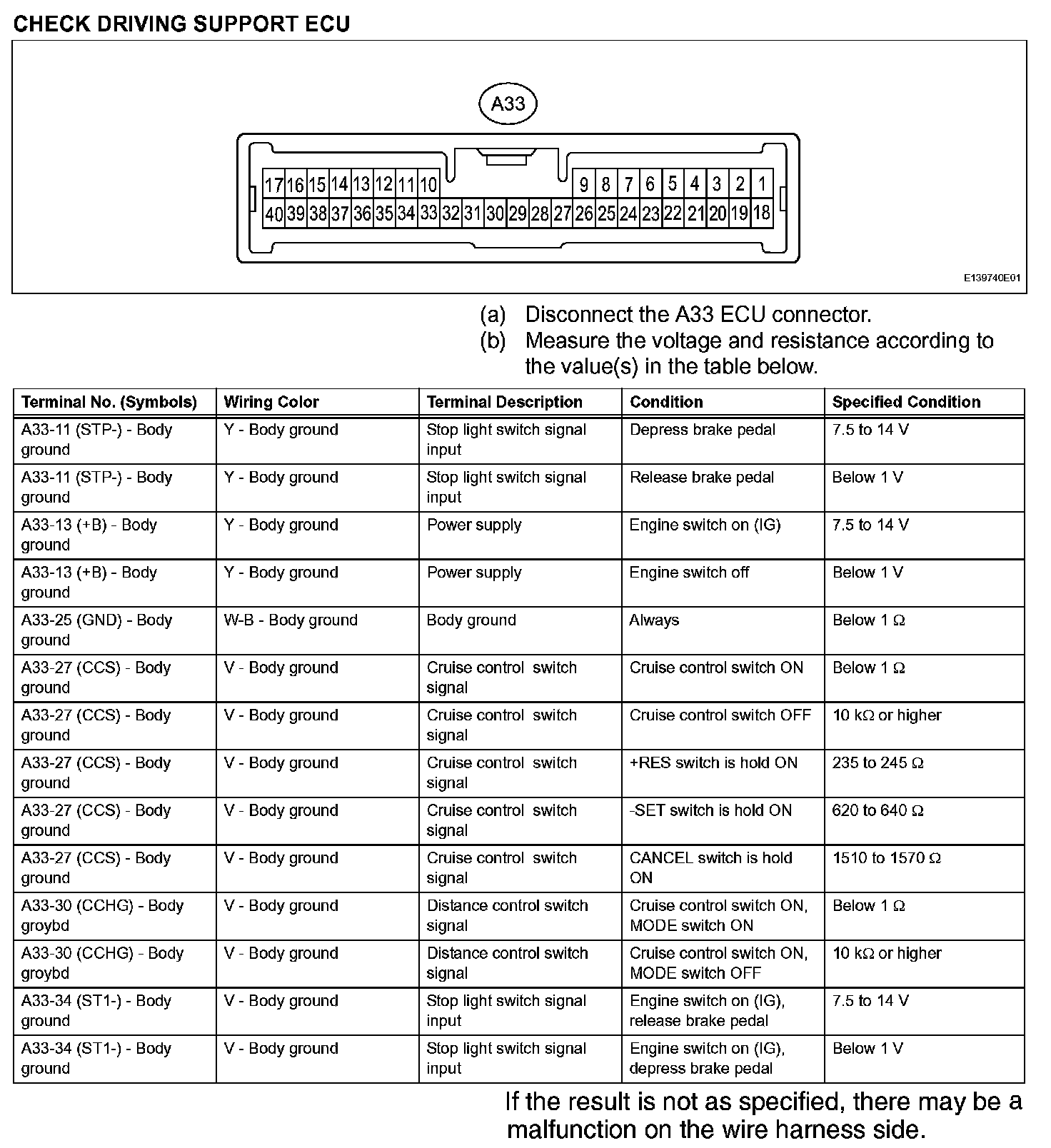

Terminals Of Control Module/Pinouts - Check Driving Support ECU:
