Cruise Control System

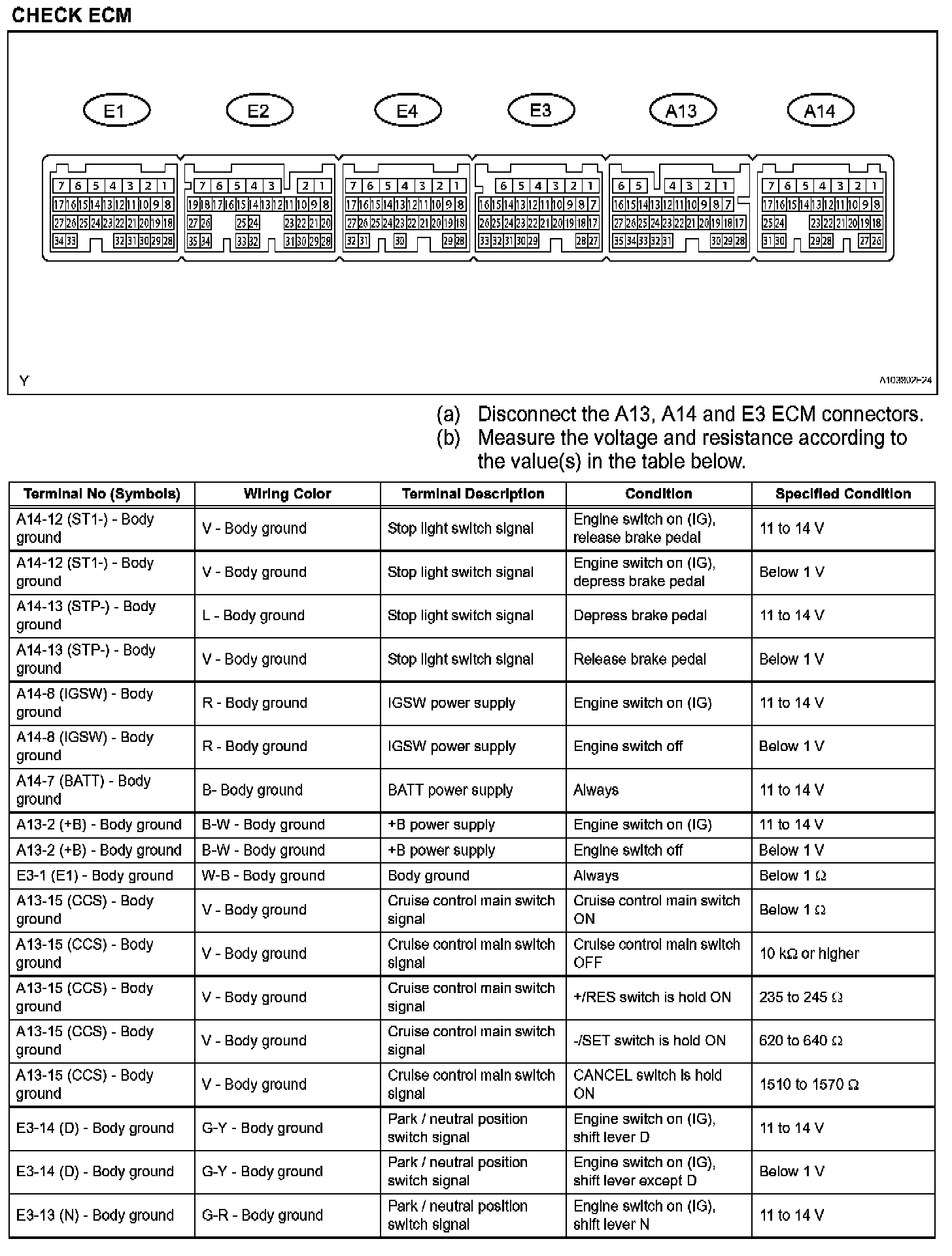

Terminals Of ECM/Pinouts - Check ECM (Part 1):

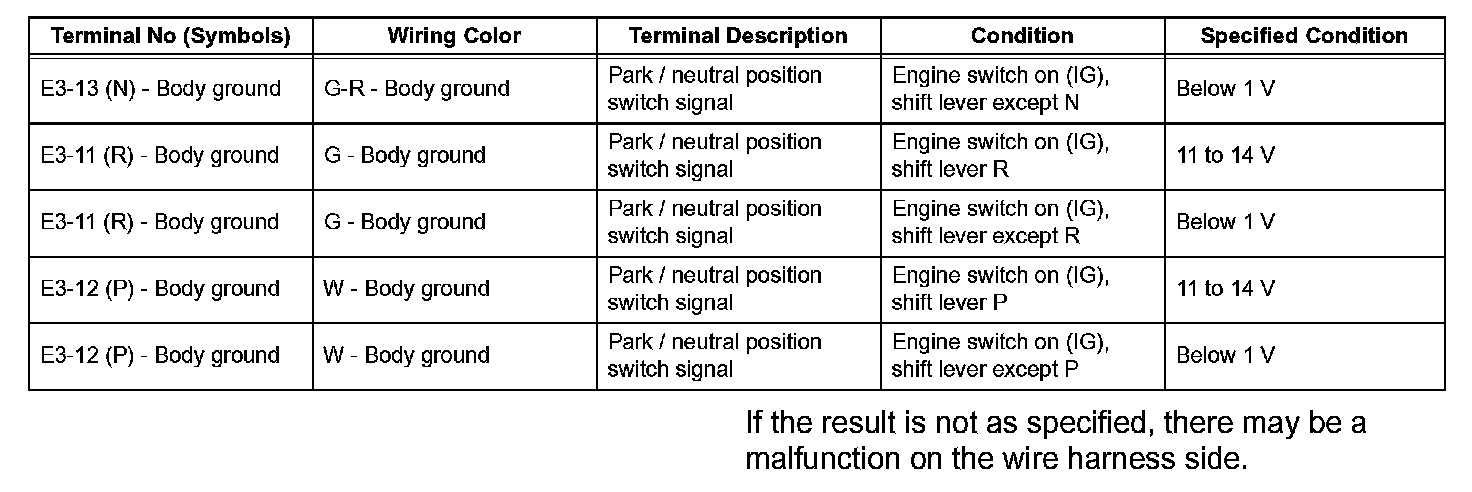

Terminals Of ECM/Pinouts - Check ECM (Part 2):
