Road Test
ROAD TEST1. INSPECT SET SWITCH

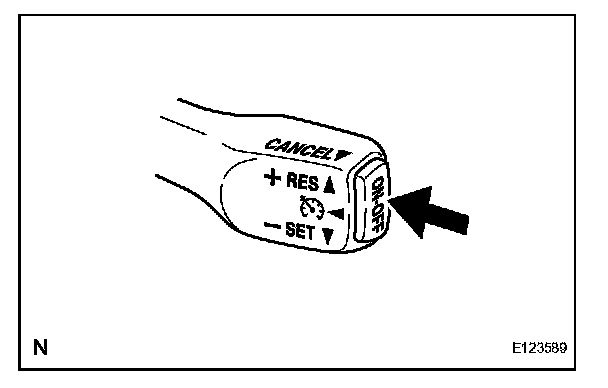

a. Push the cruise control switch ON.
b. Drive at a desired speed (40 km/h (25 mph) or higher).

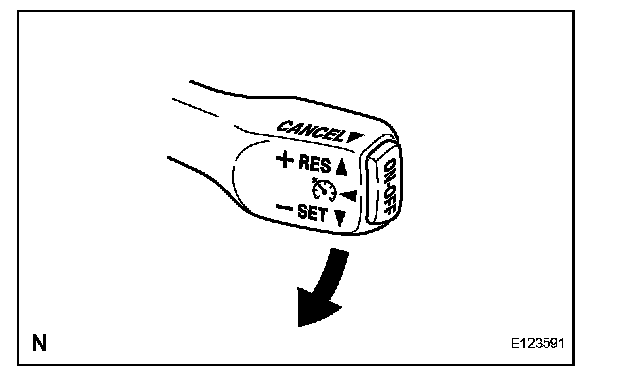

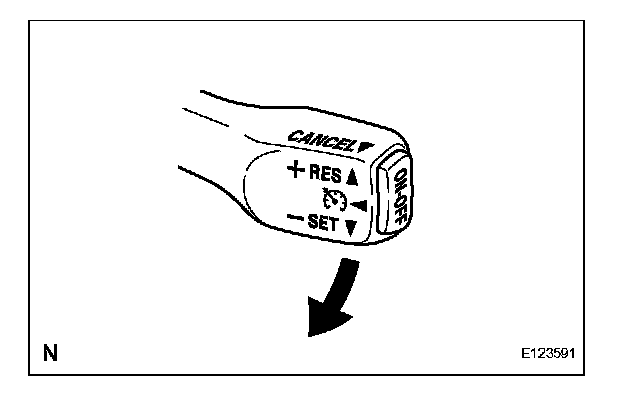

c. Press the main switch to the -/SET.
d. After releasing the switch, check that the vehicle cruises at the desired speed.
2. INSPECT "+" SWITCH

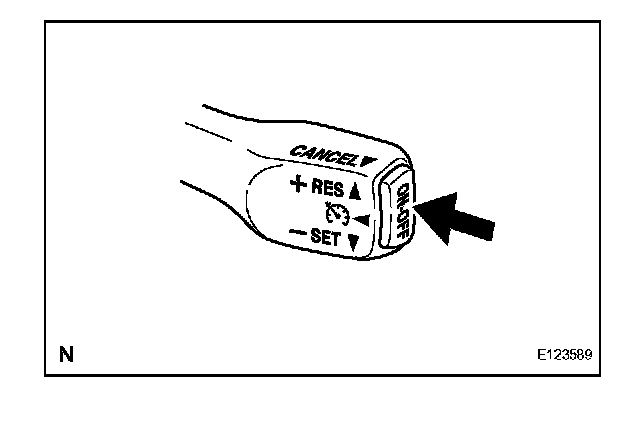

a. Push the cruise control switch button to ON.
b. Drive at a desired speed (40 km/h (25 mph) or higher).

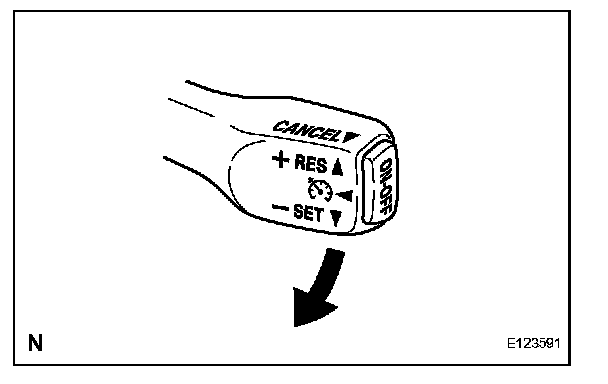

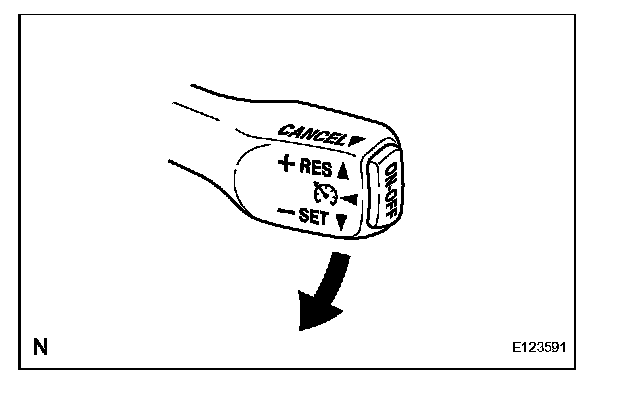

c. Press the main switch to the -/SET.

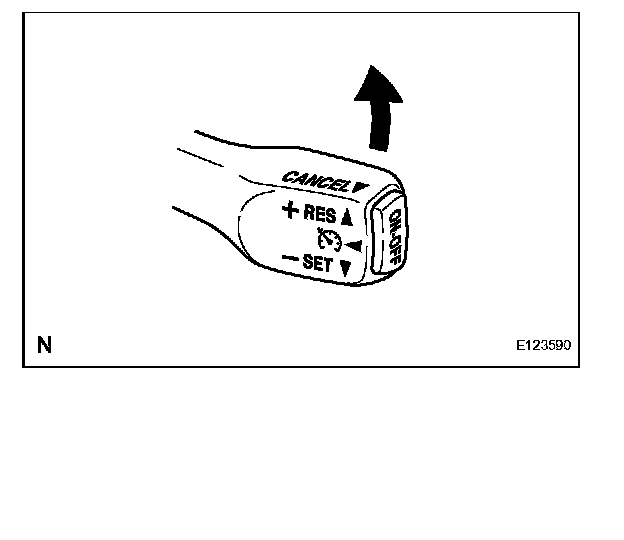

d. Check that the vehicle speed increases while the main switch is pulled up to +/RES, and that the vehicle cruises at the set speed when the switch is released.
e. Momentarily press the main switch upward to +/ RES and then immediately release it. Check that the vehicle speed increases by about 1.6 km/h (1.0 mph) (Tap-up function).
3. INSPECT "-" SWITCH
a. Push the cruise control switch button to ON.
b. Drive at a desired speed (40 km/h (25 mph) or higher).
c. Press the main switch to the -/SET.
d. Check that the vehicle speed decreases while the main switch is pushed down to -/SET, and the vehicle cruises at the set speed when the switch is released.
e. Momentarily press the main switch downward to -/ SET, and then immediately release it. Check that the vehicle speed decreases by about 1.6 km/h (1.0 mph) (Tap-down function).
4. INSPECT CANCEL SWITCH

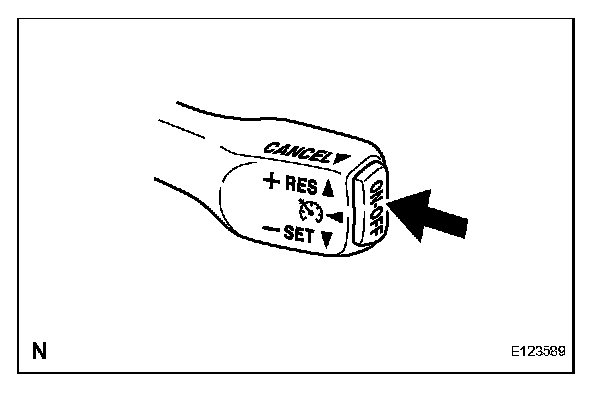

a. Push the cruise control switch button to ON.
b. Drive at a desired speed (40 km/h (25 mph) or higher).
c. Press the main switch to the -/SET.
d. When performing one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.
- Depress the brake pedal
- Pushing the cruise control switch OFF

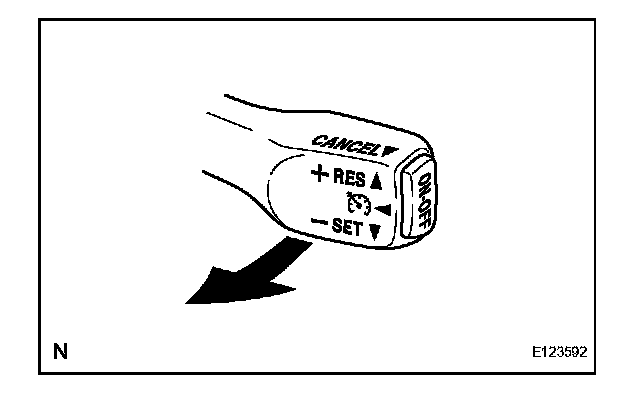

- Turn the cruise main switch to CANCEL
- Moving the shift lever to any position except D (8th, 7th, 6th, 5th or 4th gear)
5. INSPECT RES (RESUME) SWITCH

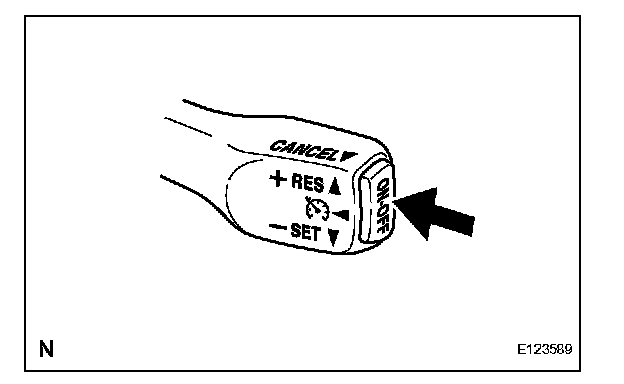

a. Push the cruise control switch button to ON.
b. Drive at a desired speed (40 km/h (25 mph) or higher).

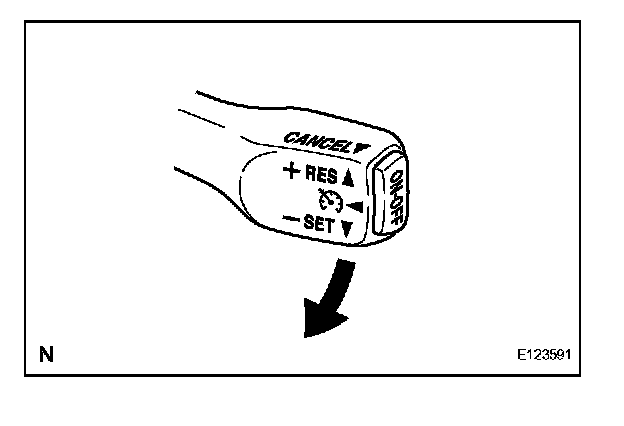

c. Press the main switch to the -/SET.
d. When performing one of the following, check that the cruise control system is canceled and that the normal driving mode is reset.
- Depress the brake pedal
- Pushing the cruise control switch OFF
- Moving the shift lever to any position except D (8th, 7th, 6th, 5th or 4th gear)

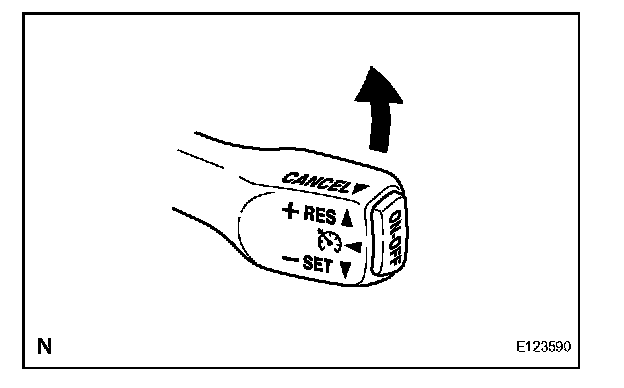

e. After the main switch is pulled up to +/RES at a driving speed of more than 40 km/h (25 mph), check that the vehicle restores the speed before the cancellation.
