TC and CG Terminal Circuit

TC and CG Terminal Circuit

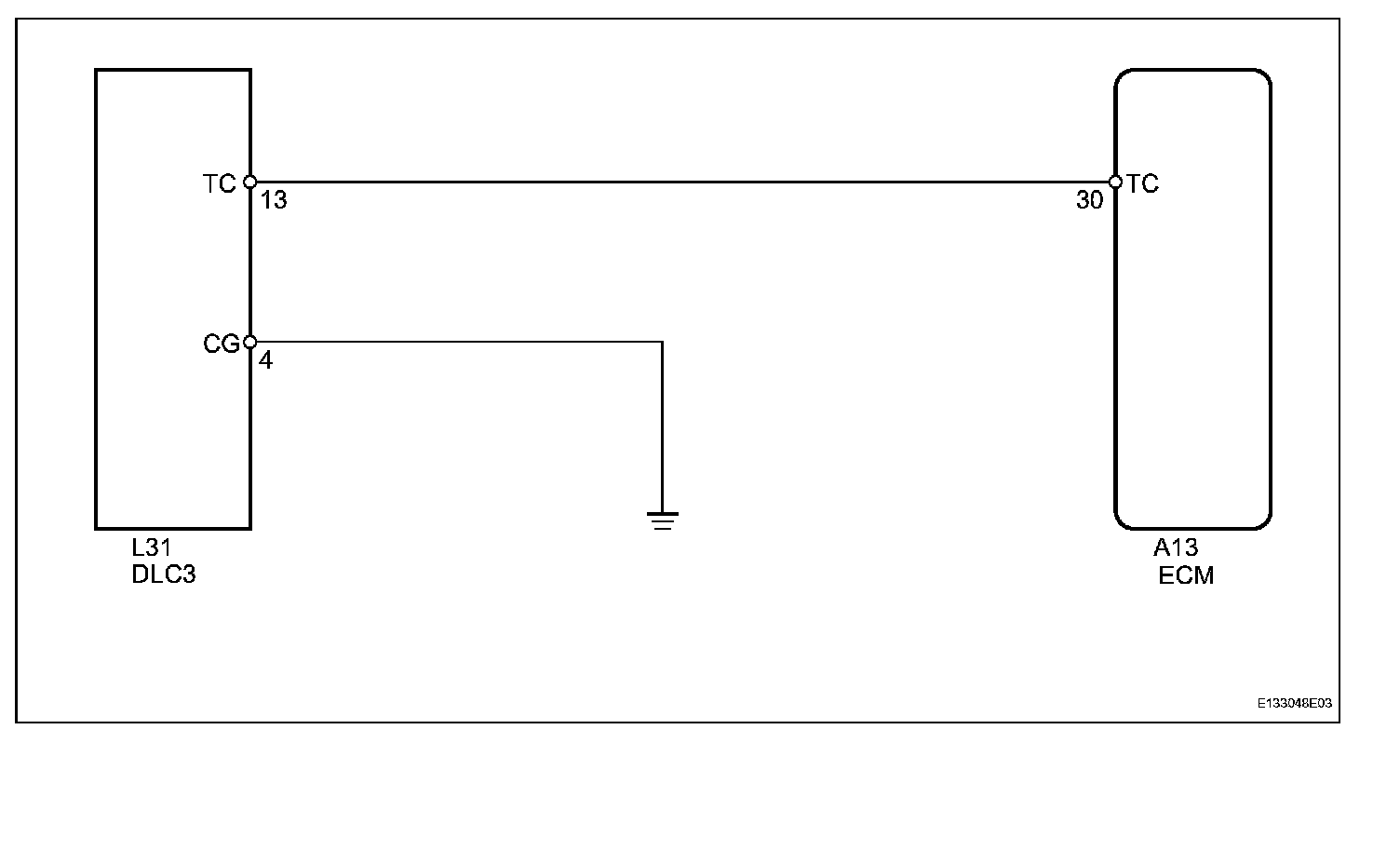

Wiring Diagram:

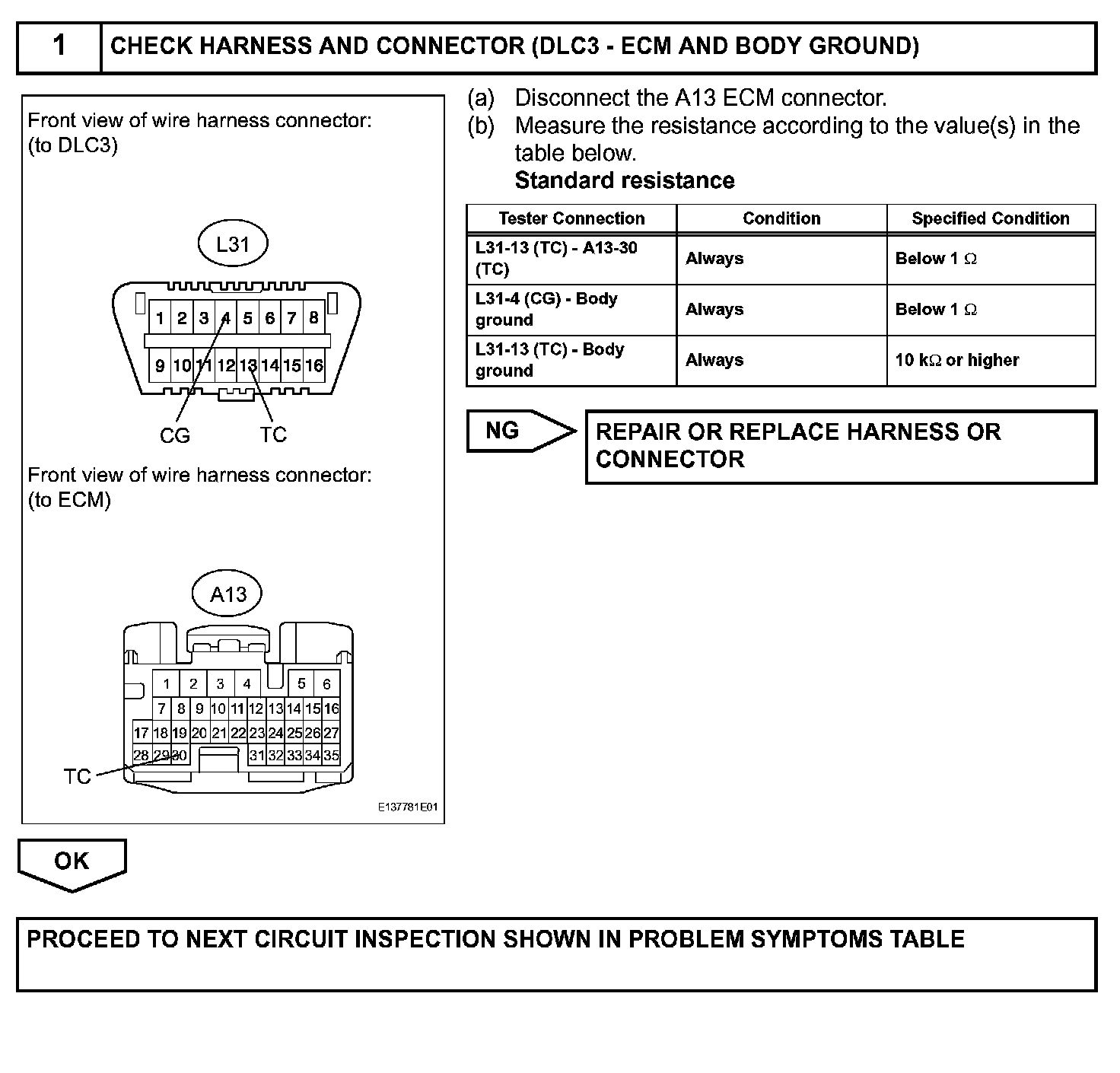

Step 1:

INSPECTION PROCEDURE
