Cruise Control Switch Circuit
Cruise Control Switch CircuitDESCRIPTION
This circuit sends a signal to the ECM depending on the cruise control main switch condition. The battery supplies positive (+) battery voltage to the circuit control main switch Then terminal CCS of the ECM receives the voltage according to the switch condition.

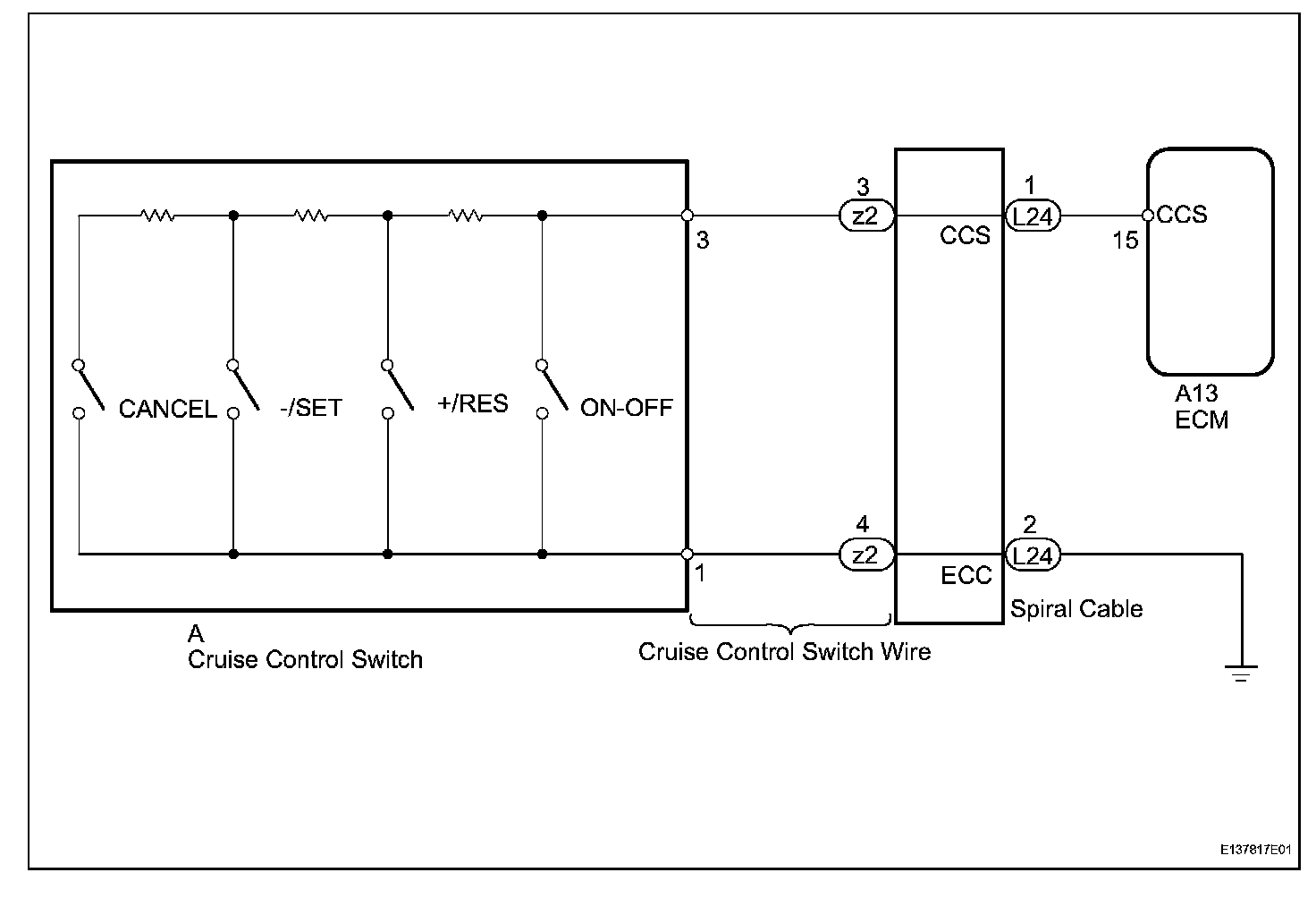

Wiring Diagram:

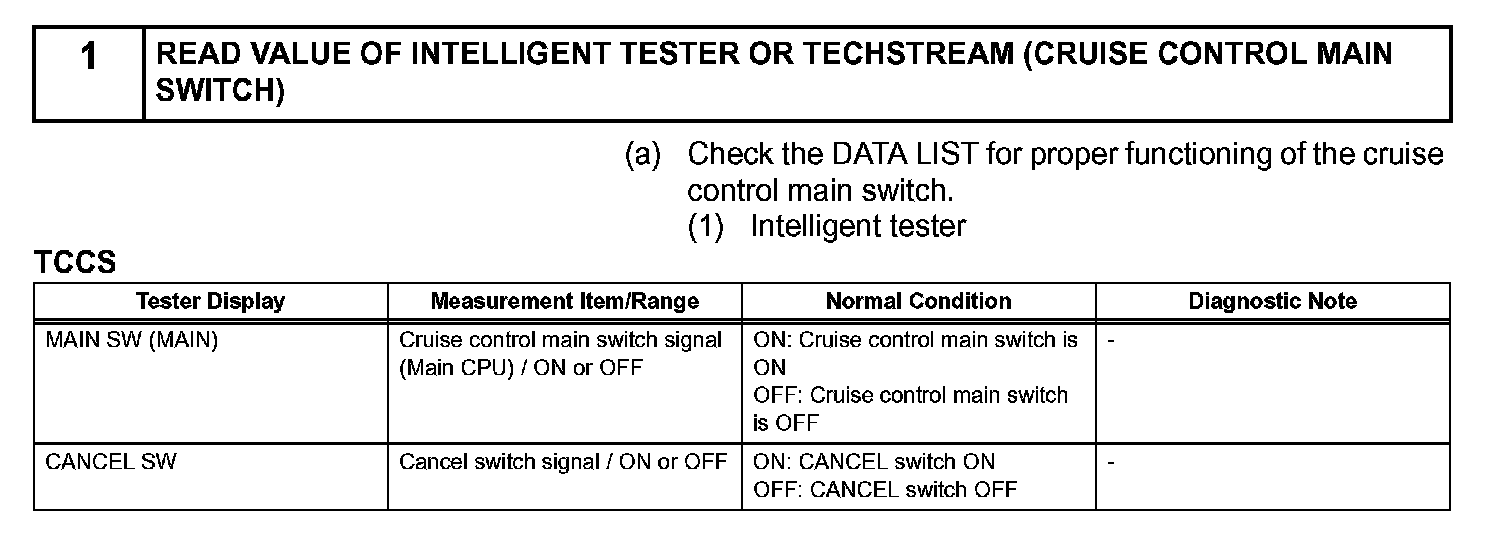

Step 1:

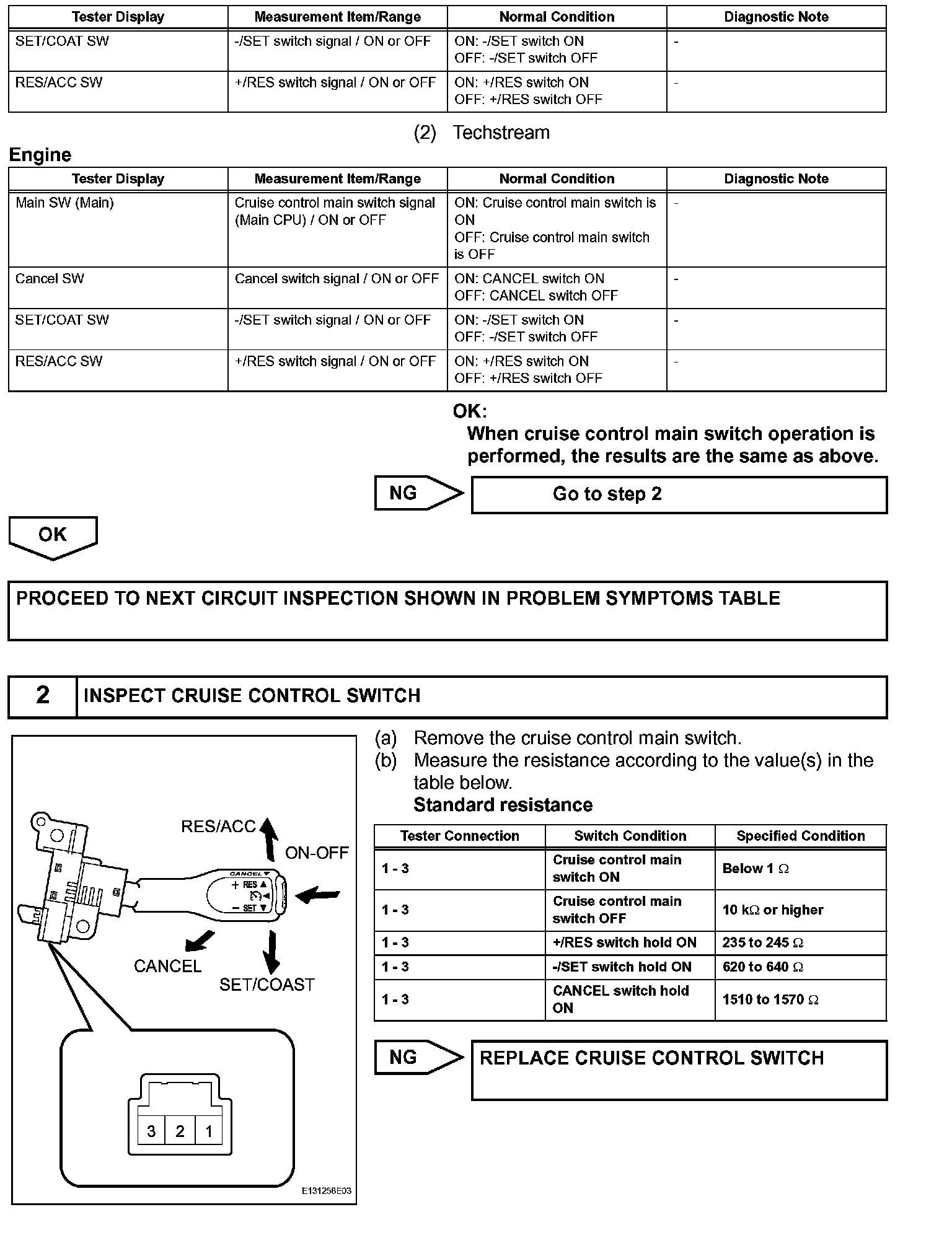

Step 1 (Continued)-2:

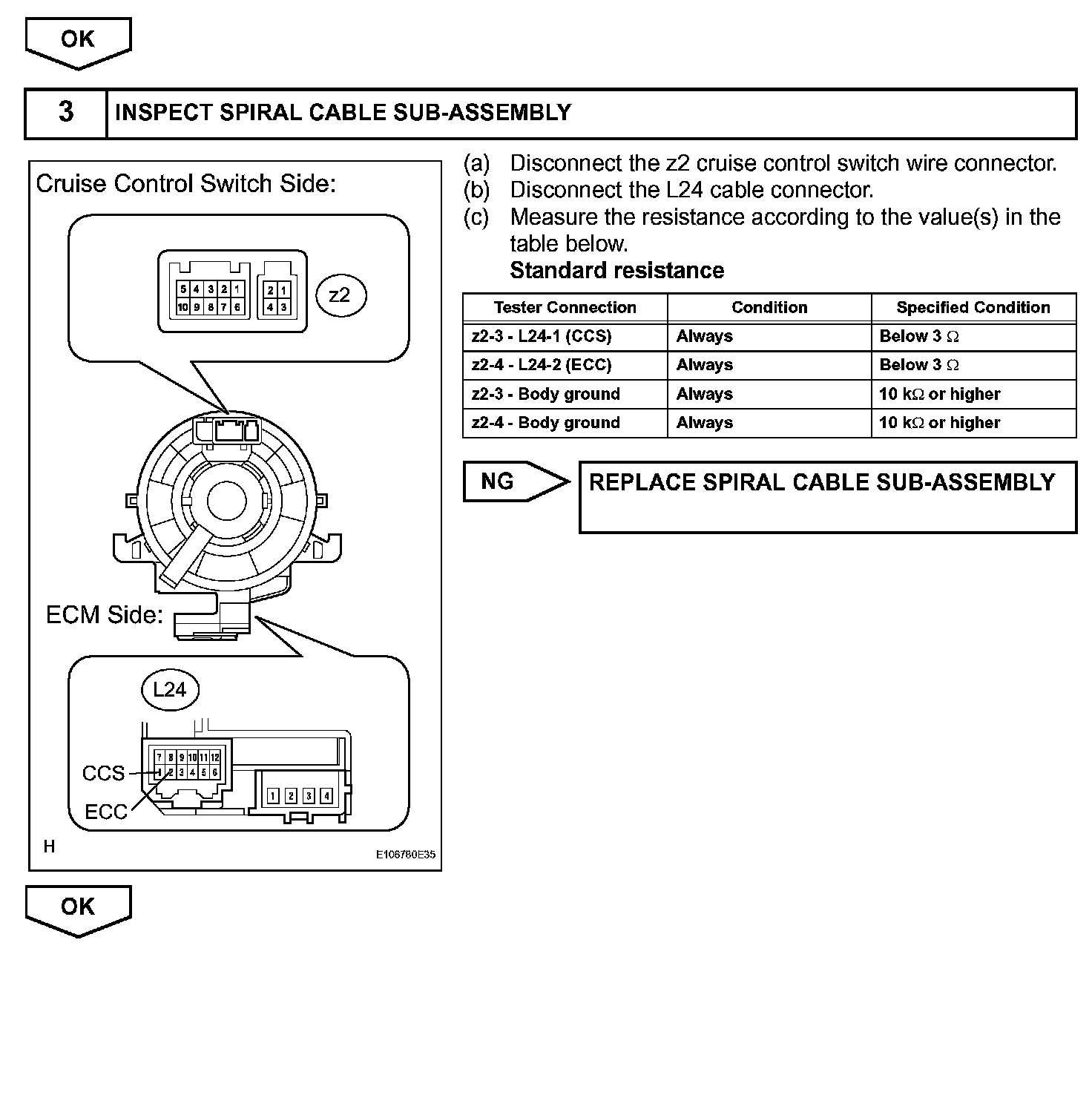

Step 2 (Continued)-3:

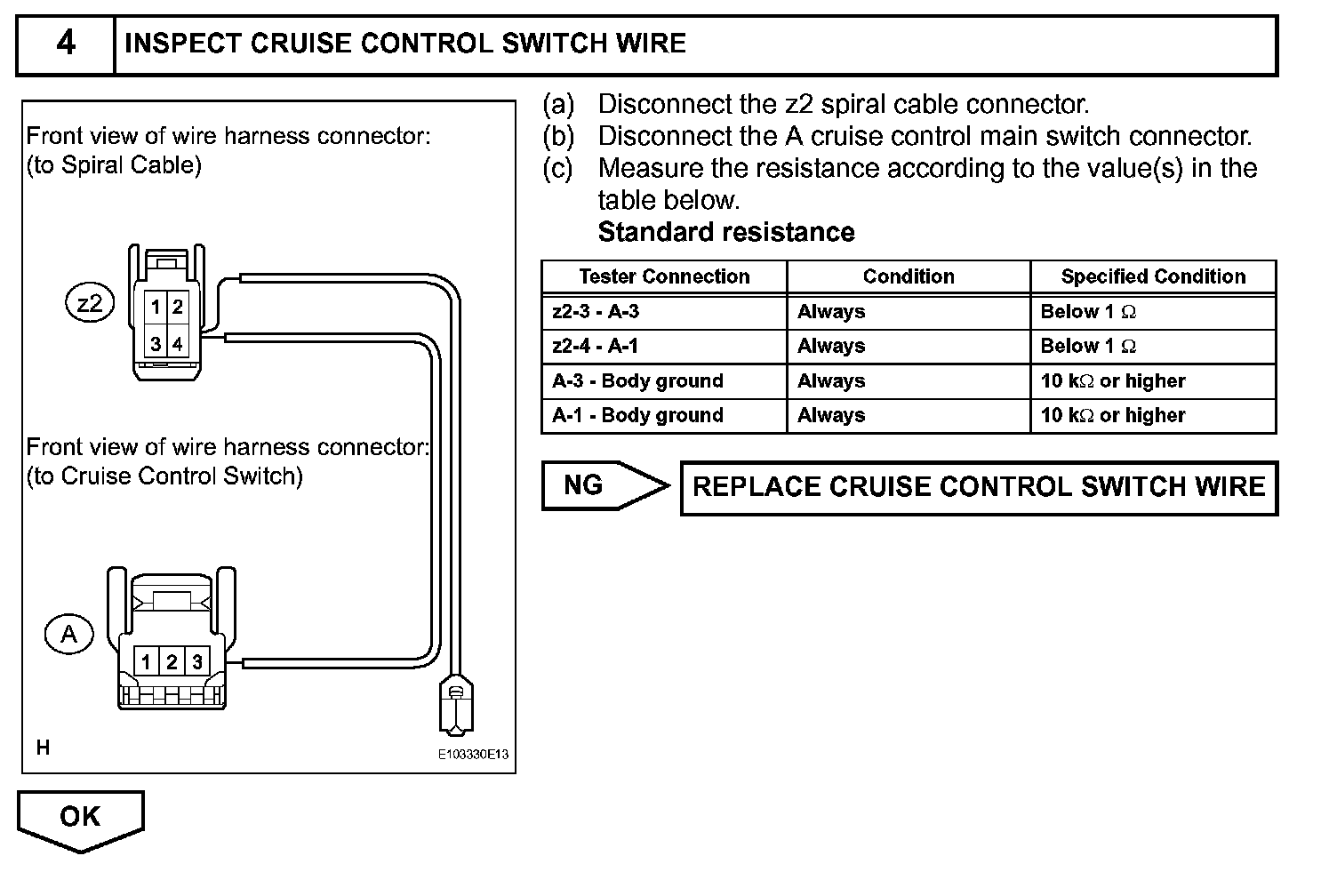

Step 4:

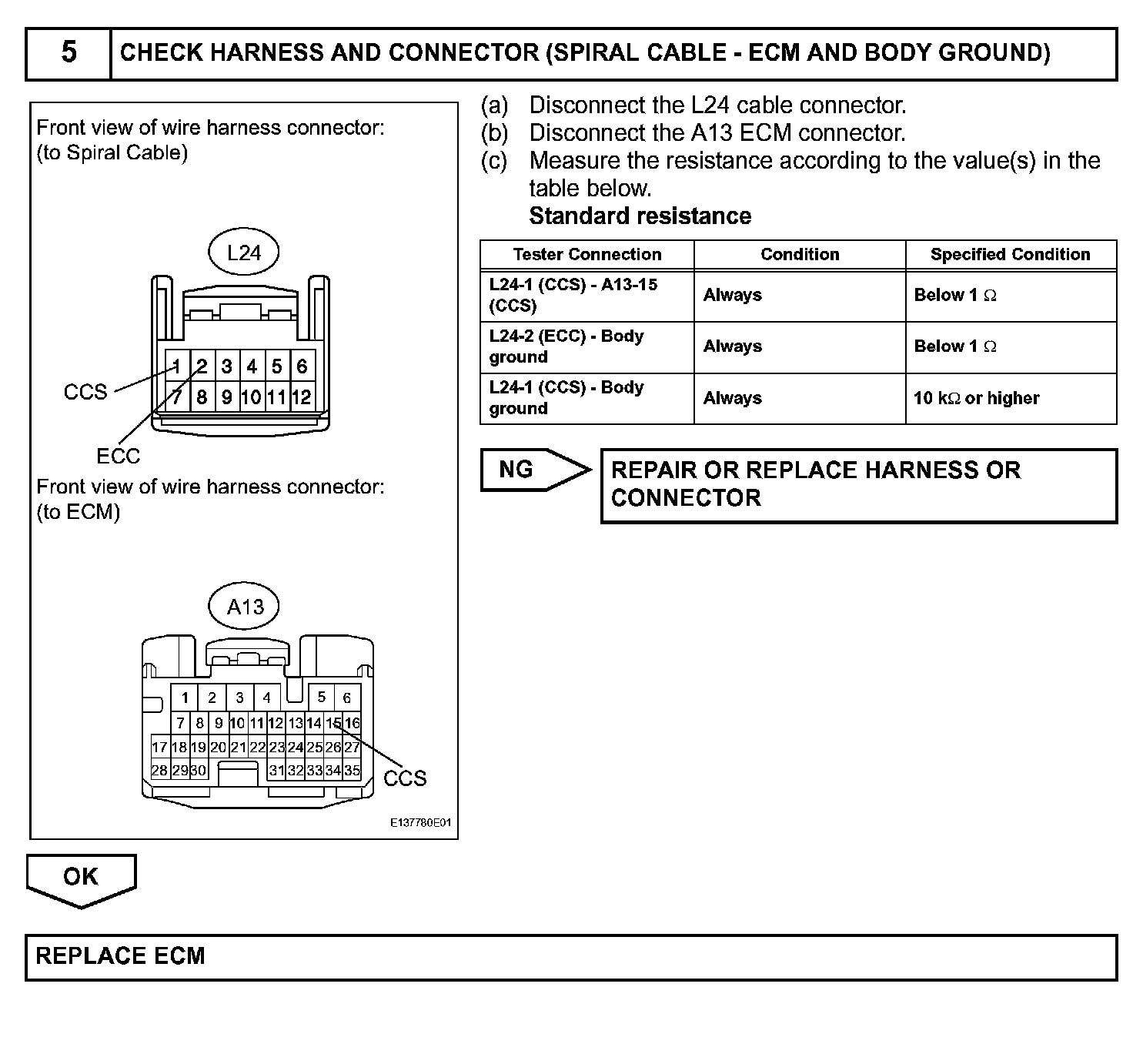

Step 5:
INSPECTION PROCEDURE
