Scan Tool Testing and Procedures

FREEZE FRAME DATA
1. FREEZE FRAME DATA
^ If a DTC is output, the freeze frame data is recorded when the DTC occurs.
^ If freeze frame data is recorded when a DTC occurs, the freeze frame data is not cleared or updated until the recorded DTC is cleared.
(a) Using the intelligent tester or Techstream, the condition of the vehicle (sensors) when the system is operating or when the malfunction DTC was recorded can be checked.
(1) Intelligent tester

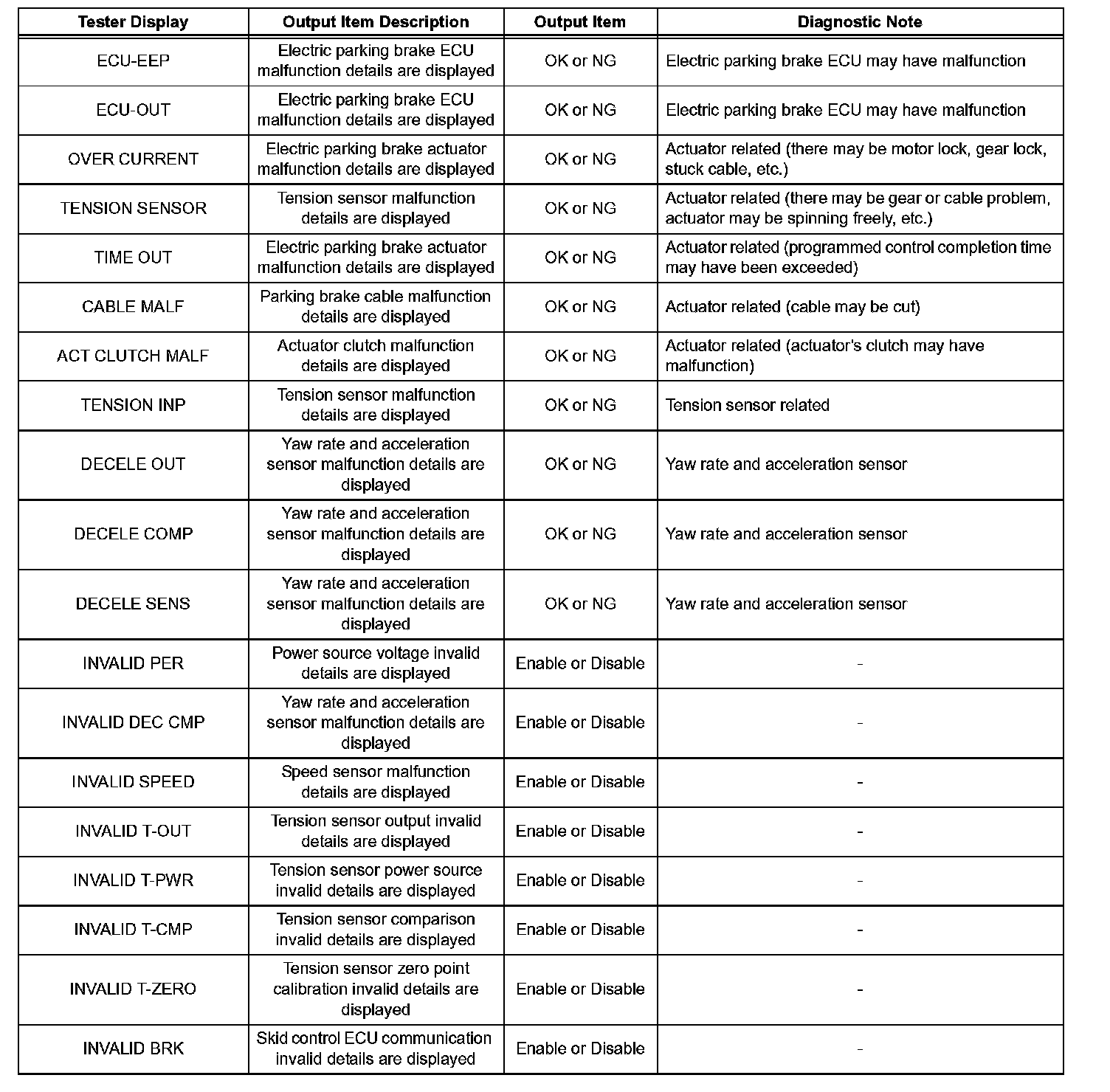

Part 1:

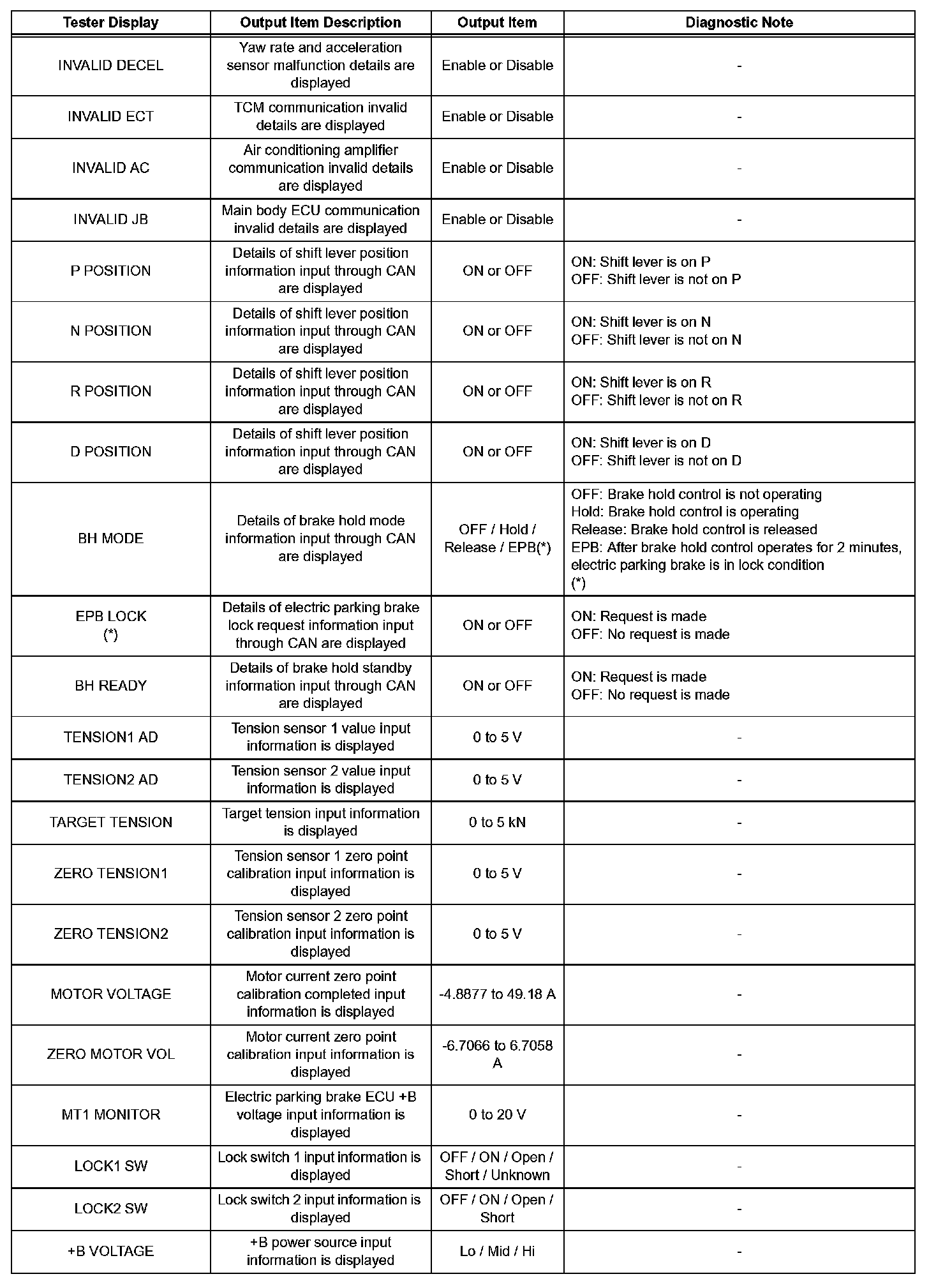

Part 2:

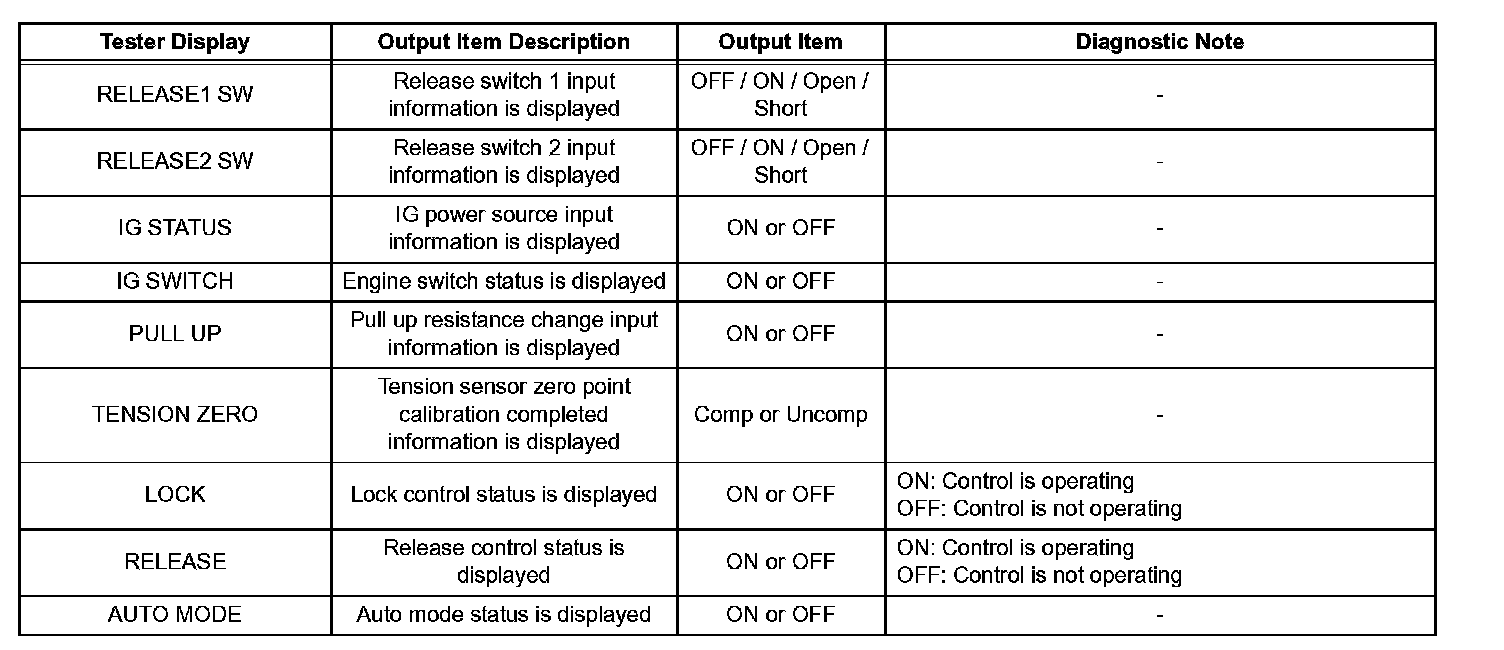

Part 3:

HINT: *: EPB stands for electric parking brake.

(2) Techstream

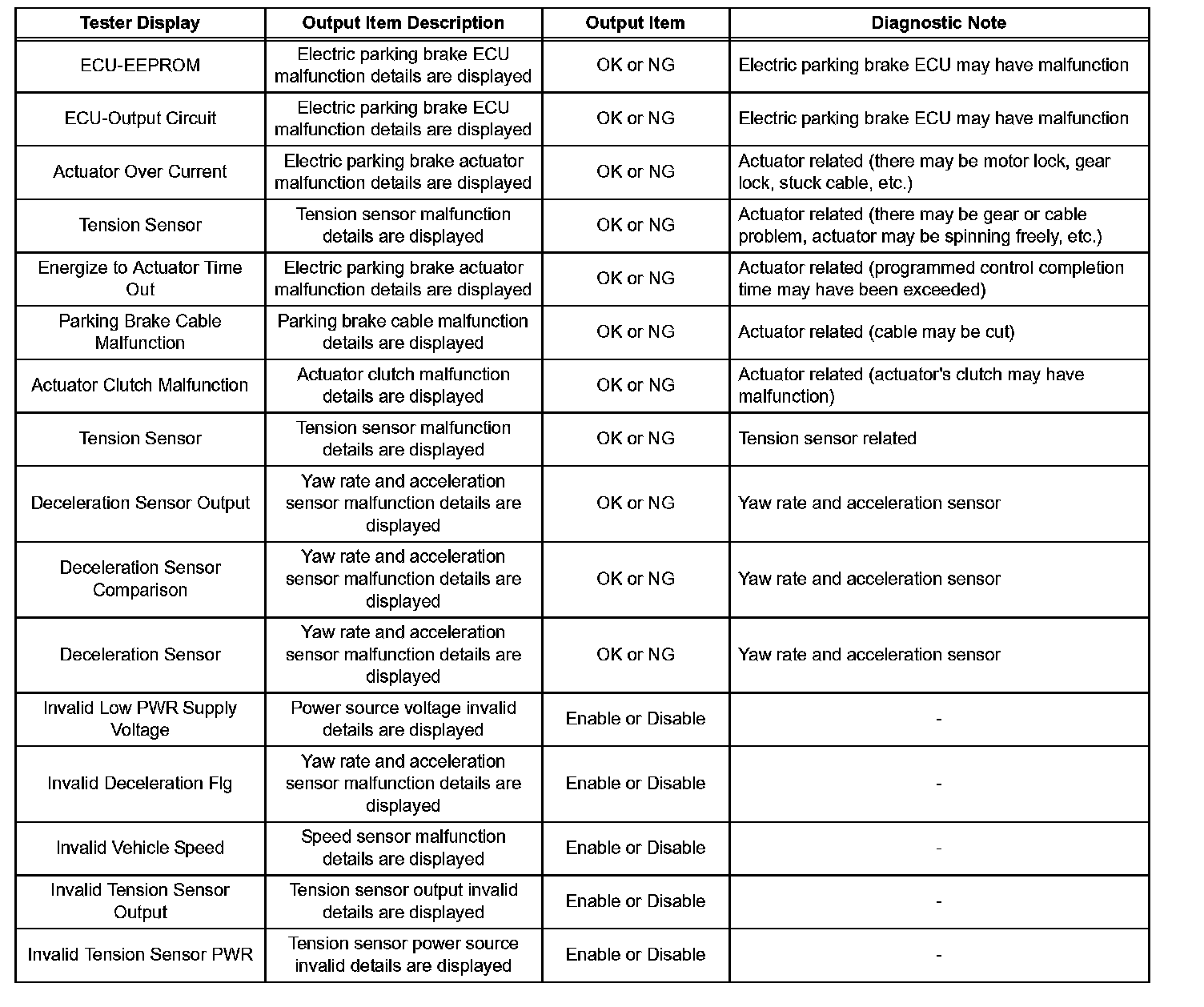

Part 1:

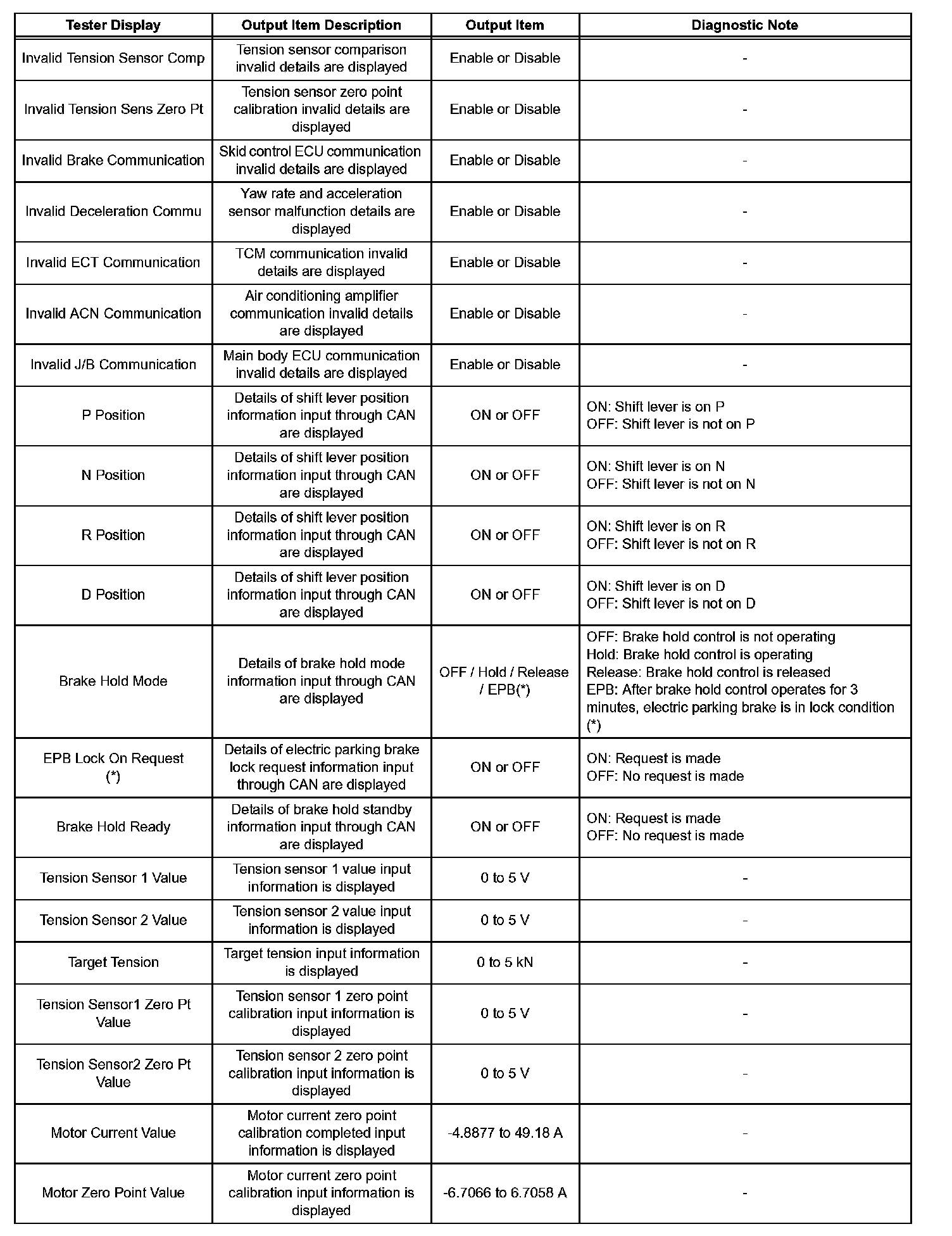

Part 2:

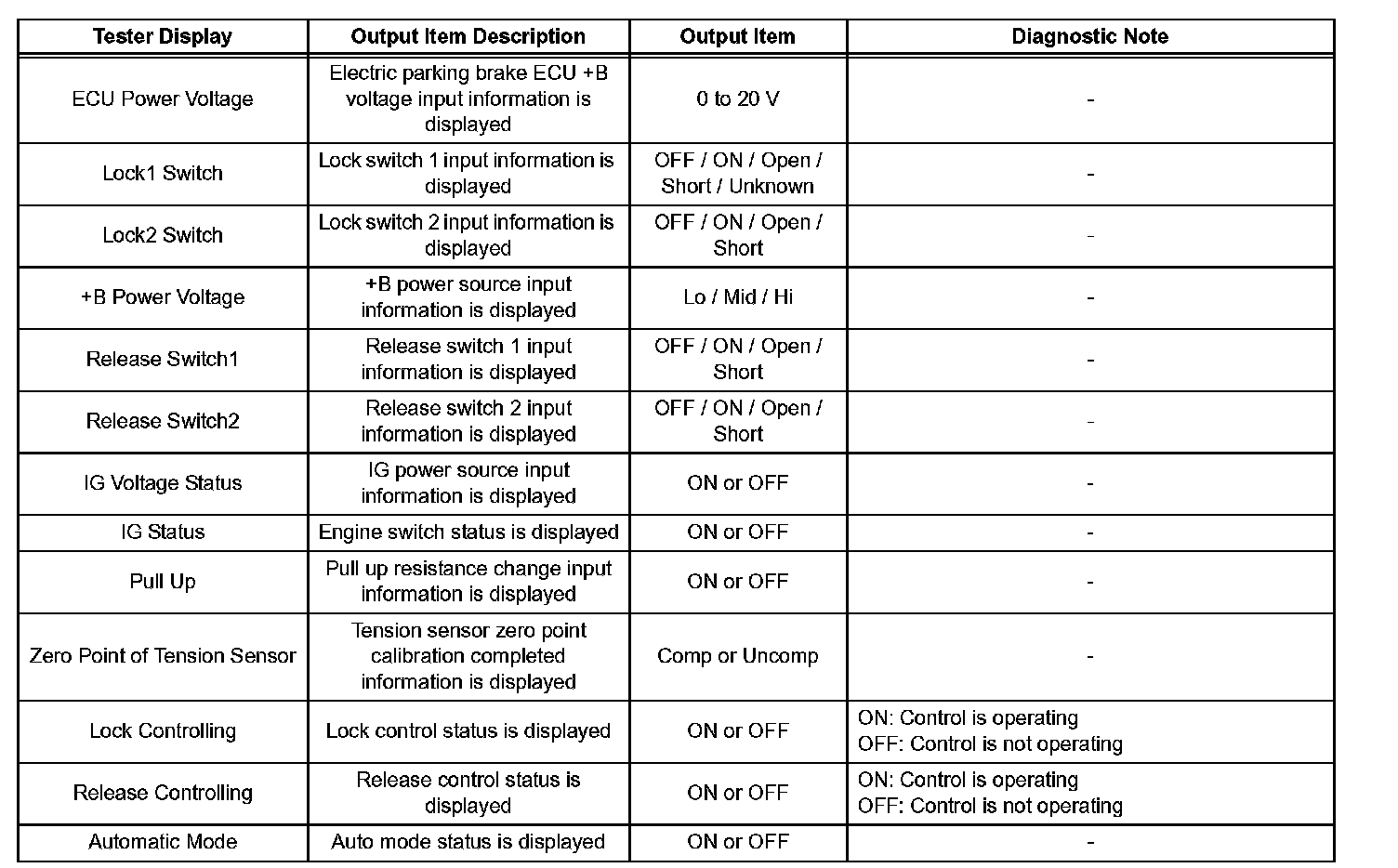

Part 3:

HINT: *: EPB stands for electric parking brake.
