Electric Parking Brake Auto Switch Light Circuit

Electric Parking Brake AUTO Switch Light Circuit

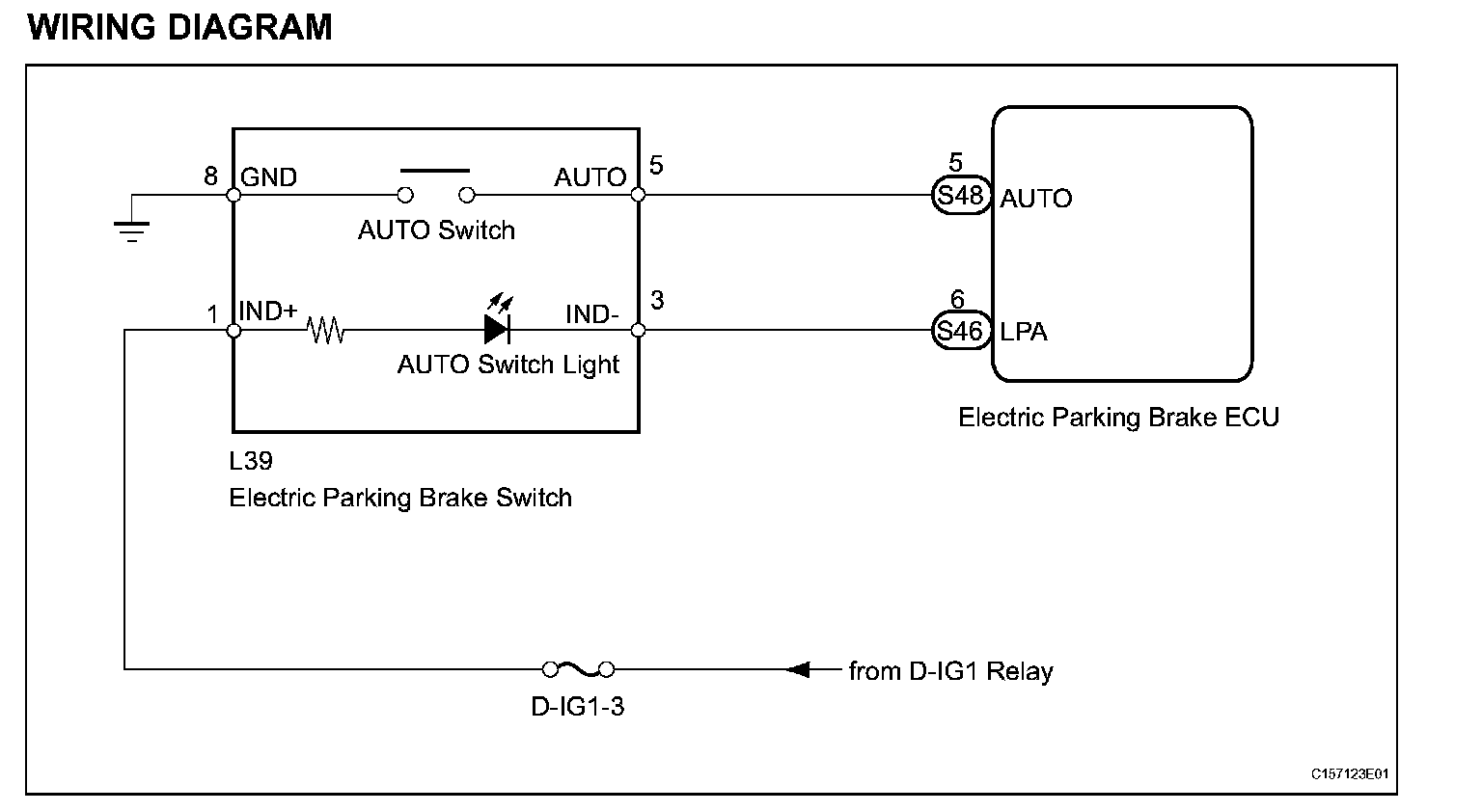

WIRING DIAGRAM:

INSPECTION PROCEDURE

NOTICE:
^ If the electric parking brake ECU or electric parking brake actuator is replaced, perform the "RESET MEMORY" and "ACQUIRE TENSION SENSOR ZERO POINT" procedures.
^ Before disconnecting connectors or fuses, turn the engine switch off and wait 20 seconds or more.

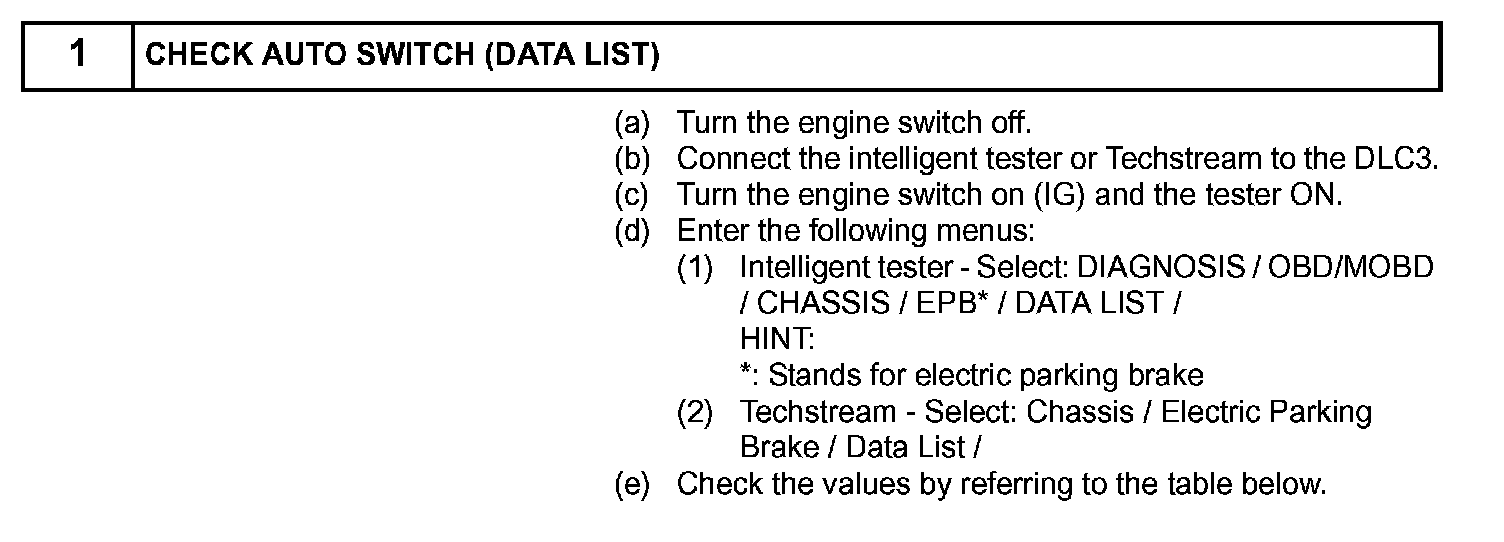

Step 1:

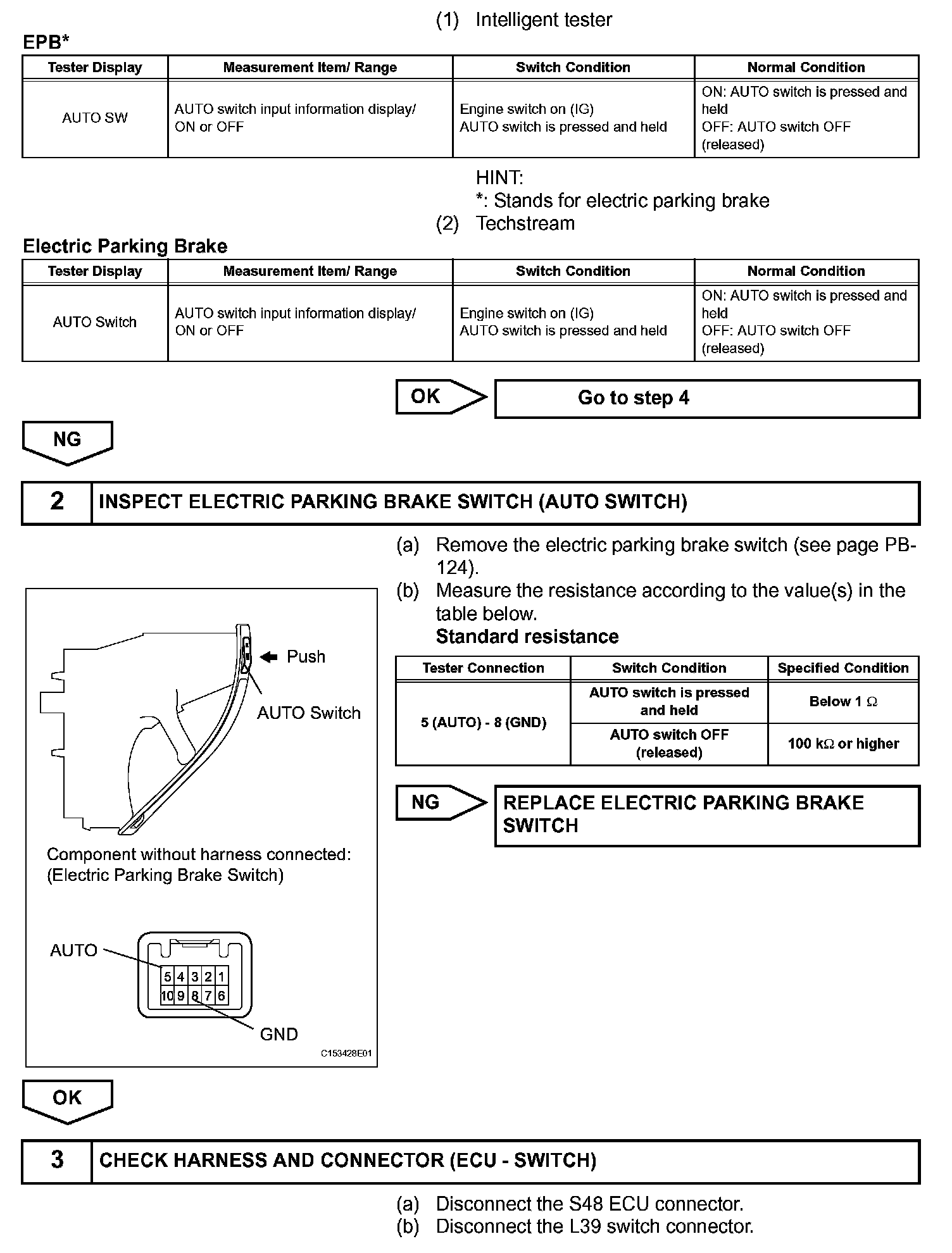

Step 1 Continued, Step 2-3:

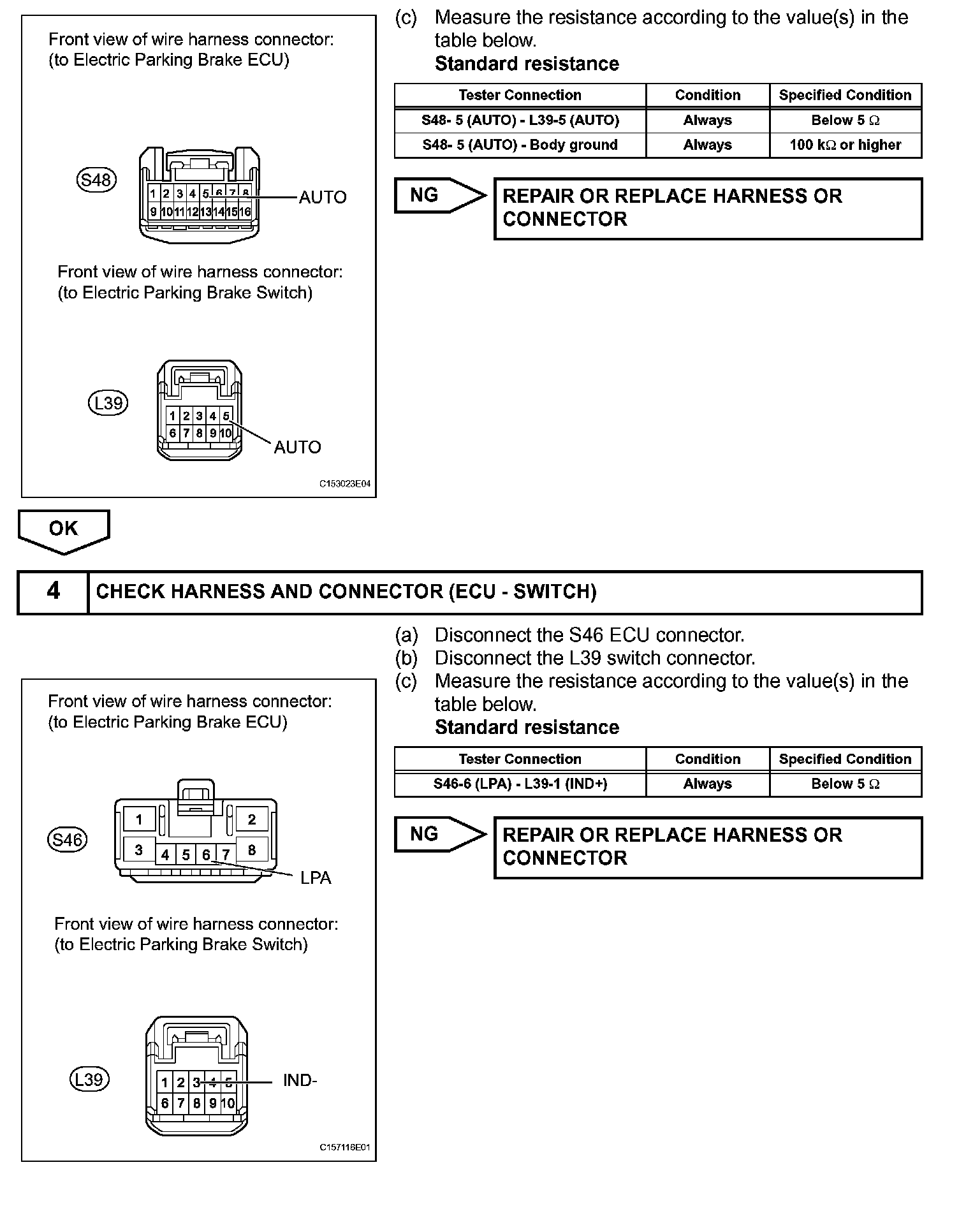

Step 3 Continued, Step 4:

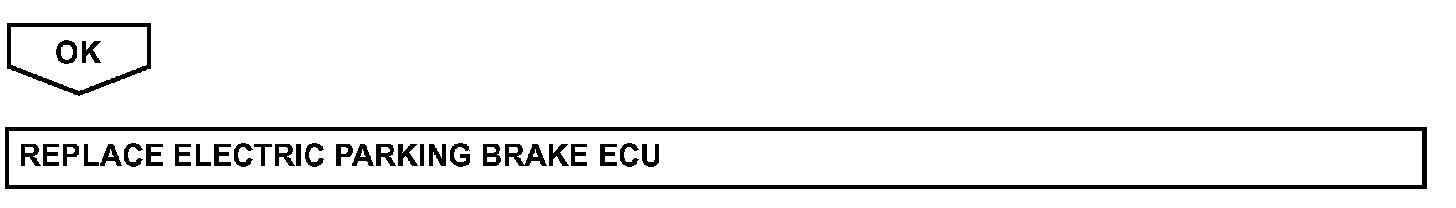

Step 4 Continued:
