Without Scan Tool

DTC CLEAR (WHEN USING SST CHECK WIRE)

DTC check

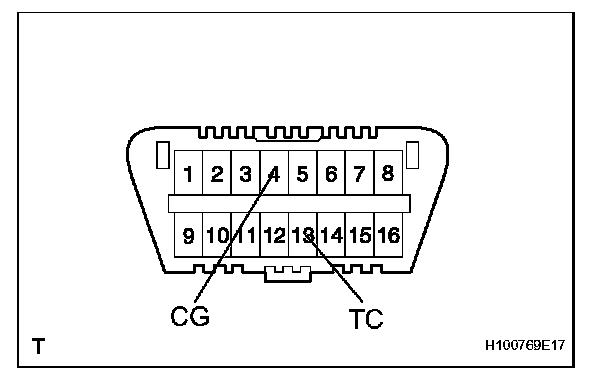

1. Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3.

SST 09843-18040

2. Turn the engine switch on (IG).
3. Read DTC from the ABS warning light on the combination meter and multi-information display.

HINT: If no code appears, inspect the TC and CG terminal circuit, ABS warning light and brake warning light / yellow (minor malfunction) circuits and brake hold standby indicator light circuit.

Trouble Area
TC and CG terminal circuit
ABS warning light circuit
Brake warning light / yellow (minor malfunction) circuit
Brake hold standby indicator light circuit

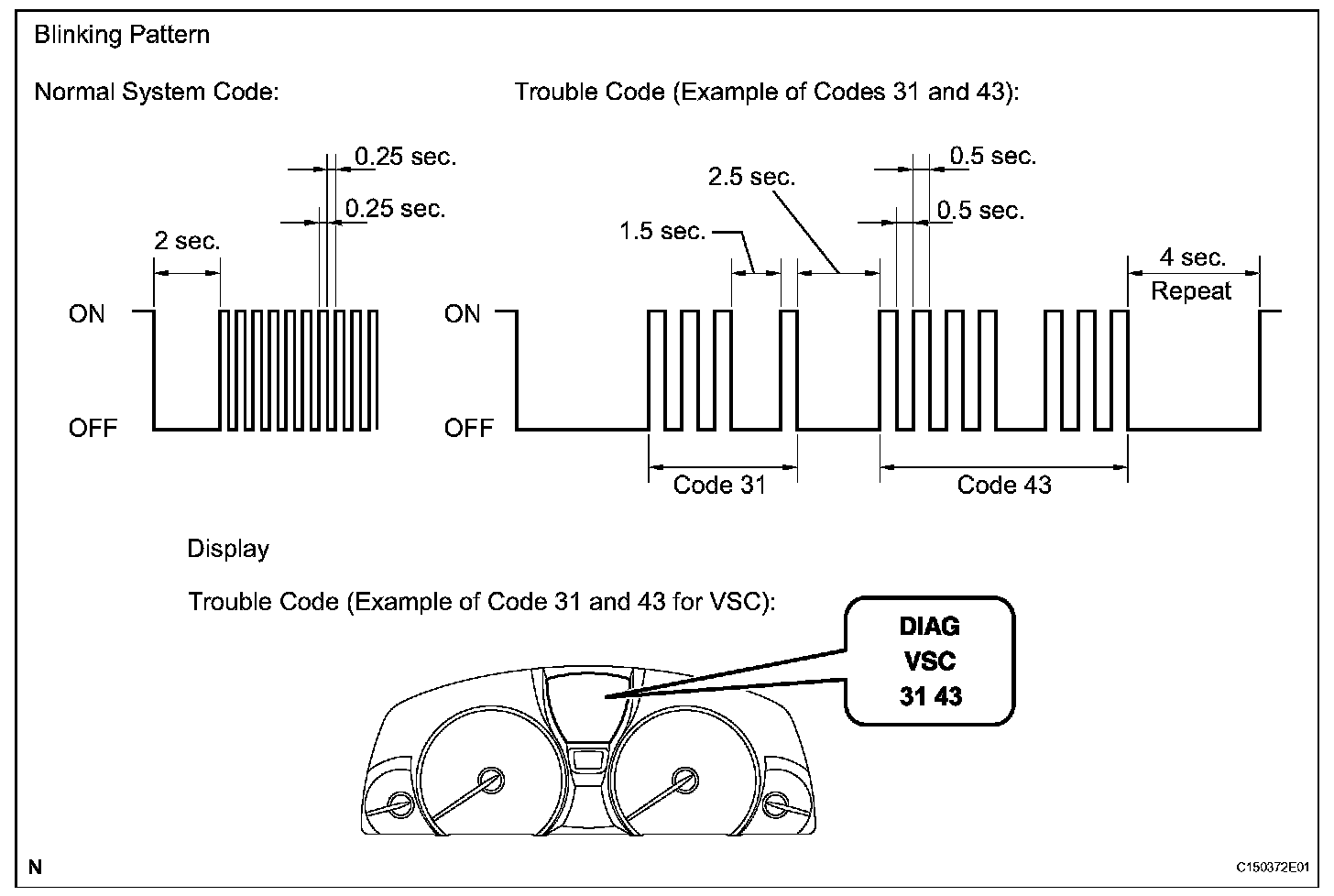

4. As an example, the illustration shows the blinking patterns of the normal system code and trouble codes 31 and 43, and display of the normal system code and trouble code 31 on the multi-information display.
5. The codes are explained in the code table.
6. After completing the check, disconnect terminals TC and CG of the DLC3, and turn the display off. If 2 or more DTCs are detected at the same time, the DTCs will be displayed in ascending order.

END OF DTC CHECK (WHEN USING SST CHECK WIRE)

a. Turn the engine switch on (IG).
b. Check that the ABS warning light, brake warning light / yellow (minor malfunction) and brake hold standby indicator light illuminate. After the engine is started, check that they turn off.
